Clinching machines are industrial fastening tools that permanently join two or more layers of sheet metal without the use of additional fasteners such as rivets, bolts, or welding. The clinching process works by pressing a punch through stacked metal sheets into a die, which deforms the material and creates a locked, button-shaped joint. The result is a strong, clean mechanical connection that can be made quickly and repeatedly on a production line. Clinching is widely used in sheet metal fabrication, automotive manufacturing, HVAC, electrical enclosures, and appliance production as a cost-effective alternative to spot welding and pop riveting. This guide covers the main types of clinching machines, what to look for when purchasing, and key applications and features to consider.
Popular Types of Clinching Machines
Clinching machines vary in their actuation method, frame configuration, and production capability. Understanding the differences helps match the right machine to your application.
Mechanical Clinching Machines Mechanical clinching machines use a motor-driven flywheel or crankshaft mechanism to drive the punch through the material. These machines are well suited for high-speed, high-volume production where consistent cycle times are required. Mechanical machines are generally simpler to maintain than hydraulic models and are a common choice for dedicated production lines.
Pneumatic Clinching Machines Pneumatic clinching machines use compressed air to drive the clinching punch. They are lighter, more compact, and easier to integrate into existing production lines than hydraulic machines. Pneumatic machines are ideal for light to medium gauge sheet metal applications and are frequently used in benchtop or handheld configurations for flexible, off-line clinching tasks.

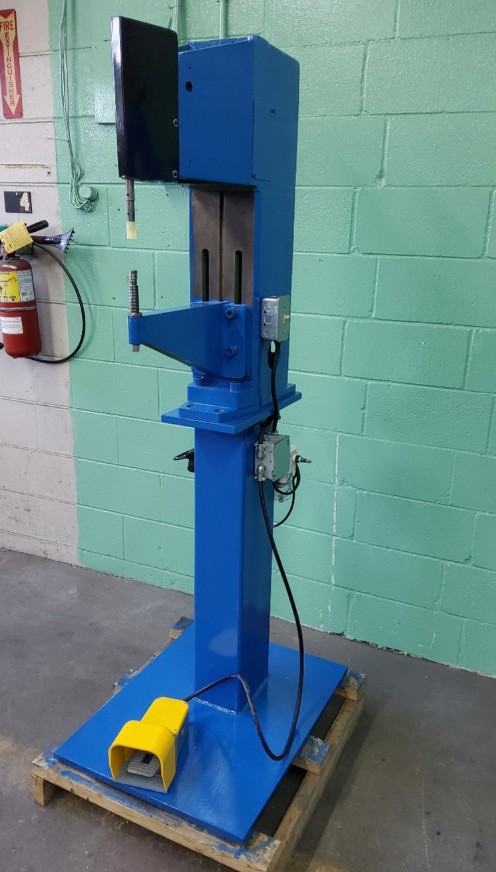

Air-Over-Oil Clinching Machines Air-over-oil clinching machines combine pneumatic and hydraulic actuation, using compressed air to drive a hydraulic cylinder for increased force output. This configuration delivers the speed of pneumatic operation with the force and control of hydraulics. The AKH Fas-Ner is a well-known example of this type, used in applications requiring strong clinch joints in heavier gauge material. Air-over-oil machines are often used as a direct replacement for spot welding or pop riveting in demanding fabrication environments.
Hydraulic Clinching Machines Hydraulic clinching machines use a hydraulic cylinder to generate high clamping and punching force, making them capable of joining thicker or harder materials than pneumatic machines. They are commonly used in heavy-duty sheet metal fabrication where joint strength and material thickness exceed the capacity of air-driven systems.
C-Frame and O-Frame Clinching Machines Clinching machines are also categorized by their frame configuration. C-frame machines have an open throat that allows for easy workpiece access and is suited for clinching near the edges of panels. O-frame (or closed-frame) machines offer greater rigidity and are used when higher forces are required or when the clinch point is not near a panel edge. Frame selection depends on the geometry of the parts being joined.
Clinching vs. Spot Welding vs. Riveting
Clinching, spot welding, and riveting are all common methods for joining sheet metal, but each has distinct advantages depending on the application.
Clinching requires no heat, no consumables, and no surface preparation, making it one of the lowest-cost joining methods in terms of operating expense. It works well on coated, painted, or galvanized materials without damaging surface finishes, which is a significant advantage in automotive and appliance manufacturing. The main limitation is that clinching requires access to both sides of the joint and is best suited for thinner gauge materials.
Spot welding creates a strong fusion bond but generates heat that can distort or discolor coated surfaces and requires regular electrode maintenance. It is better suited for bare metal applications where surface appearance is less critical.
Riveting, including pop riveting, adds a fastener to the joint, which increases material cost and cycle time. However, riveting can join materials that are not accessible from both sides and can achieve higher pull-out strength in certain configurations.
For high-volume production with coated or pre-finished sheet metal, clinching is often the most cost-effective and process-friendly choice.
What to Look for When Buying Clinching Machines

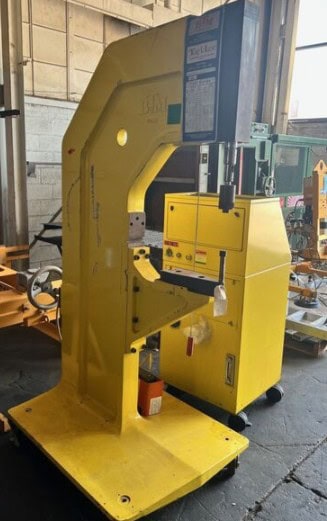

Material Thickness and Gauge Capacity: Every clinching machine has a rated capacity for the total combined thickness of the materials being joined. Verify that the machine can handle the gauge range you work with, including any worst-case combinations of stacked layers. Machines like the BTM Tog-L-LOC are designed for specific gauge ranges and come set up for particular material thicknesses.
Actuation Type: Match the actuation method to your production environment. Pneumatic machines are easy to integrate and maintain but may lack force for heavier gauges. Air-over-oil and hydraulic machines offer greater force but require more infrastructure. Consider your air supply capacity and whether hydraulic power units are practical in your facility.
Joint Strength and Pull-Out Rating: Clinch joint strength varies by machine, die, and material. Review the manufacturer’s data for shear and pull-out strength for your specific material combination. For structural or load-bearing applications, confirm that the clinch joint meets your design requirements before committing to a machine.
Tooling Availability: Clinching machines use punch-and-die tooling that is specific to the machine brand and often to the material thickness and joint type. Confirm that tooling is available for the machine you’re considering, particularly for used machines where tooling may be worn, missing, or non-standard. BTM’s Tog-L-LOC system and AKH’s Fas-Ner system both use proprietary tooling.
Frame Type and Throat Depth: The frame configuration and throat depth determine where on a workpiece a clinch joint can be made. For panel edges and flanges, a C-frame with adequate throat depth is usually sufficient. For interior joints, consider whether the machine’s throat can reach the required location without interference.
Cycle Speed and Automation: For high-volume production, consider machines with automatic cycling, part sensors, or integration with conveyors and fixtures. Manual foot-pedal operation is suitable for lower volumes or flexible production, while automated systems reduce labor cost at scale.
Power Requirements: Most clinching machines operate on standard single-phase 110V power, though larger hydraulic systems may require three-phase supply. Confirm electrical requirements before purchase to avoid costly facility modifications.
Applications for Clinching Machines
Clinching machines are used wherever sheet metal components need to be joined quickly, cleanly, and without consumables.
Automotive Manufacturing: Clinching is extensively used in the automotive industry for joining body panels, brackets, and structural components. Its ability to join pre-coated and galvanized steel without heat damage makes it ideal for modern vehicle manufacturing, where surface finish and corrosion resistance are critical.
HVAC and Ductwork: Sheet metal duct fabricators use clinching machines to join duct sections, flanges, and reinforcement strips. The process is fast, clean, and produces joints that hold up well in air handling applications.
Electrical Enclosures and Panels: Manufacturers of electrical cabinets, switchgear enclosures, and panel boards use clinching to assemble housings without fasteners. This produces clean, professional-looking assemblies with no protruding hardware on interior surfaces.
Appliance Manufacturing: Clinching is common in the production of household and commercial appliances, including washers, dryers, refrigerators, and ovens, where multiple sheet metal components must be joined quickly on a production line.
Metal Furniture and Shelving: Manufacturers of metal office furniture, storage shelving, and racking systems use clinching machines to assemble frames and panels efficiently. The process eliminates the need for welding or hardware, reducing cost and simplifying assembly.
General Sheet Metal Fabrication: Job shops and custom fabricators use clinching machines for a wide range of assembly tasks where two or more sheet metal components need to be permanently joined without welding. The versatility of clinching across different gauges and material types makes it a valuable addition to any sheet metal operation.
Key Features of Clinching Machines
Automatic Cycling: Machines with automatic cycling capability can complete a clinch operation as soon as the part is properly positioned, reducing operator involvement and improving throughput in high-volume applications.
Adjustable Stroke and Force: Adjustable stroke depth and clinching force allow operators to fine-tune the joint for different material thicknesses and combinations, reducing scrap and ensuring consistent joint quality across production runs.
Integrated Safety Controls: Two-hand controls, light curtains, and foot-pedal guards prevent operator injury during the clinching cycle. These features are particularly important in high-cycle production environments where operator fatigue is a factor.
Tooling Quick-Change Systems: Quick-change tooling systems reduce downtime when switching between material thicknesses or joint configurations. This is especially valuable in job shop environments where production requirements vary frequently.
Durable Frame Construction: Heavy-duty frame construction minimizes deflection during the clinching cycle, which directly affects joint consistency and quality. Look for machines with robust, well-welded frames, particularly in higher-force applications.
Accessories for Clinching Machines
Punch and Die Tooling Sets: Replacement punch and die sets are the most essential accessories for any clinching machine. Having spare tooling on hand reduces downtime when worn tools need replacement. Ensure tooling is sourced from the original manufacturer or a qualified supplier to maintain joint quality specifications.
Fixtures and Locating Jigs: Custom fixtures and locating jigs hold workpieces in precise position during clinching, ensuring consistent joint placement across production runs. These are particularly valuable for high-volume applications where part-to-part repeatability is critical.
Foot Pedal Controls: Foot pedal actuation allows hands-free cycling, freeing both hands to position and handle the workpiece. This improves both productivity and safety, particularly for larger or awkward panels.
Air Filtration and Lubrication Units: For pneumatic and air-over-oil machines, in-line air filtration and lubrication units protect internal components from moisture and contamination, extending machine life and reducing maintenance requirements.
Safety Guards and Two-Hand Controls: Additional safety guarding and two-hand control systems can be added to most clinching machines to improve operator protection and ensure compliance with workplace safety standards.
Tips for Finding Clinching Machines on Surplus Record
Use the search bar at the top of any page on Surplus Record and type “clinching machine” to browse available listings. You can also search by manufacturer name, such as BTM or AKH, to find specific models. Use the location filter to find machines near you and contact sellers directly for details on gauge capacity, tooling condition, and setup configuration.
Top Manufacturers
Top clinching machine manufacturers available on Surplus Record include BTM (Tog-L-LOC) and AKH (Fas-Ner).
