Power Hammers Buying Guide

Choose Forging Equipment Around the Work

Buying forging equipment starts with the parts you need to forge: material, starting section, finished shape and production volume. This guide covers large hydraulic and mechanical forging presses first in the equipment-types section, followed by pneumatic, mechanical, steam and hydraulic hammers and rotary forging machines. Their capacity ratings, tooling, utilities and installation costs differ substantially.

Start with current hydraulic and mechanical forging press listings for industrial production presses, including multi-thousand-ton machines and complete forging lines. These machines form metal through a controlled squeezing stroke. Compare rated tonnage, working energy, stroke, shut height or daylight, die area and the equipment included with the press.

The separate Power Hammers and Forging Hammers category focuses on equipment that shapes metal with repeated impact blows, from compact shop hammers to large industrial drop hammers; it also includes rotary forging machines. For conventional hammers, compare ram weight, blow energy, blow rate and working clearance. The distinction is the forming process, not simply machine size: both categories contain industrial equipment, and press tonnage cannot be compared directly with hammer ram weight.

Compare Complete Machines Before Comparing Price

Check the forming process, included tooling and utility requirements first. Then ask sellers for condition evidence and an installed-cost estimate.

Types of Forging Presses and Power Hammers

Hydraulic and Mechanical Forging Presses: Large Industrial Production

For large industrial forging projects, start with hydraulic and mechanical forging presses. This category includes multi-thousand-ton machines and complete production lines. Presses shape metal through a controlled squeezing stroke, while forging hammers deliver impact blows. Both belong in a forging-equipment comparison, but press tonnage and hammer ram weight are not interchangeable capacity ratings.

Hydraulic forging presses use hydraulic cylinders to apply forming force. Evaluate the specified force over the working stroke, pressing and return speeds, daylight, stroke control, hydraulic power unit and cooling. Confirm whether the machine and tooling are intended for open-die work, impression-die forging or another forming process.

Mechanical forging presses use a mechanical drive to move the slide through a defined motion. Compare rated tonnage and its rating point, available working energy, stroke, strokes per minute, shut height, bed and slide dimensions, and knockout equipment. Ask the manufacturer or a forging specialist to confirm the force and energy available where your part is actually formed.

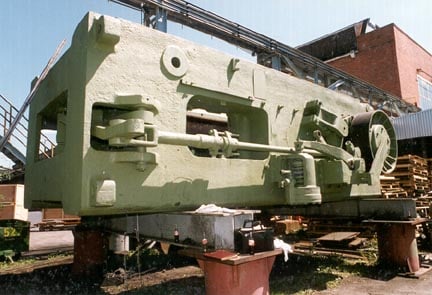

Featured Industrial Example: 6,000-Ton Ajax Forging Press

Hoffman Machinery Corp lists a 6,000-ton Ajax with an 18-inch stroke, 38 strokes per minute, a 70 × 75½-inch die seat and a 400 HP motor. The seller gives an approximate machine weight of 944,000 pounds and describes it as disassembled in storage in Germany. That scale makes transport, foundation engineering, reassembly and commissioning central to the buying decision. Confirm current availability, completeness and condition with the seller.

The listing headline and detailed description give different shut-height figures; obtain a verified drawing and measurement before matching tooling.

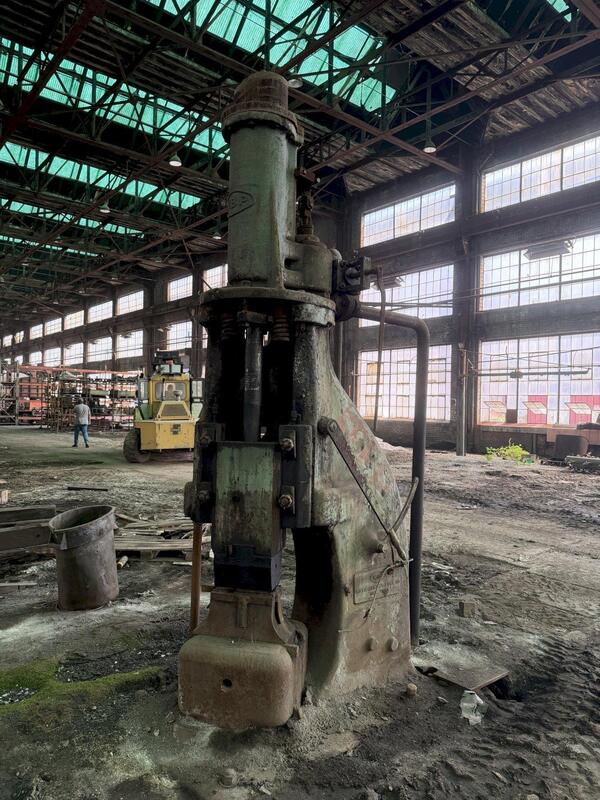

Pneumatic and Air Hammers

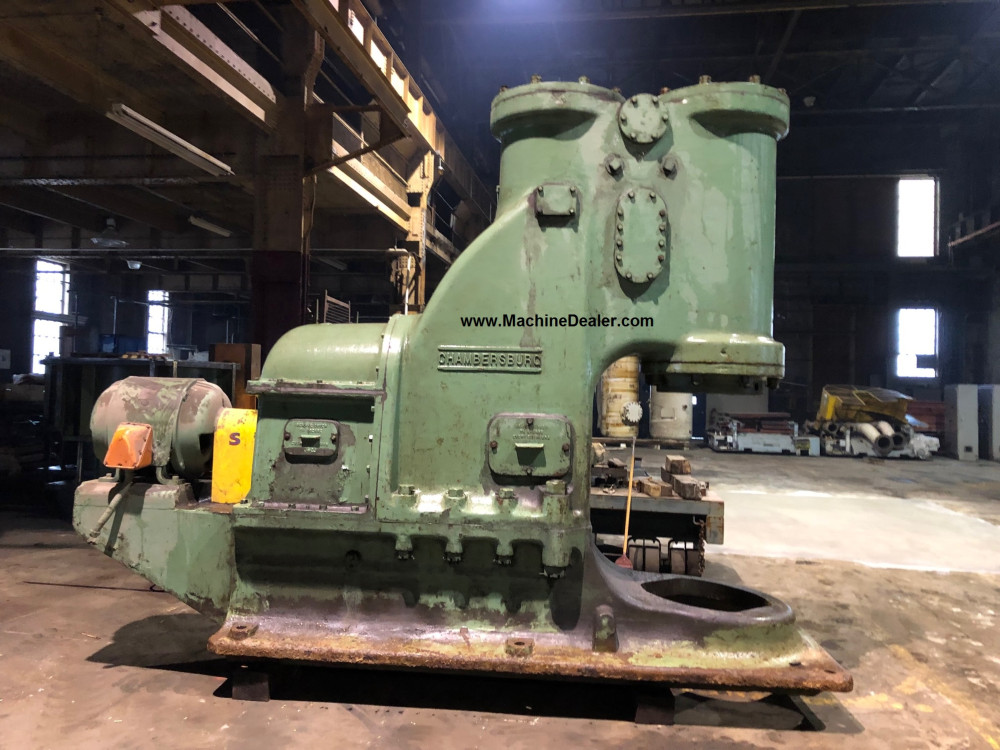

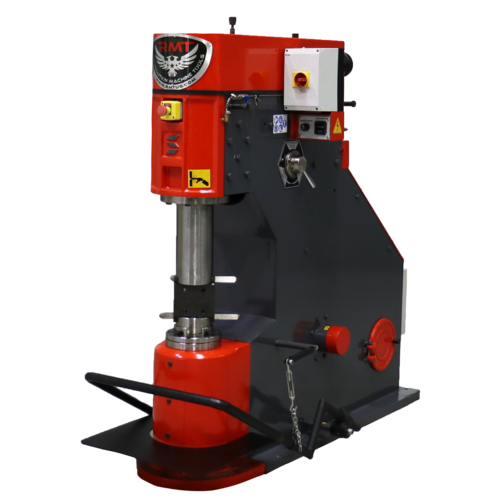

Air hammers include compact shop machines and large industrial units. Establish whether the machine is self-contained or needs an external compressed-air supply. Ask for the specified pressure, air demand and included equipment; the word “pneumatic” alone does not settle the utility requirements. The category currently includes an RMT FH-FAB-130 and a Chambersburg No. 15 single-frame machine, illustrating the range.

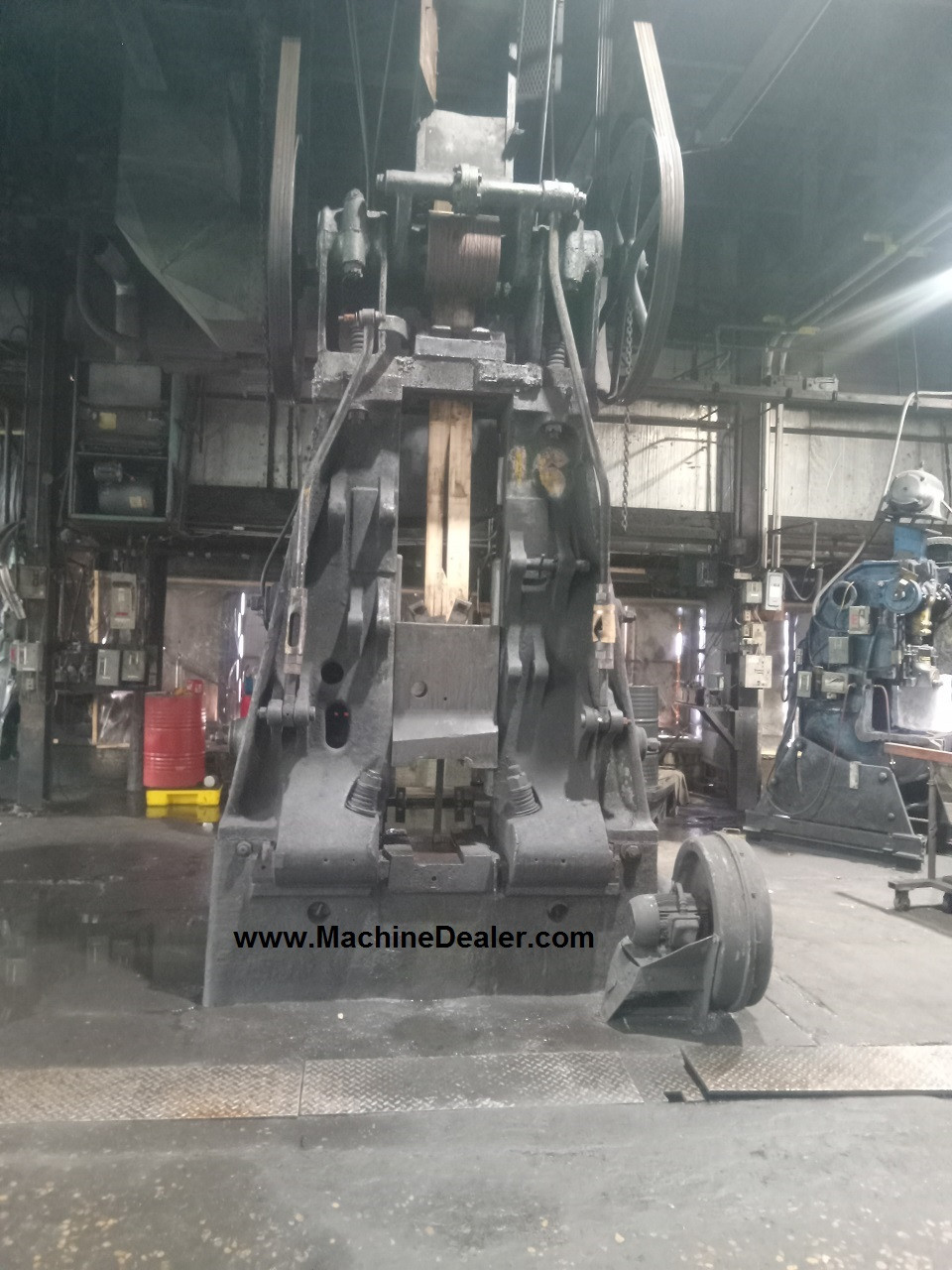

Mechanical and Board Drop Hammers

Mechanical hammers use a motor-driven mechanism to produce the working motion. Board drop hammers lift a ram through a board-and-friction arrangement before the blow. These are distinct designs with different wear points and controls. For a board hammer, inspect the board, lifting mechanism, guides and ram as a system. The listed Erie 1,500-pound board hammer specifies a 50-inch stroke and 18 inches between guides; verify those dimensions on the actual machine.

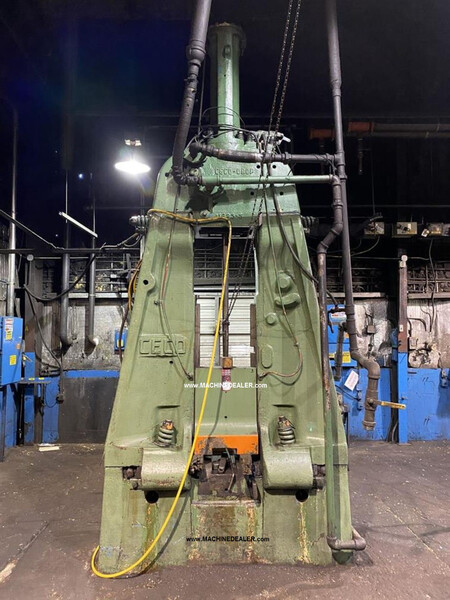

Steam and Other Legacy Industrial Hammers

Some older industrial hammers were designed for steam service. Confirm the exact drive configuration, required supply and any documented conversion. Do not assume a steam-labeled machine can simply be connected to shop air. Original drawings, operating records and a specialist inspection can be especially valuable when the machine has been stored or modified.

Hydraulic Forging Hammers

Hydraulic hammers use a hydraulic drive and should be evaluated by their specified blow energy, stroke, control system and working rate. Ram mass is only one part of the comparison. Inspect the hydraulic power unit, cylinders, valves, cooling and controls, and establish which auxiliaries are included. Counterblow designs also have moving lower components, so their installation and tooling requirements need model-specific review.

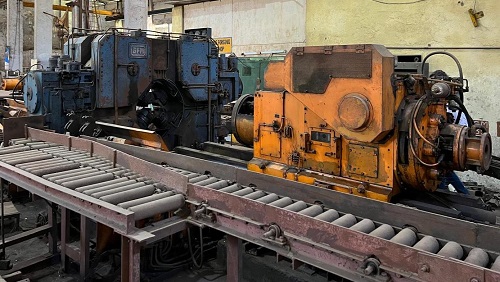

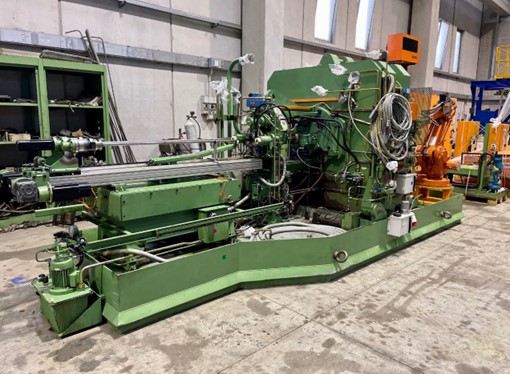

Rotary Forging Machines

Rotary forging machines use multiple hammers around the workpiece and require a separate comparison from a vertical shop hammer. Look at starting section, number of hammers, force per hammer, adjustment range, feed equipment and workpiece length. Listings for GFM machines show why a single pound rating is not enough to identify usable capacity.

Key Specifications to Evaluate

Listing titles commonly emphasize a pound rating, stroke or guide clearance. Detailed descriptions may add blow energy, blows per minute or force per hammer. Compare the units and the conditions behind each number before shortlisting equipment. Check out more details on each of the Power Hammers key specs below!

Ram Weight, Rated Size and Blow Energy

A 1,500-pound hammer rating is not the machine’s shipping weight. Ask the seller what the rating represents and obtain separate weights for the complete machine, anvil and major shipping pieces. Blow energy describes work delivered per blow; force and mass are different quantities. Keep the manufacturer’s units and rating basis in your comparison instead of converting every machine to an assumed tonnage.

Stroke, Die Space and Working Clearance

Check ram stroke, distance between guides, die dimensions and the opening available with the intended tooling installed. A part must fit through the working envelope and be manipulated throughout the forging sequence. Allow for tongs, handling equipment and hot-stock movement, not just the finished-part dimensions.

Blow Rate and Control

Ask for the specified blows or strokes per minute and how the operator controls individual blows and repeated operation. A maximum rate does not establish achievable production on your part. Request a demonstration under representative conditions where available, along with information about control response, repeatability and maintenance history.

Tooling and Included Equipment

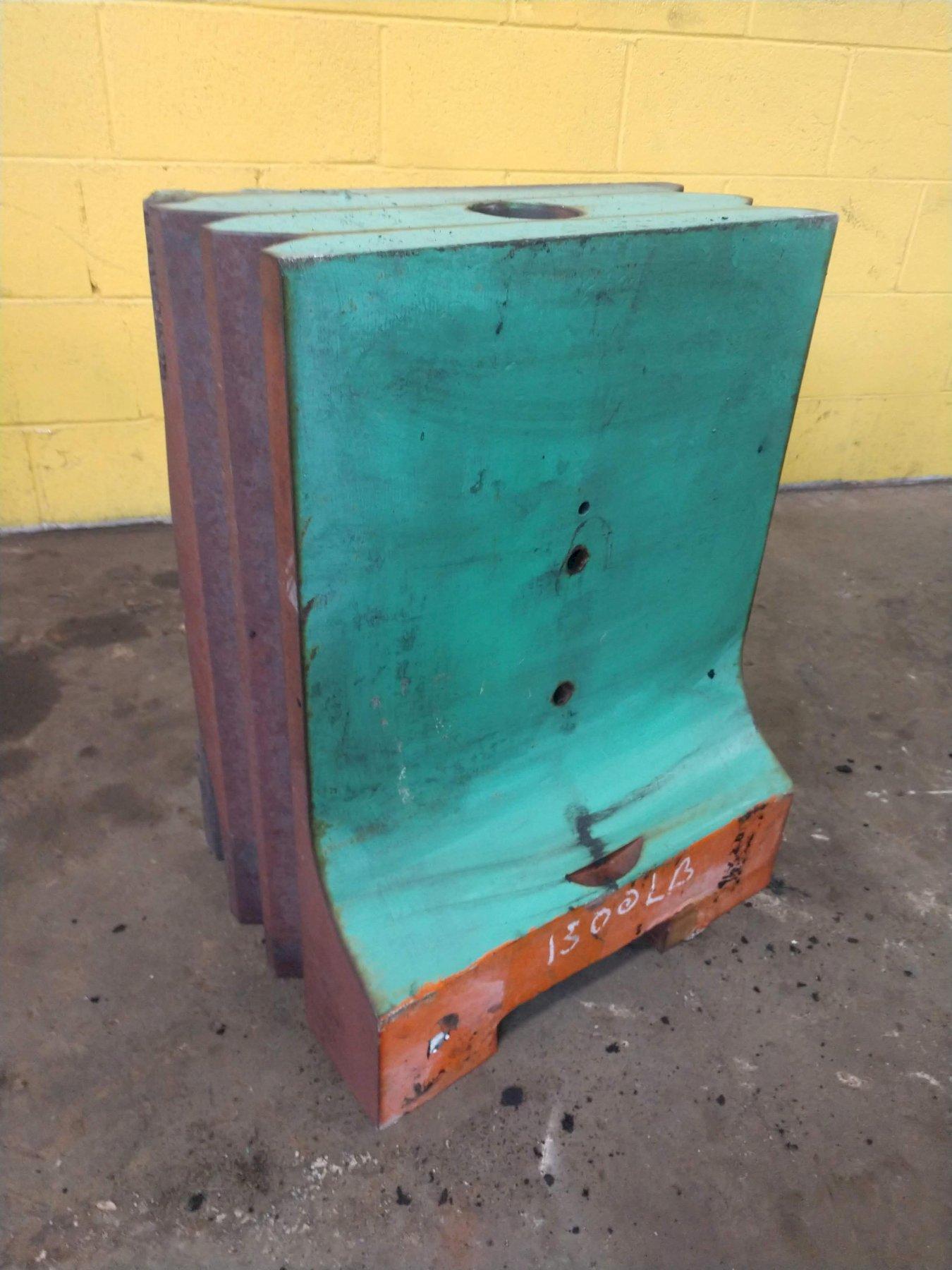

Confirm die attachment dimensions, installed dies, spare tooling, anvil or sow block, controls and auxiliaries. Current listings include separate frames and rams as well as complete machines. Require an itemized included-equipment list so that a component listing does not become an unexpected rebuilding project.

Utilities and Support

Verify voltage, phase, motor requirements, air or steam specifications, lubrication and hydraulic cooling for the exact serial number. Ask who can supply seals, guide components, controls and tooling support. A low asking price may be outweighed by missing documentation or unavailable critical parts.

Foundation, Height and Rigging

Obtain installation drawings and the highest operating position, including moving boards or other overhead components. Have a qualified specialist evaluate foundation, anchorage, vibration isolation and access. Arrange removal, lifting, transport and installation quotes from the actual machine weights and site conditions before committing.

Used Power Hammer Buyer’s Checklist

• Define the job.
  Prepare material, starting section, finished-part dimensions, tooling needs and production targets.
• Identify the machine.
  Obtain nameplate and serial-number photos, manuals, rating definitions and a complete equipment list.
• Inspect structure and motion.
  Have a qualified inspector assess frame, ram, guides, anvil, die retention and evidence of repairs or excessive wear.
• Verify operating condition.
  Request recent operating evidence, maintenance records and a demonstration when practical. A stored machine deserves a documented recommissioning plan.
• Review safeguarding and controls.
  Confirm that an appropriate specialist will assess guarding, controls, energy isolation and the proposed work area before operation.
• Price the installed machine.
  Include tooling, repairs, auxiliaries, rigging, freight, foundation work, utility connections and commissioning.
• Confirm the sale terms.
  Agree on included items, inspection access, loading responsibility, removal deadline and the basis of any condition claims.
