电流室外变压器

CPT-068A/B/C, THREE (3) UNUSED 300:5 AMP KUHLMAN CURRENT TRANSFORMERS, TYPE COF-200, 34.5 KV, 200 KV BIL, 60:1 RATIO, RATING FACTOR 1.5, 60 HERTZ, X1-X2 CONNECTION, 45 KA 1 SEC. THERMAL, 0.3B1.8 ACCURACY, 45 KA MECHANICAL RATING, 15 GALS. OIL, 450 LBS. TOTAL WEIGHT, CAT #G950300SA, P/N 2257966019, MFG. 2010, CPT-068A: ...more

CPT-070AB:, TWO (2) UNUSED ELECTRIC SUPER BRUTE CURRENT TRANSFORMERS, TYPE JKW-350, CAT. #759X30G10, 69 KV, 100/200:5,.3 ACC CLASS, 350 KV BIL, 590 LBS..

TRENCH, Current Transformer, 115kV, Type: OSKF 550H, 1600:5A, 0.3B1.8 METERING, 2 x C400 Relaying, Max Voltage 123kV, Withstand Voltage 230kV, Year 2004.

CPT-144ABC:, THREE (3) TRENCH CT'S, TYPE IOSK, 123 KV, VOLTESSO N36 OIL, 550 KV BIL, CORE X1-X2, 1000:5 RATIO, CLASS 0.15B1.8, 60 HERTZ, 540 LBS., CPT-144A - S/N T-12204003, CPT-144B - S/N T-12204004, CPT-144C - S/N T-12204006.

CPT-142ABC:, THREE (3) TRENCH CT'S, TYPE IOSK, 123 KV, VOLTESSO N36 OIL, 21 GALS., 550 KV BIL, CORE X1-X2, Y1-Y2, 1200:5 RATIO, CLASS 0.3B0.9, 60 HERTZ, 840 LBS., CPT-142A - S/N T-111320501, CPT-142B - S/N T-111320502, CPT-142C - S/N T-111320503.

CPT-179ABC:, ALSTOM COSI CM CURRENT TRANSDUCER, PHASE B, 145 KV MAX. SYSTEM VOLTAGE, 650 KV BIL, 275 KV WET WITHSTAND LEVEL, 275 KV ONE-MINUTE WITHSTAND VOLTAGE, 5 AMP SECONDARY, 2000 AMP RATED PRIMARY CURRENT, 3000 AMP RATED CONTINUOUS CURRENT, ACCURACY 0.15 FROM 0-2% TO 150% OF RATED, BURDEN B.01, RATING FACTOR 1.5 ...more

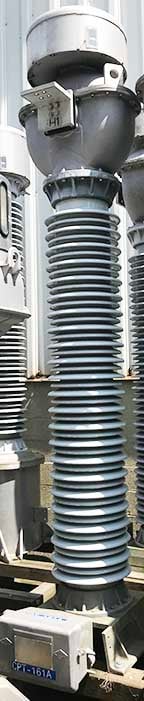

CPT-161A THRU F:, RITZ TYPE OSKF 245 CURRENT TRANSFORMERS, 245 KV, 1050 KV BIL, 1200:5 MRCT, 0.3 - B 1.8 @ 1200:5 ACCURACY BURDEN, RF 2.0, MFG. 2001, 1407 LBS., CPT-161A S/N 120046308, CPT-161B S/N 120046303, CPT-161C S/N 120046307, CPT-161D S/N 12046302, CPT-161E S/N 120046301, CPT-161F S/N UNKNOWN.

CPT-094ABC:, THREE (3) BBC MULTI-RATIO CT'S, TYPE AOK362MC, SINGLE BUSHING, 362 KV, 1300 KV BIL, 60 HERTZ, 40 KA, 1200:5 RATIO, CLASS C800, RF 1.67, MFG. 1985.

CPT-331A, ONE (1) ELECTRIC CT, TYPE JKW-200, CAT. #757X030010, 34500 VOLT, 200 KV BIL, 60 HERTZ, 200/100:5 RATIO, METERING ACCURACY @100:5 0.3 B-0.1 THRU B-1.8, METERING CLASS ACCURACY @200:5 0.3B THRU B1.8, RELAY ACCURACY @100:5 T200, RELAY CLASS ACCURACY @400:5 T400.
