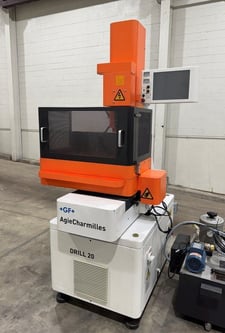

Small Hole EDM Drilling Machine

Seller: Liberty Machinery Co

Location: Lincolnshire, IL

Mfr: Agie Charmilles

Model: DRILL-20

Year: 2011

New - 2011, Electrode Diameter.0.004 - 0.12", Maximum Drilling Depth.7.78", Maximum Workpiece Weight.660 lbs., Travel Paths:, X-Axis.11.8", Y-Axis.7.8", Z-Axis.11.8", Work Table Size:, Length.11.8", Width.15.7", Travel Path of the Electrode Guide.3.9", Heavy Duty Generator.30 Amps, Dielectric Volume.4.2 Gal ...more

10 Photos

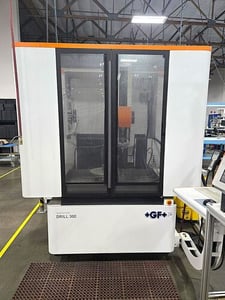

Agie Charmilles #Drill-300, Electrical Discharge Machine small hole, 23.6" X, 15.8" Y, 17.72" Z, tilting head, rotary table, 2015

Clark Machinery Sales LLC | Hunt Valley, MD

410-25... (Show) 410-252-5494

Seller: Clark Machinery Sales LLC

Location: Hunt Valley, MD

Mfr: Agie Charmilles

Model: DRILL-300

Year: 2015

2015 AGIECHARMILLES DRILL 300, ELECTRODE DIAMETER (MIN). 0.012", ELECTRODE DIAMETER (MAX). 0.118", WORK WIDTH. 13.78", WORK LENGTH. 12.6", X-AXIS TRAVEL. 23.6", Y-AXIS TRAVEL. 15.8", Z-AXIS TRAVEL. 17.72", MAX WORKPIECE WEIGHT. 55 lb, Dimensions. 91.34" x 74.8" x 85.83"H, Weight. 5,512 LBS, MACHINE HAS TILTING HEAD ...more

7 Photos Video

Astec #CDH-3A, Electrical Discharge Machine, 4.5 kVA, 1991

HGR24 | Euclid, OH

Seller: HGR24

Location: Euclid, OH

Mfr: Astec

Model: CDH-3A

Year: 1991

Inventory No. 0821-115-2975 Manufacturer Astec Model No. CDH-3A Name 1991 Astec Cdh-3a EDM Arrival Date 03-31-2025 Dimensions L x W x H (inches) 75 x 45 x 90 Weight (lb.) 2000 Category CNC Condition Used Available Quantity 1 Make Year 1991 Item Made In Japan.

11 Photos

Astec #CDH-3A, Electrical Discharge Machine sinker / hole driller, 12" X, 8" Y, 10" Z, 0.012"-0.12" hole diameter

Liberty Machine Works | Preston, ID

208-85... (Show) 208-851-8568

Seller: Liberty Machine Works

Location: Preston, ID

Mfr: Astec

Model: CDH-3A

Year: 1997

This machine was in production when taken off of power. Manufactured by Belmont. A very well made machine. Manuals included., Located at our warehouse in Preston, Idaho., We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers., Included ...more

10 Photos

Belmont #SY-1210TGUR, Electrical Discharge Machine, 30A, 43" x 51" table, 39.3" X, 47.2" Y, 15.7" Z, Windows Control, table & spindle rotation, tilt head, 2014, #50566

Liberty Machinery Co | Lincolnshire, IL

847-27... (Show) 847-276-2761

Seller: Liberty Machinery Co

Location: Lincolnshire, IL

Mfr: Belmont

Model: SY-1210TGUR

Year: 2014

Belmont EDM CNC Drill SY-1210TGUR, New - 2014, Serial No. ATC 195, Travels:, - X-Axis.39.3", - Y-Axis.47.2", - W-Axis.39.3", - U-Axis (Tilt Head).+/-100 Degrees from Vertical, - Z-Axis.15.7", Open height.3.1" - 39.3", Table:, - Size.43.3"(L-R) x 51.1"(F-B), - Capacity.5,500 Lbs., Work Pan.59"(L-R) x 70.8"(F-B) ...more

9 Photos

Get email updates for newly added Small Hole EDM Drilling Machine

Small Hole EDM Drilling Machines (also known as micro hole EDMs) use electrical discharges to create precise, small-diameter holes in hard materials. Common in aerospace, medical, and tooling industries, they provide high precision for deep hole drilling in tough materials, ideal for applications requiring accuracy beyond conventional drilling methods.

Belmont #SY-M-2535S, Hole Popper Electrical Discharge Machine, 13.7" X, 9.8" Y, 15.7" Z, 30 Amp, 2013

Southern Fabricating Mchy Sales | Lithia, FL

813-44... (Show) 813-444-4555

Seller: Southern Fabricating Mchy Sales

Location: Lithia, FL

Mfr: Belmont

Model: SY-M-2535S

Year: 2013

13.7" X 9.8" 30 Amp Hole Popper EDM with Harbor Precise Industries HE-250SA Oil Cooler Unit 55 - Gallon Oil Dielectric External Tank, Extra Filters and Machine Manual, Max. Amps: 30 Amps, Table Size: 23.6" X 11.8", Max. Workpiece Weight: 880 Lbs, X - Axis Travel: 13.7", Y - Axis Travel: ...more

10 Photos

Charmilles #HD8, Electrical Discharge Machine, 23.6" x 11.8" worktable, 13.8" X, 9.8" Y, 13.8" Z, 1999

Revelation Machinery | Chicago, IL

816-33... (Show) 816-330-2138

Seller: Revelation Machinery

Location: Chicago, IL

Mfr: Charmilles

Model: HD8

Year: 1999

Make: Charmilles, Model: HD8, Year: 1999, Machine Location: New Jersey, Drilling Capacity: 0.0118″ – 0.266″, Worktable Size: 23.6″ x 11.8″, Table Load Capacity:880 Lbs., X-Axis Travel: 13.8″, Y-Axis Travel: 9.8″, Z-Axis Travel: 13.8″, Guide Axis Travel: 7.87″ ...more

4 Photos

Charmilles #SH2, 7.9" x 11.8" x 11.8" travel, 9.8" x 13.7" table,.012"-.118" electrode diameter, 1997, #1492

Hitech Machinery Sales Inc | St. Charles, IL

630-44... (Show) 630-443-7865

Seller: Hitech Machinery Sales Inc

Location: St. Charles, IL

Mfr: Charmilles

Model: SH2

Year: 1997

This machine is ideal for drilling "start holes" for wire EDM, gas escape holes in molds, and production holes in hardened materials where conventional drilling is difficult. Used in applications such as aerospace, medical, aircraft and automotive. The SH2 accurately drills holes in nearly any electrically ...more

3 Photos

Current #RT3020S, hole driller, 5-Axis, Siemens 840DI, 30" x20" x16" trvl, 22" G-Axis, #1335

Hitech Machinery Sales Inc | St. Charles, IL

630-44... (Show) 630-443-7865

Seller: Hitech Machinery Sales Inc

Location: St. Charles, IL

Mfr: Current

Model: RT3020S

Current EDM manufactures the finest EDM hole drillers in the world. Used in applications such as aerospace, medical, aircraft and automotive, they are known for excellent build quality combined with the best in EDM technology to drill in the most demanding applications., * Siemens 840DI CNC Controller, * Nikken ...more

3 Photos Video

JUST ADDED!

Methods #HM400 Hole Master, Heidenhain digital read out, loaded with tools

S and R Machines | Bristol, CT

959-83... (Show) 959-832-8445

Seller: S and R Machines

Location: Bristol, CT

Mfr: Methods

Model: HM400

Perseo-Erie #430i, 21" X 12" Hole Driller Electrical Discharge Machine, PC Based CNC Controller, 2012

Southern Fabricating Mchy Sales | Lithia, FL

813-44... (Show) 813-444-4555

Seller: Southern Fabricating Mchy Sales

Location: Lithia, FL

Mfr: Perseo-Erie

Model: 430I

Year: 2012

21" X 12" Hole Driller EDM with PC Based CNC Controller, De-Ionized Water Filteration System, 15 Gallon Dielectric System and Transformer, X - Axis: 21", Y - Axis: 12", Z - Axis: 25.6", Table Size: 23.5" X 17.25", Table Travels: 21" X 12", Work Tank Dimensions: 27.25" ...more

4 Photos

JUST ADDED!

Sodick #K1C, Electrical Discharge Machine, 14" x 10" Table, 3.3 kVA, 200/220 V, 1991

HGR24 | Euclid, OH

Seller: HGR24

Location: Euclid, OH

Mfr: Sodick

Model: K1C

Year: 1991

Inventory No. 0425-010-0012 Manufacturer Sodick Model No. K1C Name 1991 Sodick K1c EDM Arrival Date 04-16-2025 Dimensions L x W x H (inches) Unavailable Capacity 14"X10" TABLE Weight (lb.) 1058 Category Machine Tools Condition Used Available Quantity 1 Serial No. 91102408 Make Year 1991 Item Container, 3.3 Kva ...more

11 Photos

JUST ADDED!

Sodick #K1C, Electrical Discharge Machine, 21" x 15" Table, 1996

HGR24 | Euclid, OH

Seller: HGR24

Location: Euclid, OH

Mfr: Sodick

Model: K1C

Year: 1996

Inventory No. 0425-010-0007 Manufacturer Sodick Model No. K1C Name 1996 Sodick K1c EDM Arrival Date 04-16-2025 Dimensions L x W x H (inches) 45 x 36 x 80 Capacity 21"X15" TABLE Weight (lb.) 1170 Category Machine Tools Condition Used Available Quantity 1 Make Year 1996 Item Made In Japan.

11 Photos

JUST ADDED!

Yougar #YGS-43C, Small Hole Drilling Electrical Discharge Machine, Pendant, 30 Amp, 220 V, 2013

HGR24 | Euclid, OH

Seller: HGR24

Location: Euclid, OH

Mfr: Yougar

Model: YGS-43C

Year: 2013

Inventory No. 0425-006-0007 Manufacturer Yougar Model No. YGS-43C Name 2013 Yougar Ygs-43c Small Hole Drilling EDM Arrival Date 05-14-2025 Dimensions L x W x H (inches) 80 x 60 x 83 Electrical 220 V Weight (lb.) 1310 Category Machine Tools Condition Used Available Quantity 1 Serial No. D4C21308 Make Year 2013 Item ...more
