Union&nbsp;Reciprocating Plunger Pumps

Seller: Lenmark Industries

Location: Langley, BC

Mfr: Union

SKU: 138858, Condition: Used, S/N: 840568I501, Horsepower: 15 hp, GPM: 16.8, PSI: 1200, Dimensions: 38.00 (H) x 37.00 (W) x 41.00 (L) inches.

5 Photos

24 GPM @ 1050 psi, Union #TD-3, Triplex Production Pump, 3" stroke, 1.56" plungers, 20 HP, 350 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-3 : Used Union TD-3 triplex production pump package with the following s: • 3" stroke • 20 HP • Steel billet fluid end • 1.5625”plungers • suction connection • discharge connection • Packaged on skid with 20hp 1725 RPM, 286U frame serial number 79862 ...more

5 Photos

28 GPM @ 6397 psi, Union #TD-120H, Triplex Pump, 4.25" stroke, 1.38" plungers, 2" suction, 1" discharge, 120 HP, 400 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-120 : Used Union TD-120H triplex pump with the following s: • 4.25" stroke • 120 HP • # A Steel billet fluid end • 1 3/8" plungers • 2" NPT suction connection • 1" NPT discharge connection • Dims 39"Lx31"Wx21"H Applications: ...more

40 GPM, Union #TD-30, Triplex Production Pump, 2.75" stroke, 2" plungers, 3" suction, 2" discharge, 30 HP, 520 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-30 : Used Union TD-30 triplex production pump package with the following s: • 2.75" stroke • 30 HP • Steel fluid end • 2" plungers • 3" 300# NPT suction connection • 2" 300# NPT discharge connection • 3.44 gear ratio • Packaged with ...more

40/78 GPM @ 5000/3018 psi, Union #TX-150, Triplex Production Pump, 5" stroke, 1.63"/2.25" plungers, 3" suction, 2" discharge, 200 HP, 303 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-150 : Used Union TX-150 triplex production pump with the following s: • 5" stroke • 200 HP • Three piece steel fluid end • 2.25'' plungers • No crankshaft, capable of 40 gpm @ 5000 psi @ 303 rpm with 1.625" plungers or 78 gpm @ 3018 psi @ 303 rpm with ...more

Get email updates for newly added Reciprocating Plunger Pumps

Reciprocating Plunger Pumps (also known as high-pressure plunger pumps) are positive displacement pumps that use a plunger mechanism to move fluids at high pressures. Commonly used in industries like oil and gas, water treatment, and chemical processing, they are ideal for applications such as injection, cleaning, and transfer of abrasive or viscous fluids. These pumps are essential for delivering precise, high-pressure performance in demanding environments.

44 GPM @ 5000 psi, Union #TX-150, Triplex Production Pump, 5" stroke, 1.63" plungers, 3" suction, 2" discharge, 150 HP, 303 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-150 : Used Union TX-150 triplex production pump package with the following s: • 5" stroke • 150 HP • #2 steel billet fluid end • 1 5/8” plungers • 3" 300# suction connection • 2" 2500# discharge connection • no gears or crank • Weight ...more

45 GPM @ 1200 psi, Union #TX-90, Triplex Production Pump, 4" stroke, 2.31" plungers, 4" suction, 2" discharge, 90 HP, 232 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-90 : Used Union TX-90 triplex production pump package with the following s: • 4" stroke • 90 HP • #2 steel billet fluid end • 2 5/16” plungers • 4" ANSI 150# suction connection • 2" ANSI 600# discharge connection • 5.0 gear ratio • ...more

45 GPM @ 5063 psi, Union #TD-120M, Triplex Pump, 4.25" stroke, 1.63" plungers, 3" suction, 2" discharge, 120 HP, 400 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-120 : Used Union TD-120M triplex pump with the following s: • 4.25" stroke • 120 HP • # B Steel billet fluid end • 1 5/8" steel plungers • 3" NPT suction connection • 2" NPT discharge connection • Weight 1,930 lbs • Dims ...more

55 GPM @ 870 psi, Union #TD-120, Triplex Reciprocating Pump, 4.25" stroke, 2" steel plungers, SS316 fluid end, 120 HP, (3 available)

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-120 : Used Union TD - 120, pump with the following s: • 4.25" stroke • 120 HP • SS316 fluid end • 2 1/4" plungers • 5.04:1 gear reducer • 3” 600 RF suction • 2” 600 RF discharge • Weight: 4,980 lbs whole skid • Dims: 56"(L)x ...more

6 Photos

56 GPM @ 899 psi, Union #TD-30, Triplex Production Pump, 2.75" stroke, 2" plungers, 2" suction, 1.5" discharge, 33 HP, 500 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-30 : Used Union TD-30 triplex production pump with the following s: • 2.75" stroke • 33 HP • Cast steel fluid end • 2" plungers • 2" suction connection • 1.5" discharge connection • Weight 655 lbs • Dims 40"Lx36"Wx36"H ...more

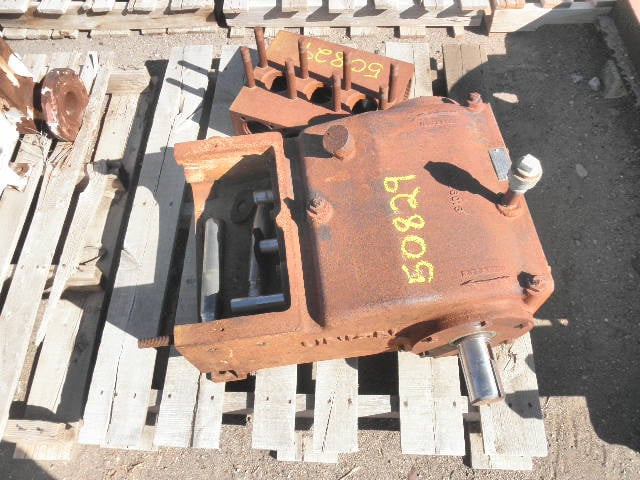

56 GPM @ 1100 psi, Union #TD-50, Triplex Production Pump, 3" stroke, 1.88" plungers, 3" suction, 2" discharge, 60 HP, 523 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-50 : Used Union TD-50 triplex production pump with the following s: • 3" stroke • 60 HP • Steel billet fluid end • 1 7/8" plungers • 3" suction connection • 2" discharge connection • Weight • Dims Applications: Well Service Pump, Water ...more

5 Photos

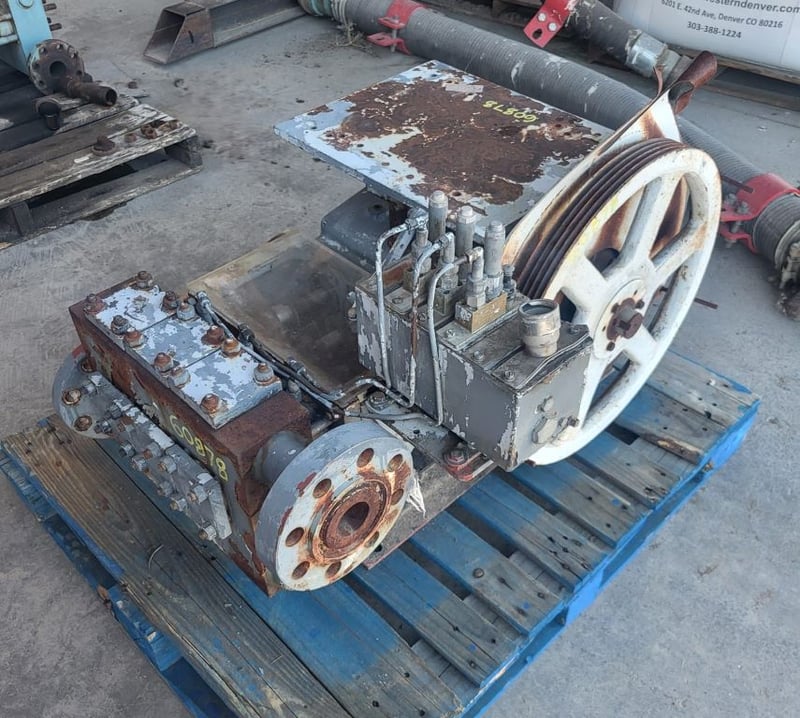

63 GPM @ 797 psi, Union #TD-30, Triplex Pump, 2.75" stroke, 2.13" plungers, 3" suction, 2" discharge, 33 HP, 160 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-30 : Used Union TD-30 pump, with the following s: • 2.75” stroke • 33 HP • Steel fluid end • 2.125” Steel plungers • Disc valves • 3” NPT suction with welded 3” 300# Flange • 2” NPT discharge with welded 2” 1500# Flange • ...more

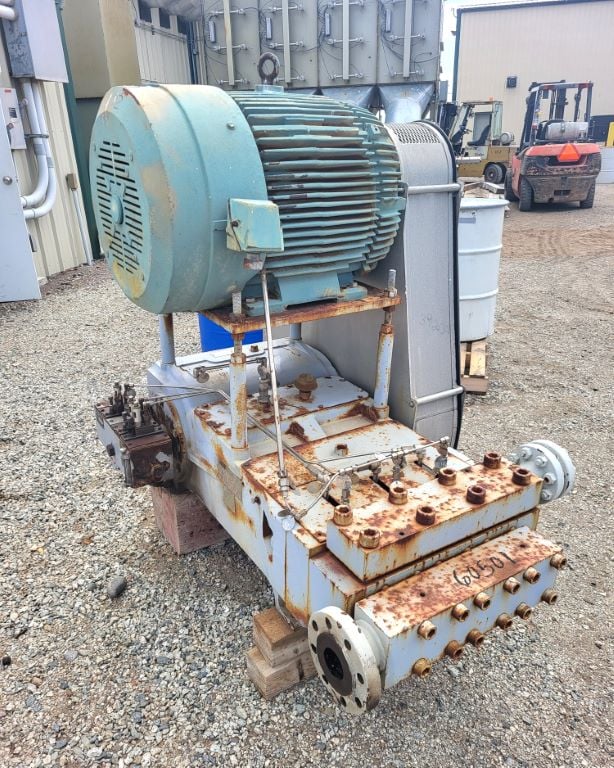

65 GPM @ 1002 psi, Union #TD-120, Triplex Pump, 4.25" stroke, 2.63" plungers, 3" suction, 2" discharge, 120 HP, 200 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TD-120 : Used Union TD-120 triplex pump with the following s: • 4.25" stroke • Steel fluid end • 2.625" plungers • 3" 600# RF suction connection • 2" 600# RF discharge connection • Packaged with Reliance 60 HP electric motor • Weight: 2,080 lbs ...more

68 GPM @ 6200 psi, Union #QX-300, Quintuplex Production Pump Fluid End Only, 5" stroke, 1.5" plungers, 3" suction, 2" discharge, 350 HP, 359 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union QX-300 : Used Union QX-300 quintuplex production pump fluid end only with the following s: • 5" stroke • 350 HP • Steel billet fluid end • 1 1/2" plungers • 3" 300 lb RF suction connection • 2" 1500 lb RTJ discharge connection • Weight 8,800 lbs ...more

95 GPM @ 3018 psi, Union #TX-200, Triplex Pump, 5" stroke, 2.25" plungers, 3" suction, 2" discharge, 200 HP, 369 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-200 : Used Union TX-200 triplex pump with the following s: • 5" stroke • 200 HP • #2 steel fluid end • 2.25" stainless steel plungers • 3" FF suction connection • 2" FF discharge connection • Weight 5,800 lbs • Dims ...more

131 GPM @ 2310 psi, Union #QD-200, Quintuplex Production Pump, 4.25" stroke, 2.63" plungers, 4" suction, 2" discharge, 240 HP, 278 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union QD-200 : Used Union QD-200 quintuplex production pump with the following s: • 4.25" stroke • 240 HP • Steel fluid end • 2.625” plungers • 4" ANSI 600# RF suction connection • 2" ANSI 600# RF discharge connection • Weight 6,350 lbs • ...more

7 Photos

133 GPM @ 1475 psi, Union #TX-125, Triplex Production Pump, 5" stroke, 2.94" plungers, 4" suction, 2" discharge, 125 HP, 303 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-125 : Used Union TX-125 triplex production pump with the following s: • 5" stroke • 125 HP • #3 steel fluid end • 2 15/16" steel plungers, • 4" #1500 suction connection • 2" #1500 discharge connection • 8.2 gear ratio • Weight 5,600 lbs ...more

142 GPM @ 2104 psi, Union #TX-200, Triplex Pump, skid mounted, 2.75" plungers, 4" suction, 3" discharge, 200 HP, 369 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-200 : Used Union TX-200 Pump make and model, pump with the following s: • 5” Stroke • 200 HP • Steel Billet fluid end material • 2.75" Steel plungers • 4” 150# RTJ suction • 3” 1500# RTJ discharge • 5.765:1 Ratio • Weight: • ...more

150 GPM @ 725 psi, Union #TX-75, Triplex Production Pump, 4" stroke, 2.38" plungers, 6" suction, 3" discharge, 75 HP, 350 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-75 : Used Union TX-75 triplex production pump package with the following s: • 4" stroke • 75 HP • #3 Steel billet fluid end • 2 3/8” plungers • 6" ANSI 150# FF suction connection • 3" ANSI 600# FF discharge connection • 5.0 gear ratio • ...more

158 GPM @ 2500 psi, Union #QX-300, Quintuplex Production Pump, 5" stroke, 2.38" plungers, 6" suction, 3" discharge, 350 HP, 330 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union QX-300 : Used Union QX-300 Quintuplex Production Pump Package with the Following s: • 5.0" Stroke • 300 HP • Carbon Steel Fluid End • 2.375" Plungers • Suction 6" 300# • Discharge 3" 1500# • Packaged as top mount with US Motors 250 HP Electric ...more

432 GPM @ 1830 psi, Union #QD-400, Quintuplex Production Pump, 5.5" stroke, 4" plungers, 8" suction, 6" discharge, 4.6:1 Ratio, 440 HP, 290 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union QD-400 : Used Union QD-400 quintuplex production pump package with the following s: • 5.5" stroke • 440 HP • Duplex stainless steel fluid end • 4” plungers • 8" ANSI 300# RF suction connection • 6" ANSI 1500# RF discharge connection • 4.6:1 ...more

955 psi, Union #TX-150, Triplex Pump, 5" stroke, 4" plungers, 6" suction, 3" discharge, 150 HP, 300 RPM

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-150 : Used Union TX-150 pump, with the following s: • 5" stroke • 150 HP • #4 DA Stainless Steel fluid end • 4" Steel plungers • Disc valves • Gear Ratio 5.764 • 6" RF suction • 3" RF discharge • Weight: 5,560 lbs. • Dims: ...more

Union #TX-125, triplex pump, 5" stroke, 125 HP, 7.118:1 ratio, wing guided valves, complete

Power Zone Equipment | Center, CO

Seller: Power Zone Equipment

Location: Center, CO

Mfr: Union

Brand/Model: Union TX-125 : Used Union TX-125, pump with the following s: • 5" stroke • 125 HP • Steel fluid end material • 2.50" steel plungers • Wing Guided valves • Gear Ratio: 7.118: 1 • 5" RTJ suction (welded on) • 3" RTJ discharge • Weight: • ...more
