Pressurized Cryogenic Stainless Tanks in Illinois

Seller: Frain Industries

Location: Carol Stream, IL

400 gallon capacity, 304 stainless steel low pressure jacketed process tank. Vessel dimensions: 82" diameter x 32" deep with a 12" straight wall and cone bottom. lift up covers, 2 Hp top mounted scrape agitator and 8" x 6" flanged bottom discharge with 14½" ground clearance., Top ...more

5 Photos

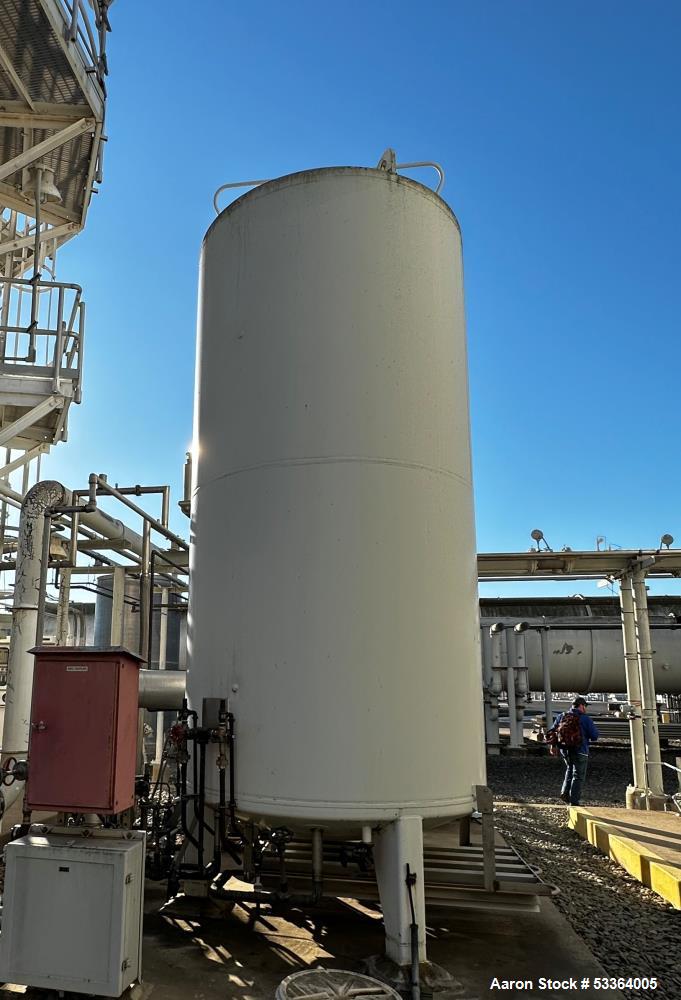

1600 gallon 150 psi, 60" x 102", Process Engineering Inc #V-1600-7-150, Cryogenic Storage Tank, Vertical, for LOX, -320 to 100 F

Aaron Equipment Co | Wood Dale, IL

Seller: Aaron Equipment Co

Location: Wood Dale, IL

used- process engineering inc cryogenic storage tank for lox, approximate 1,600 gallon, model v-1600-7-150, 304 stainless steel, vertical. approximate 60" diameter x 102" straight side. elliptical 2:1 heads. internal rated 150 psi w/ext. vac at -320 to 100 degrees f. mounted on legs. national board# 10143, serial# ...more

3 Photos

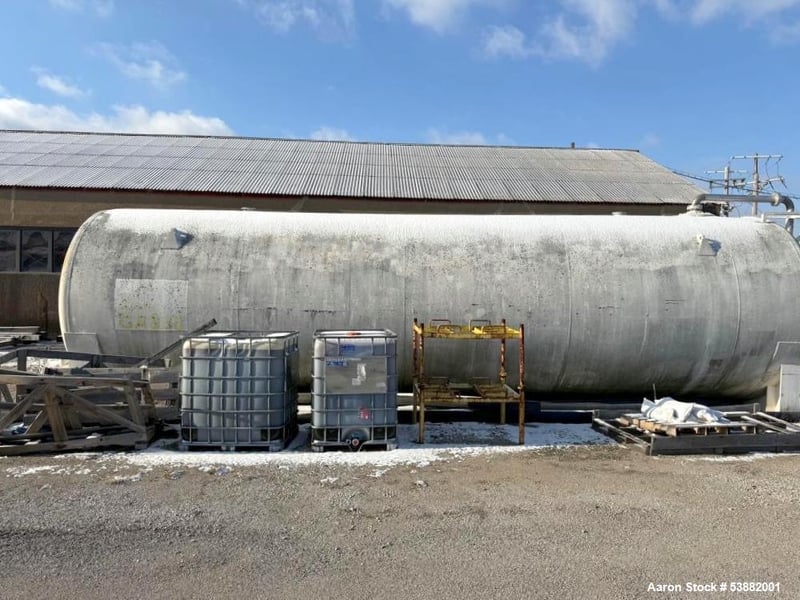

10,000 gallon 51 psig, 6" x 384" Nox #SA240, Horizontal Jacketed Cryogenic Storage Tank, T-304 Stainless Steel, 1963

Aaron Equipment Co | Wood Dale, IL

Seller: Aaron Equipment Co

Location: Wood Dale, IL

Year: 1963

used- nox equipment 10,000 gallon horizontal jacketed cryogenic storage tank for liquid oxygen or nitrogen. sa240 t-304 shell material of construction; 6'6" d x 32' l; jacket internal rated 51 psig at -320 to 100 degrees f; 16-1/8" top manhole; 8-5/8" sump nozzle; 3-1/2" x 5" weld fitting; (2) 2-7/8" ...more

9 Photos

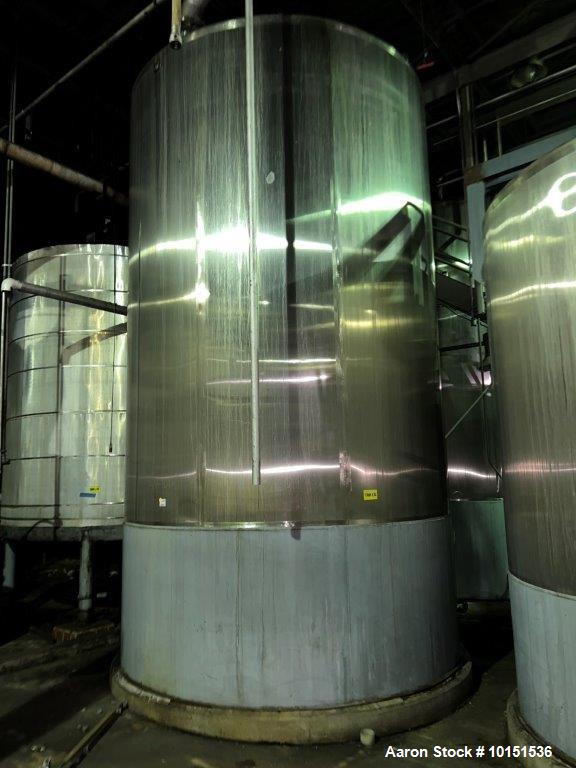

11,000 Gallon Stainless Steel Storage Tank, Dished Top & Bottom, 120" Dia x 168" straight side, 10' diameter x 14' side (2 available)

Aaron Equipment Co | Wood Dale, IL

Seller: Aaron Equipment Co

Location: Wood Dale, IL

used- stainless steel storage tank, approx. 11,000 gallon. 120" dia. x 168" straight side; dished top, dished bottom; mounted on legs.

3 Photos

JUST ADDED!

19450 gallon 350 PSIG, Tomco #2675-CA, Horiz Cryogenic Storage Tank, 52000 lbs CO2, 26 tons, safety valve 350 psi

Aaron Equipment Co | Wood Dale, IL

Seller: Aaron Equipment Co

Location: Wood Dale, IL

used- tomco 2675 ca 26 ton co2 tank. capacity of 52,000 pounds of co2. dimensions 8.83 x 7.5 x 31. pressure rating: 350 psig (safety relief valve was present to 350 psig). min temperature: -20 deg f.

9 Photos

Get email updates for newly added Pressurized Cryogenic Stainless Tanks

Pressurized Cryogenic Stainless Tanks (also known as cryogenic storage tanks) are specialized containers made of stainless steel, designed to store and transport liquefied gases such as nitrogen, oxygen, and helium at extremely low temperatures and high pressure. Commonly used in industries like aerospace, healthcare, and energy, these tanks are essential for safely containing cryogenic liquids in a controlled, insulated environment to maintain their stability and prevent evaporation.

50000 gallon 76 psi, 125" x 1034", Process Engineering Inc #H57740-8, Cryogenic Storage Tank, Horizontal, for LOX/nitrogen, -320 to 100 F, 1994

Aaron Equipment Co | Wood Dale, IL

Seller: Aaron Equipment Co

Location: Wood Dale, IL

Year: 1994

used- process engineering inc cryogenic storage tank, 50,000 gallon, model h57740-8, horizontal. for lox/ liquid oxygen or nitrogen. approximately 10' 5.375" diameter x 86' 2.6875" straight side. elliptical 2:1 heads. internal rated 76 psi at -320 to 100 degrees f. openings: 3.5" bottom fill, 4.5" vent & ...more
