11 Results
200 Ton, Verson #200-HD1-60T, Housing Type Hydraulic Press, 24" stroke, 41" daylight, 17" shut height, 62" x 36" bed
National Machinery Exchange | Newark, NJ
Category: Hydraulic Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Verson
Model: 200-HD1-60T
RATED CAPACITY (TONS). 200, STROKE (MAXIMUM). 24", DAYLIGHT. 41", SHUTHEIGHT. 17", BED AREA (L-R) x (F-B). 62" x 36", RAM AREA (L-R) x.(F-B). 55" X 30", BOLSTER L-R) x (F-B) x (THICK). 60" x 36" x 5", WIDTH BETWEEN UPRIGHTS. 62", WEIGHT. 50,000 LBS., O.A. DIMENSIONS (L-R) x (F-B) x (HIGH). 8'6" X 7'10" X ...more
200 Ton, Verson, 72" x 48", 60" daylight, 54" stroke, 40" work height, (2) 8" bore cylinders (4000 PSI), #2715
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Verson
Model 200-HD2-72-YP. Serial #19908. 72" x 48" nominal bed size. Overall between the posts is 74" L to R x 34" F to B. Two 8" bore Miller cylinders: 6" dia rods; 54" max stroke; operating at 4000 PSI. Max daylight approx. 60". Operator height approx. 39.5". Bed and slide have 11 T-slots on 6" centers. Saw-tooth style ...more
JUST ADDED!
250 Ton, Verson #250-HD1-60, hydrauic press, 30" stroke, 60" x 60" table, 50 HP
Maquinaria Chicago | Nuevo Leon, Mexico
Category: Hydraulic Presses
Seller: Maquinaria Chicago
Location: Ramos Arizpe, Mexico
Mfr: Verson
Model: 250-HD1-60
Folio: MV22421, VERSON 250-HD1-60, Hydraulic Press, Capacity: 250 tons, Table: 60" x 60" x 5", Ram: 53 1/2" x 53 1/2", Stroke: 30", Length: 22" (from base), Minimum clearance with stand: 17", Maximum clearance with stand: 47", Model: 250-HD1-60, Serial Number: 7896, Voltage: 440 V, Motor: 50 HP, RPM: 875, Location: ...more
250 Ton, Verson, 72" x48", 60" daylight, 54" stroke, (2) 8" bore cylinders (5000 PSI), 40" operator height, #2719
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Verson
Model 250-HD2-72-4P. Serial #19592 72" x 48" nominal bed size. Overall between the posts is 74" L to R x 34" F to B. Two 8" bore cylinders: 6" dia rods; 54" max stroke; operating at 5000 PSI. Max daylight approx. 60". Operator height approx. 39.5". Bed and slide have 11 T-slots on 6" centers. Saw-tooth style safety. ...more

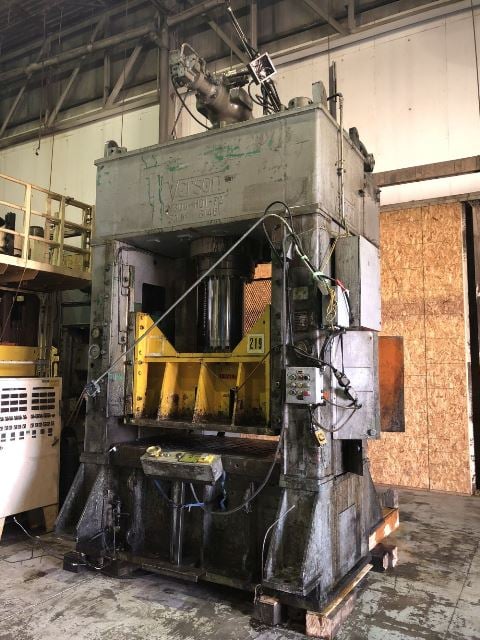

300 Ton, Verson #300-HDI-72T, 26" stroke, 40" daylight, 72" x 48" bed & ram, 960/104/830 IPM
Alma Machinery Co-Ann Arbor MI | Ann Arbor, MI
Category: Hydraulic Presses
Seller: Alma Machinery Co-Ann Arbor MI
Location: Ann Arbor, MI
Mfr: Verson
Model: 300-HDI-72T
max. capacity 300 ton - lifting capacity - 38 tons, max. stroke 26", daylight to bed 14" TO 40", bed area 72" x 48" (RL X fb), ram AREA 67" x 42" (RL X FB), speeds (INCHES PER MINUTE) 960 RAPID ADVANCE / 104 PRESSING / 830 RETURN, cylinder size 17.5" dia. BORE, FLOOR TO BED HEIGHT 27", PRESS CONTROLS ALLEN-BRADLEY ...more
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.

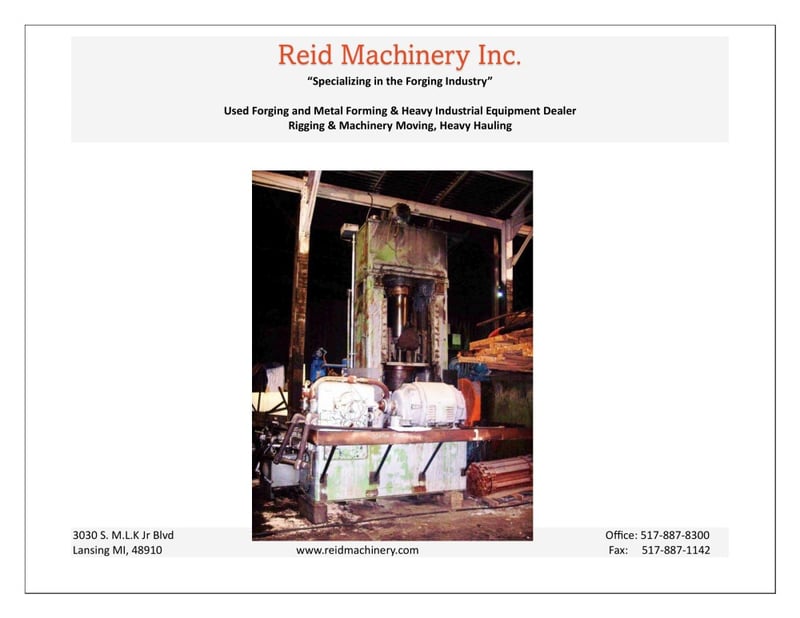

350 Ton, Verson #HDI-42T, hydraulic press, 32" stroke, 47" Shut Height, 90 SPM
Reid Machinery Inc | Lansing, MI
Category: Hydraulic Presses
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Verson
Model: HDI-42T
350 Ton Verson-HDI-42T Hydraulic Press Serial Number: 10034 Asset: L004 Capacity: 350 Ton Stroke: 32” 812.8 mm Rapid Down: 890 Rapitd Up: 780 Shut Height: 47" 1193.8 mm Slide Area: L to R - F to B: 34" x 34" 863.6 mm x 863.6 mm Bed Area: L to R - F to B: 38" x 46" 965.20 mm x 116.40 mm SPM: 90 Approximate Height ...more

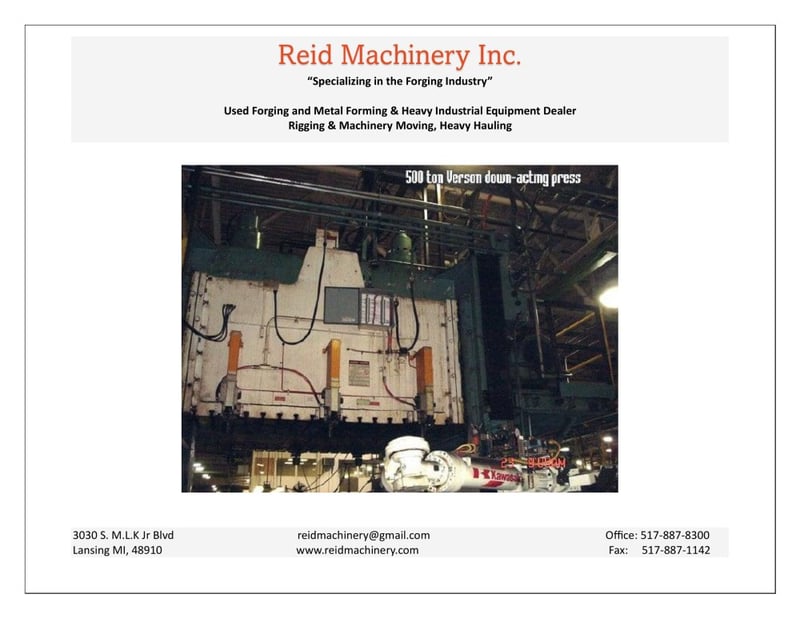

500 Ton, Verson #500-HD4-108-96-4T, hydraulic down moving press, 30" stroke, 76" daylight, 46" SH
Reid Machinery Inc | Lansing, MI
Category: Hydraulic Presses
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Verson
Model: 500-HD4-108-96-4T
500 Ton Verson Hydraulic Down Moving Press, One Pre-Owned Verson 500 Ton Hydraulic Down Moving Press, Model 500-HD4-108-96-4T, S/N 29088, New 1992,Steel 4-Post Frame., Capacity of Press @ 2930 PSI 500 Tons, Bed Area (Working Area-Bed & Platen) 108” x 96”, Stroke of Platen 30”, Daylight 76” ...more
500 Ton, Verson, 108" x 96" bed, 30" stroke, 76" daylight, 1992
Mauldin Machine Inc | Jacksonville, AR
Category: Hydraulic Presses
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Verson
Year: 1992
One Pre-Owned Verson 500 Ton Hydraulic Down Moving Press, Model 500-HD4-108-96-4T, S/N 29088, New 1992, Steel 4-Post Frame, Capacity of Press @ 2930 PSI 500 Tons, Bed Area (Working Area-Bed & Platen) 108” x 96”, Stroke of Platen 30”, Daylight 76”, Shut Height 46”, Fast Advance Speed ...more
700 Ton, Verson #700-HD-2-144T, hyd.stamping press, 42" stroke, 87" daylight, 144" x96" bed/ram
Paramount Industries | Saint Clair Shores, MI
Category: Hydraulic Presses
Seller: Paramount Industries
Location: Saint Clair Shores, MI
Mfr: Verson
Model: 700-HD-2-144T
1250 Ton, Verson, 144" x 72", 54" stroke, 74" daylight, 3 cushions
General Machinery LLC | Detroit, MI
Category: Hydraulic Presses
Seller: General Machinery LLC
Location: Detroit, MI
Mfr: Verson
Verson Hydraulic Press, Model: 1250-HD3-72-144-4T, Bed & Slide Area: 144" x 72", Stroke: 54", Daylight: 74" Over Bolster, Capacity @ 2750 PSI: 1250 Tons, Capacity @ 3000 PSI: 1365 Tons, Pre Pressing @ 2750 PSI: 605 Tons, Pre Pressing @ 3000 PSI: 655 Tons, Fast Advance: 580 IPM, Pressing Speed: 55 IPM, Pre pressing ...more
5000 Ton, Verson Press, 96" daylight, 24" Shut Height, 72" stroke of platen
Plant Engineering Services Inc | Fort Wayne, IN
Category: Hydraulic Presses
Seller: Plant Engineering Services Inc
Location: Dallas, TX
Mfr: Verson
Daylight 96", Stroke of Platen 72", Fast Advance Speed 75"/Min, Pressing Speed Adjustable 1 to 55" /Min, Fast Return Speed 46"/Min, 24" Shut Height, Platens 96" x 96", Bed Size Approx 80" F-B and 103" L-R, Approx. 630,000#, Floor Height 28' 191/2 ", Price is Loaded on your truck.
