Hpm Hydraulic Presses

warning
12 Results

50 Ton, HPM, hydraulic press, 12" stroke, 24" daylight, 28" x20" bed, palm buttons

D & D Industries Inc | Monclova, OH
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Hpm
MODEL #: N/A, SERIAL 62-92, 12" STROKE, 24" DAYLIGHT, 28" x 20" BED, PALM BUTTONS, GOOD CONDITION.

75 Ton, HPM, 4-post hydraulic press, 9" stroke, 25" daylight, 48" LR x 29" front back bed, S/N 41-240

Peterson Machinery Sales | Casa Grande, AZ
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Hpm
(1) Used 75-Ton HPM 4-Post Hydraulic Press; S/N 41-240, Capacity.75 Tons, Bed Area.48" L-R x 29" F-B, Slide Area.7 1/2" diameter, Distance Between Posts.29" L-R x 29" F-B, Stroke.9", Daylight Opening.25", Distance Floor to Bed.39 9/16", Tie Rod Diameter.3", Number of Ram ...more

80 Ton, HPM, 20" x 20", upact 4-post, 16" stroke, 15" daylight, 44" work height, some valves, #250

Icon Industries, Inc | Grand Rapids, MI
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
DISTANCE BETWEEN POSTS: 24" L to R X 11" F to B. POST DIAMETER 3". DAYLIGHT 15 ½" WITH DRILLED & TAPPED TOOL MOUNTING PLATES, DAYLIGHT WITHOUT PLATES 19 ½". APPROX STROKE 16". 10" DIAMETER MAIN RAM, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. TWO 2 ½" ...more

135 Ton, HPM #135-ton, hydraulic press, up-acting, 12" stroke, 20" LR x 7" FB between posts

Detroit Process Machinery | Detroit, MI
Seller: Detroit Process Machinery
Location: Detroit, MI
Mfr: Hpm
Model: 135-TON
HPM Hydraulic PressMODEL 135 ton, HPM Hydraulic Press, 135 ton, Up-Acting Design, 5 hp Vickers hydraulic package, large die opening, 12″ stroke, 20″ left to right between posts, 7″ front to back between posts, previously pressed a ceramic tile part, 220/440 volt, 3 phase, 60 hertz, STOCK NUMBER: ...more

135 Ton, HPM, Hydraulic 4-Post Press, upacting, 12" stroke, 20" right to left, 7" front to back, 5 HP, 3 phase, 220/440 V.

Ingalls Process Equipment | Painesville, OH
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Hpm
One (1) used HPM 4-Post Hydraulic Press Rated: 135 tons Up-acting 12" stroke 20" right to left between posts 7" front to back between posts 5 HP hydraulic unit with tank, 3 phase, 220/440 voltage.

Get email updates for newly added Hydraulic Presses

154 Ton, HPM, 16" x 24", upact 4-post, 12" stroke, 18" daylight, 14" ram, 32" work height, #270 (4 available)

Icon Industries, Inc | Grand Rapids, MI
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
BED 16" L to R X 24" F to B. DISTANCE BETWEEN POSTS: 18" L to R X 15" F to B. POST DIAMETER 3 ½". DAYLIGHT 18". APPROX STROKE 12". 14" MAIN RAM, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. HALF SURROUND GUIDES ON MOVING BOLSTER. OPERATOR HEIGHT: 32 ½". OVERALL ...more

200 Ton, HPM, 25.5" x24", up-act 4-post, 8" stroke, 12" daylight, 16" ram, 38" work height, #129 (12 available)

Icon Industries, Inc | Grand Rapids, MI
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
F TO B BETWEEN POSTS IS 10". 16" SINGLE-ACTING RAM. DAYLIGHT WITHOUT PLATENS IS 12". APPROX. 8" STROKE. 4" DIAMETER POSTS. 38" OPERATOR HEIGHT. HALF-SURROUND GUIDES. 2" NPT 4-BOLT FLANGE PORT. OVERALL DIMENSIONS: 48" X 36" X 65" TALL. QTY. OF 12. (ITEM #129).

250 Ton, HPM #CU-2, housing type, downstroke hydraulic press, 18" stroke, 36" daylight, 36" x36" bed, #21550

Kempler Industries Inc | Elk Grove Village, IL
Seller: Kempler Industries Inc
Location: Elk Grove Village, IL
Mfr: Hpm
Model: CU-2
250 TON HPM DOWNSTROKE HYDRAULIC PRESS, Model CU-2, Housing Type - Tie Rod Construction, w/84 Ton Hydraulic Cushion, Distance Between Side Housings: 37" L-R, Area of Bed (Nominal): 36" L-R x 36" F-B, Bed Bolster: 36" L-R x 36" F-B x 4.5" Thick, (T-Slotted), Area of Slide (Nominal): 36" L-R x 36" F-B, Slide Spacer: 36" ...more

500 Ton, HPM #CU-1, 24" stroke, 36" daylight, 36" LR x 24" FB bed area, 100 HP motor, with backup motor/pump

Ray Jacobs Machinery Co | Scottsdale, AZ
Seller: Ray Jacobs Machinery Co
Location: Scottsdale, AZ
Mfr: Hpm
Model: CU-1

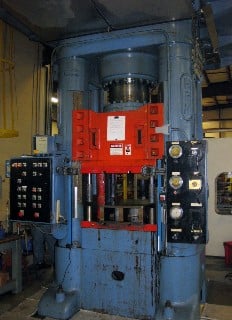

500 Ton, HPM, 36" x 36", 36" daylight, 24" stroke, gib guided, top-mounted hydraulic, AB PLC, #2317

Icon Industries, Inc | Grand Rapids, MI
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
SERIAL #55-315. 22" DIAMETER MAIN RAM WITH A 21.25" DIAMETER ROD AND APPROX 24" STROKE. THERE IS AN OPTIONAL "PIERCE" CYLINDER IN THE CENTER OF THE MAIN RAM THAT IS 10" BORE WITH AN 8.75" DIAMETER ROD WITH APPROX 3" TO 6" STROKE RATED TO 100 TONS. 36" X 36" NOMINAL BED SIZE ...more

1000 Ton, HPM, 4-post, 36" stroke, 48" daylight, 72" x48" bed, floor standing, heavy duty, sr5706

Alma Machinery Co-Ann Arbor MI | Ann Arbor, MI
Seller: Alma Machinery Co-Ann Arbor MI
Location: Ann Arbor, MI
Mfr: Hpm

7000 Ton, HPM, hydraulic, 36" stroke, 53" daylight, 144" x 72" bed, 6300 ton cushion, 1953, #2560CE

Mauldin Machine Inc | Jacksonville, AR
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Hpm
Year: 1953
, Capacity of Ram at 2,740 PSI.7000 Tons, Stroke of Ram.36”, Ram Cylinder Diameter.74”, Shut Height (Over Bolster).24”, Daylight (Over Bolster).53”, Area of Bolster Plate, R to L.144”, F to B.72”, Thickness.30”, Area of Bed and Ram, R to L.144”, F to B.72”, Distance Between ...more
