8 Results
176 Ton, Adamson, 20" x20", upact 4-post, 5.5" stroke & daylight, 15" ram, steam platens, #24 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
PUMP RATED TO 3,000 PSI; APPROX 24 GALLON TANK; ETC… RELAY CONTROL CONSOLE: ADJUSTABLE PRESSURE GAGE; CHROMOLOX TEMP CONTROLLER; CURE TIMER; HEAT TIMER; CLOSE/OPEN; E-STOP; 100 AMP DISCONNECT, ETC…PRESS HAS 48" LIGHT CURTAINS ON FRONT; STEEL MESH ON BACK. OIL HEATER ON TOP OF PRESS: 2 HP (1800 RPM); ...more
200 Ton, Adamson, 25-3/4" x16", slab side, 12" stroke, 18" daylight, 33" oper.height, qty.avail.#35
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
DISTANCE LEFT TO RIGHT BETWEEN SLAB SIDES IS 28". 16" DIA. RAM WITH APPROX. 12" STROKE. 12 \u00bd" DAYLIGHT WITH TWO STEAM PLATENS IN PLACE. 18" DAYLIGHT WITHOUT PLATENS. 33" OPERATOR HEIGHT. QTY. 10. C. (ITEM #35C).

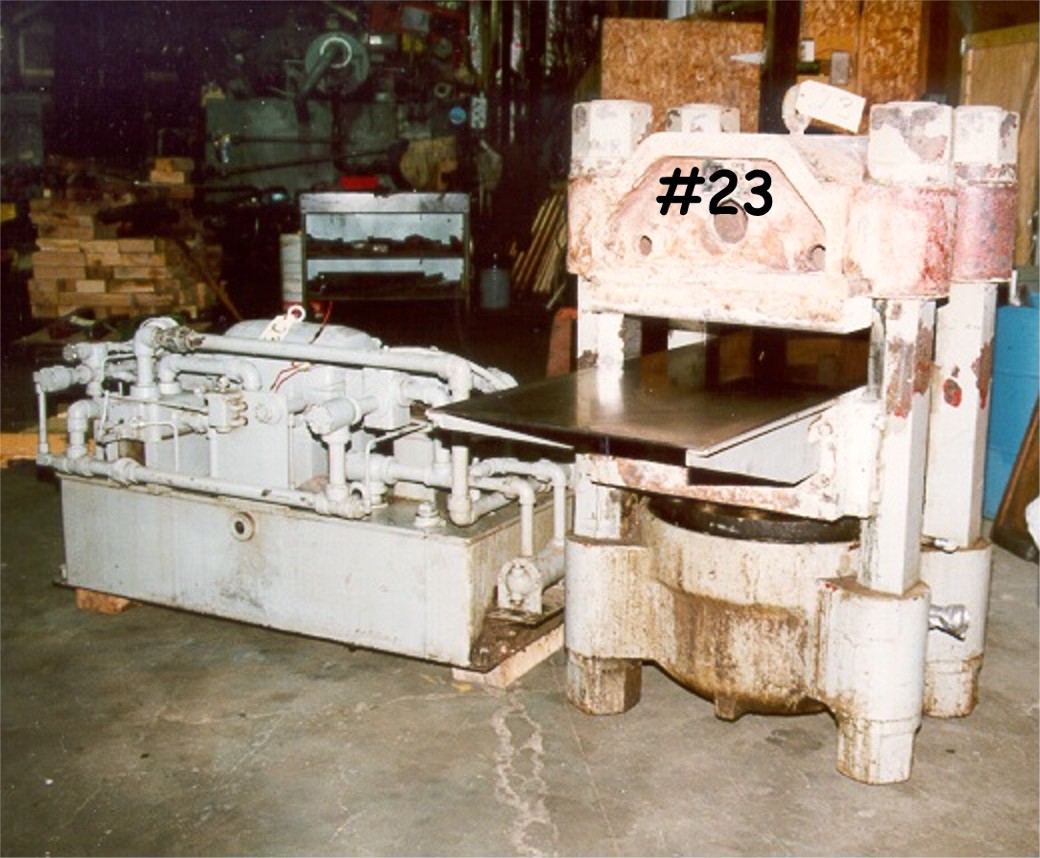

254 Ton, Adamson, 24" x32", upact 4-post, 5" stroke & daylight, hydraulic unit, hand valve Control, #23
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
18" RAM. APPROX. 5 \u00bc" DAYLIGHT AND 6" STROKE. GUIDED WITH 45 DEGREE ADJUSTABLE GIBBS. 36 \u00bd" OPERATOR HEIGHT. 61" OVERALL HEIGHT. LOADING TABLE. STEAM OR OIL HEATED PLATENS. HYDRAULIC POWER UNIT WITH 7.5 HP MOTOR, 1200 RPM, 220/440 VOLTS. TWO VICKERS VANE PUMPS (V-144-10-LH & V2304-E4). WATER COOLER. 70 ...more
346 Ton, Adamson, 28" x28", up-act, 4-post, 6" stroke & daylight, 21" ram, 7.5 HP pwr.unit, #22
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
21" RAM. APPROX. 6" DAYLIGHT AND 6" STROKE. GUIDED WITH 45 DEGREE ADJUSTABLE GIBBS. 43 \u00bd" OPERATOR HEIGHT. 73" OVERALL HEIGHT. LOADING TABLE. STEAM OR OIL HEATED PLATENS. HYDRAULIC POWER UNIT WITH 7.5 HP MOTOR, 1200 RPM, 220/440 VOLTS. TWO VICKERS VANE PUMPS (V-144-10-LH & V2304-E4). WATER COOLER. 70 GALLON ...more

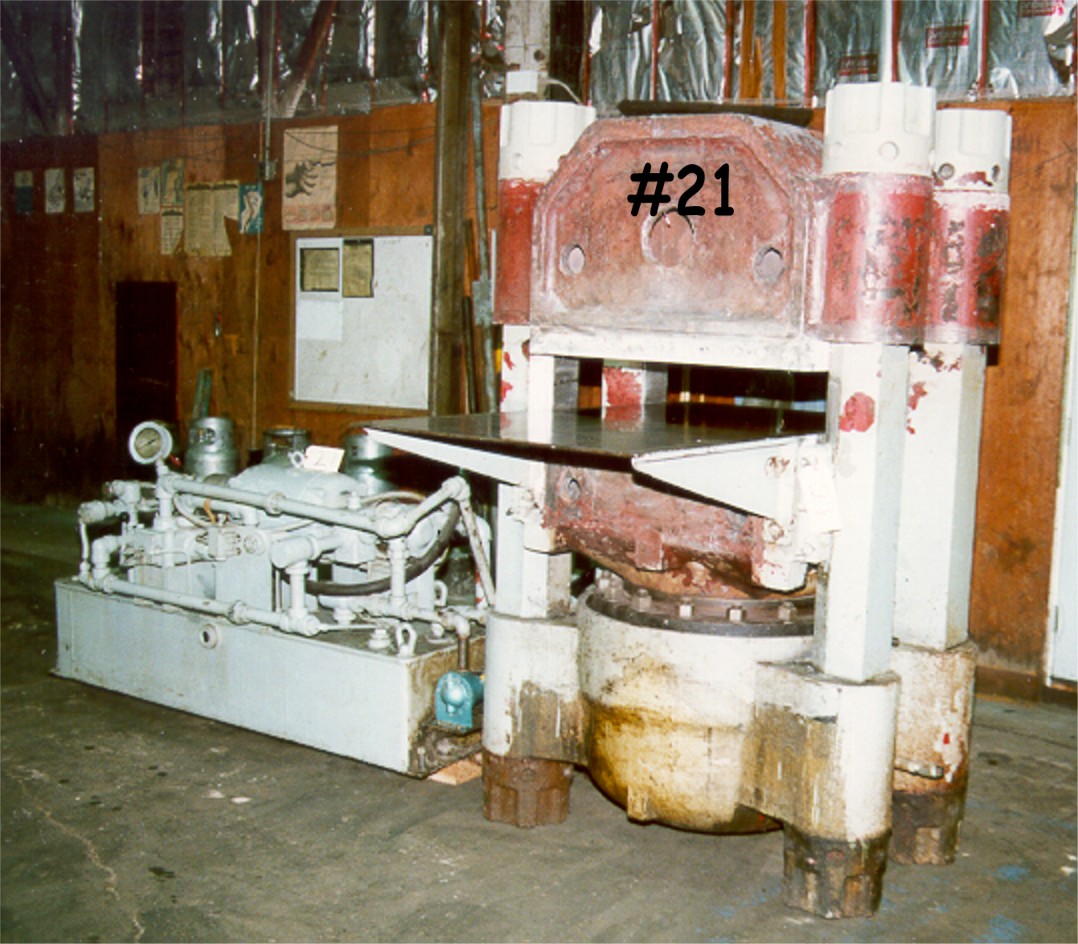

415 Ton, Adamson, 32" x32", up-act, 4-post, 6" stroke & daylight, 23" ram, 7.5 HP pwr.unit, #21
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
23" RAM. APPROX. 6" DAYLIGHT AND 6" STROKE. GUIDED WITH 45 DEGREE ADJUSTABLE GIBBS. 47" OPERATOR HEIGHT. 81" OVERALL HEIGHT. LOADING TABLE. STEAM OR OIL HEATED PLATENS. HYDRAULIC POWER UNIT WITH 7.5 HP MOTOR, 1200 RPM, 220/440 VOLTS. TWO VICKERS VANE PUMPS (V-144-10-LH & V2304-E4). WATER COOLER. 70 GALLON TANK. ...more
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.
600 Ton, Adamson, press, 30" LR x 32", 4-post, 25" daylight, 20" stroke, 46" oper hght, #1843 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
CLEARANCE BETWEEN POSTS IS 32" L TO R AND 11" F TO B. NOMINAL BED SIZE IS APPROX 30" X 32". HYDRAULIC RAM IS 24" DIAMETER WITH APPROX 20" STROKE. MAX DAYLIGHT IS APPROX 25". OPERATOR HEIGHT IS APPROX 46". QUARTER-SURROUND GUIDES ON 7.5" DIAMETER POSTS. APPROX 3" INLET WITH 8-BOLT FLANGE. OVERALL DIMENSIONS APPROX 80" ...more
600 Ton, Adamson, 4-post, upacting, 20" stroke, 25" daylight, 30" x 32" bed, #1844C
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
CLEARANCE BETWEEN POSTS IS 32" L TO R AND 11" F TO B. NOMINAL BED SIZE IS APPROX 30" X 32". HYDRAULIC RAM IS 24" DIAMETER WITH APPROX 20" STROKE. MAX DAYLIGHT IS APPROX 25". OPERATOR HEIGHT IS APPROX 46". QUARTER-SURROUND GUIDES ON 7.5" DIAMETER POSTS. APPROX 3" INLET WITH 8-BOLT FLANGE. OVERALL DIMENSIONS APPROX 80" ...more
Adamson, 4-post hydraulic press, 60" stroke, 30" ram, 48" x48", no rods, parts only
Soberay & Sons Ltd | Cleveland, OH
Category: Hydraulic Presses
Seller: Soberay & Sons Ltd
Location: Cleveland, OH
Mfr: Adamson
One (1) Used Adamson 48" x 48" 4 - post hydraulic press, 30" ram, 60" stroke, no rods, parts only.
