22 Results
500 Ton, Ajax forging press, 8" stroke, 21.75" ram LR, 21" ram front back, 25 HP, 90 SPM, 1948
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Ajax
Year: 1948
500 TON AJAX FORGING PRESS, YR: 1948, SPM: 90, STROKE: 8", RAM: (LR) 21.75", RAM: (FB) 21", RAM TO TABLE - 24", DIE SEAT (LR) - 23.75", DIE SEAT (FB) - 28", WIDTH BETWEEN COLUMNS - 25", FLOOR SPACE (LR) 88", FLOOR SPACE (FB) 84", HEIGHT ABOVE FLOOR 147", MOTOR HP - 25, LBS- 58,000, **DOES NOT HAVE ELECTRICAL PANEL**.
700 Ton, Ajax, mechanical forging press, 8" stroke, 27-3/8" Shut Height, 45 SPM
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
700 Ton Ajax Mechanical Forging Press ASSET: L064, Capacity: 700 Ton, Serial Number: 4870 (1963), Stroke: 8" 203.2mm, SPM: 45, Shut Height: 27 3/8" 698.33mm, Die Area: F-B 25" x 37" 635mm x 939.8mm, Slide Area: 24" x 24" 609.6mm x 609.6mm, Floor Space L-R & F-B: 6' x 6' 1.828m x 1.828m, Approximate Height ...more
1000 Ton, Ajax #10C, straight side mechanical forging press, 10" stroke, 32" Shut Height, 80 SPM
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Ajax
Model: 10C
1000 TON AJAX #10C STRAIGHT SIDE MECHANICAL FORGING PRESS, 10" STROKE, 32" SHUT HEIGHT, 36" X 32" BED, 80 STROKES PER MINUTE.
1000 Ton, Ajax, 26" x 35" bed, 10" stroke, 26" x26" ram face, 22-1/4" Shut Height, 32" width between columns, 45 SPM, 60 HP
Mauldin Machine Inc | Jacksonville, AR
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Ajax
ONE PREOWNED 1000 TON AJAX, MECHANICAL FORGING PRESS LINE, S/N 3968, Rated Forging Tonnage 1000 Tons, Stroke 10″, Bed Area L-R, F-B 26″ x 35″, Ram Face 26″ x 26″, Shut Height 22 ¼″, Width Between Columns 32″, Strokes per Minute 45, Motor 60 HP, Floor Space 110″ x ...more
1000 Ton, Ajax, mechanical forging press, 10" strokem 22-1/4" Shut Height, 45 SPM, 60 HP
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
1000 Ton Ajax Mechanical Forging Press Serial Number: 3968 Capacity: 1000 Ton Stroke: 10" Shut Height: 22 ¼” Width Between Columns: 32” Bed Area: (f-b) (r-l) 26" x 35" SPM: 45 Height Above Floor: 172” Motor Horsepower: 60HP Approximate Weight: 110,000 lbs. are correct to the best of our ...more
Get email updates for newly added Hydraulic and Mechanical Forging Presses
Hydraulic and Mechanical Forging Presses (also known as hydraulic and mechanical presses) shape metal using high pressure. Hydraulic presses offer flexible shaping for complex parts, while mechanical presses provide high-speed, repetitive force. Both are essential in industries like automotive, aerospace, and manufacturing for producing precise, high-strength components.
1000 Ton, Ajax mechanical press, 25" Shut Height, 40 SPM
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
1000 Ton Ajax Mechanical Press Asset: L015 Serial Number: 3512 Capacity: 1000 Ton SPM: 40 Shut Height: 25" Bed Area L to R & F to B: 20" x 45" Slid Area L to R & F to B: 24" x 28" Floor Space: L-R & F-B 6' x 6' Height Above Floor: 15' Approximate Weight: 97,000 lbs. are correct to the best of ...more
1300 Ton, Ajax forging presses, 10" stroke, 31" ram face L-R/F-B, 1.25" knockout stroke, 32" L-R die seat, 33" F-B die seat, 1986, 1987, 1996 (3 available)
Affordable Machinery | Grand Rapids, MI
Seller: Affordable Machinery
Location: Grand Rapids, MI
Mfr: Ajax
Year: 1986
1600 Ton, Ajax #1600, straight side forging press, 12" stroke
Presses for Industry | Detroit, MI
Seller: Presses for Industry
Location: Detroit, MI
Mfr: Ajax
Model: 1600
1600 Ton Ajax Press, 12" Stroke, 47"x37" Bed Area, 25" x 31" Windows, 27"Opening, (4) Interpower Induction Heaters, Wedge Die Set, (2) Feed-All Feed Hoppers, (2) Fanuc R2000iB 165F Robots, New CounterBalance Cylinder, Spare Bushing, (3) Crates of Spare Ajax Parts, Conveyor, 1600 Ton Ajax Forge Press, 12" stroke of ...more
1600 Ton, Ajax, forging press, 12" stroke, 35" Shut Height, 48" x54" bed, 60 SPM, spare parts, 1978
Yoder Brothers Machinery | Toledo, OH
Seller: Yoder Brothers Machinery
Location: Toledo, OH
Mfr: Ajax
Year: 1978
1600 TON AJAX FORGING PRESS:, *** INCLUDES ALOT OF SPARE PARTS ***, SERIAL. 5120, YEAR NEW. 1978, CAPACIYT. 1600 TONS, STROKE. 12”, SHUT HEIGHT. 35”, SPEED. 60 STOKES PER MINUTE, BED SIZE. 48” X 54”, RAM SIZE. 42” X 42”.
1600 Ton, Ajax Forging Press, 12" stroke, 34" Shut Height, 65 SPM, 100 HP, 1968
Mauldin Machine Inc | Jacksonville, AR
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Ajax
Year: 1968
Mauldin Machine Inc., Dealers In New and Used Industrial Metal Working Machinery, PROPOSAL, We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales", for immediate acceptance, the following:, ONE PREOWNED AJAX 1600 METRIC TON MECHANICAL FORGING PRESS, NEW APPX ...more
1600 Ton, Ajax, forge press
R D Erbe & Associates Inc | Lansing, MI
Seller: R D Erbe & Associates Inc
Location: Lansing, MI
Mfr: Ajax

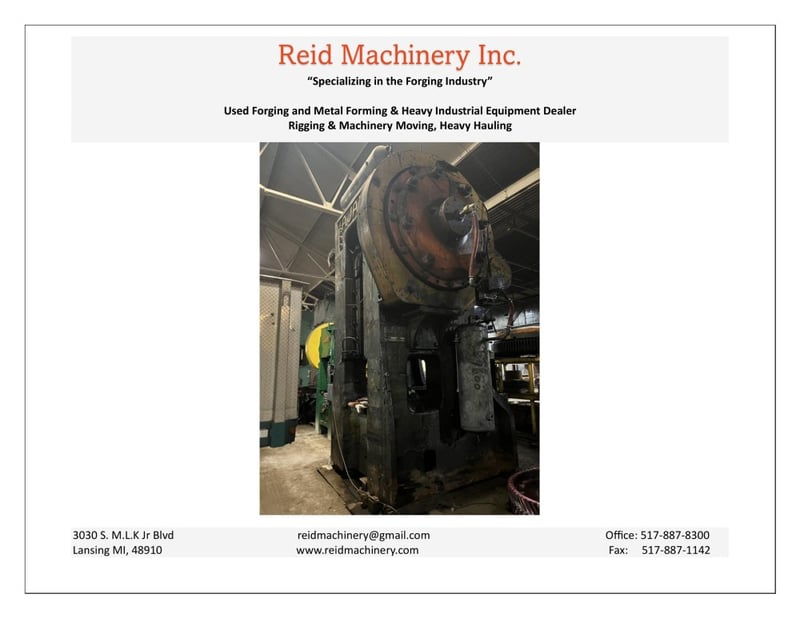

1600 Ton, Ajax, mechanical forging press, 41" x 39" bed area, 65 SPM
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
Year: 1968
1600 Ton Ajax Mechanical Forging Press, Year: 1968 Asset: L016, Serial Number: 5021, Capacity: 1000 Ton, Shut Height: 34” - 863.6 mm, Width Between Columns: 32” - 812.8 mm, Bed Area: (f-b) (r-l) 41" x 39" 1041.4 mm x 990.6 mm, Ram Face: 39" x 36" 990.6 mm x 914.4 mm, SPM: 65, Motor Horsepower: 100HP ...more
2000 Ton, Ajax, forge press, #688, #706
R D Erbe & Associates Inc | Lansing, MI
Seller: R D Erbe & Associates Inc
Location: Lansing, MI
Mfr: Ajax

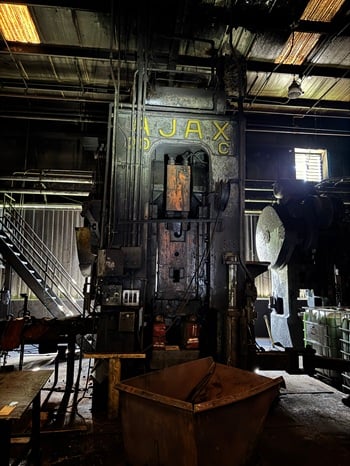

2000 Ton, Ajax, forging press, 12" -14"stroke, 50" btwn columns, 150 HP, 60 SPM
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Ajax
SPM: 60, STROKE: 12" - 14", RAM FACE L/R - F/B: 44" x 42", RAM TO TABLE: 39", TABLE TO FLOOR: 20-1/2", DIE SEAT L/R - F/B: 43" x 52", WIDTH BETWEEN COLUMNS: 50", SIDE WINDOW WIDTH: 27", FLOOR SPACE L/R - F/B: 164" x 141", HEIGHT ABOVE FLOOR: 222", MOTOR HP: 150, WEIGHT: 308,000 LBS, PRESS NOT IN SERVICE.
2000 Ton, Ajax, 12" stroke, 39" Shut Height, 58 SPM, 150 HP, 1975
Mauldin Machine Inc | Jacksonville, AR
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Ajax
Year: 1975
ONE PREOWNED 2000 TON AJAX FORGING PRESS, NEW IN 1975, • 2000 Tons Capacity, • 12 " Stroke, • 39" Shut Height, • 58 SPM, • Ram: 42" x 42", • Bed: 52" x 46", • Flywheel Speed: 262 RPM, • 150 HP @ 1200 RPM Main Motor, • Has Bottom Wedge Adjustment ...more
2000 Ton, Ajax, mechanical forging press, 12" stroke, 150 HP
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
Year: 1974
2000 Ton Ajax Mechanical Forging Press, Year: 1974 Asset: L017, Serial Number: 5135, Capacity: 2000 Ton, Stroke: 12”, Die Space (Ram Down): 39", Motor Size: 150HP, Motor Speed (R.P.M): 1200, Air Consumption (Free Air Per Stroke): 7.9 Cu. Ft., Ram Face: R to L F to R: 44: x 42", Die Seat: L to R F to B: 48" x ...more
2000 Ton, Ajax, mechanical forging press, 12" stroke, 150 HP
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
2000 Ton Ajax Mechanical Forging Press Asset: L057 Capacity: 2000 Ton Stroke: 12” 304.8mm SPM: 48 Top Knockout Stroke: 1 5/8 41mm Ram To Table: 39" 991mm Nom. Mech Stroke: 2 3/8" 60mm Table to Floor: 39" 1000mm Width between Columns R-L: 50" 1270mm SPM: 60 Motor Size: 150HP Motor Speed (R.P.M): Ram Face: R to L ...more
2500 Ton, Ajax, forging press, 14" -15"stroke, 48" btwn columns, 150 HP, 50 SPM
National Machinery Exchange | Newark, NJ
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Ajax
SPM: 50, STROKE: 14" - 15", RAM FACE L/R - F/B: 44" x 44", RAM TO TABLE: 41", DIE SEAT L/R - F/B: 47" x 60", WIDTH BETWEEN COLUMNS: 48", SIDE WINDOW WIDTH: 28", FLOOR SPACE L/R - F/B: 164" x 147", HEIGHT ABOVE FLOOR: 221", MOTOR HP: 150, WEIGHT: 330,000 LBS, PRESS NOT IN SERVICE.
2500 Ton, Ajax Forging Press, 14" stroke, 39" Shut Height, 50 SPM, 150 HP, 1968
Mauldin Machine Inc | Jacksonville, AR
Seller: Mauldin Machine Inc
Location: Jacksonville, AR
Mfr: Ajax
Year: 1968
Mauldin Machine Inc., Dealers In New and Used Industrial Metal Working Machinery, PROPOSAL, We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales", for immediate acceptance, the following:, ONE PREOWNED AJAX 2500 METRIC TON MECHANICAL FORGING PRESS, NEW APPX ...more
2500 Ton, Ajax, mechanical forging press, 14" stroke, 60" x 47" bed area, 50 SPM
Reid Machinery Inc | Lansing, MI
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Ajax
Year: 1968
2500 Ton Ajax Mechanical Forging Press, Year: 1968, Serial Number: 5023, Capacity: 2500 Ton, Stroke: 14” - 355.6 mm, Shut Height: 39” – 990.6 mm, Bed Area: (f-b) (r-l) 60” x 47” – 1524 mm x 1193.8 mm, Ram Face: (f-b) (r-l) 44” x 44” – 1117.6 mm x 1117.6 mm, SPM: ...more
2500 Ton, Ajax, forge press
R D Erbe & Associates Inc | Lansing, MI
Seller: R D Erbe & Associates Inc
Location: Lansing, MI
Mfr: Ajax
6000 Ton, Ajax, 18" stroke, 38 SPM, 48-5/8" Shut Height, excellent, 1961 & 66, (2)avail., #4845 & 4953
Hoffman Machinery Corp | Grosse Pointe, MI
Seller: Hoffman Machinery Corp
Location: Grosse Pointe, MI
Mfr: Ajax
6000 TON AJAX FORGING PRESS, Mfg. 1961 S/N 4845, Stroke Length, 18", Strokes per Minute 38, Die Seat 70" x 75-1/2", Ram Face 66" x 60", Motor 400 HP, Wedge Adjustment 3/8", Shut Height 48-1/8", Approx. Weight 944,000 Lbs., Additional Information:, Upper and lower knockouts., Extremely well maintained. Excellent ...more
