5 Results
150 sq.ft., 50FV psi shell, 50 psi tube, Southern heat exchanger, 250° F.
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Mfr: Southern
ITEM NO : 113157 QTY : 1 ALLOY : S SQ.FT. : 150 MATERIAL (S) : SS MATERIAL (T) : SS MATERIAL (H) : CS PSI (S) : 50FV PSI (T) : 50 TEMP. DEG. F (S) : 250 TEMP. DEG. F (T) : 250 TUBE DIAMETER IN" :.75 TUBE LENGTH FT'IN" : 6'0" V/H : H SHELL DIAMETER FT'IN" : 1'0" Used ...more

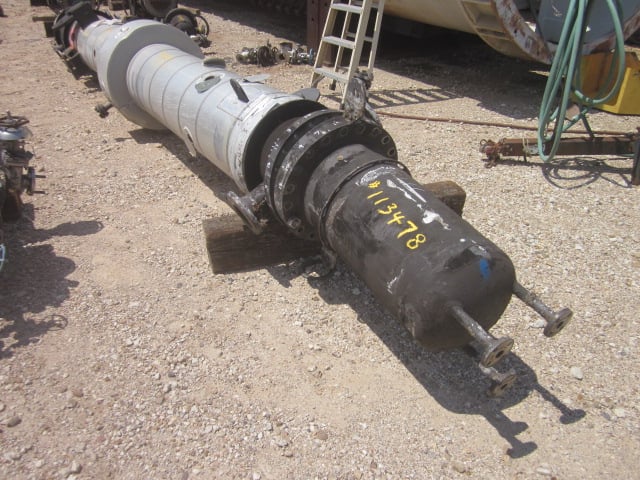

368 sq.ft., 100 psi shell, 100 psi tube, Southern Heat Exchanger, Vertical 304L Stainless Steel, 1990
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Mfr: Southern
Year: 1990
ITEM NO : 113478 QTY : 1 ALLOY : S SQ.FT. : 368 MATERIAL (S) : 304LSS MATERIAL (T) : 304LSS MATERIAL (H) : 304LSS PSI (S) : 100FV PSI (T) : 100FV TEMP. DEG. F (S) : 302 TEMP. DEG. F (T) : 302 TUBE DIAMETER IN" : 1 TUBE LENGTH FT'IN" : 16'0" TUBE HOLES : 88 TUBE PITCH : 1.25" TRI TUBE WALL : ...more

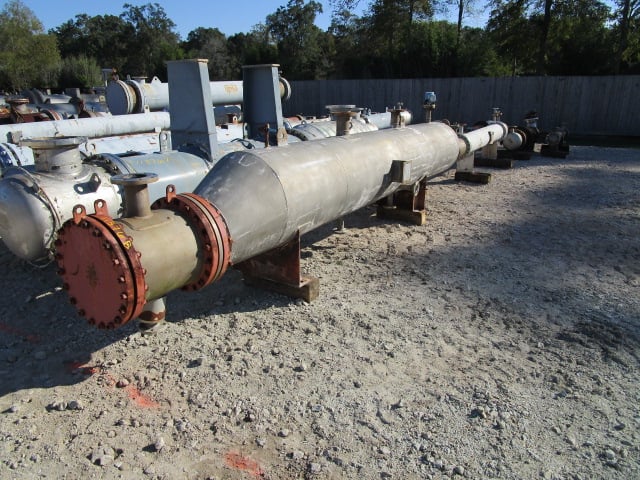

427 sq.ft., 108FV shell, 105FV tube, Southern, Horizontal Kettle type Exchanger, 28" diameter x 10' 0" F/F, 316L Stainless Steel, 1999
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Mfr: Southern
Year: 1999
ITEM NO : 113768 QTY : 1 ALLOY : S SQ.FT. : 427 MATERIAL (S) : 316LSS MATERIAL (T) : 316LSS MATERIAL (H) : 316LSS PSI (S) : 108FV PSI (T) : 105FV TEMP. DEG. F (S) : 350 TEMP. DEG. F (T) : 350 TUBE DIAMETER IN" :.75 TUBE LENGTH FT'IN" : 10'0" TUBE HOLES : 218 TUBE WALL : 18 BWG V/H : H CODE : NB ...more
1340 sq.ft., 150 psi shell, 150 psi tube, Southern Heat Exchanger, 400°F tube, 1994
Louisiana Chemical Equip Co | Baton Rouge, LA
Seller: Louisiana Chemical Equip Co
Location: Baton Rouge, LA
Mfr: Southern
Year: 1994
ITEM NO : 104342 QTY : 1 ALLOY : S SQ.FT. : 1340 MATERIAL (S) : 316LSS MATERIAL (T) : 317LSS MATERIAL (H) : CS PSI (S) : 150 PSI (T) : 150 TEMP. DEG. F (S) : 550 TEMP. DEG. F (T) : 400 TUBE DIAMETER IN" :.75 TUBE LENGTH FT'IN" : 20'0" TUBE HOLES : 341 TUBE PITCH : 15/16" TRI TUBE WALL ...more
1459 sq.ft., 103 psi shell, 127 psi tube, Southern Stainless Steel Shell & Tube Heat Exchanger, 2020
Aaron Equipment Co | Schaumburg, IL
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Southern
Year: 2020
unused- southern heat exchanger shell & tube heat exchanger, approximately 1459 square feet, 304l stainless steel, horizontal. 304l stainless steel shell rated 103 psi at -20 to 250 degrees f. (186) 304l stainless steel 1-1/2" diameter x 19 11-3/4" long, rated 127 psi at -20 to 250 degrees f. 304l stainless heads ...more
Get email updates for newly added Heat Exchangers, Stainless Steel Shell & Tubes
Stainless steel tube and shell heat exchangers are highly efficient devices used to transfer heat between two fluids without mixing them. They are commonly utilized in industries like chemical processing, oil and gas, and HVAC systems for applications such as cooling, heating, and condensing. The stainless steel construction provides excellent corrosion resistance, making these heat exchangers ideal for handling aggressive or high-temperature fluids. Their robust design allows them to operate under high pressures and in harsh environments, ensuring long-term reliability and performance.
