22 Results
20 Ton, Fabriline #FP20-6, C-frame hydraulic flange punch, 7/8" stroke, 6" throat, 3 HP, #69702
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: FP20-6
MODEL. FP20-6, CAPACITY. 20 TON, STROKE. 7/8", MAXIMUM HOLE. 13/16" THRU 1/4, THROAT DEPTH. 6", OPENING IN THE C. 3-1/4", ELECTRIC FOOT CONTROL. YES, MOTOR. 3 HORSEPOWER.
21 Ton, Whitney #720-044, portable flange punch, 6" throat, 7/8" stroke, pendant Control
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 720-044
SERIAL. 720-044-8394, MODEL. 720-044, CAPACITY. 20 TON, DEPTH OF THROAT. 6", STROKE. 7/8", MAXIMUM OPENING IN C FRAME. 2-1/2", MAXIMUM HOLE SIZE. 13/16 THRU 1/4" MILD STEEL, CENTER OF PUNCH TO FACE. 1-1/2", MAXIMUM OPEN IN DIE AREA. 5/8", PENDANT CONTROL. YES, HYDRAULIC TANK SERIAL. 700-3568389, MOTOR. 1 HORSEPOWER.
30 Ton, W.A. Whitney flange punches (5) & 100 ton Fabriline flange (2 available)
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: W.A. Whitney
NUMBER OF FPLAGE HEADS. (7), NUMBER OF 30 TON HEADS. 5, NUMBER OF 100 TON HEADS. 2, SERIAL 30 TON HEADS. 41760,47161,41762,41763,44144,41445,41446, MODEL 30 TON HEADS. 730-20, CAPACITY. 30 TONS, STROKE. 7/8", OPEN HEIGHT. 5/8", THROAT. 4-1/4", CYCLE TIME. 3 SECONDS, MODEL. FP-100, CAPACITY. 100 TONS, MAXIMUM HOLE ...more

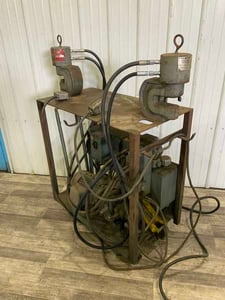

30 Ton, Whitney #730-000, C-frame hydraulic flange punch, 3-1/8"throat, 5 HP, push button Control (2 available)
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 730-000
NUMBER OF PUNCH HEADS. 2SERIAL. 730-000-38024MODEL. 730-000CAPACITY. 30 TONDEPTH OF THROAT. 3-1/8"STROKE OF RAM. 7/8"PUCHING CAPACITY. 1-3/16" THROUGH 1/4" PLATEPUNCHING CAPACITY. 1/2" THROUGH 5/8" PLATEPUSH BUTTON CONTROL. YESHORSEPOWER HYDRAULIC UNIT. 5.
30 Ton, Whitney #730-020, flange punch, 7/8" stroke, 3-1/4" throat, 10 HP, #56437
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 730-020
MODEL. 730-020, CAPACITY. 30 TON, DEPTH OF THROAT. 3-1/4", STROKE. 7/8", MAXIMUM OPENING IN C FRAME. 1-7/8", MAXIMUM HOLE SIZE. 13/16 THRU 1/2" MILD STEEL, CENTER OF PUNCH TO FACE. 1-1/2", MAXIMUM OPEN IN DIE AREA. 5/8", DUAL ELECTRIC FOOT PEDALS. YES, MOTOR. 10 HORSEPOWER.
Get email updates for newly added Flange and Web Punch Machines
Flange and Web Punch Machines (also known as structural punch machines) are specialized tools used to punch holes or slots in the flanges and webs of structural beams or channels. Commonly used in industries like construction, manufacturing, and metalworking, they are ideal for tasks such as creating bolt holes or custom shapes in structural components. These machines are essential for precision and efficiency in fabricating steel beams and similar materials.

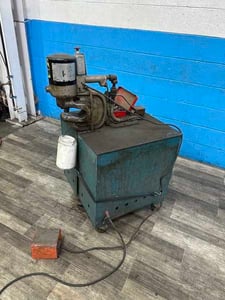

49 Ton, Nitto Kohki #HA11-1624, portable flange punch, 4-5/16" throat, electric foot pedal
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Nitto Kohki
Model: HA11-1624
SERIAL. 12354, MODEL. HA11-1624, CAPACITY. 49 TON, MAXIMUM HOLE DIAMETER. 1-1/6", MAXIMUM PLATE THICKNESS. 5/88", DEPTH OF THRAOAT. 4-5/16", CYCLE TIME. 16.5 SECONDS, RETURN TIME. 1 SECOND, PSI. 10,000, ELECTRIC FOOT PEDAL. YES, PHASE. 1, VOLTAGE. 110, MOTOR HORSEPOWER.1/2.
50 Ton, Fabriline #750, C-frame flange punch, 1-3/8" stroke, 4-1/4" throat, #65897
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: 750
MODEL. # 750, CAPACITY. 50 TON, DEPTH OF THROAT. 4-1/4", STROKE OF RAM. 1-3/8", DIE OPENING. 1-3/16, MINIMUM FLANGE OPENING. 4-1/4".
50 Ton, Rockford #751-007, hydraulic C-frame flange punch & pump, 1-3/8" stroke, 6-1/4" throat, 10 HP
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Rockford
Model: 751-007
SERIAL. 751-000-21654, MODEL. 751-007, CAPACITY. 50 TON, THROAT DEPTH. 6-1/4", MAX DIA HOLE. 1-1/2", MAX MATERIAL THICKNESS. 3/4", STROKE. 1-3/8", USES PUNCH STYLE. #740, USES DIE STYLE. #740, CAPACITY RD. 7/32" - 1-1/2", CAPACITY SQ. 1/4" - 1", OBROUND. 1/4" - 1-1/2", RECTANGLE. 1/4" - 1-1/2", HYDRAULIC TANK. 10 ...more
50 Ton, Whitney #751-007, portable single end punch, flange type, 6-1/4" throat, 10 HP
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 751-007
MODEL. 751-007, TYPE. FLANGE, CAPACITY. 50 TONS, THROAT DEPTH. 6-1/4", MAX DIA HOLE. 1-1/2", MAX MATERIAL. 3/4", STROKE. 1-3/8", USES PUNCH & DIE STYLE. 740, CAPACITY RD. 7/32" - 1-1/2", CAPACITY SQ. 1/4" - 1", OBROUND. 1/4" - 1-1/2", RECTANGLE. 1/4" - 1-1/2", MOTOR. 10 HORSEPOWER, AMPS. 13.5.
50 Ton, Whitney, portabe hydraulic punch, 4-=1/8" throat, 10 HP
Mullin Machinery | Farmingdale, NJ
Category: Flange and Web Punch Machines
Seller: Mullin Machinery
Location: Farmingdale, NJ
Mfr: Whitney
Product, ESTERLINE WHITNEY MODEL 75001 HYDRAULIC PUNCHCAPACITY- 50 TONS, THROAT DEPT- 4 1/8″, WIRED- 10hp 208-230/460 3PH, ALL ORIGINAL PAINT. UNIT IS IN VERY GOOD CONDITION AND ON A WELL MADE ROLLING STEEL TABLE, COMES WITH A SELECTION OF PUNCHES AND DIES, WEIGHT 1030 LBS.
60 Ton, Fabriline #WP-60, hydraulic web punch, 1-1/2" stroke, 7-3/4" throat, #67930
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: WP-60
MODEL. WP-60, CAPACITY. 60 TON, MAXIMUM HOLE CAPACITY. 1-1/4" THRU 1/2" PLATES, STROKE. 1-1/2", DEPTH OF THROAT. 7-3/4", CYCLE TIME. 5.9 SECONDS FULL STROKE.
60 Ton, Peddinghaus #PF-60, hydraulic webb & flange, pendant control, 10 HP, #66282
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Peddinghaus
Model: PF & PW-60
FLANGE PUNCH, SERIAL. 2866, MODEL. PF-60, CAPACITY. 60 TON, DEPTH OF THROAT. 4-1/2", STROKE. 1-1/2", MAX HOLE SIZE. 1-1/2, WEBB PUNCH, SERIAL. 2869, MODEL. WF-60, DEPTH OF THROAT. 4-1/2", STROKE. 1-1/2", MAX HOLE. 1-1/2", ELECTRIC FOOT PEDAL. YES, PENDANT CONTROL. YES, HYDRAULIC MOTOR. 10 HORSEPOWER.
70 Ton, Custom #CM70, portable hydraulic web flange press, 1-3/8" stroke, 15" throat, 10 HP
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Custom
Model: CM70
SERIAL. 12354, MODEL. CM70, CAPACITY. 70 TON, STROKE. 1-3/8", DEPTH OF THROAT. 15", PENDANT CORNTOL. YES, MOTOR. 10 HORSEPOWER.
80 Ton, Fabriline #FP-80, portable hydraulic flange punch, 4-1/2" throat, 10 HP, #71173
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: 60
SERIAL. 1223, CAPACITY. 80 TON, DEPTH OF THROAT. 4-1/2"", STROKE OF RAM. 1-1/2", PUNCHING CAPACITY. 1-1/16 THOUGHT 3/4" PLATE, PUNCHING CAPACITY. 13/16" THOUGHT 1" PLATE, MAXIMUM WIDTH OF FLANGE BEAM. 2", HYDRAULIC UNIT. YES, PUSH BUTTON CONTROL. YES, HORSEPOWER HYDRAULIC MOTOR. 10.
80 Ton, Fabriline #W80-8P, hydraulic web punch, 1-1/2" stroke, 8" throat, 10 HP, #76019
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: W80-8P
MODEL. W80-8P, CAPACITY. 80 TON, DEPTH OF THROAT. 8", STROKE OF RAM. 1-1/2", PUCHING CAPACITY. 1-1/16 THROUGHT 3/4" PLATE, PUNCHING CAPACITY. 13/16" THROUGHT 1" PLATE, ELECTRIC FOOT PEDAL. YES, HORSEPOWER HYDRAULIC UNIT. 10.
90 Ton, Rockford #791, hydraulic C-frame flange punch, 1-3/8" stroke, 12-1/2" throat, #63726
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Rockford
Model: 791
SERIAL. 791-12354, MODEL. 791, CAPACITY. 90 TON, STYLE. C FRAME WEB PUNCH, DIE POCKET. 2-1/4", STROKE. 1-3/8", HOLE CAPACITY. 1-1/2" THROUGH 1" STEEL MAXIMUM, THROAT. 12-1/2", DIE POST. 7-3/8", PUNCHING CYCLE TIME. 10 SECONDS, HYDRAULIC MOTOR. 3 KW.
90 Ton, Rockford / Whitney #791-009, hydraulic C-frame web punch, 1-3/8" stroke, pendant controls
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 791-009
SERIAL., MODEL. 791-009, CAPACITY. 90 TON, STYLE. C FRAME WEB PUNCH, DIE POCKET. 2-1/4", STROKE. 1-3/8", HOLE CAPACITY. 1-1/2" THROUGH 1" STEEL MAXIMUM, THROAT. 12-1/2", DIE POST. 7-3/8", PUNCHING CYCLE TIME. 10 SECONDS, PENDANT CONTROLS. YES.
100 Ton, Fabriline #FP100-12, hydraulic flange punch & hydraulic tank, 1-1/2" stroke, 10 HP, #69703
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Fabriline
Model: FP100-12
SERIAL. WP, MODEL. FP100-12, CAPACITY. 100 TONS, STROKE. 1-1/2", DEPTH OF THROAT. 12-1/2", PUNCHING CAPACITY. 1" THRU 1-1/16", OVERALL HEIGHT OF PUNCH. 36-3/4", TANK SERIAL. 1255, MODEL. FH-12 EP, OPERATING PRESSURE. 2500 PSI, MOTOR. 10 HORSEPOWER.
100 Ton, Whitney #790-084, flange press, 4-1/4" throat, 1-3/8" stroke, 1-1/4" max hole
SOMINN Machinery Sales | Dodge Center, MN
Category: Flange and Web Punch Machines
Seller: SOMINN Machinery Sales
Location: Dodge Center, MN
Mfr: Whitney
Model: 790-084
WHITNEY (USED) 100 TON FLANGE PRESS, 100 TON, 4-1/4" THROAT, 1-3/8" STROKE, 1-1/4" MAX HOLE, 10 HP, 700 464 MODEL POWER UNIT, SERIAL NO. 700-464-18353.
100 Ton, Whitney #791AX30, portable web punch, 1-5/8" stroke, stripper, 10 HP, #73722
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
Model: 791A30
SERIAL. 791-020-26436, MODEL. 791-020, CAPACITY. 96 TON, STROKE. 1-5/8", DEPTH OF THROAT. 31".
115 Ton, 18" C-style web punch, 6" flange punch w/HPU
Controlled Automation Inc | Bryant, AR
Category: Flange and Web Punch Machines
Seller: Controlled Automation Inc
Location: Bryant, AR
Whitney, hydraulic C-frame web punch
Yoder Machinery Sales | Holland, OH
Category: Flange and Web Punch Machines
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Whitney
