8 Results
25" x 72" Lehmann, heavy duty engine lathe, 16" swing over cross slide, 4-jaw 18" chuck, 7.5 HP, #59961
Yoder Machinery Sales | Holland, OH
Category: Engine Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lehmann
SERIAL. 5208, SWING OVER WAYS. 25", SWING OVER CROSS. 16", DISTANCE BETWEEN CENTER. 72", SPINDLE SPEEDS. 10 TO 600 RPM, THREADS. 5/16 TO 36 TPI, FEEDS. 006 TO 640 IPR, SPINDLE HOLE. 2-1/8", STEADY REST. 8" 3 POINT ROLLER, TAPER ATTACHMENT. YES, THREAD DIAL. YES, TAILSTOCK. #5 MT, CHUCK. 18" 4 JAW, MOTOR. 7.5 HORSEPOWER.
34" x 384" Lehmann #32, engine lathe, 24" SOCS, 4-jaw 28" chuck, steady rests, 25 HP, #71833
Yoder Machinery Sales | Holland, OH
Category: Engine Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lehmann
Model: 32
SERIAL. C602, MODEL. 32, SWING OVER WAYS. 34", SWING OVER CROSS SLIDE. 24", DISTANCE BETWEEN CENTERS. 32', SPINDLE SPEEDS. 8 TO 321 RPM, THREADS. 5/8" TO 72 TPI, FEEDS.006 TO.655 IPR, SPINDLE HOLE. 2-1/4", CHUCK. 28" 4 JAW, TAPER ATTACHMENT. YES, THREAD DIAL. YES, STEADY REST. 8 & 15" ROLLER, MOTOR. 25 ...more

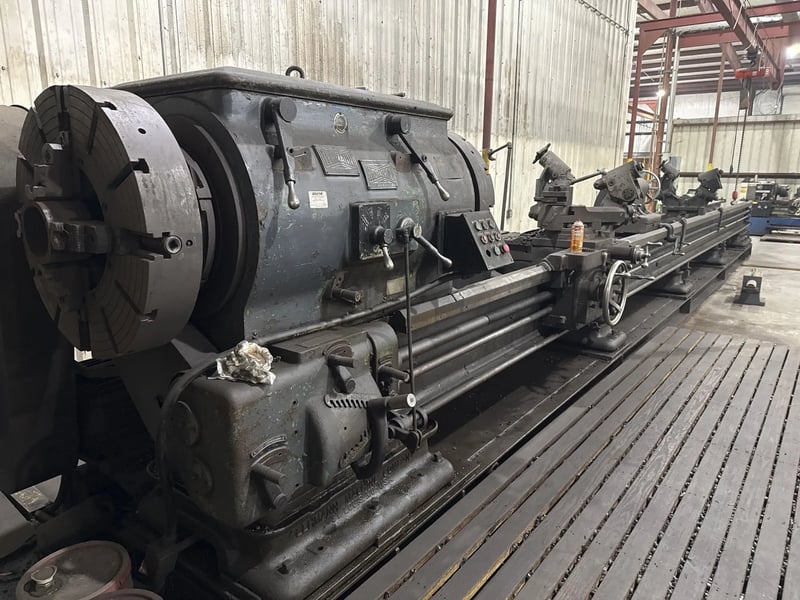

35" x 372" Lehmann Long Bed Lathe, 14" bore, 40 HP, 300 RPM
Aucto | San Francisco, CA
Category: Engine Lathes
Seller: Aucto
Location: Elk Grove Village, IL
Mfr: Lehmann
Model: LONG BED
THE LEHMANN LONG BED LATHE S A 35-INCH SWING OVER THE BED AND A 14-INCH SPINDLE BORE. IT PROVIDES 31 FEET BETWEEN CENTERS, POWERED BY A 40 HORSEPOWER MOTOR. THE MAXIMUM SPINDLE SPEED IS 300 RPM.

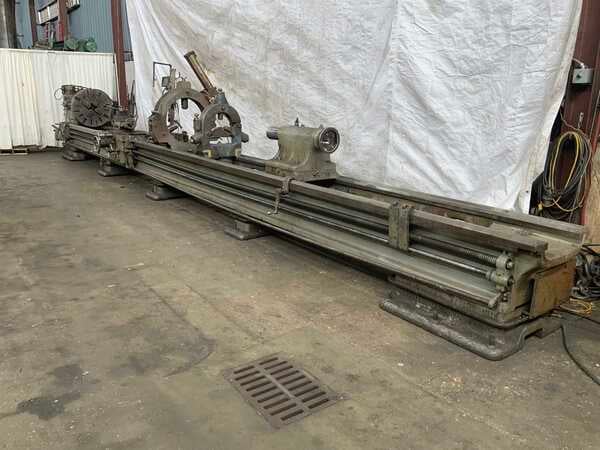

35" x 372" Lehmann, engine lathe, 22-1/2" swing over cross slide, 4-jaw 32" chuck, 2-Axis Newall DP700 digital read out
Yoder Machinery Sales | Holland, OH
Category: Engine Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lehmann
SERIAL. C222SWING OVER WAYS. 35"SWING OVER CROSS SLIDE. 22-1/2"DISTANCE BETWEEN CENTERS. 31'SPINDLE SPEEDS. 10 TO 600 RPMTHREADS. 5/8" TO 72 TPIFEEDS.006 TO.640 IPRSPINDLE HOLE. 2-1/4"CHUCK. 32" 4 JAWSTEADY REST. 11" & 24" ROLLER2 AXIS DIGITAL REDOUTS. NEWALL DP700MOTOR. 25 HORSEPOWER.

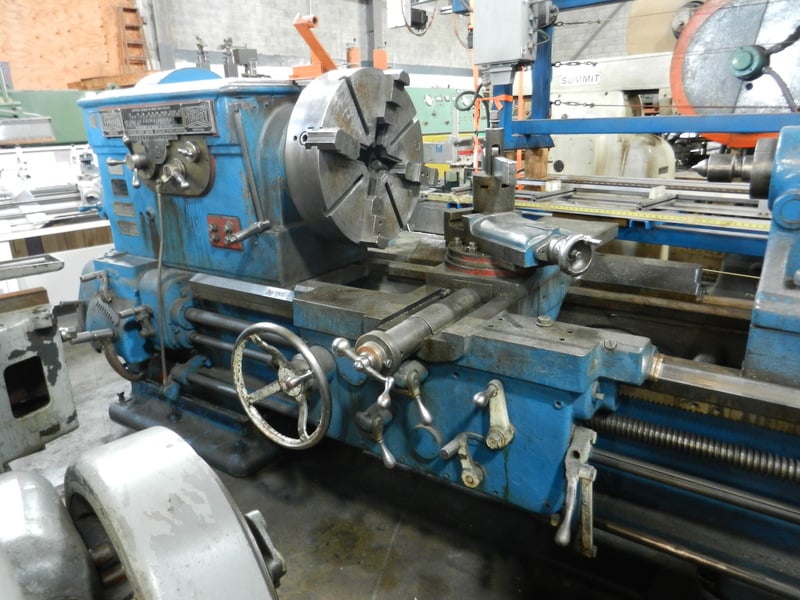

36" x 60" Lehmann, 2-1/4" spdl hole, 20 HP, (16) speeds, 4-Jaw 24" chk, tool post, face plate
Holland Machinery Company Inc | Miami, FL
Category: Engine Lathes
Seller: Holland Machinery Company Inc
Location: Miami, FL
Mfr: Lehmann
USED "LEHMANN" GEARED HEAD QUICK CHANGE ENGINE LATHE HEAVY DUTY, MODEL 36 HYDRATROL, CAPACITY 36" x 60", ACTUAL SWING OVER THE BED 37-1/2", SWING OVER THE CROSS SLIDE 26", DISTANCE BETWEEN CENTERS 60", WIDTH OF BED 27-1/2", SPINDLE HOLE 2-1/4", THREAD CUTTING RANGE PER INCH (72) ...more
Get email updates for newly added Engine Lathes
Engine Lathes (also known as manual lathes or conventional lathes) are versatile machines used for turning, cutting, and shaping metal or other materials. Commonly found in metalworking, automotive, and manufacturing industries, they are ideal for producing cylindrical parts like shafts and bushings. Engine lathes are essential for precise machining and prototyping in workshops and factories.
38" x 132" Lehmann, engine lathe, 4-jaw 30" chuck, 20 HP, coolant with chip pans, taper attachment
Yoder Machinery Sales | Holland, OH
Category: Engine Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lehmann
SERIAL. C453, SWING OVER WAYS. 38", SWING OVER CROSSLIDE. 24", DISTANCE BETWEEN CENTERS. 132", SPINDLE BORE. 2 1/8", SPINDLE SPEEDS. 10 TO 500 RPM, THREADS. 5/8 - 72 THREADS PER INCH, FEEDS.006-.640 INCH PER REVOLUTION, CHUCK. 30" 4 JAW, L BACK, FACE PLATE. 29", (2) STEADY REST 3 POINT & ROLLER. 10" & 20" ID ...more
40" x 360" Lehmann, Engine Lathe, 13" Bore, 30 HP, 28" chuck, Twin Carriage, Steady Rest
Revelation Machinery | Chicago, IL
Category: Engine Lathes
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Lehmann
Year: 1900
Make: Lehman, Model: 40" x 360", Year: 1900, Machine Location: Upon Request, Swing Over Bed: 40″, Distance Between Centers: 360″, Spindle Bore: 13″, Spindle Bore Diameter: 330.2 MM, Motor Power: 30 HP, Voltage: 240 V, Phase: 3 Phase, Chuck Size: 28″, Chuck Type: 4-Jaw Independent, Front Chuck: ...more
40" x 360" Lehmann Engine Lathe, 13" spindle bore, twin carriage, 28" 4-jaw front & rear chucks, 3 steady rests, 30 HP, 240 V., 3 phase
Toolquip Inc | Lebanon, OH
Category: Engine Lathes
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Lehmann
Used engine lathe s a 13" spindle bore, 30' centers, twin carriage, 28" 4-jaw front and rear chucks, and three steady rests, powered by a 30 hp motor on 240V 3-phase., size 40" x 360", Swing 40", Centers 360", Spindle Bore 13", Power 30 hp.
