Carbide, Friction and Cold Saws in California

BLADE DIA 14.1", POWER 15 HP, CONTROL CNC (Amada), DIMENSIONS 7' x 7' x 28' long with loader, WEIGHT 7,700 lbs., ;, Capacity, Cutting Capacity Round (Diameter) 0.98" - 3,94" 25 - 100 mm.

1 – used SOCO AUTOMATIC CIRCULAR COLD SAWING MACHINE, Model HVS-375-FA-DR, Serial Number 1004HVS375D79, Date Mfg’d 12-15-2004, SAW BLADE DIAMETER. 14.96" (375mm), CAPACITY:, Round …. 4.5" (114mm). Square Tube ….4.33” x 4.33” (110 x 110mm), Round Bar 2.95” (Ø 75mm) ...more

Brobo Super 300 Cold Saw 12" #7241 #1, Saw Blade Size: 12", Round: Tube At 90: 3.75" (95.25mm), Round: Tube At 45: 3.5" (88.9mm), Square: Tube At 90: 3.3" (83.82mm), Square: Tube At 45: 3.0" (76.2mm), Rectangle At 90: 2.45" (62.23mm), Rectangle At 45: 2.0 x 4" (50 x 101.6mm), Solid Mild Steel: 2.5 (63.5mm), Vise ...more

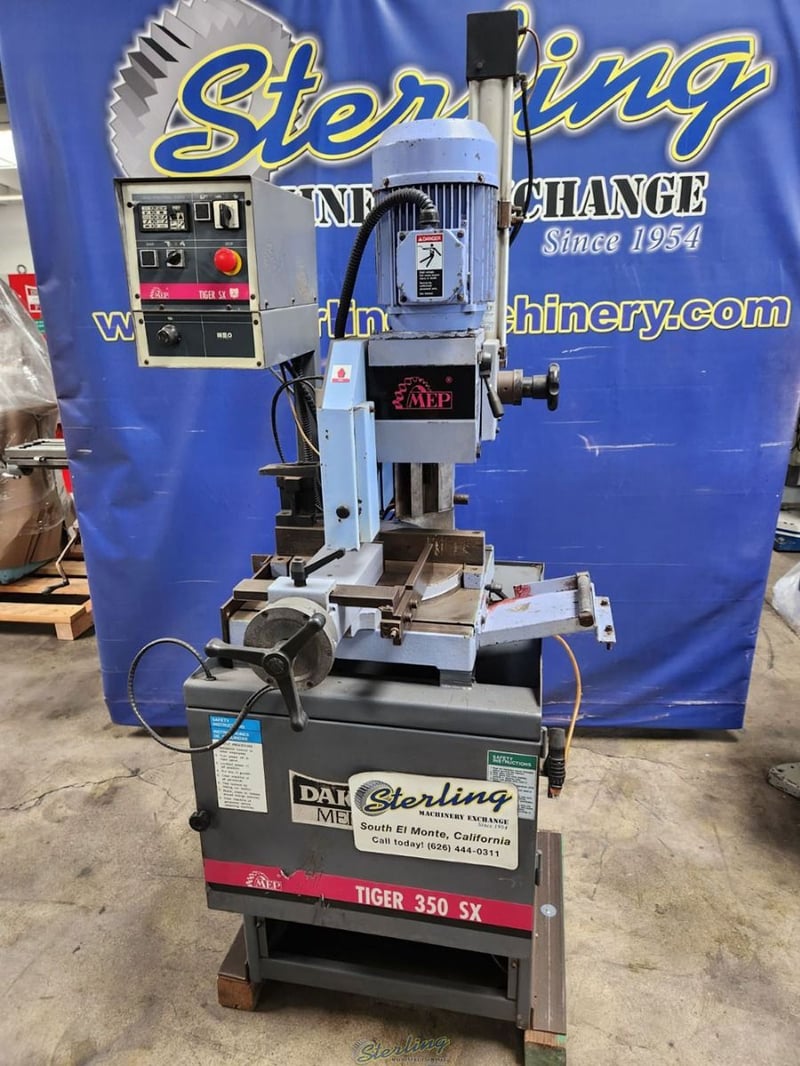

Blade Size 12" Cutting Capacity: Round Tube 3 1/2" Square 3 1/4" Rectangle 5 3/4" x 2 3/4" Round Solid 3" Square Solid 2 3/8" Blade Speed 1750 RPM WEIGHT 600 LBS Automatic/Manual Air Vise MEP Control, 350mm Blade.

Material Type: Ferrous Blade Size 12" Maximum Vise Opening 4" Pin Spacing 2/11/63 Round 90 Degree 3-1/2" 45 Degree 2-1/2" Square 90 Degree 3" 45 Degree 2" Rectangle 90 Degree 3-1/4" x 3" 45 Degree 2-1/2" x 2" Solid Feed Type: Manual Blade Speed (2) 60/120 RPM Voltage 220V ~ 3 Phase WEIGHT 900 Lbs. Manual Feed ...more

Material Type: Non Ferrous Metals Maximum Diameter Blade 14" Feed Type: Semi-Automatic Cutting Speeds 1500 & 3000 RPM Motor Rate Low RPM 3 HP - High RPM 3.8 HP Arbor Bore 1 - 9/16" Pin Spacing 4/12/64 WEIGHT 725 Lbs. 3 Phase Only Power Clamping Powered Automatic Head Feed 230 Volt (1) Horizontal Hydraulic Clamp.

Material Type: Non Ferrous Metals Blade Size 14" Cutting Capacity: Round Solid 4-1/4" Square Solid 4" Round Tube 4-1/4" Rectangular Tube 3" x 5" Blade Speed 1,730 RPM Bar Feed Rate 1/4" - 27" Feed Type: Fully Automatic Air Pressure 85 PSI Voltage 208 3 Phase WEIGHT 2,000 Lbs. Feed Length 1/4"- 27" Automatic Hitch Feed ...more

2017 Brobo SA400 Automatic Cold Saw 16" #6648, Blade Size: 16", Blade Speed (Variable): 27- 108 RPM, Cutting Range (Round):, 90 Degree Angle: 5", 45 Degree Angle: 4-5/8", Cutting Range (Square):, 90 Degree Angle: 4-1/4" x 4-1/4", 45 Degree Angle: 3-3/4" x 3-3/4", Cutting Range (Section Tube):, 90 Degree Angle: 3-7/8" ...more

Blade Size At 90° Ø 400, 500 Or 600 Mm B Horizontal Vices 2 Vertical Vices 2 Bar Feeder Stroke 500 mm Starting with Soft-Start or inverter (optional) Oleopneumatic saw blade advance Blade exit control linear transducer Device for distancing blade from profile during return phase for improved cutting quality ...more

X-AXIS POSITIONING SPEED: 20 M/MIN, BLADE DIAMETER IN HSS: 350 MM, MAXIMUM EXTERNAL INCLINATION: 45 DEG., MAX. MACHINABLE LENGTH: 5,200 MM, MINIMUM CUTTING LENGTH AT 90DEG/45DEG WITH EXTRA SOFTWARE: 3,200 MM, ABILITY TO CUT WITH BLADE AT 45DEG (BY USING SPECIFIC COUNTERBLOCKS): 95 x 110 MM, (WITH TWO-POLE BLADE ...more
