C Frame Hydraulic Press Machines (Gap Frame) in Ohio

SERIAL.: 4537, MODEL.: A, TONNGAGE.: 2, BED AREA.: 8" X 11", STROKE.: 3", OPERATING PRESSURE.: 250-1000 PSI, THROAT DEPTH.: 5", ELECTRICAL.: 110 VOLT/1 PHASE, Machine Type.Presses, C-Frame Manufacturer.DENISON Model.N/A Year.N/A Condition.Used.

SERIAL #: 2991, 7" STROKE, 11" DAYLIGHT, 8 STATION ROTORY TABLE, PALM BUTTONS, 7" DAYLIGHT OVER ROTORY TABLE, 2 ¼" DIAMETER PISTON, 1967, APPROX. DIMENSIONS: 3' x 3' x 50", APPROX. WEIGHT: 1500 LBS, GOOD CONDITION.

SERIAL. 30173, MODEL. WR-37M-C304FS1/C280D/C262E, CAPACITY. 3 TON, STROKE OF RAM. 10", DAYLIGHT. 15", ARE OF BED. 18" X 12", SLOT IN BED. 5" WIDE X 8" DEEP, DIAMETER OF PISTON ROD. 2-3/4", DEPTH OF THROAT. 8", WORKING PRESSURE. 1510 PSI, MOTOR, HORSEPOWER. 7-1/2.

SERIAL. C-75609, MODEL. F50A, CAPACITY. 5 TON, STROKE OF RAM. 4", OPEN HEIGHT. 15", CLOSED HEIGHT. 11", AREA OF BED. 16" X 13", AREA OF BOLSTER. 19" X 16" X 1", DEPTH OF THROAT. 8", DIAMETER OF RAM. 2-1/2", SLOT IN BED. 2-1/2" X 7", PASSLINE HEIGHT. 36", SINGLE HAND LEVER. YES, MAIN MOTOR. 2 HORSEPOWER.

SERIAL. 23588-A201S3200789, MODEL. WR067HC264FSD366A512CE21466100303, CAPACITY. 6 TON, STROKE. 12", OPEN HEIGHT. 16", RAM SPEED - CLOSING. 240 IPM, RAM SPEED - PRESSING. 100 IPM, RAM SPEED - RETURN. 265 IPM, RAM CYLINDER DIAMETER. 2-1/4", CYCLINDER BORE. 3-1/4", BED AREA. 17" X 10-1/2", D-SLOT IN BED. 4-7/8" W X 8" L ...more

SERIAL. 25713, MODEL. WRO65LC30996D366A5121IT106L, TYPE. 0062-21R4, CAPACITY. 6 TON, MAXIMUM PSI. 1450, ROTARY TABLE. 20" DIAMETER, STROKE. 6" EST, DAYLIGHT. 14" EST.

SERIAL. 8115, MODEL. FF8001C22A71A69A61, CAPACITY. 8 TON, STROKE OF RAM. 12", DAYLIGHT. 14" MAXIMUM, 2" MINIMUM, AREA OF BED. 22" X 14", DIAMETER OF RAM. 2", DEPTH OF THROAT. 8-1/2", SLOT IN BED. 10" DEEP X 6 WIDE, MECHANICAL HAND LEVER CONTROL, 7-1/2 HORSEPOWER MAIN MOTOR.

SERIAL. 2107, MODEL. M8C02 A59, CAPACITY. 8 TON, STROKE. 12", THROAT. 7", OPEN HEIGHT. 18", CLOSED HEIGHT. 6", CYLINDER BORE. 3-1/4", RAM CYLINDER DIAMETER. 2-1/4", BED AREA. 22" X 14", BED PLATE T SLOTTED. 22" X 14" X 1-3/8", D-SLOT IN BED. 6" X 10", FLOOR TO BED. 37", DUAL PALM BUTTONS. YES, STEEL FABRICATED BASE. ...more

SERIAL. 6167-A235A59S206, MODEL. S08711C257D242A72, CAPACITY. 8 TON, STROKE. 12", THROAT. 7", OPEN HEIGHT. 18", CLOSED HEIGHT. 6", CYLINDER BORE. 3-1/4", RAM CYLINDER DIAMETER. 2-1/4", BED AREA. 22" X 14", D-SLOT IN BED. 6" X 10", FLOOR TO BED. 37", SINGLE LEVER. YES, STEEL FABRICATED BASE. YES, MOTOR. 7-1/2 HORSEPOWER.

SERIAL. 21484, MODEL. SO87L8204FSD267A72D210JMS206, CAPACITY. 8 TON, STROKE OF RAM. 12", DAY LIGHT (OVER BED). 18", CLOSED HEIGHT. 6", AREA OF BED. 18" X 12", DEPTH OF THROAT. 8-1/2", DIAMETER OF RAM. 2-1/4", PRESSURE ADJUSTMENT. YES, SLOT. 5" X 8", DUAL PALM LEVERS. YES, FLOOR TO TOP OF BED. 35", MOTOR, HORSEPOWER. ...more

SERIAL. E37373-4, MODEL. F-81-41-M8TON, CAPACITY. 8 TON, DUAL PALM BUTTONS. YES.

Stroke 4 Daylight 14.43 Stroke Adjustment 2 Bed Size 24" x 8" Control MICRO-1 Dual Palm Buttons yes Floor Sanding yes Approximate Weight 1100 LBS Approximate Dimensions 42" x 36" x 83"T, 24" x 8" Die Set, 6.25" THROAT, 10 TONS OF FORCE AT 100 PSI, 1865 CUBIC IN OF PRESSURIZED AIR PER STROKE.

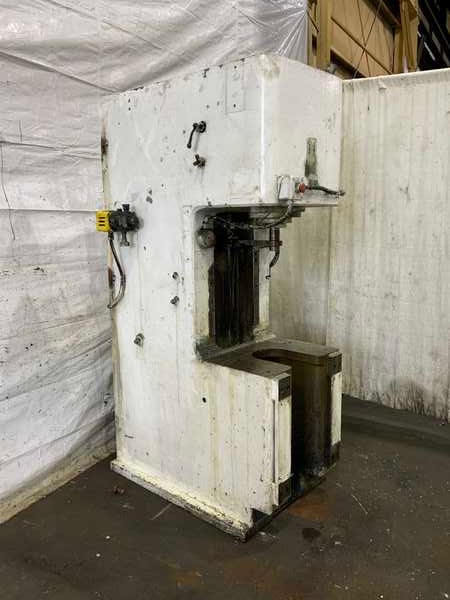

SERIAL. 1072-23B38BT9, MODEL.HD10C9C23C42D38A33, CAPACITY. 10 TON, STROKE. 12", OPEN HEIGHT. 24", CLOSED HEIGHT. 12", BED AREA. 25" X 16", D SLOT IN BED. 9" X 12", ROD DIAMETER. 2", THROAT. 10", DUAL PALM SLOTS. YES, FLOOR TO BED. 32", MOTOR. 7-1/2 HORSEPOWER.

4" ADJUSTMENT, 17.5" X 17" BED, 6" STROKE, RAPID ADVANCE 260 MM/S, PRESSING 20 MM/S, RETURN 50 MM/S, 75 MM/S, 1994, SINGLE, INCH, DUAL PALM BUTTONS, 2 GUIDE POST, 31" X 40" X 88"T APROX., 3000 LBS APROX..

SERIAL. 0800420-09, MODEL. CFP-12T, YEAR NEW. 2009, CAPACITY. 12 TON, STROKE VARIABLE. 0" TO 12", OPEN HEIGHT. 20", CLOSED HEIGHT. 8", THROAT. 10", BED AREA. 19" X 15", BOLSTER PLATE. 19" X 12", RAM PLATEN. 14" X 7", CYLINDER BORE. 2", SLOT IN BED. 3" WIDE X 7", SPEED (VARIABLE). FLO CONTROL VALVE, GUIDE RAM. 2 ...more

Weight2200 pounds, SERIAL. 00T6047, NEW. 2000, MODEL. HPB-10, CAPACITY. 10 TON, STROKE. 8", OEPN HEIGHT. 14.5", BED TABLE. 18" X 11" X 2", RAM. 12" X 6" X 1.75", RAM SPEEDS. 418 IPM ADVANCE, RAM SPEEDS. 84 IPM PRESS, RAM SPEEDS. 906 IPM OPEN, CYLINDER BORE. 3.25", CONTROLS. PALM BUTTONS, STAND. YES, MOTOR. 5 HP.

MODEL #: 4 POST, SERIAL #: T00434, 12" STROKE, 26" DAYLIGHT, 29 1/2" x 24" BED AND RAM, 24" x 181/2" BETWEEN POSTS, PALM BUTTONS, REXROTH HYDRAULICS AND VALVES, 60 GALLON HYDRAULIC RESERVOIR, 10 HP 230/460, 50" LR x 48" FB x 93" TALL ( 3' x 3' x 3' HYD PUMP), GOOD CONDITION.

SERIAL. 58-307, MODEL. C-15, TONNAGE. 15, STROKE. 14", DAYLIGHT. 22", BED SIZE. 29"(L-R) X 21" (F-B), FOOT PEDAL OPERATED, MOTOR :, HP. 15, RPM. 1760, VOLTS. 208-220/440, AMPS. 39.4-39.4/19.7, Machine Type.Presses, Hydraulic Manufacturer.HPM Model.C-15 Year.N/A Condition.Very Good.

EITEL GAP FRAME HYDRAULIC PRESS, MODEL: P16A, SERIAL NUMBER: 2872, Capacity: 16 Tons, Stroke: 16", Daylight: 21-1/2", Throat: 9-1/2", Bed Size: 17-3/4" L-R x 17-5/8" F-B, Dual Palm Button Operation, Pressure Gauge, 16" x 33" x 1" Thick Bolster Plate, Approximate Weight:, F.O.B. Cincinnati, Ohio, ALL SUBJECT TO ...more

Multipress C-Frame Hydraulic Press, -Model: FH20-S.O. 94144D, -Capacity: 20 Ton, -Cylinder Bore: 4.5", -Ram Dia.: 3.25", -Stroke: 12", -Daylight: 21", -Throat: 10", -Ram Speed: 550 IPM Closing, 250 IPM Pressing, 600 IPM Return, -Bed Size: 26" L-R x 17.5" F-B, -33.5" from Floor to top of Bed, -Self-Contained Hydraulic ...more

MODEL #: FH-20, SERIAL #: 30477, 12" STROKE, 25" DAYLIGHT, 32" x 18" BOLSTER, 30" x 16" POST SPACING, 20 HP, RAM SPEEDS:, 550 IPM CLOSING, 250 IPM PRESSING, 600 IPM RETURN, 4-1/2" BORE, 3-1/4" RAM, 2516 MAXIMUM PSI, 55 GALLON RESERVOIR, 3200 LBS ESTIMATED WEIGHT, GOOD CONDITION.

MODEL #: DT-25-M, SERIAL #: P-8752, 10" STROKE, 20" DAYLIGHT, 10" THROAT, 2500 MAXIMUM PSI, PALM BUTTONS, 23" x 15" BED, OIL CHILLER, YEAR 1987, SPEEDS:, ADVANCE 839 IPM, PRESSING 94 IPM, RETURN 806 IPM, 32" LR x 78" FB x 98" TALL, 4200 LBS ESTIMATED WEIGHT.

SERIAL. A89433, MODEL. F250, CAPACITY. 25 TON, STROKE OF RAM. 24", OPEN HEIGHT. 25", CLOSED HEIGHT. 1", AREA OF TABLE. 21" X 21", DEPTH OF THROAT. 15", DIAMETER OF RAM. 5-5/8", RAM SPEEDS (ADVANCED). 85 IPM, RAM SPEED (RETURN). 170 IPM, DUAL PALM BUTTONS. YES, MAIN MOTOR. 10 HORSEPOWER.
