Air and Hydraulic Cylinders in Michigan

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

DELAWARE HYDRAULICS T.J. CYLINDER: 1.5\u201d BORE; 1\u201d DIA ROD; 24\u201d MAX STROKE; RATED TO 1000 PSI; DOUBLE-ACTING; \u00bd NPT PORTS. \u00bd H.P. HYDRAULIC UNIT: 115/230 VOLT; SINGLE-PHASE. OILDYNE PUMP: 30C10-122-NVSD 633600 12/83. D03 DIRECTIONAL VALVE. MOTOR STARTER WITH ON/OFF BUTTONS. CYLINDER RETRACTED IS ...more

2" Bore cylinder w/power unit, 22" stroke, 1350 psi, 1/2 HP hydraulic unit, 115/230V., 1ph, #2396

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

ORTMAN CYLINDER: 2\u201d BORE; 1.375\u201d DIA ROD; 22\u201d MAX STROKE; RATED TO 1350 PSI; DOUBLE-ACTING; \u00bd\u201d NPT PORTS; MALE THREAD ON ROD END. \u00bd H.P. HYDRAULIC UNIT: 115/208/230 VOLT; SINGLE-PHASE. PUMP: 12292 1300217 CC8120C00 D90. D03 DIRECTIONAL VALVE CYLINDER RETRACTED IS APPROX 30\u201d. APPROX ...more

3.25" Bore, 3.25 HHFF20K, 2" rod, 20" stroke, 2000 psi, front flange mount, #798 (2 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

3 \u00bc\u201d BORE; 20\u201d STROKE; 2 \u00bd\u201d ROD DIAMETER. MODEL 3.25 HHFF20K; SERIAL #767660. FEMALE ROD END WITH 1 \u00bd\u201d THREADED STUD 14\u201d LONG. 5\u201d X 5\u201d REMOVABLE BLOCK ON END OF ROD. \u00be\u201d NPT PORTS. MFI FRONT FLANGE MOUNT. (QTY 2) (ITEM #798).

3.25" Bore, Double Rod End, Parker, 64.25" stroke, 2" dia.male end rod, #2069

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

PARKER MODEL #3.25KFP2HLTS28A/28AX64.250. SERIAL #KK213752B. 3.25\u201d BORE. 64.25\u201d STROKE. ROD IS 2\u201d DIAMETER WITH MALE END. SIDE TAPPED MS4 MOUNTS. LIP-SEAL PISTON. -16 SAE PORTS IN POSITION 4. RATED TO 3000 PSI. QTY 3 (ONE WITH A BROKEN ROD). OVERALL DIMENSIONS: APPROX 144\u201d LONG. ITEM #2069.

4" Bore, Miller, 5" stroke, double acting, 3000 psi, 1.75" dia.rod, rear flange, #2408 (2 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

Mfr: Miller

MILLER HYDRAULIC CYLINDER: 4\u201d BORE; 5\u201d STROKE; DOUBLE-ACTING; 3000 PSI; 1.75\u201d DIAMETER ROD. FEMALE THREAD ON ROD END (APPROX 1.125\u201d DIA). APPROX 2.75\u201d OF ROD STICKS OUT WHEN RETRACTED. OVERALL LENGTH WHEN RETRACTED IS APPROX 16\u201d. REAR FLANGE IS APPPROX 7.5\u201d X 5\u201d. QTY 2. ITEM ...more

Get email updates for newly added Air and Hydraulic Cylinders

Air and Hydraulic Cylinders (also known as pneumatic and hydraulic actuators) are mechanical devices that convert compressed air or hydraulic fluid pressure into linear motion and force. Commonly used in industries like manufacturing, construction, and automation, these cylinders power a variety of equipment, including presses, lifts, and conveyor systems. Air and hydraulic cylinders are valued for their reliability, precision, and ability to handle heavy-duty applications.

4" Bore, Vickers, 2.5" diameter rod, 36" stroke, 3000 psi, 51.5" rod ext (can be modified), #2622 (4 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

Mfr: Vickers

VICKERS DOUBLE-ACTING CYLINDER: 4\u201d BORE; 2.5\u201d DIAMETER ROD; 36\u201d MAX STROKE; 3000 PSI. MODEL TZ09HPXT5RAZZU99-J-061. ROD EXTENSION OF APPROX 51.5\u201d. OVERALL RETRACTED LENGTH OF APPROX 96\u201d. APPROX 300 POUNDS. QTY 4. ITEM #2622.

4" Bore, Dbl-Acting, 24" stroke, 2.5" dia.rod, trunnion mounts, 3000 max.psi, 1957 (4 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

MILWAUKEE MODEL 1542-71-21-1. DOUBLE-ACTING; 4\u201d BORE; 2.5\u201d DIAMETER ROD; 24\u201d MAX STROKE; 3000 PSI; ROD END TRUNNION MOUNT. PORTS ARE 1\u201d. TRUNNION PIN IS 1.75\u201d DIA; TRUNNION BLOCKS ARE 6\u201d X 4\u201d X 3\u201d THICK WITH FOUR 0.75\u201d THRU-HOLES; APPROX 13.25\u201d FROM END TO END OF ...more

5" Bore, Hydroline, 3.5" dia rod, 30" stroke, 3000 psi, male rod end, 1.5" ports, double-action, #2625 (2 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

HYDROLINE CYLINDER MODEL: N7C-5X30-1E8507-788-1. 5\u201d BORE; 3.5\u201d DIAMETER ROD; 30\u201d MAX STROKE; 3000 PSI; DOUBLE-ACTING; 1.5\u201d NPT PIPE PORTS. MALE ROD END: 2.5\u201d-12 THREADS X 7\u201d LONG. FRONT FLANGE MAINT (3.5\u201d THICK). OVERALL RETRACTED LENGTH APPROX 50\u201d. APPROX 700 POUNDS. QTY 2. ...more

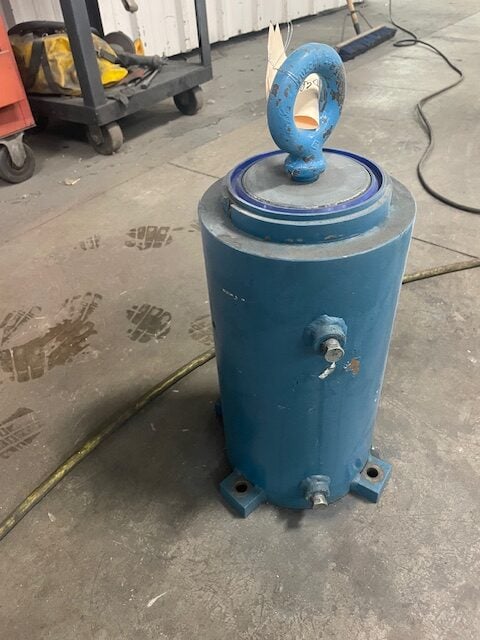

6" Bore, Star, 100 ton double-acting cylinder

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

Mfr: Star

Star 100 ton double-acting cylinder.\u00a0 6\u201d bore; 4.5\u201ddiameter rod; Approx 7\u201d stroke. Rated to 7500 PSI.

6" Bore, Hydroline hydraulic cylinder, 20" stroke, 3000 psi, 4" dia rod, double-action, #2551 (4 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

HYDROLINE MODEL: N5N-6X20-N410-S-H-R-1-1. SERIAL #193052403-1. RATED TO 3000 PSI. 6\u201d BORE; 4\u201d DIAMETER ROD; 20\u201d MAX STROKE. MOUNT: M X 2 EXTENDED TIE RODS CAP END 4.5\u201d. #10 ROD END SPLIT COUPLING. 10\u201d ROD EXTENSION. PORTS: -16. CAST IRON PISTON SEAL RINGS. DOUBLE-ACTING. 7.5\u201d X 7.5\u201d ...more

8" bore, Vickers, double acting hydraulic cy, 5.5" dia rod, 24" stroke, 3000 psi

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

Mfr: Vickers

VICKERS 8\u201d BORE; 5.5\u201d DIAMETER ROD; 24\u201d STROKE; 3000 PSI; MODEL TZ09N1GXSKAAM070; DOUBLE-ACTING.\u00a0 PORTS ARE 1.5\u201d STRAIGHT THREAD.\u00a0 FRONT FLANGE IS APPROX 14\u201d X 9.5\u201d X 3.25\u201d WITH FOUR 1.125\u201d DIAMETER MOUNTING HOLES.\u00a0 REAR FLANGE IS 9.5\u201d X 9.5\u201d X ...more

8" Bore, Scheffer, 1.5" rod, 44" stroke, air,.76" NPT ports, foot mount front/back, #1161 (3 available)

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

SCHEFFER BRAND. 8\u201d BORE. 44\u201d STROKE. 1.5\u201d ROD.76\u201d NPT PORTS. FOOT MOUNT FRONT AND BACK. 6.5\u201d CENTER TO CENTER MOUNTING HOLES. MALE CLEVIS ON ROD END WITH 1 3/8\u201d HOLE. OVERALL DIMENSIONS: 57\u201d LONG X 12\u201d WIDE X 12\u201d HIGH. QTY 3. (ITEM #1161).

8" Bore, Female rod end, 3.5" rod, 8" stroke, 2000 psi, front flange mount, #702

Icon Industries, Inc | Grand Rapids, MI

Seller: Icon Industries, Inc

Location: Grand Rapids, MI

8\u201d BORE, 8\u201d STROKE, 3 \u00bd\u201d ROD, FEMALE ROD END. FRONT FLANGE MOUNT, 5 WITH SQUARE FRONT FLANGE, 7 WITH ROUND FRONT FLANGE. BOLT HOLES LINE UP ON BOTH STYLE FRONT FLANGES. RATED TO 2000 PSI. 50 TON PUSH, 40 TON PULL. (ITEM #702).

JUST ADDED!

Compact, ASFH3X212, double rod cylinder

iGAM | Detroit, MI

Seller: iGAM

Location: Detroit, MI

Mfr: Compact

Compact ASFH3X212 Cylinder, used. This reliable component offers efficiency for various applications. Suitable for industrial setups seeking quality mechanical solutions. Ideal for enhancing operational performance with dependable Compact engineering., Spec Sheet, Compact ASFH3X212, Dimensions. 6x6x5, Weight. 6lbs.

Mindman #MCQA-80-120+AH, Air/Oil Converter Cylinder, 0.05-1 MPa

iGAM | Detroit, MI

Seller: iGAM

Location: Detroit, MI

Mfr: Mindman

MINDMAN MCQA-80-120+AH Oil Converter available. This used unit presents a cost-effective solution for oil conversion needs. Ideal for operations seeking reliability from a trusted manufacturer. Compact design enhances versatility., Spec Sheet, MINDMAN MCQA-80-120+AH, Dimensions. 14X5X6, Weight. 8LBS.

JUST ADDED!

Mindman MCMA-11-40-145-A cylinder, new

iGAM | Detroit, MI

Seller: iGAM

Location: Detroit, MI

Mfr: Mindman

MINDMAN CYLINDER, model MCMA-11-40-145-A, in used condition. Reliable choice for various applications, representing quality engineering. Perfect for those seeking cost-effective, high-performance equipment solutions., Spec Sheet, MINDMAN MCMA-11-40-145-A, Dimensions. 12x3x3, Weight. 4lbs.

JUST ADDED!

Univer Visor cylinder W1000500025, new

iGAM | Detroit, MI

Seller: iGAM

Location: Detroit, MI

Mfr: Univer

Univer W1000500025 Cylinder available in new condition. Enhance your operations with this high-quality component from a trusted manufacturer. Ideal for various applications requiring reliable performance., Spec Sheet, Univer W1000500025, Dimensions. 4x3x3, Weight. 3lbs.
