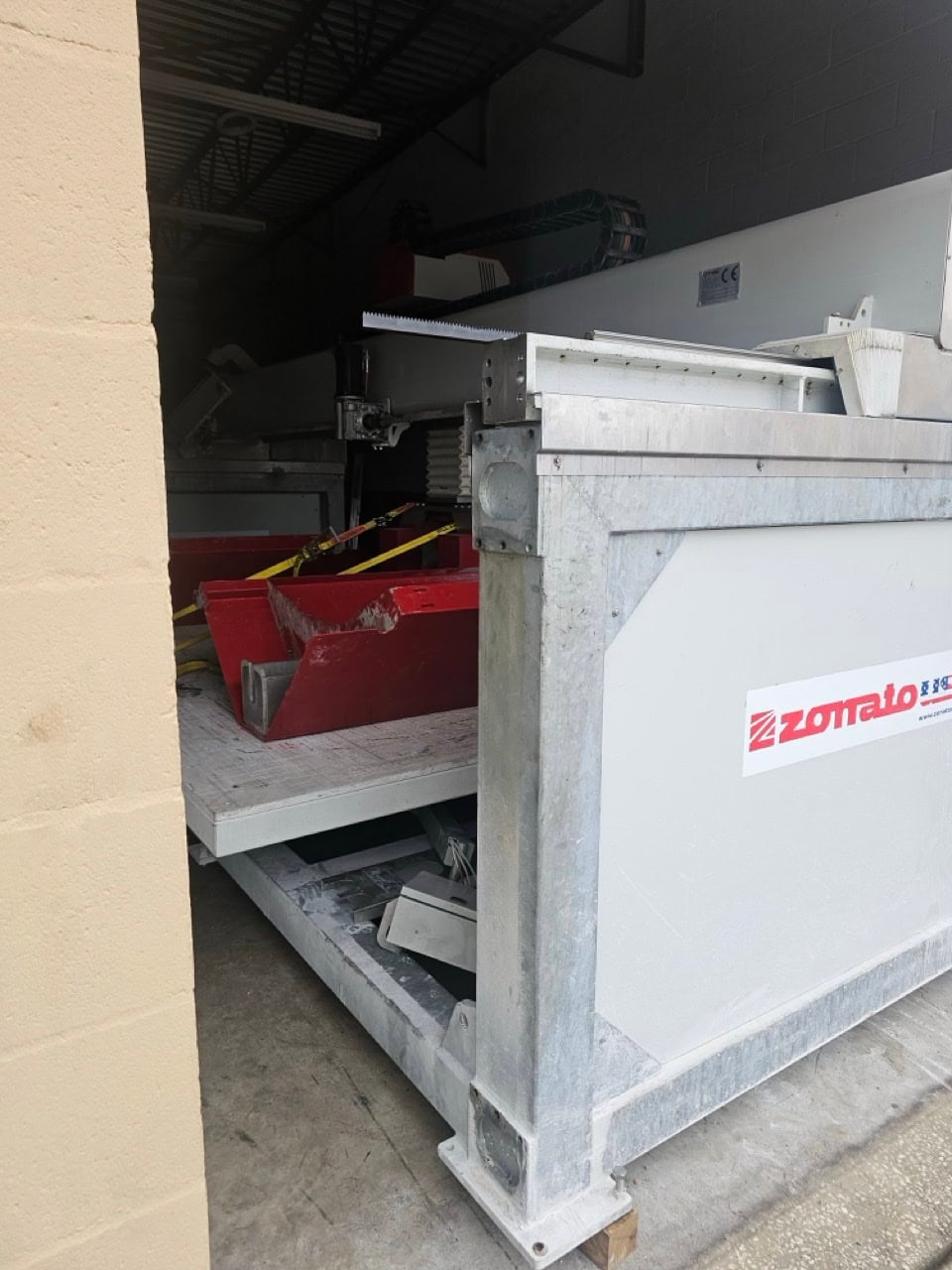

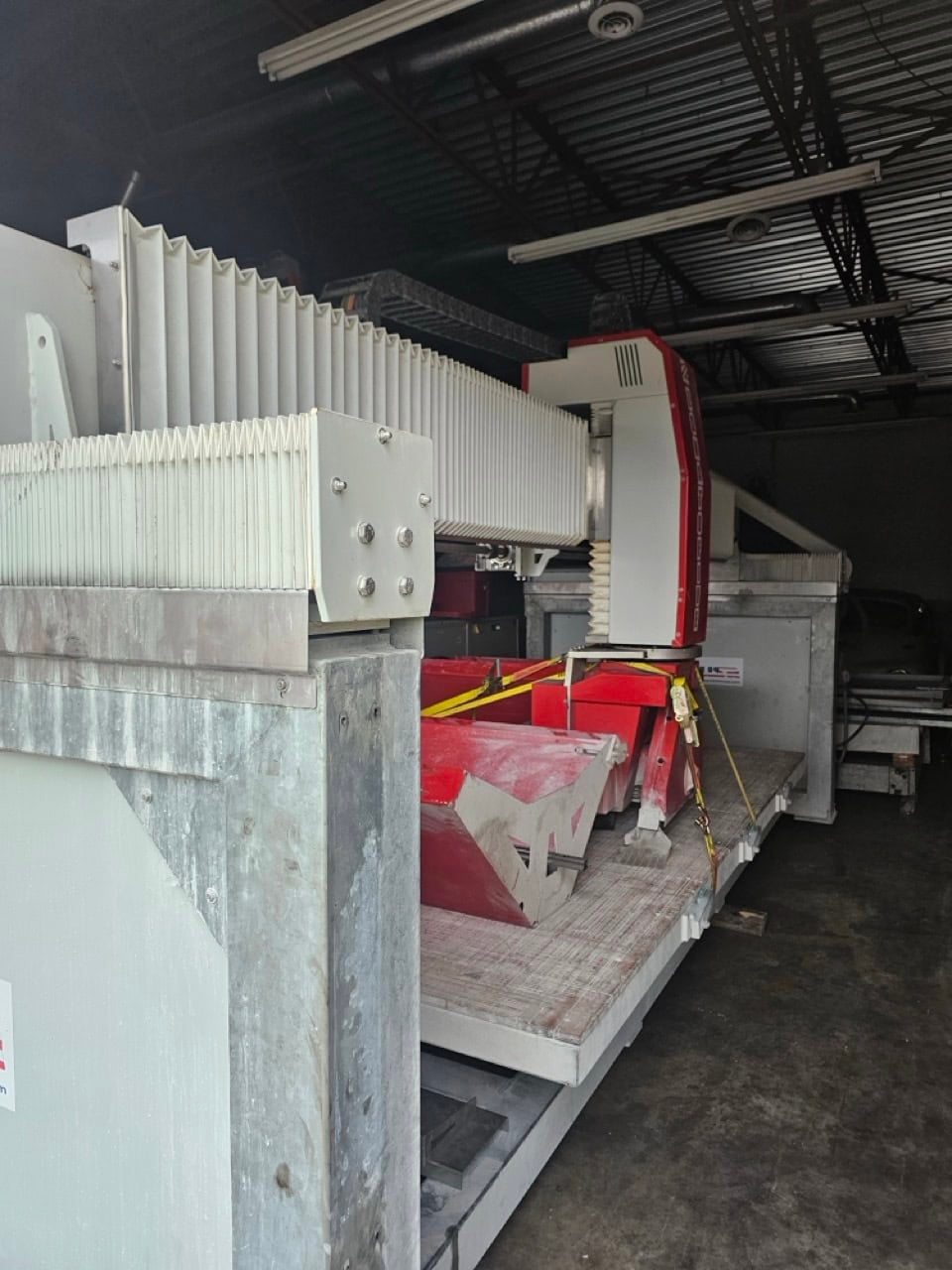

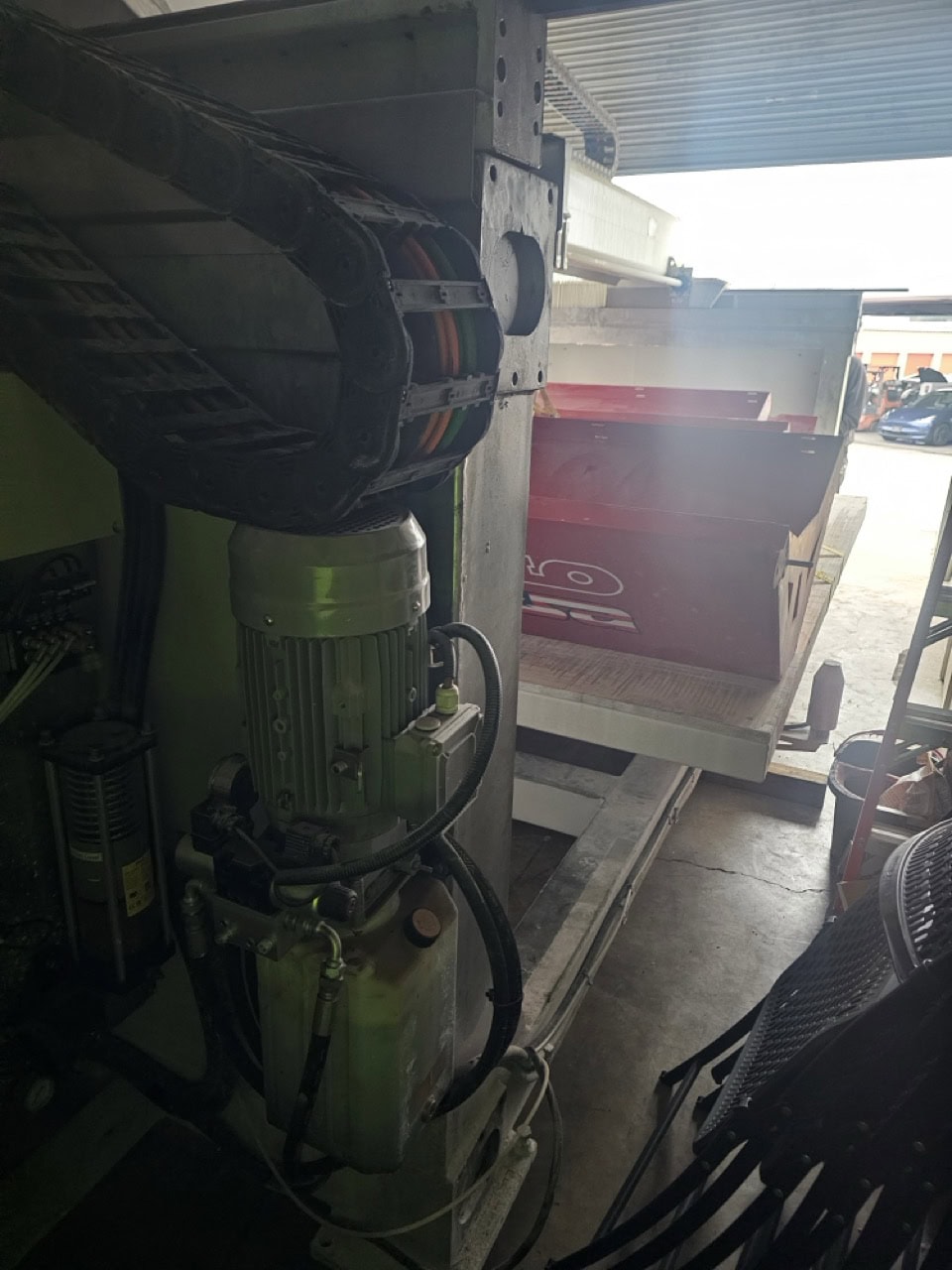

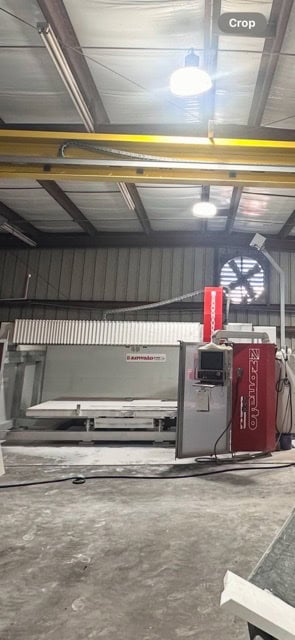

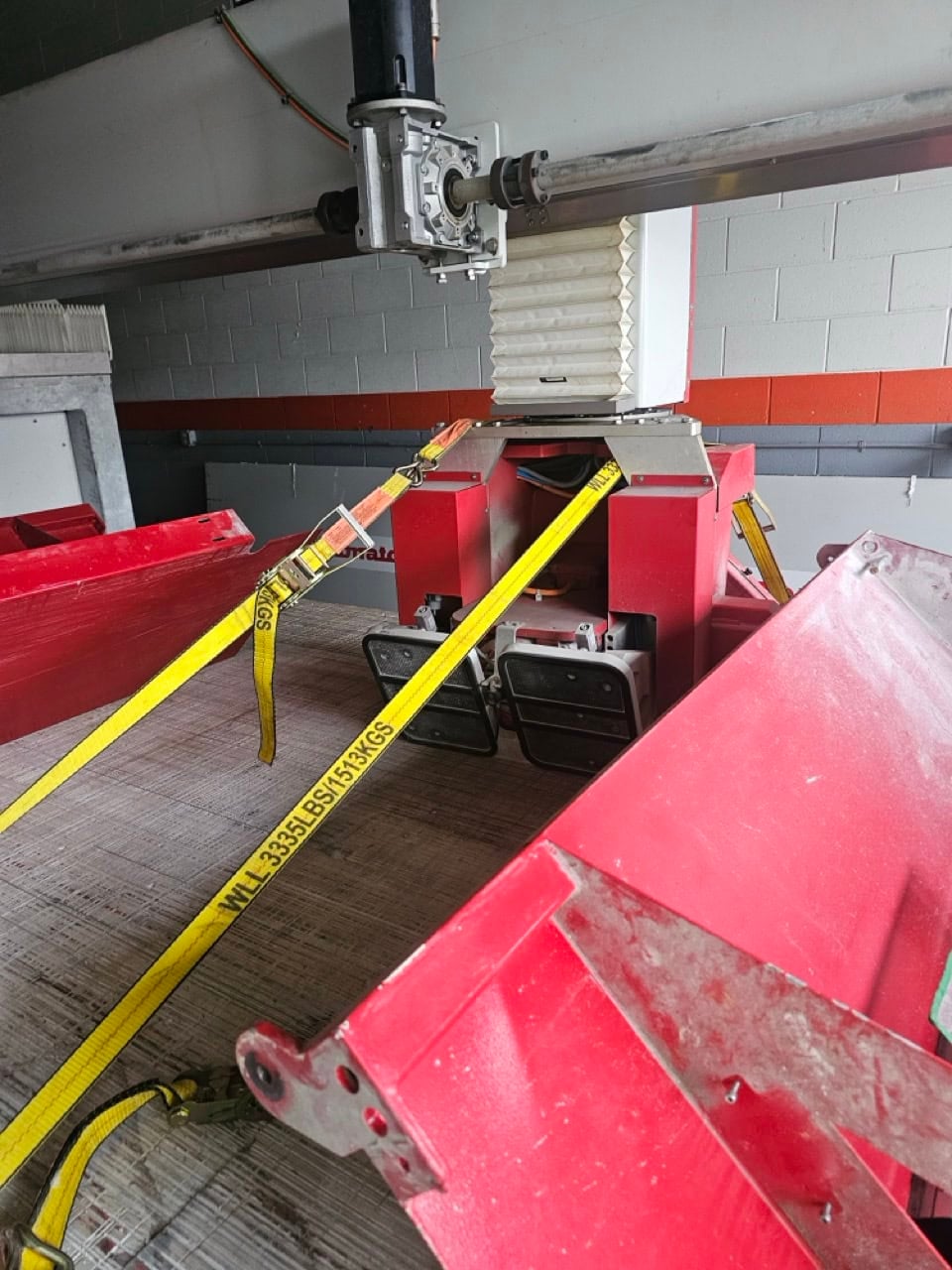

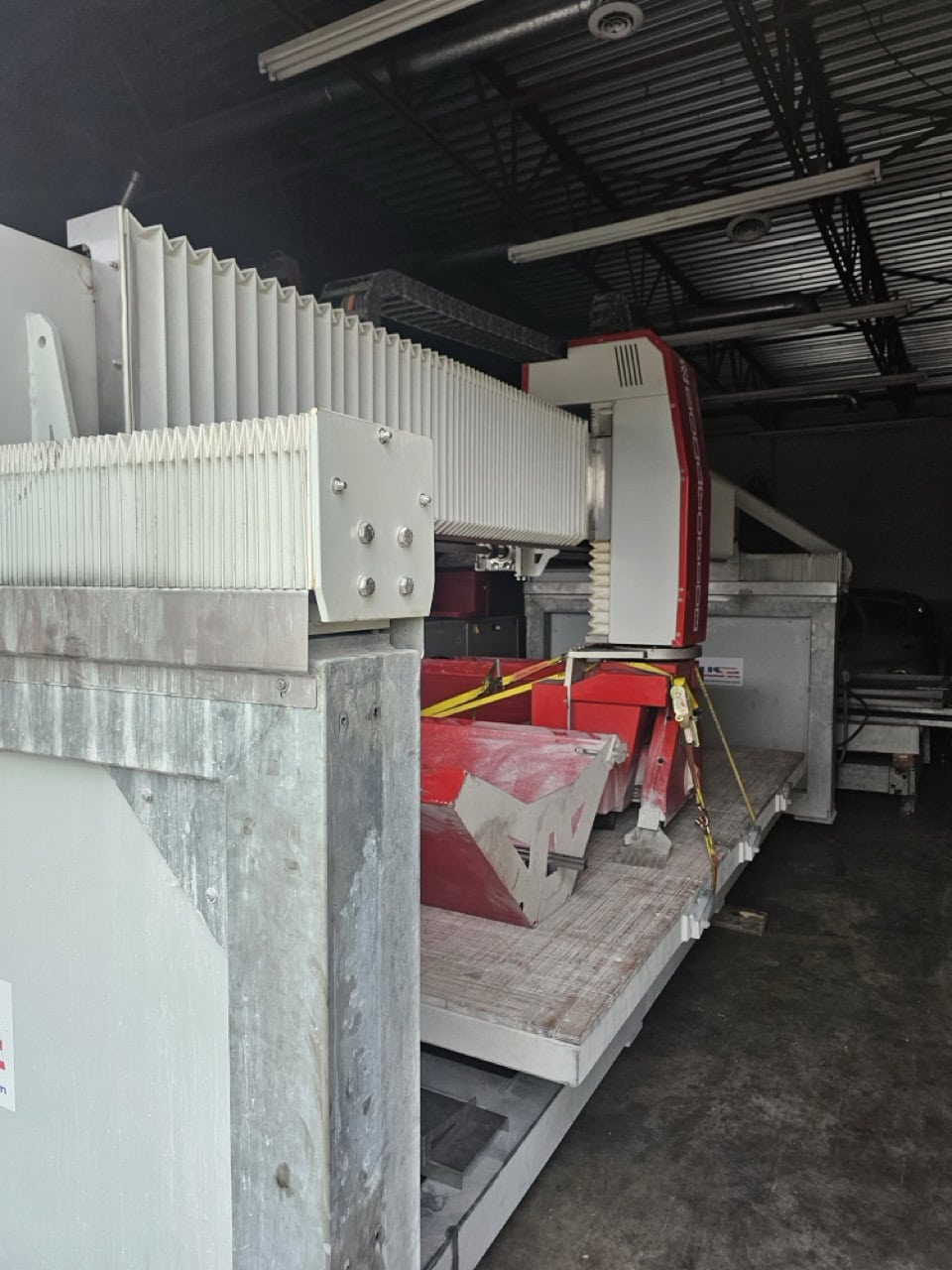

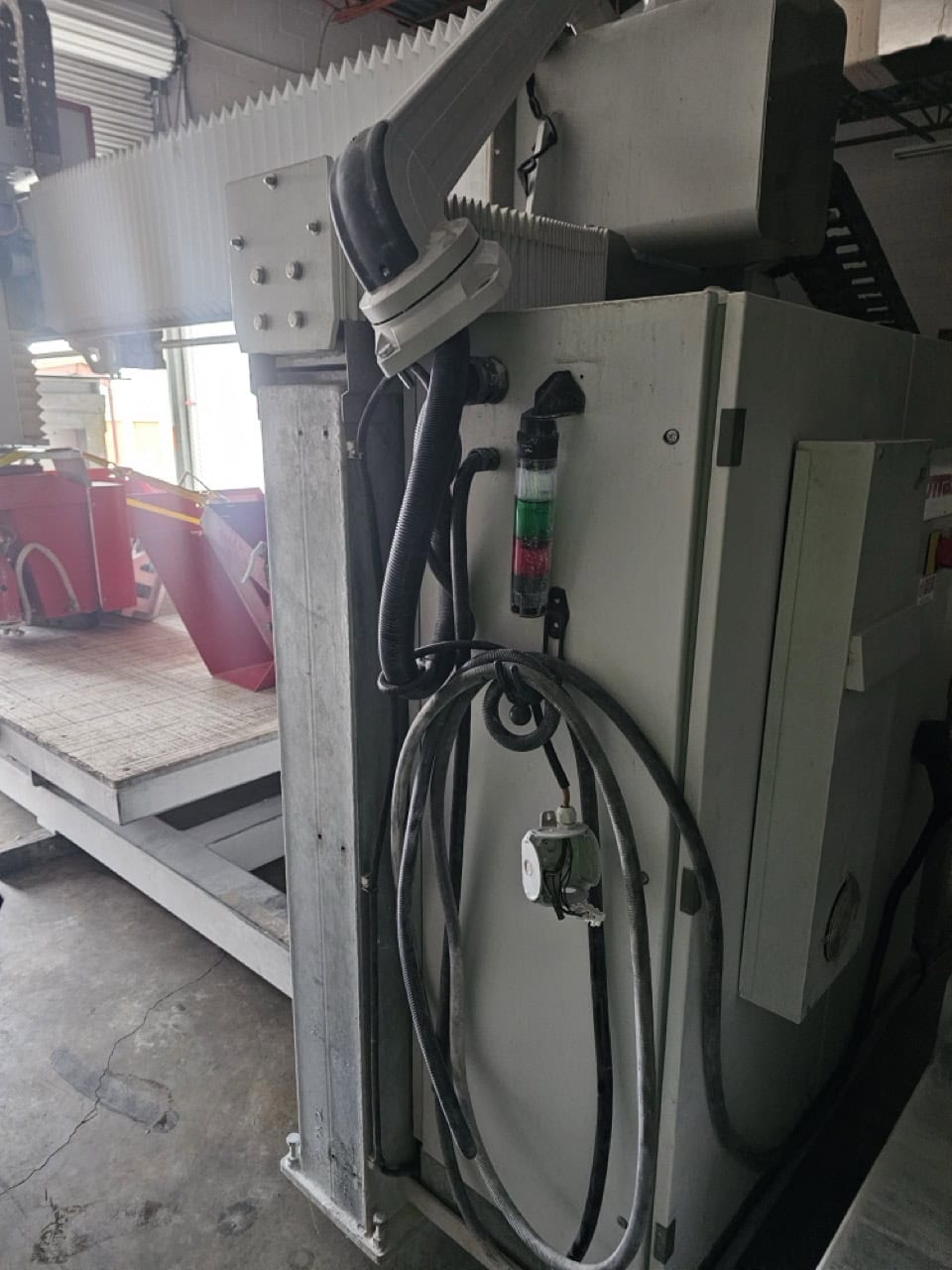

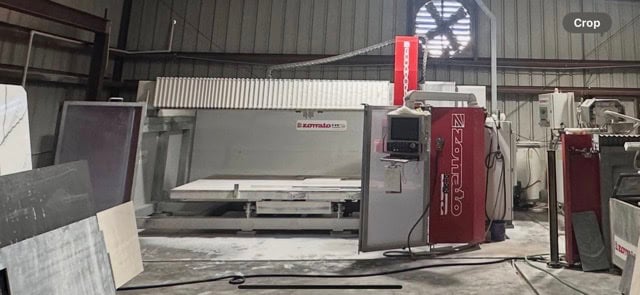

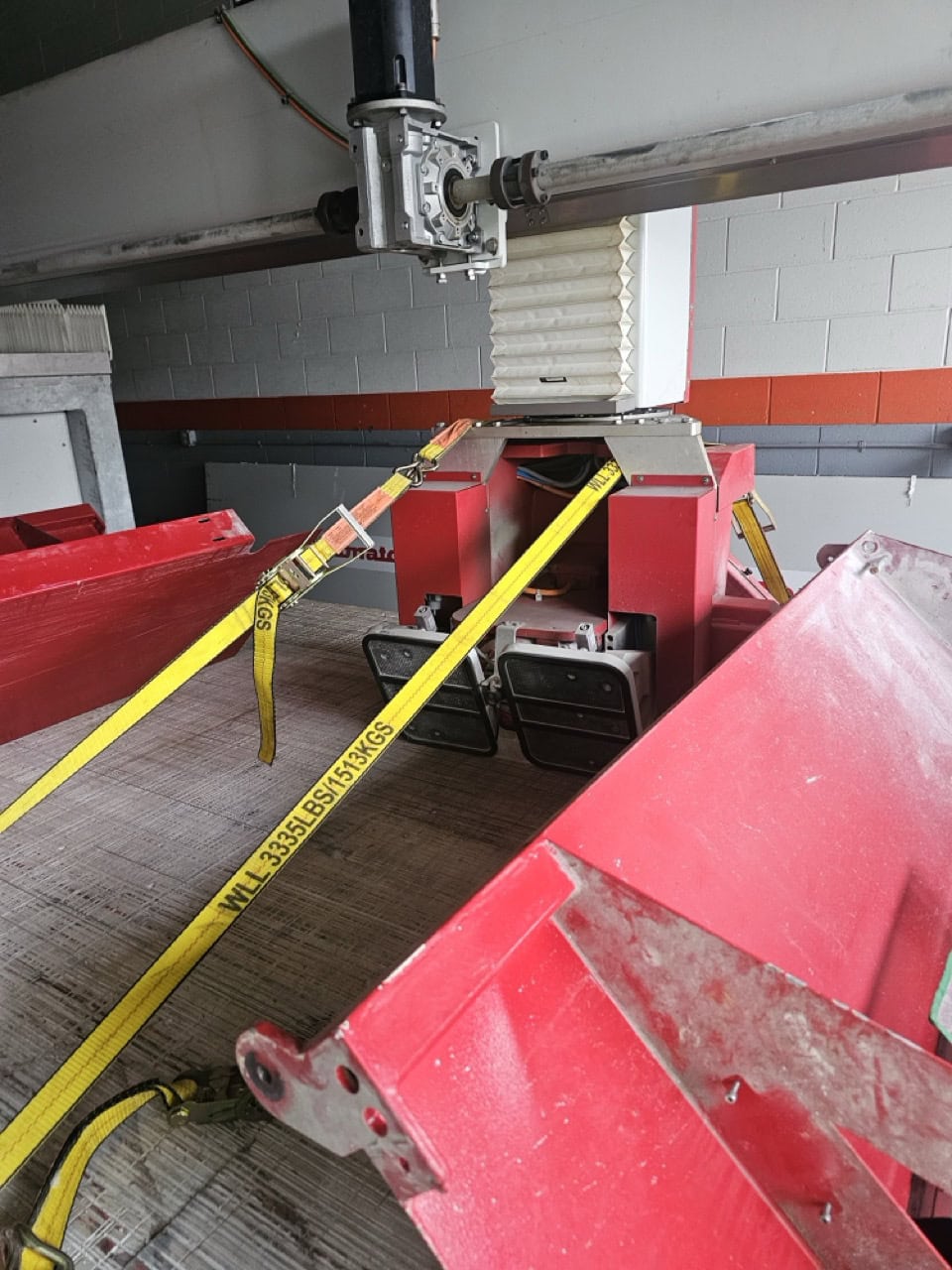

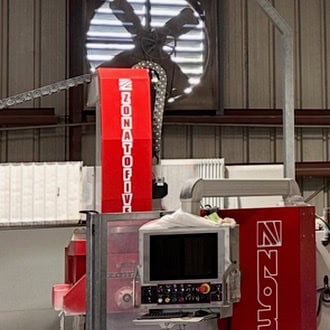

Zonato #TMac-Smart-625-Five, 5-Axis CNC Bridge Saw, 13-3/4" to 24-5/8" blade range, 90° A-axis tilt, 370° C-axis rotation, 2023

Bank-Owned – All offers will be reviewed
Brand: Zonato (distributed/marketed CNC bridge saw)
Model: TMac Smart 625 Five CNC Bridge Saw (5-axis)
Type: CNC Bridge Saw – 5 interpolated axes for advanced stone fabrication
Year: 2023
Axes: 5 interpolated axes – X, Y, Z, A, C (full 5-axis motion)
X-Axis Travel: ~3670 mm
Y-Axis Travel: ~2620 mm
Z-Axis Travel: ~450 mm
A-Axis (Tilt): 90°
C-Axis (Rotation): 370°
Max Cutting Depth: ~200 mm
Cutting Disk Diameter Range: 350 – 625 mm
Work Table Size: ~3800 × 2400 mm
Max Suction Cup Capacity: ~350 kg
Overall Machine Dimensions: ~6023 × 4520 × 3000 mm (without camera)
Machine Weight: ~5800 kg
Total Power Required: ~28 kW
Air Consumption: ~120 l/min (for suction cup use)
Water Consumption: ~40 l/min (cooling)
Drive & Spindle
Spindle Power: ~13.2 kW S6 rating with internal water cooling
Max Spindle RPM: ~5000 rpm
