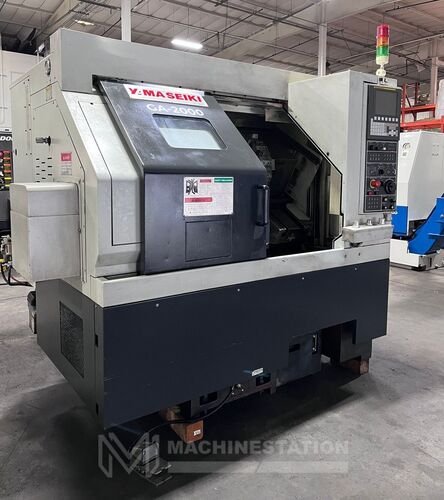

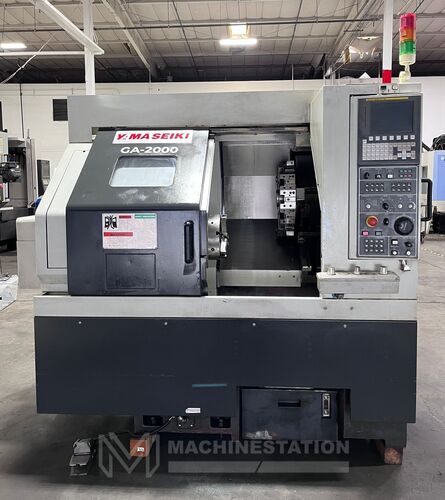

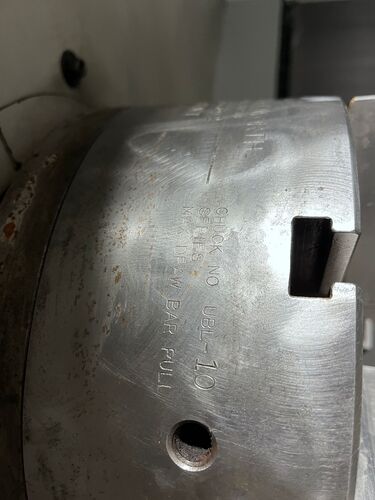

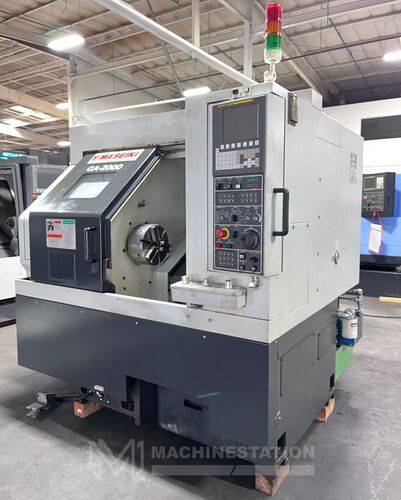

Yama Seiki #GA-2000/300, CNC turning center, 22.8" swing, 10" chuck, 4-jaw, 2" bar, 13.78" dia., 12" lgth, Fanuc Oi-TD, A2-6, 4800 RPM, 12 turret, rigid tap, 2014

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

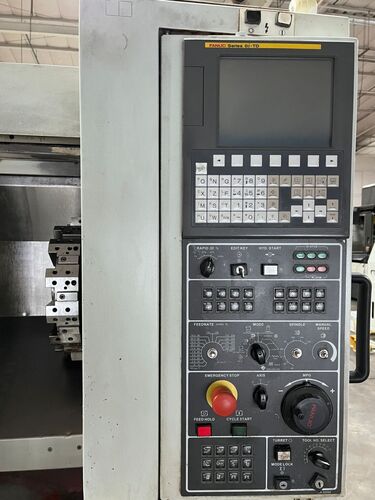

Fanuc Oi-TD CNC Control
A2-6, 4800 RPM Spindle
12 Station Automatic Turret
Rigid Tapping
PCMCIA Card Interface
Coolant System
Capacity:
Max Turning Diameter: 13.78"
Max Turning Length: 12.00"
Max Swing Over Bed: 22.83"
Max Swing Over Saddle: 15.75"
Max Bar Capacity: 2.0"
Travels:
X Axis Travel: 8.07"
Z Axis Travel: 13.78"
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.4"
Spindle Speed: 4800 RPM
Spindle Motor: 20 HP

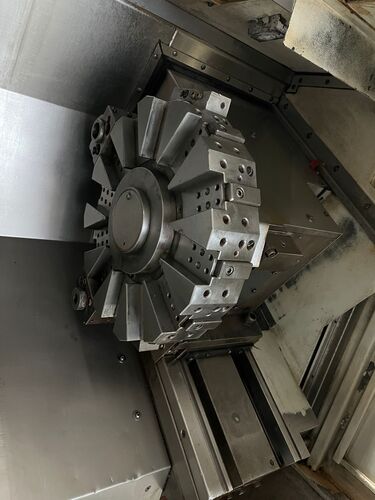

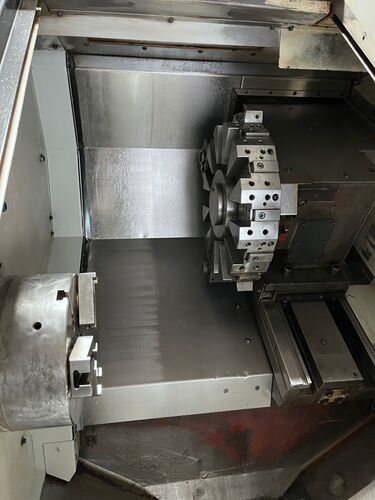

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Size: 1"
Tool Holders Type: BMT
General:
Power: 50/60 HZ / 220v / 3-Phase / 25 kva
Overall Dimensions: 79" x 64" x 68" High Approx.
Weight: 7,716 lbs
