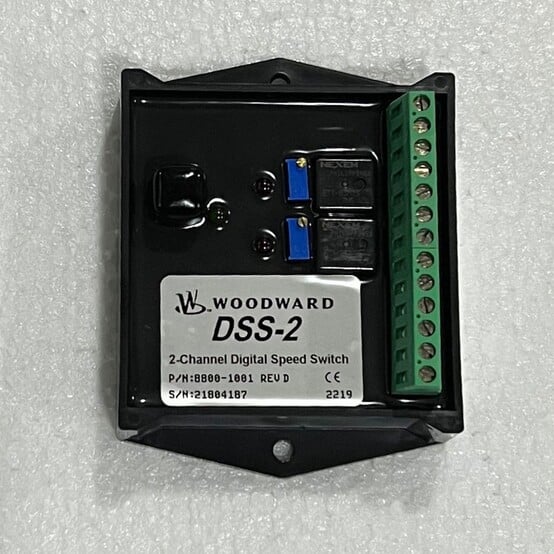

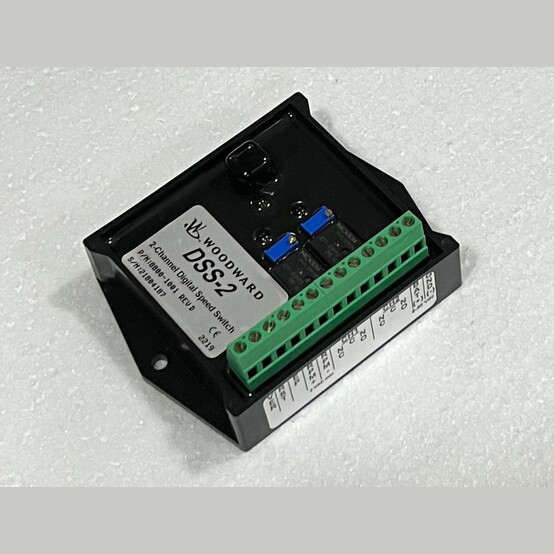

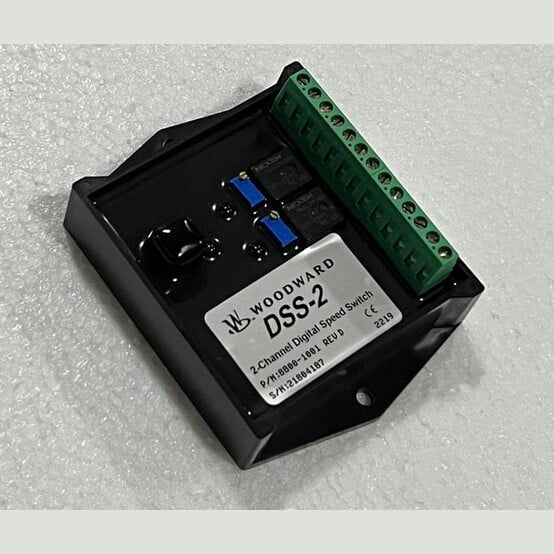

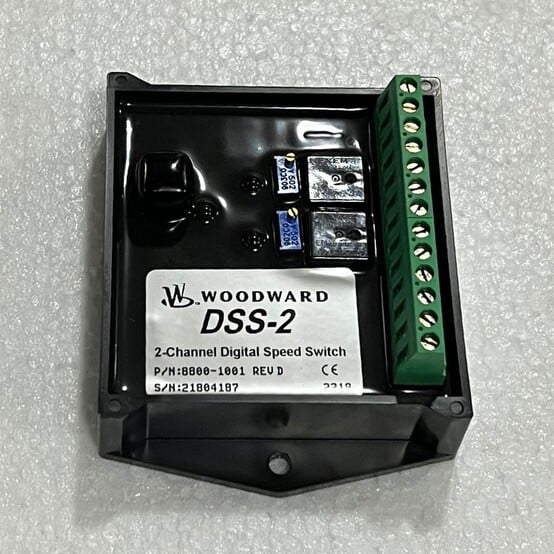

Woodward #DSS-2, Two-Channel Digital Speed Switch, 9-30 VDC, 1-10 amp resistive relay contacts

Woodward DSS-2 Two-Channel Digital Speed Switch

• Make: Woodward
• Model: DSS-2
• Type: Two Channel Digital Speed Switch

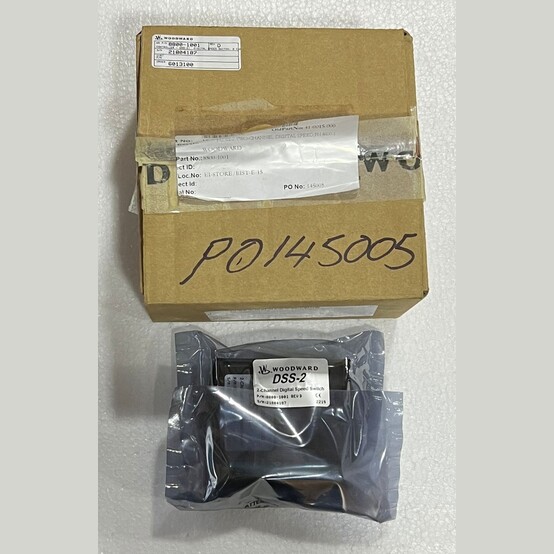

• Condition: Unused
• Part Number: 8800-1001
• Revision: D

• Electrical:
  • Power Input 9-30 VDC, Reverse Polarity Protected
  • Operating Current:
    • Both Channels On: 12 V: 100 mA / 24 V: 100 mA
    • Both Channels Off: 12 V: 50 mA / 24 V: 50 mA
  • Relay Contact Ratings @ 28 VDC:
    • Resistive Load: 1 to 10A
    • Inductive Load: 1 to 8A

• Mechanical:
  • Operating Temperature: -40°F to +185°F (-40°C to 85°C)
  • Vibration: 4 G’s from 40-2000Hz
  • Shock: 10 G’s @ 45Hz
  • Housing: UV, Chemical Resistant. UL 94 V-O Flame Retardant. Encapsulated for Reliability in Harsh Environments
  • Terminations: Euro-Style Terminal Block
  • Calibration: Manual or with PC-based All-Purpose Calibration Tool / ACT [SA-5206]
  • Weight: 0.38 lbs (0.17 kg)

• Location: Asia
