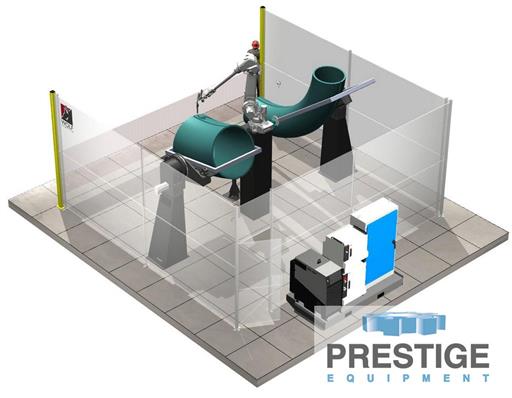

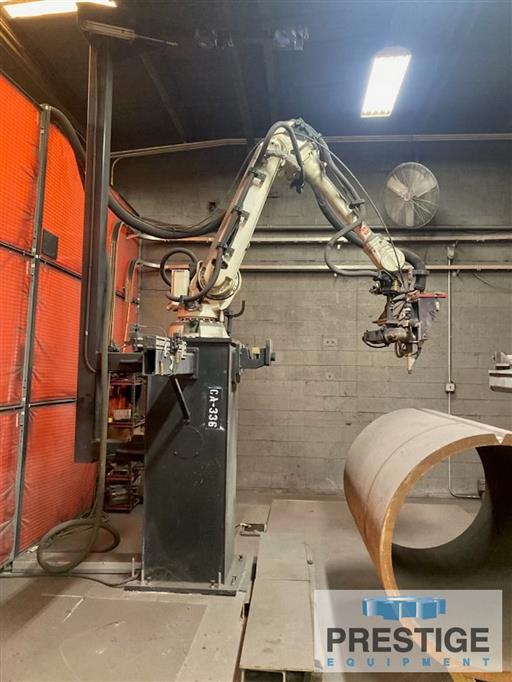

Wolf Welding Cell, IRB 4600, 6 Axis Robot, IRC5 Controller, HeadStock/TailStock, Power Wave AC/DC 1000 SD, 2018, #43222

Specifications:
IRB 4600-40 2.55 Six Axis Robot Package:

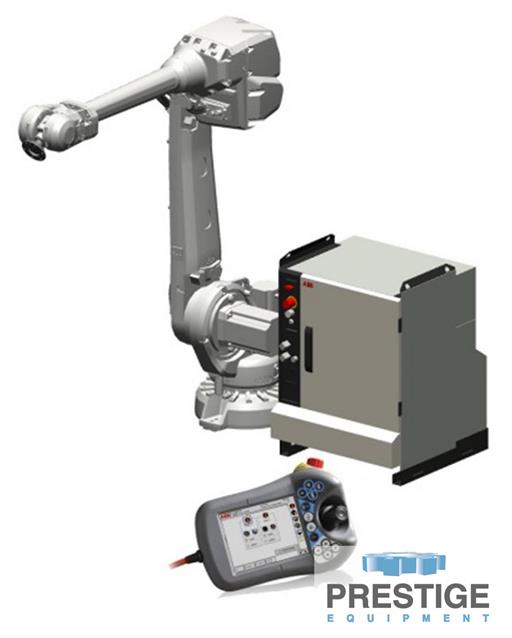

IRB 4600 6 Axis Robot:

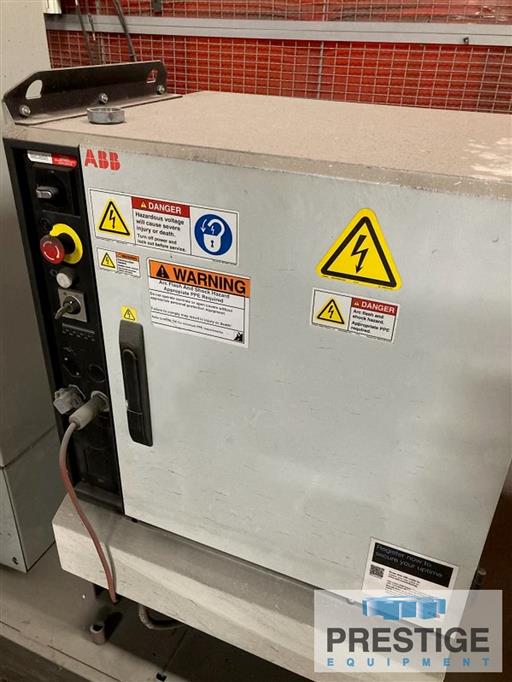

IRC5 Controller:
Collision Detection:
Path Recovery:
Multitasking:

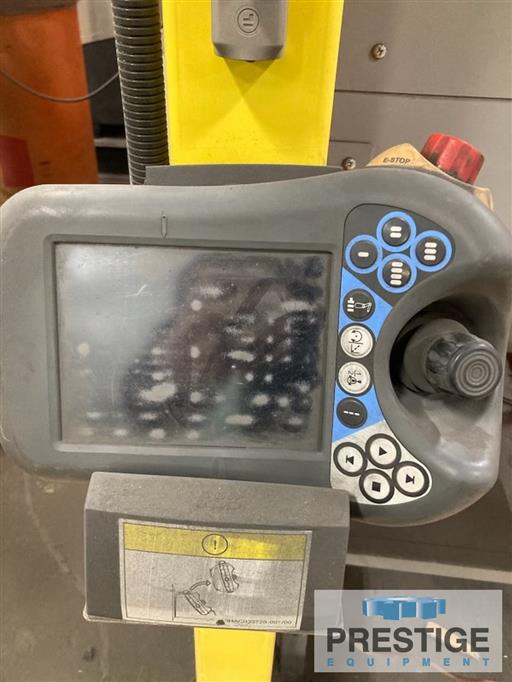

Color Touch Screen FlexPendant (10m Cable):
Cable Management:
Specifications:
Reach: 2550 mm:
Repeatability: 0.06 mm:
Payload Capacity: 40 kg:
No- te4:8 F0oVr 3lePahd time, this is a gently used floor robot from Wolf:
Robotics. Full Warranty still applies. (Color: Orange):

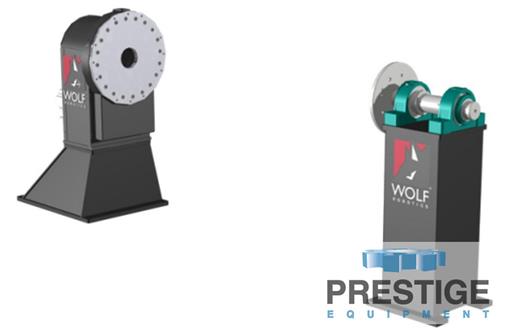

HeadStock/TailStock 6,000KG Servo Positioning System (QTY 2):
Single axis AC servo positionerPillow block style Tailstock:
Full coordinated motion between robot and positioner axis:
Specifications:
6,000 kg. load capacity including fixture:
Max load up to 4,016 NM torque:
Laser Spot Finding Package:
Fast, non-contact searching:
Compact and rugged design:
Search 1 dimension returning a vector offset:
Combine searches for multi-dimension offset:
Awliltohw Ws ofolfr Hceaalcvuyl aWtiveeld aindga pptaivcek awgeeld ing of large joints when combined:
Search for part present functionality:
Advanced Replay for WolfArcTM:
True shape replication for multi-pass welding:
Eliminates defects due to path interpolation:

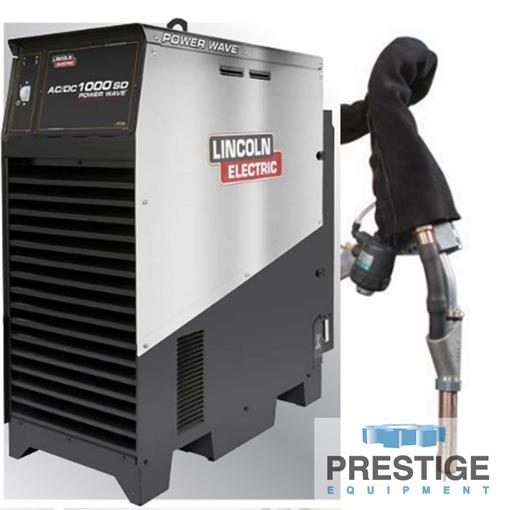

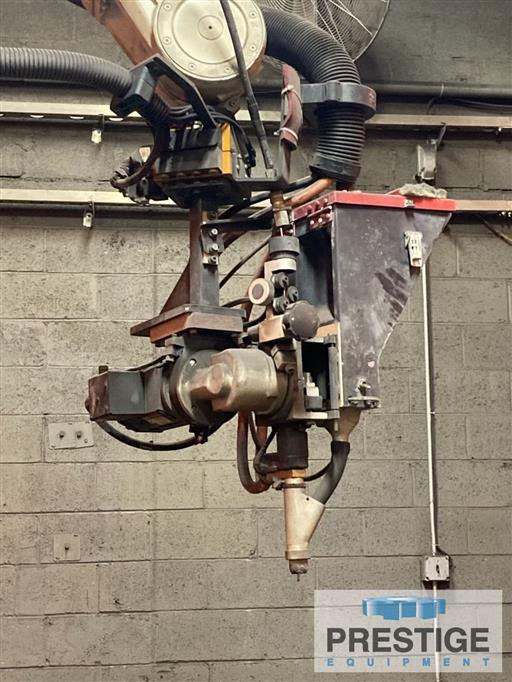

Lincoln Power Wave SAW Package:
Includes:

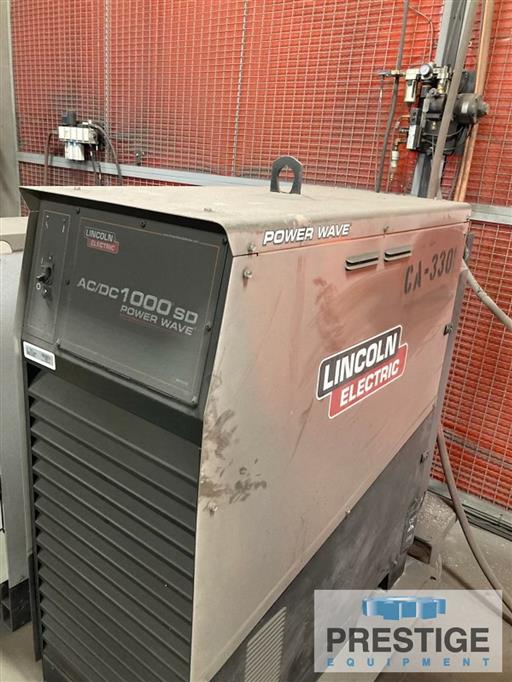

Power Wave AC/DC 1000 SD:
MAXsa 19 Controller:
MAXsa 29 Feed Head:
Iennveerrgtey rd-beamsaendd d esign reduces:
True Energy Capable:
Touch sense enabled:
Process stop package:
Robot Dress out package:
Flux Recovery System:
W30e0l dU Enniteg ineering PFR-3000-:
MM-1500X Vacuum Unit:
Flux Nozzle:
Without Heated Flux:
BullsEye TCP Calibration System:
Automated calibration of Tool Center Point (TCP) based robot tools:
including (but not limited to):
MIG welding torch:
Oxy-fuel cutting torch:
Automatically adjust tool position and angle to ensure path repeatability:
Supports up to five unique tools per robot:
Integrated error handling:
Optimized update times:
Includes calibration check pointer for quick visual reference:
Touch Sense:
Tactile interface:
Ability to search with weld wire or gas cup:
Search 1 dimension returning a vector offset:
Combine searches for multi-dimension offset:
Search for part present functionality:
Operator Panel:
Twist Release E-Stop:
Programmable Manual Jog (If Applicable):
OK to Enter Pilot Light:
Safety Reset / Op Ready:
Program Start:
Program Stop:
Main Cell Interface Panel Without Power Distribution:
Hoffman enclosure NEMA class 12:
Back plane assembly:
Mounting for Seam Tracking, Tactile searching interface, safety, etc:
Cable covers as required.:
Jokab Safety PLC:
Safety Package:
Safety PLC:
Stack light status display:
Modular safety fence:
Light curtains with pre-reset / op-ready push buttons - M aintenance gate with safety switch and gate-reset push button:
WolfWare Software Package:
Advanced calibration procedures for offline to online programming:
Cell move instructions with support for axes masking:
Torch cleaner supporting instructions for arc-welding applications:
Automatic pre-part and post-part execution routines:
Base functions to support process specific software packages:
Production Manager:
Real time production information on each task the robot is executing:
Teach Pendant Graphical Interface supporting:
Customizing setup and service routines:
Execution of setup and service routines:
Execution of user-created part routines:
Managing part routines:
Part/program handling functions with both name and pictures:
Process interaction through easy to understand graphic symbols:
Minimum amount of operator training required:
Note:
Any and all Software and License is the buyer's responsibility to Confirm:
Features:
IRB 4600-40 2.55 Six Axis Robot Packag
HeadStock/TailStock 6,000KG Servo Positioning System (QTY 2)
Laser Spot Finding Package
Lincoln Power Wave SAW Package
BullsEye TCP Calibration System
Touch Sense
Operator Panel
Main Cell Interface Panel Without Power Distribution
Safety Package
WolfWare Software Package
Production Manager
Pneumatic SmartDock for Fixtures
