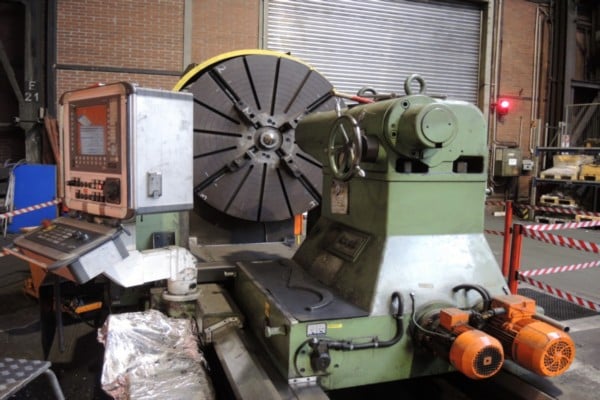

Wohlenberg #VV2000 6m CNC lathe, Sinumerik 840D SL, 2000mm swing, 1971,2009

specifications
Machine: Lathe 6m CNC
Manufacturer: Wohlenberg
Type: VV 2000 CNC
Modernized: yes,2009
Power grid: 500V,50Hz, IT grid

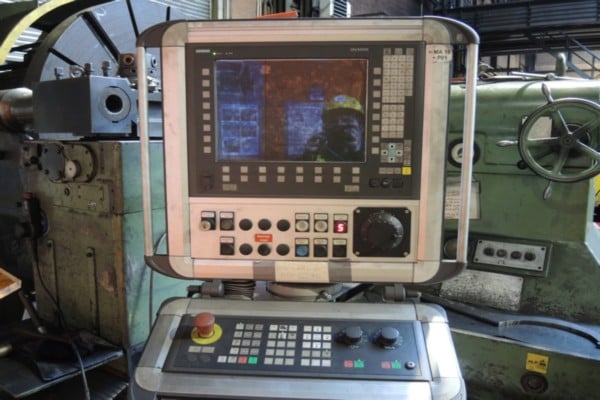

Control: Sinumerik 840D SL
Turning length: 6000 mm
Bed length: 9200mm
Center height above flat track: 1050 mm
Swing over bed: 2000 mm
Swing diameter facing slide: 1600 mm
Plan travel: 1150 mm
Bed width: 1120mm
Spindle diameter in the front bearing: 260 mm
Spindle Bore: 82mm
Quill outside diameter: 200 mm
Quill stroke: 280 mm
Increment: 1.25
Speeds: 0.224.280 rpm
revolving flange center point: 60
Faceplate diameter: 1600 mm
Dimensions: 8600x3100x1900mm
Weight: 26000kg
Workpiece
Diescher discs O1800 mm
Rolls
Tool
The tool is set in the tool holder outside the machine using an optical
measuring device. The possibility of being able to have it ready set as
required for the turning work conditions corresponds to the requirement of
automatic control. Normally, the upper support carries the quadruple turret,
which ensures a defined position of tool holder and tool through prismatic
guidance and cams.
Documentation available: YES
Operations:turning
