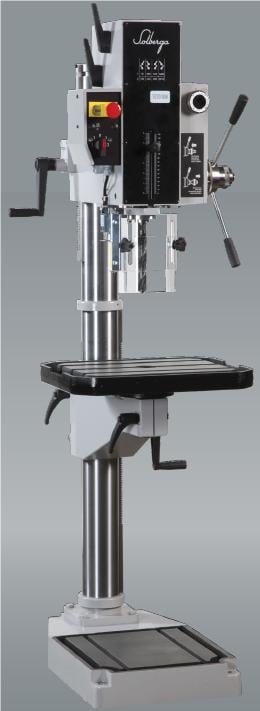

Willis Solberga #SE2030PW, Floor drill press, w/ manual feed

Standard equipment:

Drill head

· The drill head is adjustable through 360° around the column and can be elevated and lowered.

Gearbox

· Helical gears combined with steel gears against reinforced fiber gears in the main gear box ensures higher operating efficiency, a more powerful drive mechanism and smooth operation. The noise level is reduced and maintenance on the gear box is reduced to a minimum. The 8 spindle speeds are easily selected by changing two handles.

Spindle

The spindle is made of steel with the lower spindle bearing located as near to the lower part of the spindle as possible, ensuring greater precision and rigidity even in milling operations. It is further adjustable by the journals in the bearings which guarantees very small tolerances. The spindle is fitted with a counterbalanced tension spring and is adjustable depending on the weight of the tool and can be locked when carrying out milling operations.

Power feed

· The optional power feed for the SE2030PW is fitted with automatic overload protection which comes into operation as soon as the pressure becomes too high. When the overload is reduced the feed is automatically reengaged.

Table

· The machine is fitted with a high-quality cast iron rectangular table 500x400 mm with T-slots and coolant channel.

Column

· The column is constructed of steel, which ensures extra rigidity of the machine, giving accurate precision and minimum deviation from the stipulated angle between the drill and the table.

Base plate

· The base plate has a machined surface complete with T-slots and coolant channel.

Safety

· The machine is supplied with thermal overload switch, no-volt release and emergency stop.

TARIFF:
Machine Tariff: $780.00
NOTES:
SPECIFICATIONS AND PRICING SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* LED Work light: $500.00 (Tariff: $40)
* Automatic reversing package (SE2030, SE2035, SE2040): $1,830.00 (Tariff: $150.00)
* Foot operated reversing switch (all models): $1,190.00 (Tariff: $100.00)
* Coolant package: $810.00 (Tariff: $70.00)
* Drill Guard: $430.00 (Tariff: $40.00)
* Drill Guard with microswitch: $690.00 (Tariff: $60.00)
* Drill chuck with arbor, (1/2” capacity) simple type: $290.00 (Tariff: $40.00)
* Various machine bases for gang drill applications: POR
DELIVERY:
SUBJECT TO STOCK
