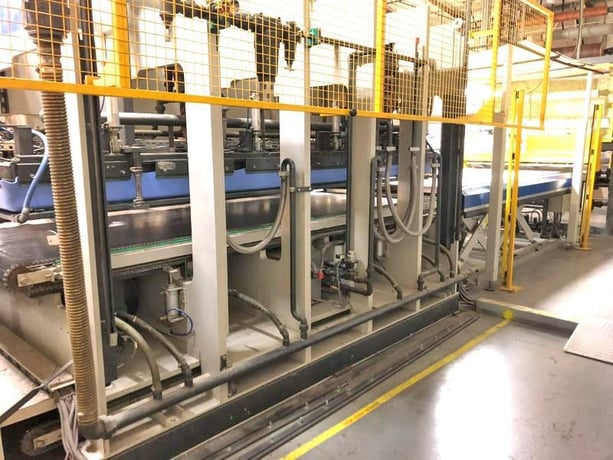

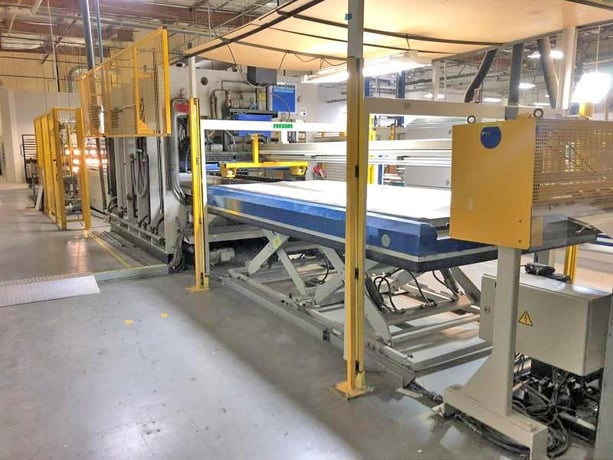

Wemhoner #Professional-3000, membrane press w/ pin system, Siemens S7 PLC Control, 2004

WEMHONER - KTM-34/15-300 "PROFESSIONAL 3000, VARIOPRESS": Membrane Press with (3) Shuttle Trays; Automatic Pin System; Turnover Device; Paternoster High Production Line of appx.: (20 - 30) Cycles/Hour using heated platen dimensions: 3,400 mm x 1,500 mm (133.8" x 59").For 3D applications with high capacity. Use of the VARIOPRESS® provides excellent flexibility in the production of: High gloss surfaces; radius fronts; or 3D veneer applications. -- Overall Description. VarioPin System with: Paternoster; automatic Foil Cutting System; (3) shuttling tray tables; automatic Pin. Automatic electrically controlled lifting of workpieces via modular pins (replaces spacer boards). Scanner unit maintains only the Pins beneath the workpiece lifted & automatically resets all Pins after each cycle. -- Press System. Hydraulic single daylight down stroke Press. - Structure/body consists of: Steel frames that are bolted together to form a closed unit. Each frame is flame-cut & manufactured out of a single piece of steel. Pressing pressure max.: 8 Bars (117 PSI). -- Pin System/Configuration (3) Tables; VarioPin System shuttle feeding carriages in a straight line. Carriage tables are automatically transported in/out of the Press & cycled automatically by the feed system through the Press per PDF layout attached under "Literature."The Scissor Lift unit in front of the Press (over/under configuration) allows trays to pass through the Press below the closed platens to the foil layup station in front of the Paternoster. This is a unique space-saving configuration. -- Membrane. 3 mm (1/8") Thick; Clamping System & automatic Clamping System-Pneumatic adjustment of membrane tension on all (4) sides of the Press. -- Press Modes. With & without Membrane; it can also run the functions simultaneously. -- Foil Types. Approx.1,400 - 1,450 mm (55" - 57") foil width (rolls): PVC, PET, PP, ABS, Veneer, HPL.Technical Specifications & Capacity -- Heated Platen Dimensions: 3,400 mm x 1,500 mm (133.8" x 59"); Electrically heated Thermal Oil circulation (oil not included); operating temperature: 160 C maximum. -- Loading & feeding on the 3,400 mm (133.8") side; max. panel size: 3,090 x 1,250 mm (121.6" x 49"). -- Pressure Chamber Height: 60 mm (2-5/8"); Max. thickness of panel: 35 mm (1-5/8"). -- Daylight Opening: 250 mm (10") & (4) 155 mm (6-1/16"); press feed/working height: 850 mm – 900 mm (33-1/2" - 35-1/2"). Pressing pressure max: 8 Bars (117 PSI).Electrical Controls -- SIEMENS - S7 System PLC for: Control of shuttling, cycling, parameter set points, scanner unit, pin setting & resetting device, via w/10" touchscreen. -- Outstanding Features. Infrared Control Sensors to monitor/control membrane temperature avoid faulty pressings and foil waste. ● Quick changing pressing programs for thermoplastic foils. Provides (2) further pressing programs for: a) Thermoplastic foils with membrane. b) Thermoplastic foils with simultaneous pressure. No
