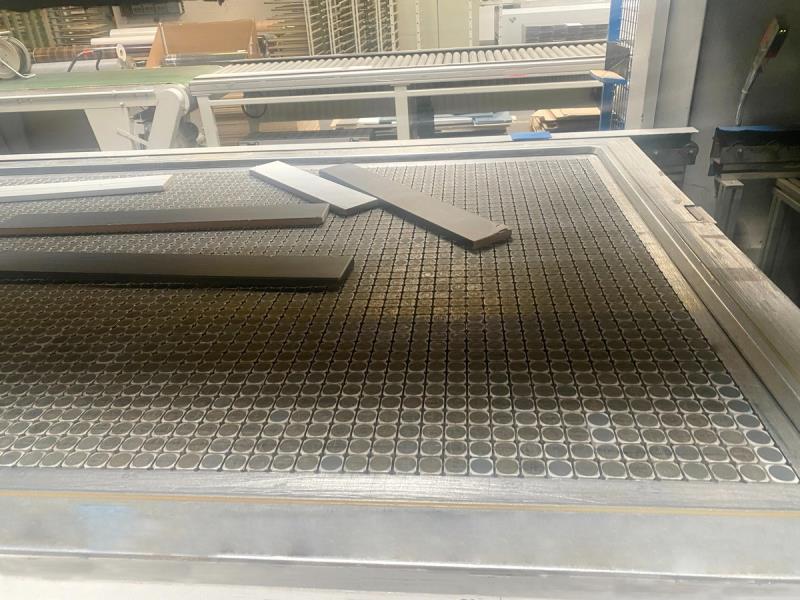

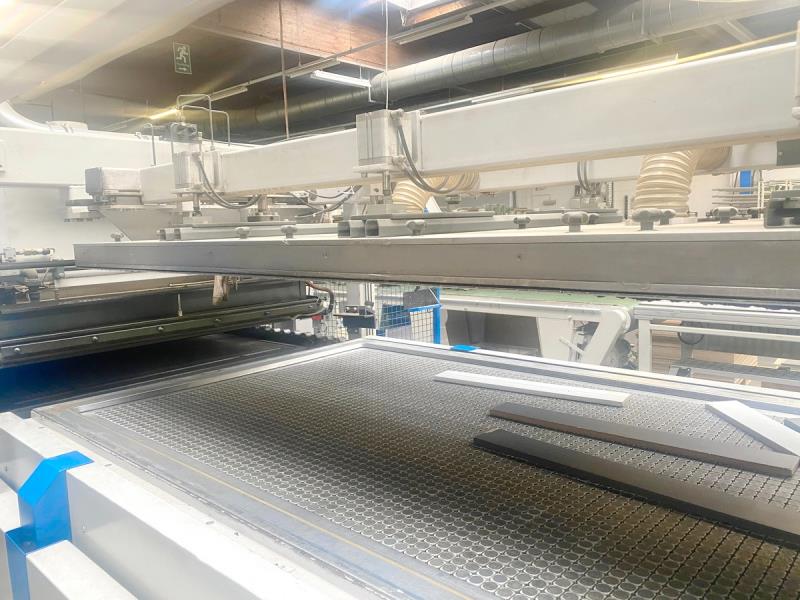

Wemhoner #Basic-1000-Plus, membrane press with pin sy, storage/unwind stand, 2005

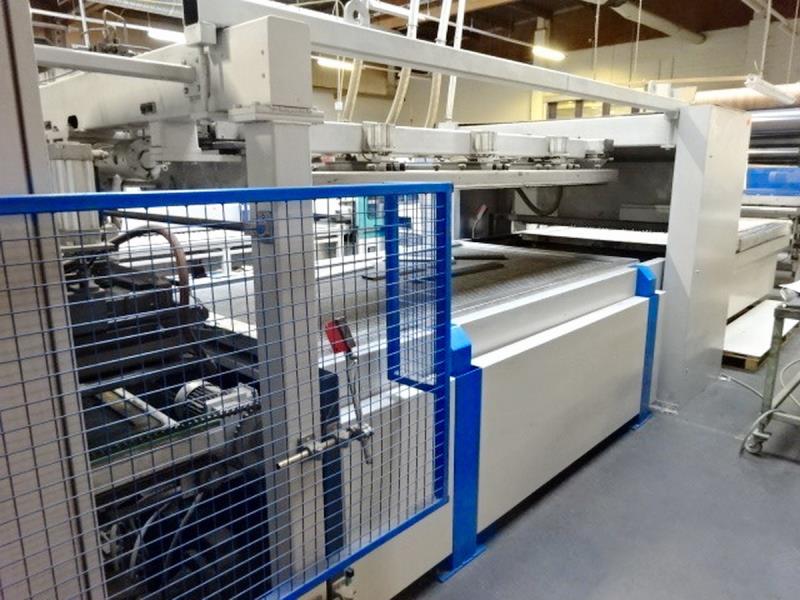

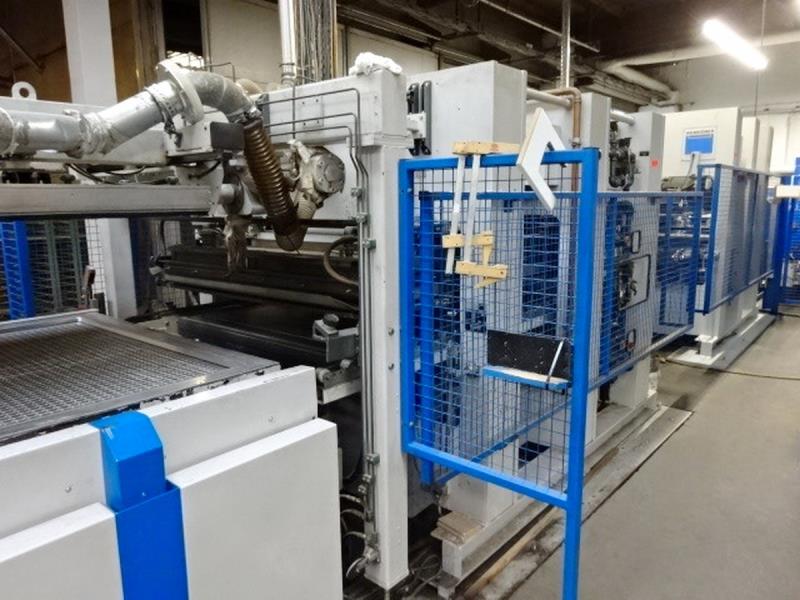

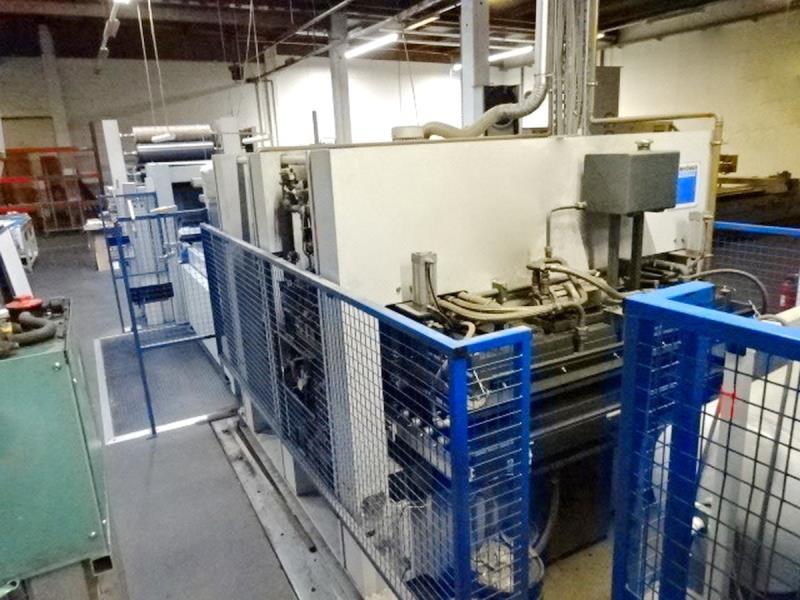

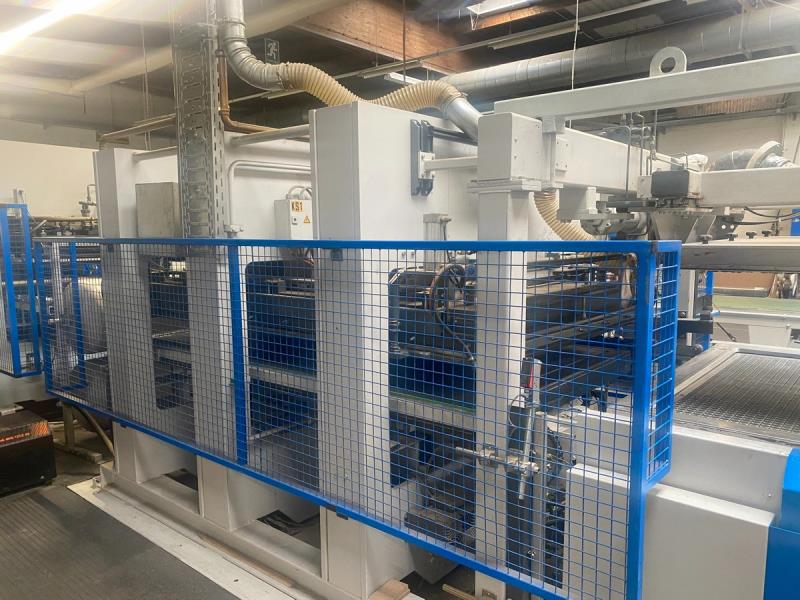

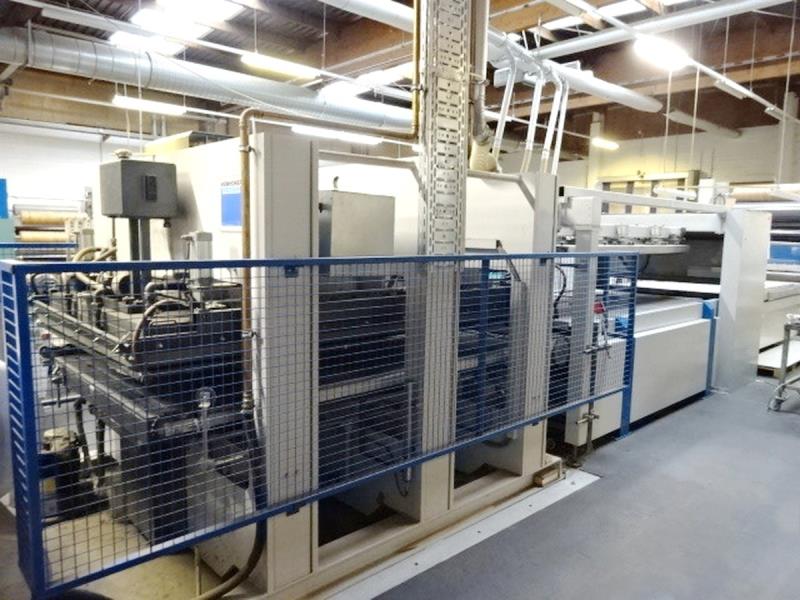

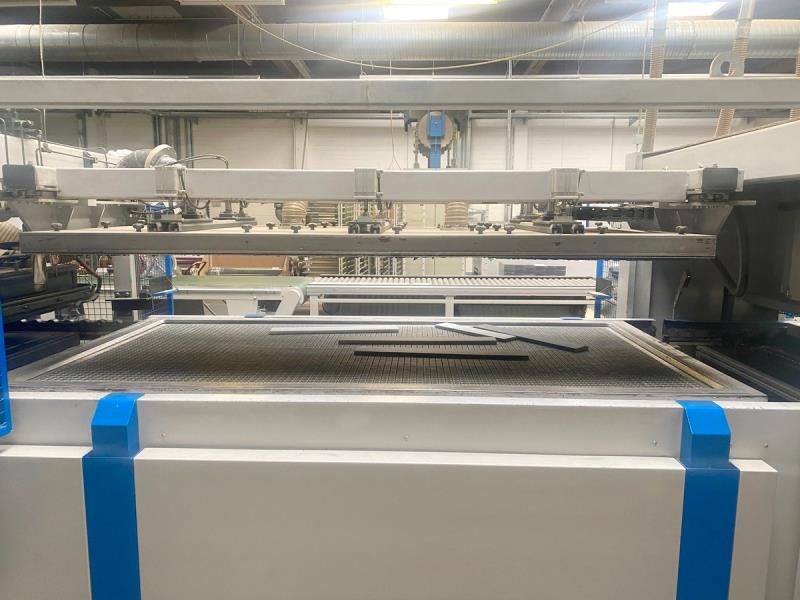

WEMHONER VARIOPRESS® BASIC 1000 PLUS (KT-MB 28.5/15-240) Membrane Press with Storage/Unwind Stand, Foil Cutter, Turnover Device.General Data: Platen area approx 2850 x1500 mm (112" x 59"). Max. operating area Approx. 2650 mm X 1300 mm (104" x 51") Press system, hydraulic single daylight upstroke press. Press body consisting of: Flame cut Steel frames bolted together to form a closed unit. Each frame manufactured out of a single piece. Aluminum heated platens, top and bottom. Press comes with a membrane.Total Press Capacity: 240 tons overall and 6 Bar max. chamber air pressure.Technical Specifications: -- Top/bottom heated platens approx. dim. 2,850 x 1,500 mm (112" x 59"); Pressure chamber height 60 mm (2-5/16"). -- Working height approx. 900 mm (35.4"). -- Daylight opening 150 mm (5.9") maximum. -- Upper Platen heated via Thermal Oil circulation; infra-red temperature control to ensure constant pre-set temperature. -- Number of pressing cylinders (6). -- Diameter of press pistons 125 mm (4.9") -- Total press pressure 2.400 kN. -- Operating pressure of the hydraulic system max. 320 Bar.Equipped with: -- Vacuum pump and vacuum tank as well as valve control. -- Two (2) tray table with an aluminum plate, with Auto Pin System. Aluminum plate consisting of aluminum sheet with grooves and channels for aeration and lay-up frame 20 mm. Tray carriage automatic movable from the lifting station into the press and from the press into the lifting table. -- Turn-Over device is adjacent to the 2nd tray closest to the press. It picks up the finished charge from the press and turns it over 180 minimizing labor by requiring final trim cut. Complete with and Features: -- Foil Roll Storage with foil unwind (stores approx 10 foil rolls) and foil cutting device . -- Programmable Controller (PLC) Model SIEMENS "SIMATIC S7" for control of Pin System. Operates with or without membrane as designated by the requirement of each job type.Note: Transport to Port of Entry, North America or other countries and installation service offered separately. Also inland transportation is not included.
