For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Size Overall | 9" x 49" |
| T-Slots Number | 3 |
| T-Slot Size | 0.625 inches |
| Distance Between | 2.5 inches |
| Dial Graduations | 0.001 inches |
| Longitudinal | 34 inches |
| Cross | 12.5 inches |
| Vertical Knee | 17.2 inches |
| Center of Table to Column Face - Max | 17.5 inches |
| Center of Table to Column Face - Min | 5 inches |
| Quill Travel | 5.25 inches |
| Head Tilt - Forward & Backward | 45 |
| Head Rotation - Side to Side | 90 |
| Turret Rotation on Column | 360 |
| Spindle Nose to Top of Table - Max | 18.2 inches |
| Spindle Nose to Top of Table - Min | 1.0 inches |
| Center of Spindle to Column Face - Max | 23.0 inches |
| Center of Spindle to Column Face - Min | 7.25 inches |
| Spindle Taper (uses drawbar) | R-8 or 30 NMTB |
| Spindle Rotation | Forward and Reverse |
| Spindle Motor (continuous duty) | 3 HP |
| Spindle Speeds - Infinitely Variable | Back Gears: 50-525 RPM, Direct Drive: 400-4,200 RPM |
| Quill Feeds (3) - Per Spindle Revolution | .0015, 0.003, 0.006 |
Equipped With
Equipped With
FEATURES:

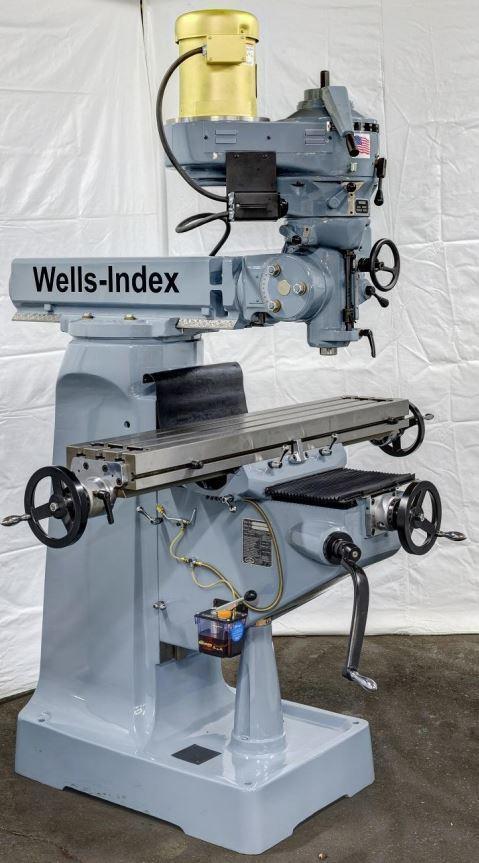

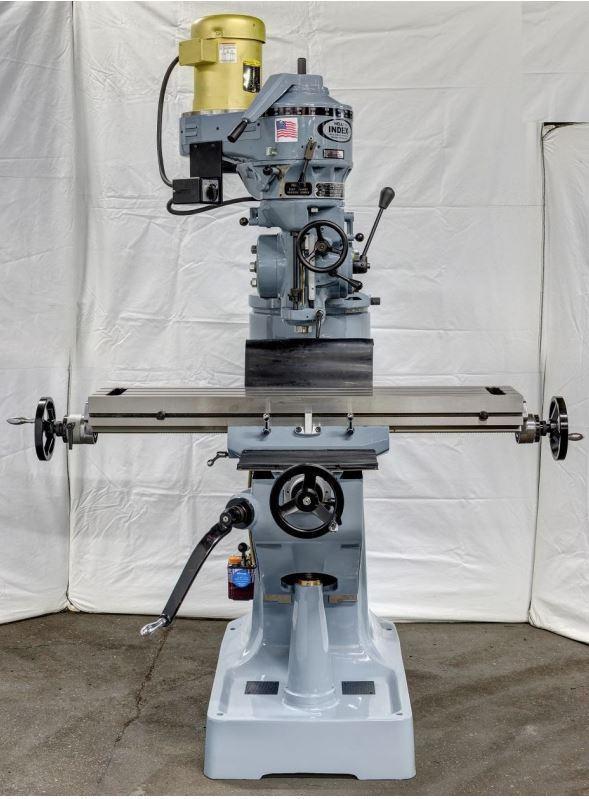

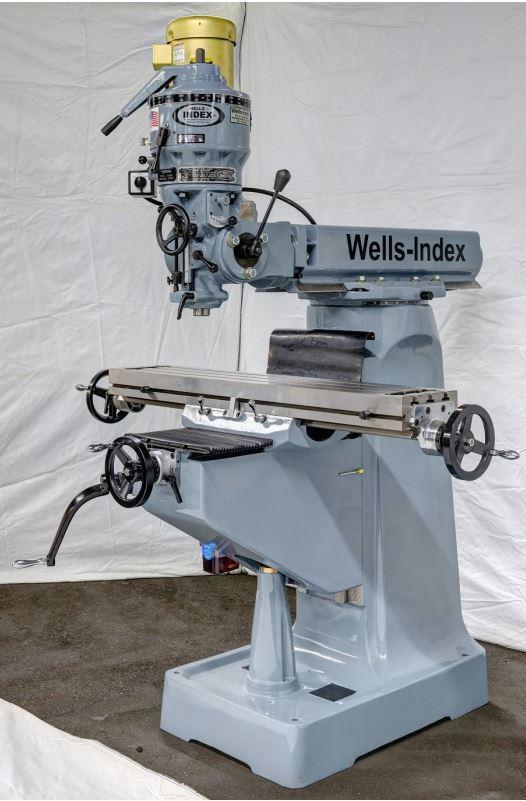

The Model 747-2 is a massive, rigid machine made from high tensile strength close grained cast iron. The Model 747-2 is assembled in the USA and inspected in every area to provide years of optimum performance at lower cost.
The ram, turret, column, knee, saddle and table have cross ribbing to insure maximum stiffness. All joints are accurately machined and hand scraped to provide accurate mating and insure the close tolerances for which this machine was built.
In addition, each joint (table to saddle, saddle to knee, and knee to column) is provided with an adjustable gib to insure long life and accuracy.
A few of the standard features on the Model 747-2 included at no extra cost are:
A. Power feed on the vertical quill. Available at all spindle speeds and rated for a 5/8” drill.
B. A one-shot lubrication system.
C. Hardened and ground ways
D. Way covers.
E. Precision Acme lead screws and nuts
F. 3HP continuous duty spindle drive motor.
EQUIPPED WITH:
* Way Covers
* One Shot Lube
* 3 HP Baldor Motor
OPTIONAL FEATURES:EQUIPPED WITH:
* Way Covers
* One Shot Lube
* 3 HP Baldor Motor
* 1 ea. Acu-Rite DRO200 2 Axis digital readout system ……… $ 3,740.00
* Add third axis to quill or knee ……………………………….. $ 1,285.00
* 1 ea. Newall NMS 800 2 Axis digital readout system …………$ 3,868.00
* Add third axis to quill or knee …………………….………….. $ 892.00
* 1 ea. Fagor 20iM 2 Axis digital readout system ………………$ 2,620.00
* Add third axis to quill or knee ……………………………….. $ 892.00
* Add third axis to quill or knee ……………………………….. $ 1,285.00
* 1 ea. Newall NMS 800 2 Axis digital readout system …………$ 3,868.00
* Add third axis to quill or knee …………………….………….. $ 892.00
* 1 ea. Fagor 20iM 2 Axis digital readout system ………………$ 2,620.00
* Add third axis to quill or knee ……………………………….. $ 892.00
* 1 ea. 101-212-545 Table Power Feed Type 350........................ $ 1830.00
* 1 ea. 101-212-546 Saddle Power Feed Type 350....................... $ 1981.90
* 1 ea. 101-212-547 Knee Power Feed Type 350......................... $ 1986.25
* 1 ea. 5HP Vector Drive Technology ……………………… $ 3180.00
* 1 ea. 101-212-546 Saddle Power Feed Type 350....................... $ 1981.90
* 1 ea. 101-212-547 Knee Power Feed Type 350......................... $ 1986.25
* 1 ea. 5HP Vector Drive Technology ……………………… $ 3180.00
* 1 ea. 40 taper spindle upgrade to vertical ………………… $ 2190.00
* 1 ea. 4” Riser Block …………………..……..………..…… $ 967.50
* 1 ea. 4” Riser Block …………………..……..………..…… $ 967.50
* 1 ea. 6” Riser Block ……………………....…………..…… $ 1047.00
* 1 ea. 8” Riser Block …………………………………..…… $ 1170.00
* 1 ea. Power Drawbar ................................................................ $ 1122.50
* 1 ea. 895-012-001 Flexible Arm Machine Lamp…………….. $ 107.16
* 1 ea. Micro Drop Coolant System, Double Line 110V …….…$ 2587.50
