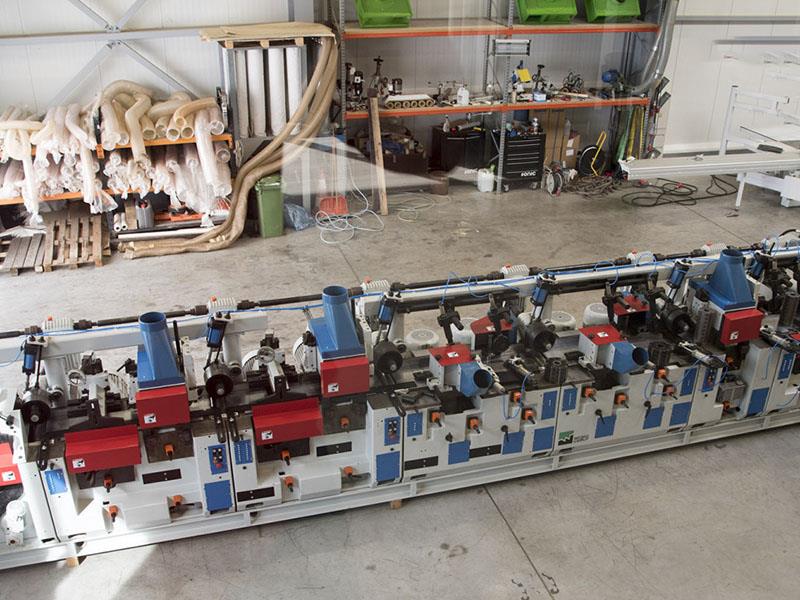

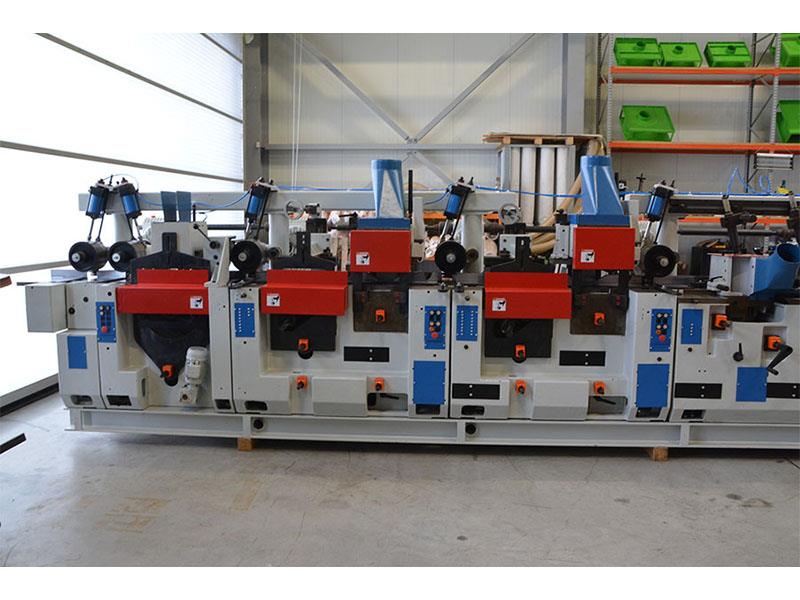

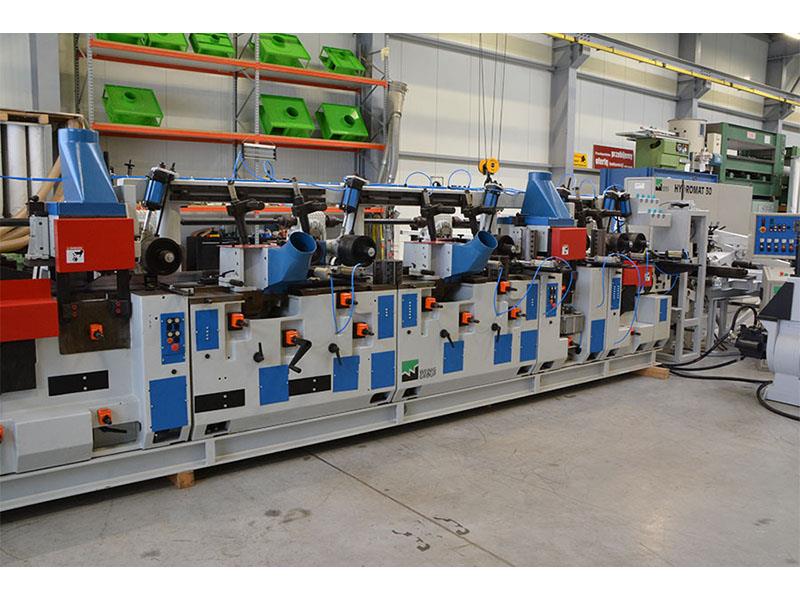

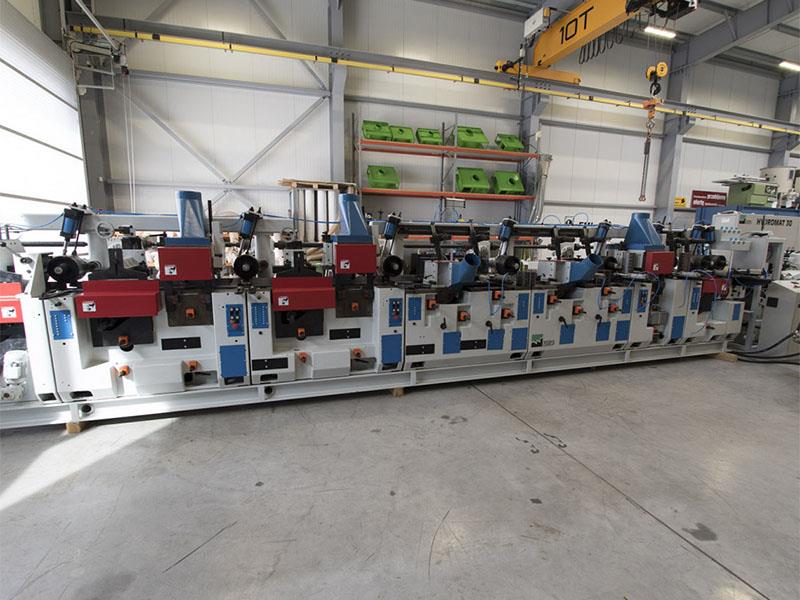

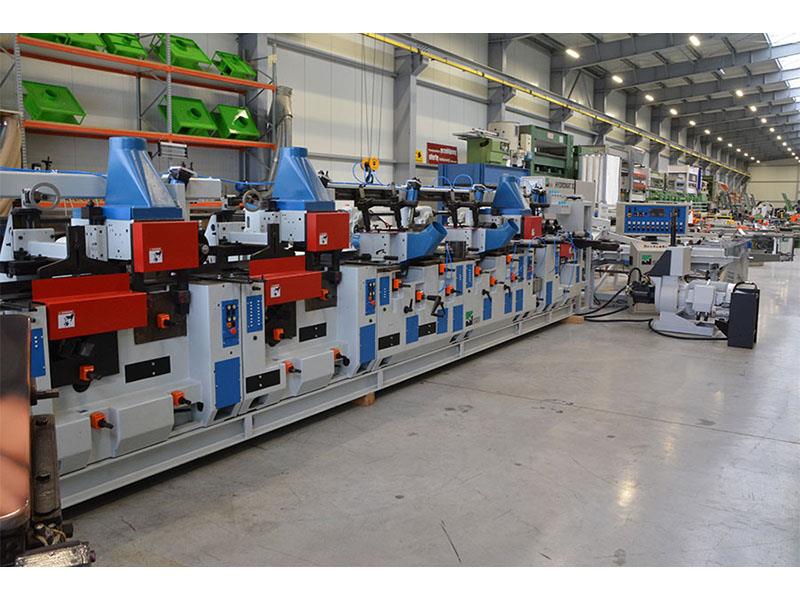

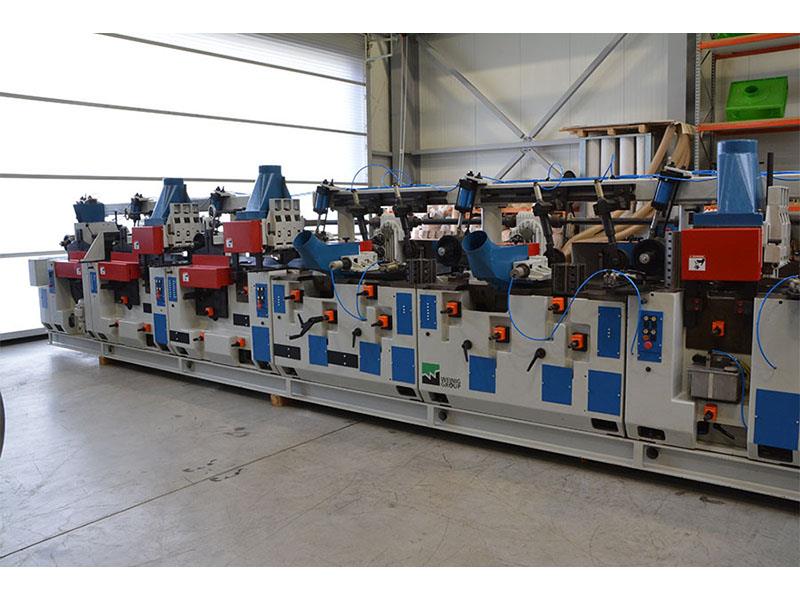

Weinig / Waco #Hydromat-5000, heavy duty feed through moulder, 11-head, 11-13/16" x5-1/2" cap., 656 FPM, 2" spindle diameter, 1990

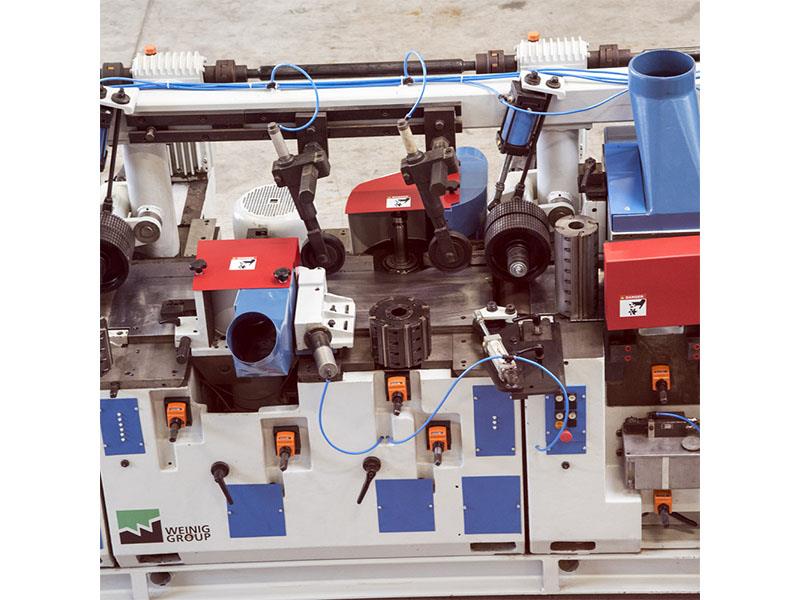

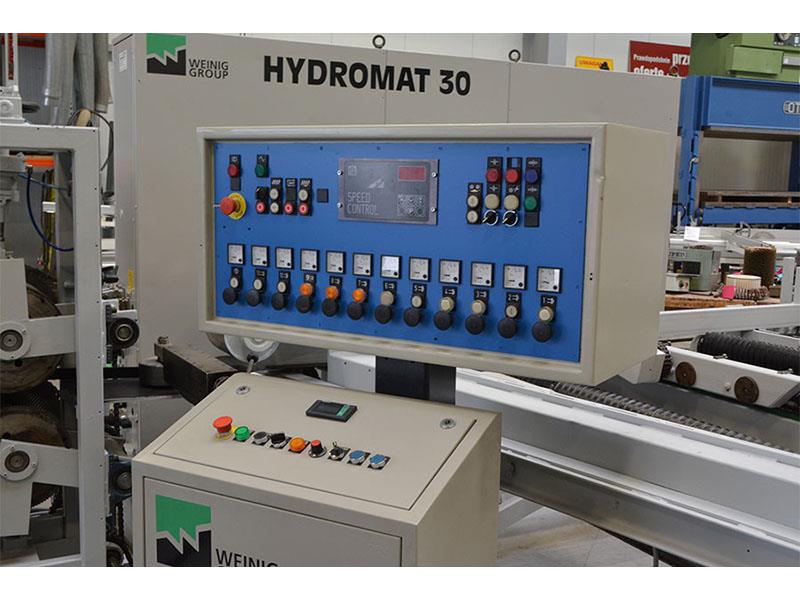

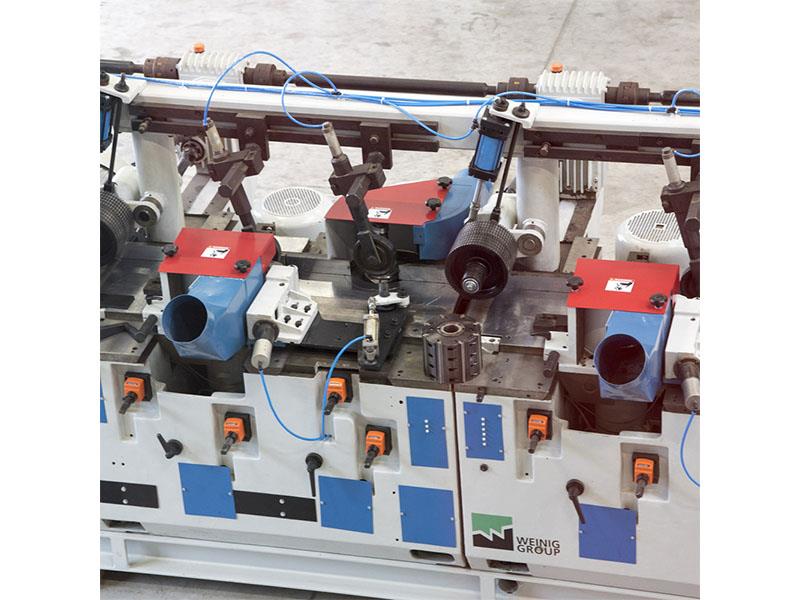

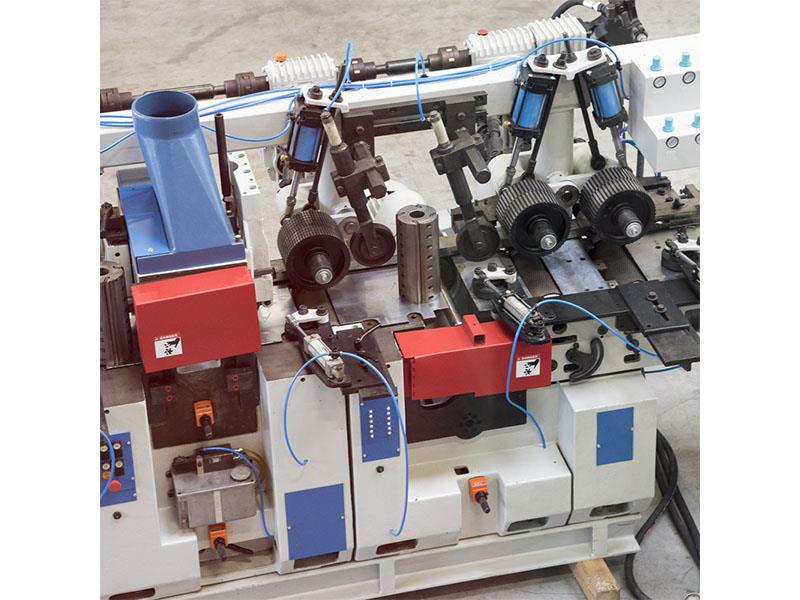

WEINIG/WACO HYDROMAT 5000 Super 30B / WACO MAXI ... WIDE High Speed Through Feed Moulder;11-Heads (B-T-R-L-R-L-T-B-T-B-B) Working capacity 300 x 140 mm (11-13/16" x 5-1/2"). Feed speed up to 200 m/Min (656 FPM). -- Head sequence: 1. Bottom 22 kW (30 HP),2. Top 22 kW (30 HP),3. Right 18.5 kW (25 HP),4. Left 18.5 kW (25 HP),5. Right 18.5 kW (25 HP),6. Left 22 kW (30 HP),7. Top 22 kW (30 HP),8. Bottom 22 kW (30 HP),9. Top 22 kW (30 HP),10. Bottom 22 kW (30 HP), and11. Bottom 22 kW (30 HP). -- Spindles: diameter 50 mm (2") with a cutter head speed of 6,000 RPM; digital readouts on spindle adjustments. Outboard bearings on all horizontal spindles. -- Motorized feed beam adjustment with independent adjustment of top heads. -- Feed system: Variable feed speed up to 200 m/Min (656 FPM), driven by 30 kW (40 HP) invertor controlled feed motor. Overhead feed wheels with pneumatic pressure; driven rollers in machine tables throughout the machine. Cardan drive, chainless, maintenance-free. -- Tables and Fences: Chromed tables and fences. Short infeed table. -- Complete with: ● Selection of cutter heads. ● Separate pedestal with machine controls. ● Tool clamping system for quick & highly accurate tool changes. ● Central lubrication. ● Manual Waxilit bed lubrication pump. Central location of lubrication points. ● Automatic star delta starters and load meters on all heads. ● Emergency stop buttons on control panel and throughout the machine. -- CE Compliance. Note: Infeed system as shown in pictures is not included.Actual model is WEINIG/WACO HYDROMAT 5000 Super 30B / WACO MAXI ... WIDE Through Feed Moulder.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
