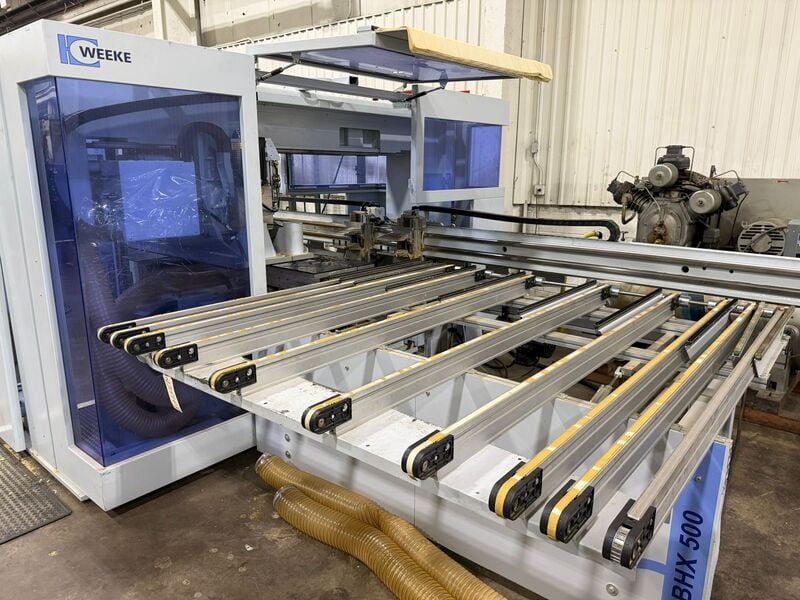

Weeke #Optimat-BHX-500, CNC router processing center, top & bottom processing, dual routers & drill banks, 2011

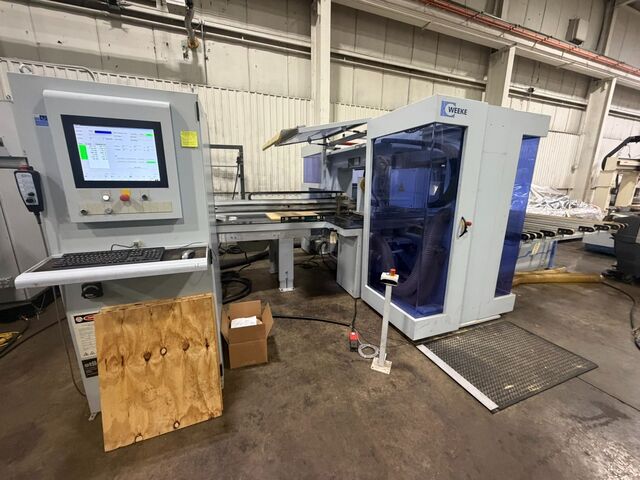

WEEKE OPTIMAT BHX-500 CNC ROUTER PROCESSING CENTER, NEW 2011, TOP AND BOTTOM PROCESSING, DUAL ROUTERS AND DRILL BANKS
Manufacturer Weeke
Model Optimat BHX 500
Year 2014
Condition Used
* Model Optimat BHX 500
* Minimum Length 200 mm
* Maximum Length 2500 mm
* Minimum Width 70 mm
* Drilling depth 38 mm max
* Speed 1,500 to 7,500 rpm
* Cutting depth 30 mm max
* Rotation speed 1,500 to 7,500 rpm
* Speed 6,000 to 18,000 rpm
* Length 8085 mm (26.5')
* Width 3651 mm (12')
* Z-axis 50 m/min
* X-axis (Clamps) 138 m/min
* Y-axis 80 m/min
* Z-axis (Pressure Plate) 27 m/min
* Height 2773 mm (109.2")
* Weight 5500 kg (12,125 lbs)
* Frequency 60 Hz
Video
Description
Overview: For sale is a used Weeke Optimat BHX 500 CNC Machining Center, ideal for
routing, boring, and grooving of flat panel components without special workpiece fixtures.
Manufactured in Northern Germany, this machine adheres to high-quality standards and uses
world-class components.
Key Features:
Model: Optimat BHX 500
Workpiece Dimensions:
Minimum Length: 200 mm
Maximum Length: 2500 mm
Minimum Width: 70 mm
Maximum Width: 1000 mm (1300 mm with processing restrictions)
Minimum Thickness: 8 mm (or 2 parts x 4 mm)
Maximum Thickness: 80 mm (or 2 parts x 40 mm)
Construction:
Rigid steel frame with welded steel plates
THK linear motion guides for X-, Y-, and Z-axes
Zero-backlash, pre-loaded helically ground rack and pinion gear system (X-axis)
High precision ball screws (Y- and Z-axes)
Solid state drives and digital AC servo motors

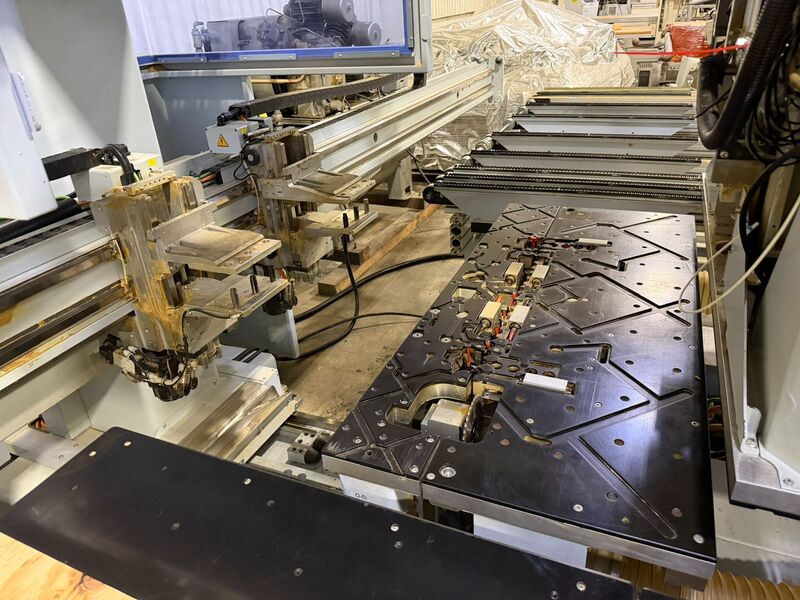

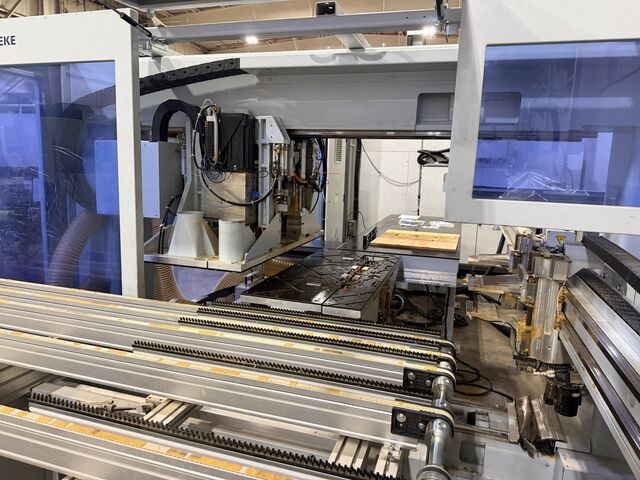

Workpiece Clamping and Support:
Two workpiece clamping devices with integrated stop system (TBO - Top-Bottom Open)
Digital AC servomotors for positioning
Automatic measuring of workpiece thickness and lengths

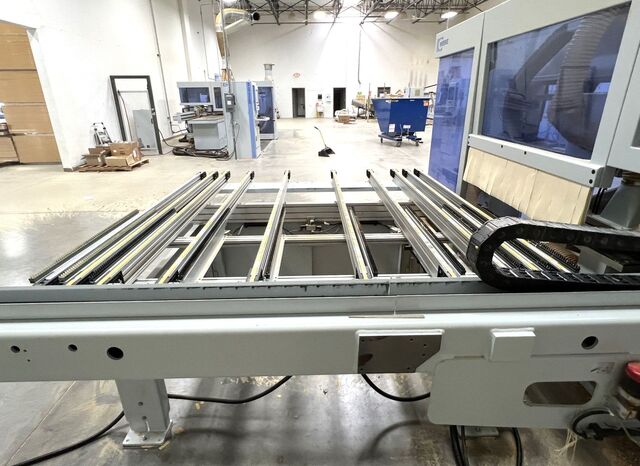

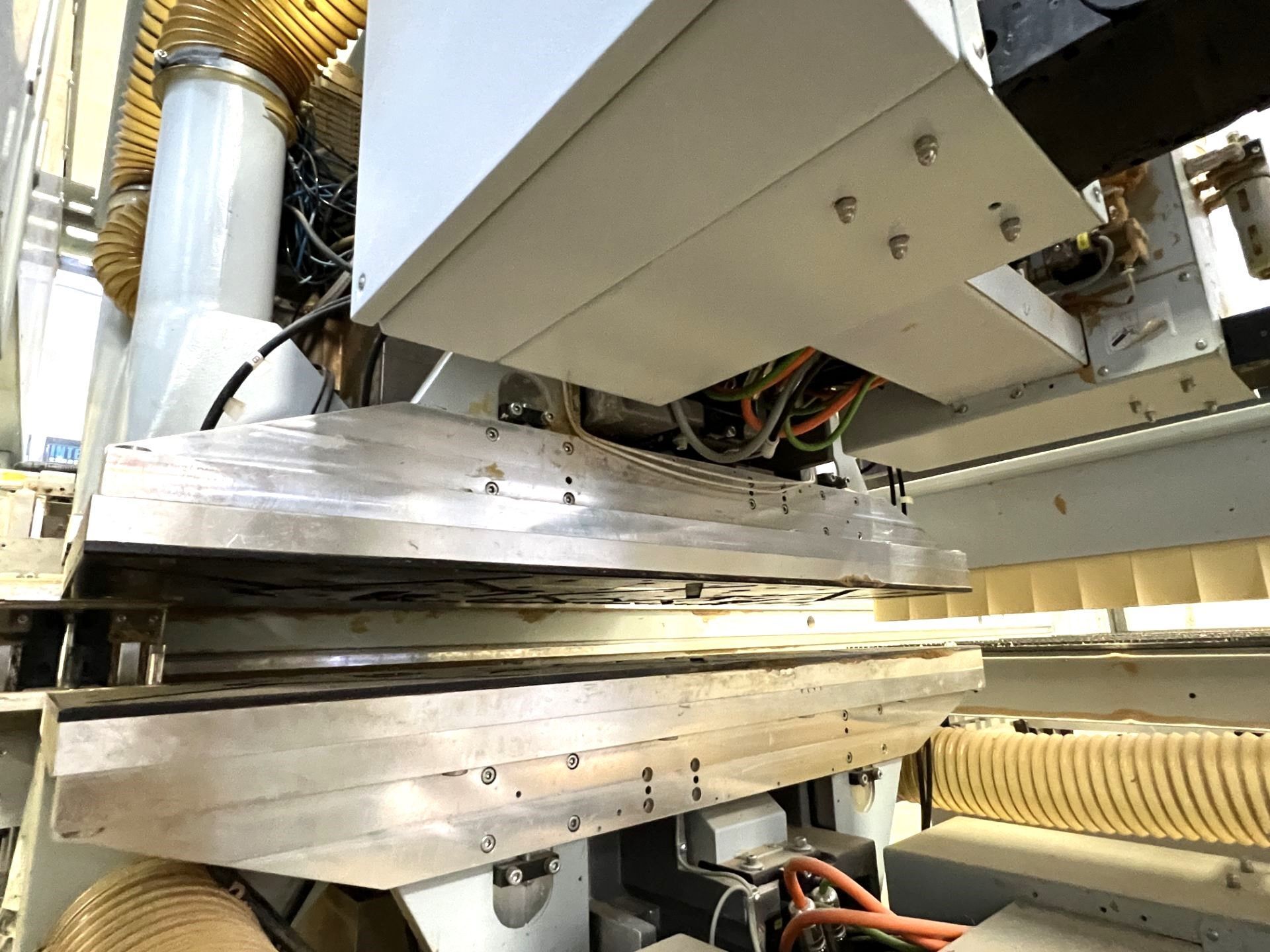

Rigid aluminum cast construction for both lower and upper processing supports
Integrated threefold divided table with selectable air cushion

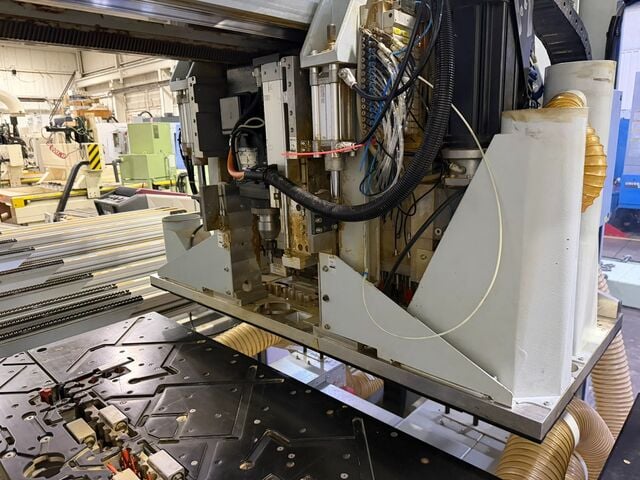

Machining Capabilities:
Vertical Boring Blocks:
2 blocks with 36 spindles each
Drilling depth: 38 mm max
Speed: 1,500 to 7,500 rpm
Horizontal Drilling Blocks:
2 blocks with 10 spindles each
Drilling depth: 38 mm max
Speed: 1,500 to 7,500 rpm
Grooving Saws:
Cutting depth: 30 mm max
Rotation speed: 1,500 to 7,500 rpm

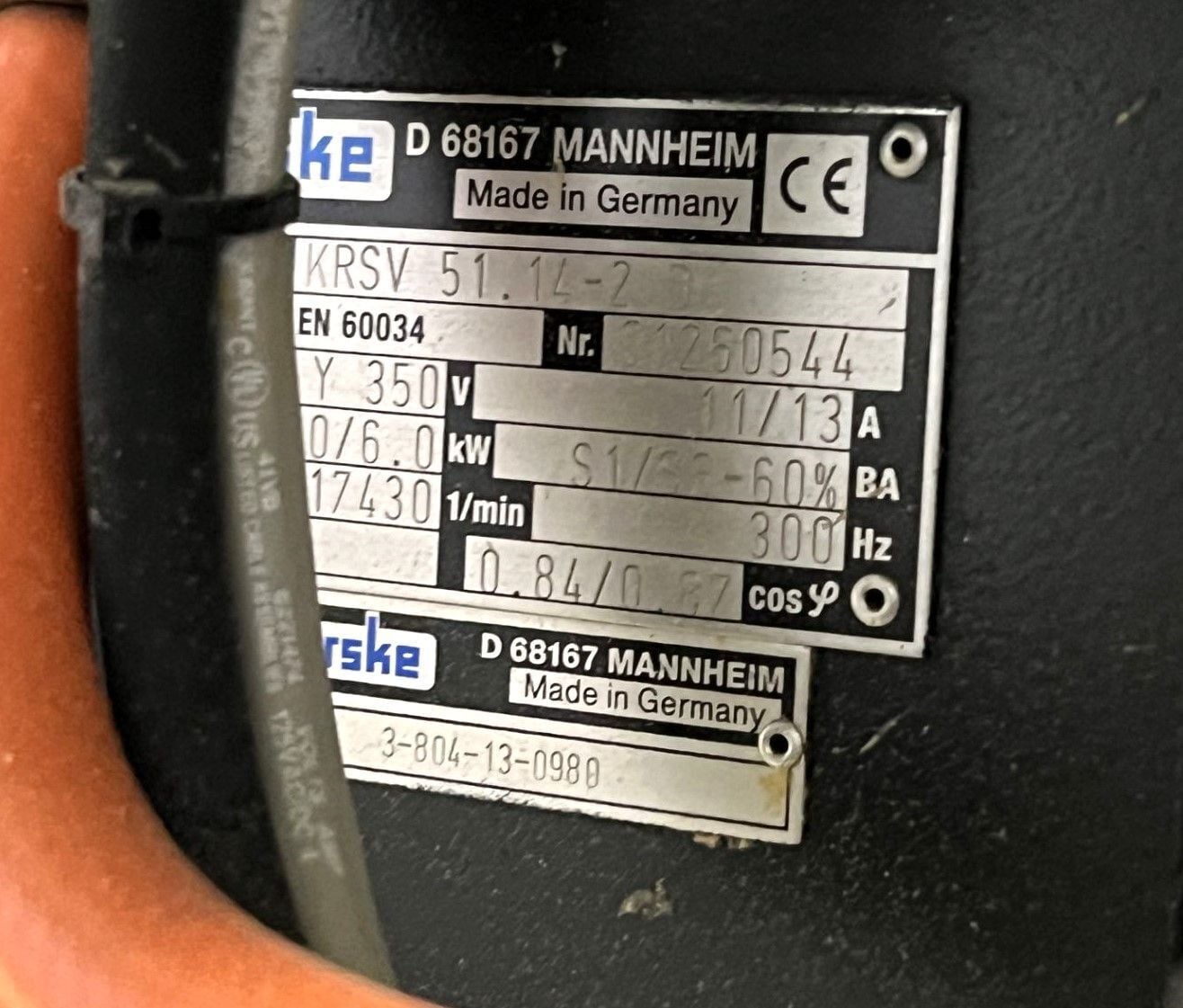

Vertical Router Motors:
2 motors with 6.0 kW power each
Speed: 6,000 to 18,000 rpm
Dust Extraction: Connection for customer-provided dust extraction device
Control System:
PowerControl:
PLC control system with Windows XP embedded

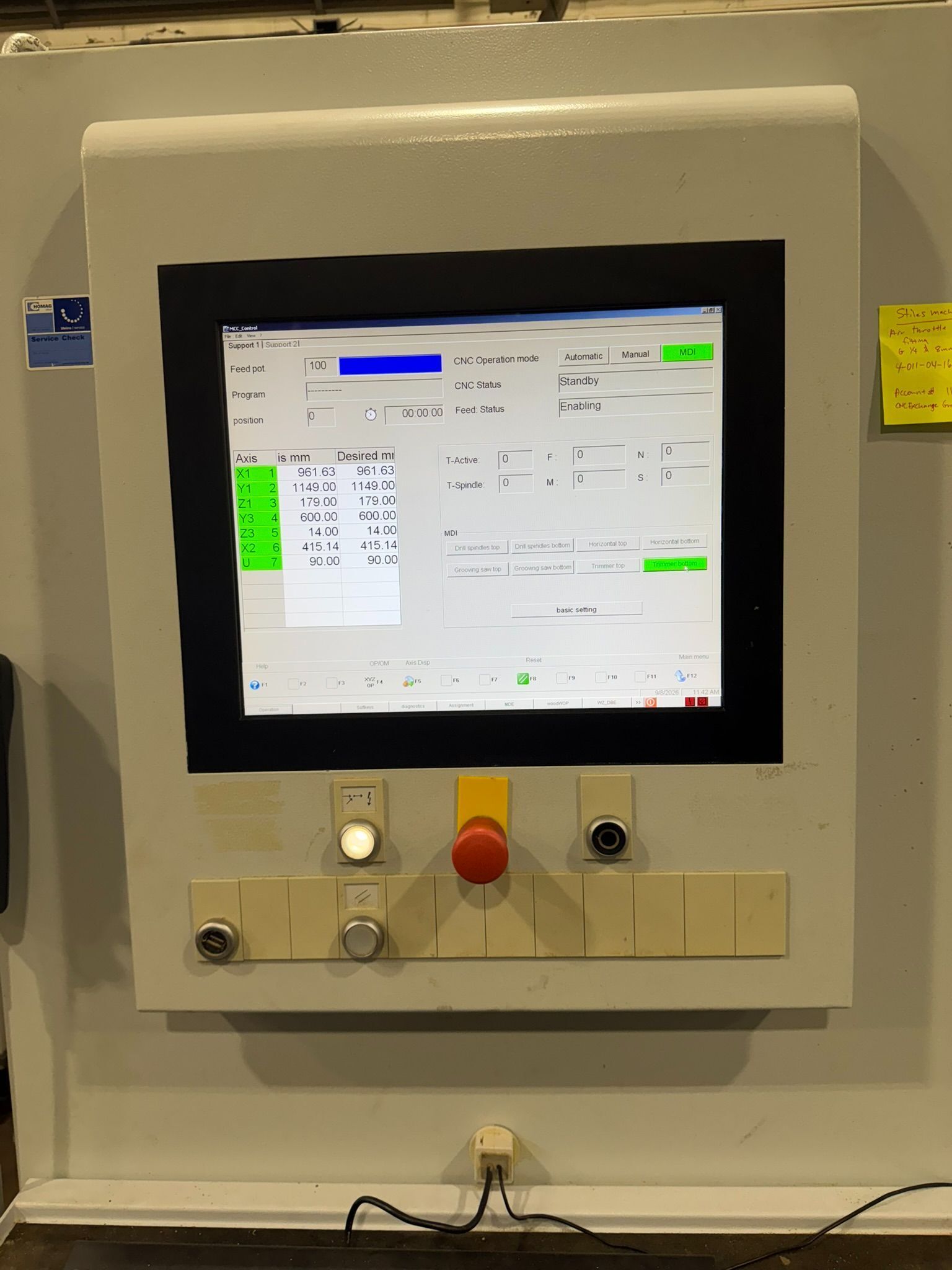

Intel Core 2 Duo Processor with 17 TFT-flat screen
Software: woodWOP 6.1, Tool Data Base, Production List Software, Machine Data
Recording
EtherNet connection for remote diagnostics
UPS for PC with more than 5 axes
Barcode software (woodScan) for 1D/2D barcode reading
Technical Specifications:
Dimensions:
Length: 8085 mm (26.5')
Width: 3651 mm (12')
Height: 2773 mm (109.2")
Weight: 5500 kg (12,125 lbs)
Positioning Speed:
X-axis (Clamps): 138 m/min
Y-axis: 80 m/min
Z-axis: 50 m/min
Z-axis (Pressure Plate): 27 m/min

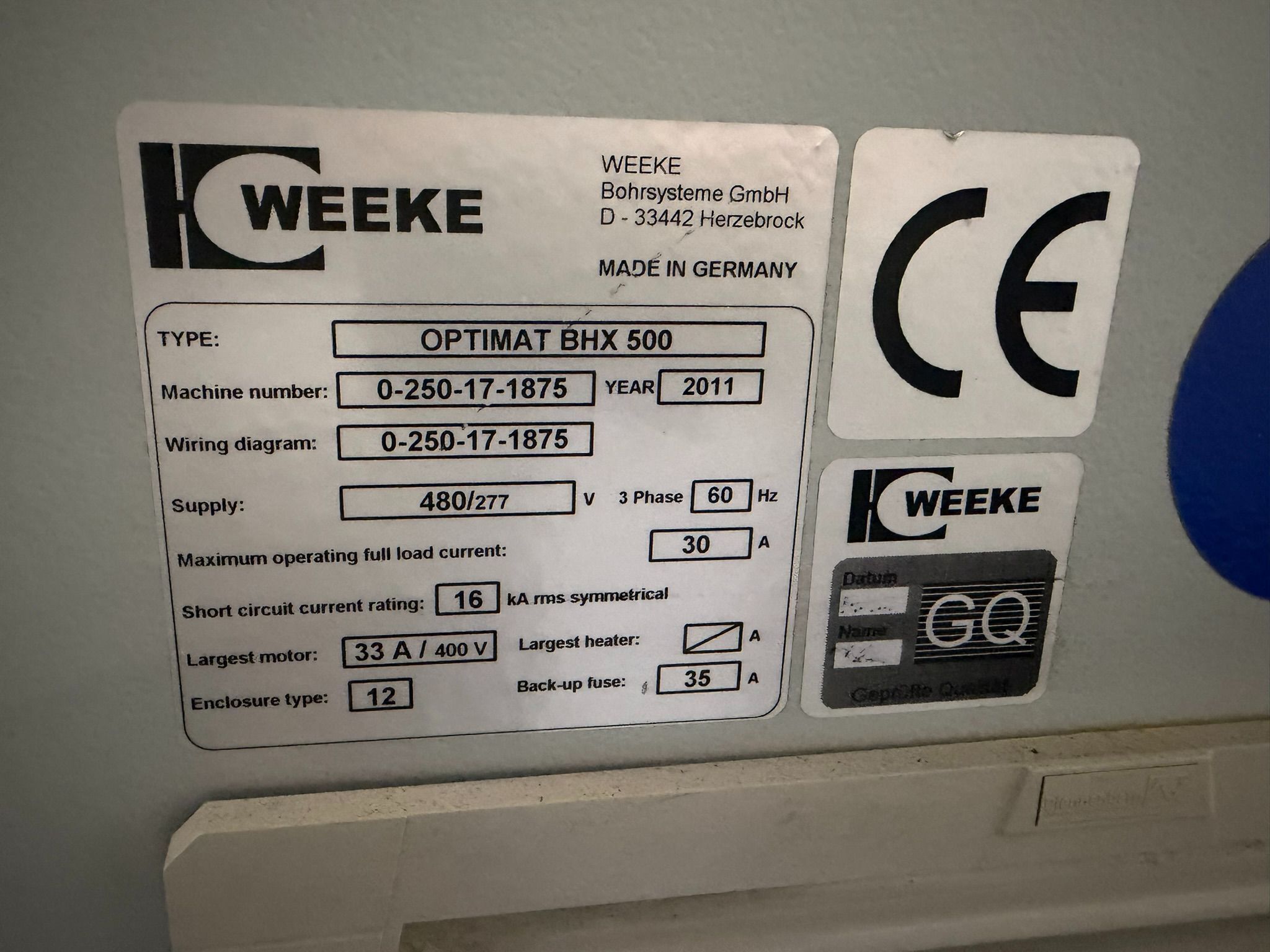

Utility Requirements:
Operating Voltage: 3 Phase 208, 230/240, or 460/480 volt, 5%
Frequency: 60 Hz
Amperage Load: 68/62/31 Amps @ 208/240/480 Volts
Pre-fuse Protection: 90/75/50 Amps @ 208/240/480 Volts
Total Connected Load: 19.5 kW
Dust Extraction: Connection size 280 mm, air velocity minimum 20 m/sec
Compressed Air: Connection size R 1 in & R 1/2", pressure required 102 psi (7
bar), consumption 3000 NL/min (106 cfm)
Ambient Temperature: Operating range 10 - 40 C (50 - 100 F)
This Weeke Optimat BHX 500 CNC Machining Center is ready for integration into your
production line. For more information, please contact US
