For Sale by Machinery Associates Inc
Surplus Record Dealer Since 2025
Location: Hudson, NH
Contact Gary Carney
Phone Number: 877...> Show Phone Number 877-622-4657 x101
Let the seller know you found their listing on Surplus Record!
$23,900 USD
Finance for as low as $485/mth
Description
Technical Specs:

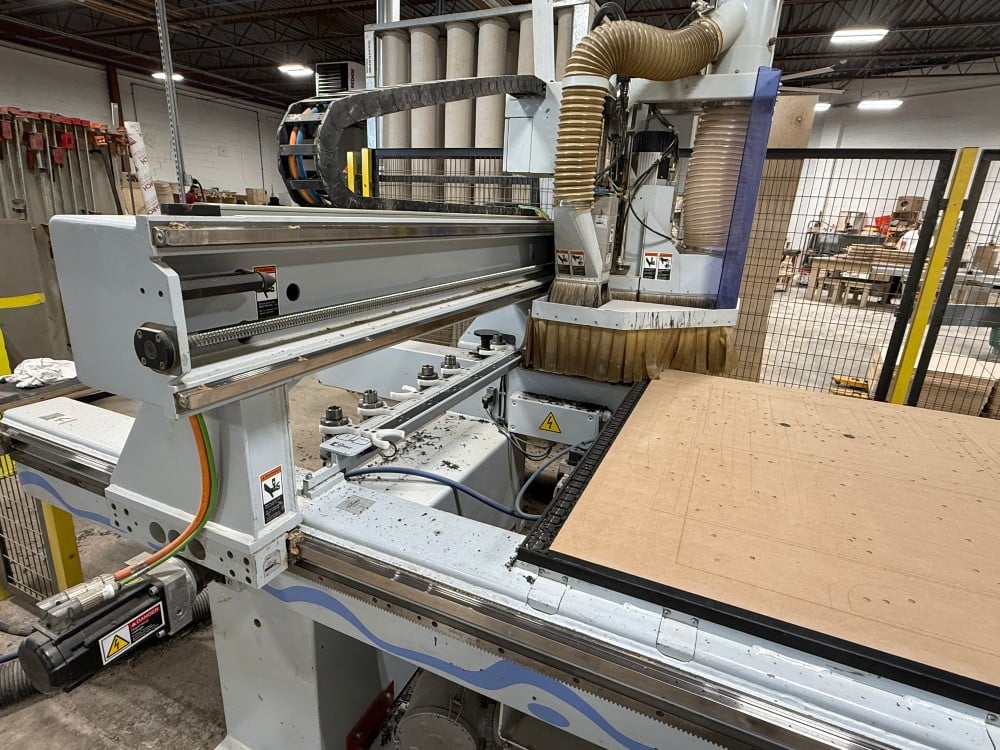

Router spindle; 12.0 hp
Spindle speed; 1,250 - 24,000 rpm's
Tool magazine capacity; 7 position
Auto tool-length touch-off
Drill block; 7 position individually controlled
Vacuum pumps; 3 Becker Vacuum Pumps
Working length; 99"
Working width; 49"
Matrix phenolic table with grooves for vacuum pods

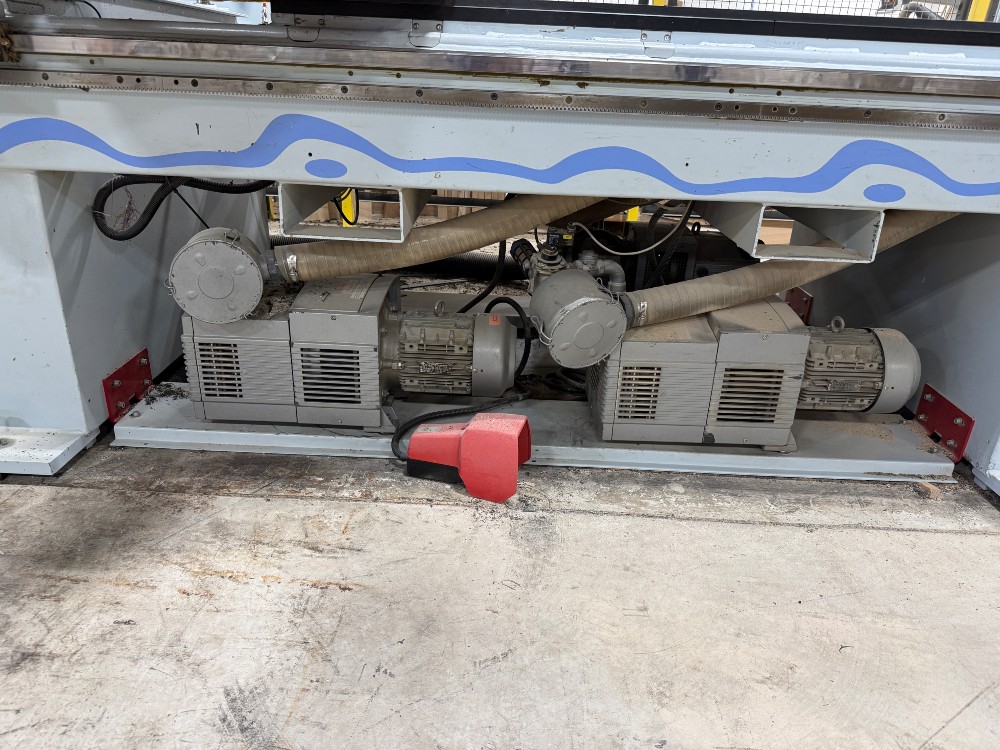

Vacuum system with 3 pumps mounted under machine table
Reference Pins (7) = 2@ table end and 3+2 @ the table sides
Max workpiece thickness; 100mm

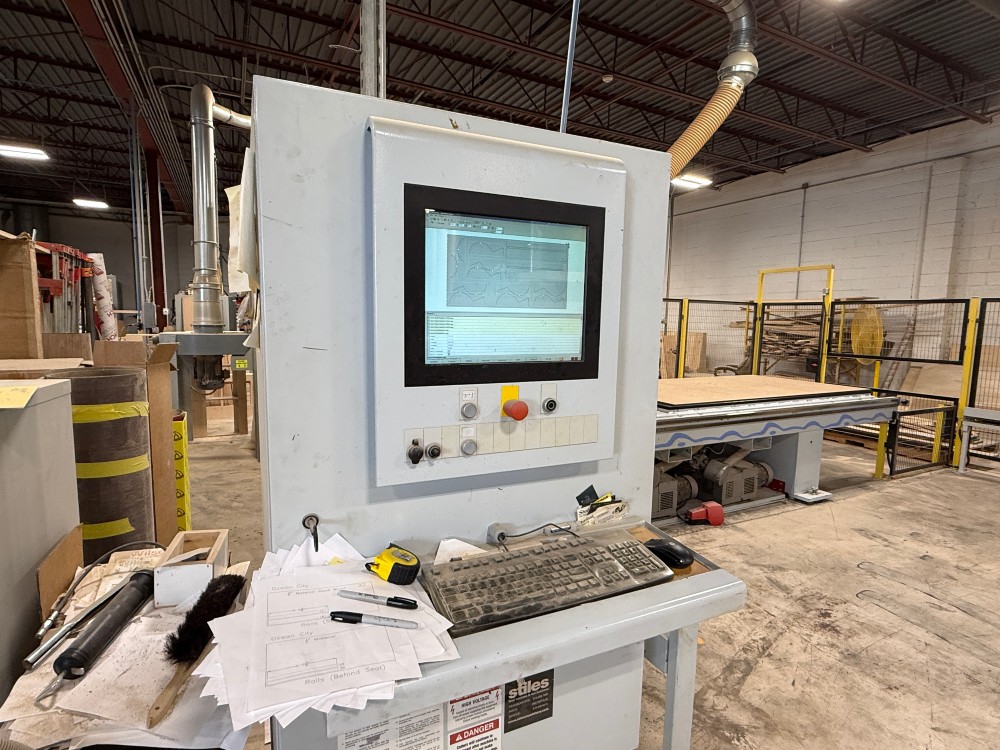

Woodwop Programming
Operating voltage; 480v, 3ph without voltage transformer
AMP service at 480 volts; 50 amps
Duct extraction; 8"
Inquire Further with Machinery Associates Inc!
