Web Mechanical #JET-10M, high velocity oven, 400,000 BTUH, 3200 CFM, 5 HP, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

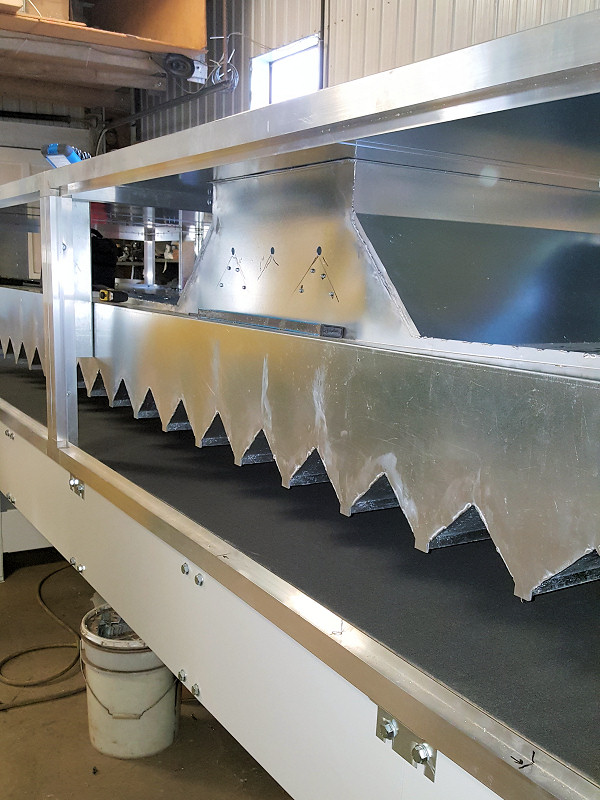

WEB MECAHNICAL JET 10M Jet Air Oven Supply Side complete with the following: -- 400,000 BTUH rating, 3,200 CFM forward curved blower, 5 HP motor 575 V /3 Ph /60 Cy. -- Inlet filter section HEPA 99% DOP rated, Magnehelic gauge across the filter section. -- Thermometer to show outlet temperature, Thermostat to set and control temperature design from 60 -70 C, -- Jets designed to control flow across the belts. Exhaust Side complete with the following: -- Vane axial fan set to exhaust 600 CFM,1/2 HP motor. -- Direct drive fan with motor out of air stream, external grease fittings for lubrication.Heating Module: -- Air makeup sized for 3,200 CFM, 2 HP motor, rated for 400,000 BTUH. --Fan to exhaust through 2"; pleated filter and 12"; HEPA filter, Down discharge,3 HP motor, 3,200 CFM @ 2.0"; E.S.P. -- Engineered for 90 F temperature rise, 0.4 MBTU/hr hydronic coil, features FUJI temperature selector. Conveyor: -- Robust 10-gage steel frame, Novo 40 grey belt designed for up to 90 C and with Auto tracking mechanism. -- Large size 6"; driver and idler pulleys, Support pulleys 3"; as required. -- Heavy duty NORD gear box and a 2 HP direct coupled motor. OPTIONAL (Not included in Price):IR Adder (Lamps): -- Three (3) MW IR lamps in the center of the oven, Three (3) MW IR lamps at the end of the oven, -- Heated length of lamps 54";, dual gold plated element, 3,200 watts per bulb. -- Lamps are designed to sit between the jets on the oven with lamps 8"; (200 mm) above belt and 8"; apart. - Please add ...$ 7,700Control Panel for the above (600 V - Electric) complete with: -- Line interlock, E-stop, fuses, disconnect switch, DC power supply. -- Phase angle controller to control two (2) banks of three (3) lamps. CSA approved panel. - Please add ...$ 12,100BOILER: -- One (1) RBI dominator boiler "DB 600" to supply up to 600,000 BTUH. - Please add ...$ 18,900
