Wastewater Engineers Watewater Engineers #RT-65-DB, waterwater system, treats 65 gallons per batch, 3/4"NPT inlet, 1-1/2"NPT outlet

• Requires only (15) minutes of non-skilled, attendant labor per batch
• Treats (65) gallons per Batch
• Dimensions: 36″ L x 36″ W x 72″ H
• 3/4″ NPT inlet and 1-1/2” NPT outlet fittings – allows for hard plumbing in/out
• Unit is equipped with a NEMA (12) enclosed Manual Motor Starter, receptacle plug for the sump
• pump, and an 115VAC Service power cord.
• Clean water discharge valve for discharge of processed water
• Separate sludge discharge valve for remaining sludge/processed water evacuation

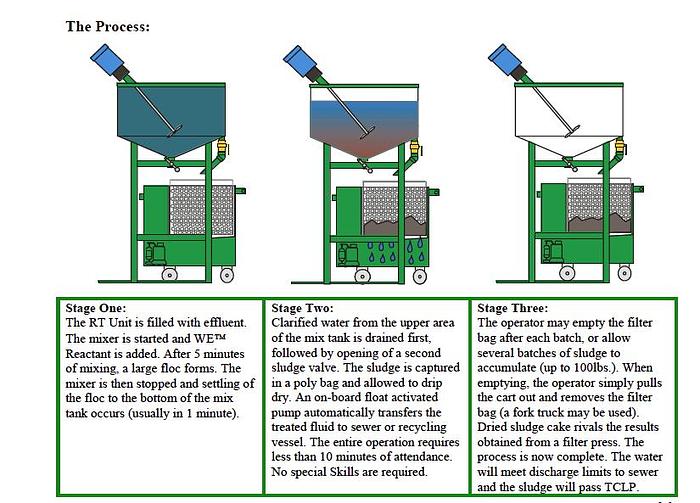

• All fluids/sludge is discharged via gravity to a sludge cart, which resides below the mix tank. A
• perforated poly bag resides inside the sludge cart – thus, solids (sludge) is caught in the poly bag –
• while water is allowed to seep through the poly bag and into a collection sump.
• Sump pump is float-activated and will automatically transfer fluids from the RT unit to either recycle
• tank or to sewer. Sump pump is rated at 37gpm. (at 10′ of head)
• Electrical requirements are 115VAC service w/single plug-in cord (supplied w/unit)
• HO Package (Optional)
• Upgraded version of the above described is available as a total package including a control panel to
• replace the (above described) ‘On/Off’ switch with the following features:
• Reduced labor, requires only (5) minutes of attendance per batch
• Operator will push “fill start” button on the control panel that will utilize a fill pump and thus, transfer
• effluent from its source. The filling will continue until a ‘full’ level is attained – at which time the
• pump will stop and an indicator light will advise “RT Full”. Transfer pump is air operated. Pump will
• draw and pump effluents from 20 ft and deliver 15gpm@ 25 ft. of head. Pump is mounted to RT unit.
• Countdown, mixer/timer. May be set from 0 – 15 minutes. Switch turns on mixer and will shut off
• mixer upon completion of timer cycle.
• Canister bag filter (Model WE-625) for final polish of processed fluids. Unit is mounted to RT and
• will provide capability to capture ‘pin’ floc that may pass through poly bag sludge filter. Unit
• features a re-usable/cleanable bag.

RT-65 DB Series

Manual Batch Wastewater Treatment Unit

• Simple, safe, and cost effective method to treat almost any aqueous based wastewater effluent
• Treats a drum of wastewater for less than $10.00
• No hazardous treatment by-products
• Guaranteed to meet discharge limits to local sewer
• Compact Design
• Low capital cost
• Low maintenance, available 3 year, 100% parts replacement warranty
• Ideal for metal working and grinding fluids, vibratory equipment and parts washing fluids, floor cleaning fluids, etc.

RT-65-DB

• HD steel construction
• Push botton mixer switch
• Pull out cart and bag filter
• Float activated discharge pump
• Requires
• 115VAC
• Measures 46″ I x40″ w x 84″ h
