WARN AC3000 Electric Winch 3000 lb

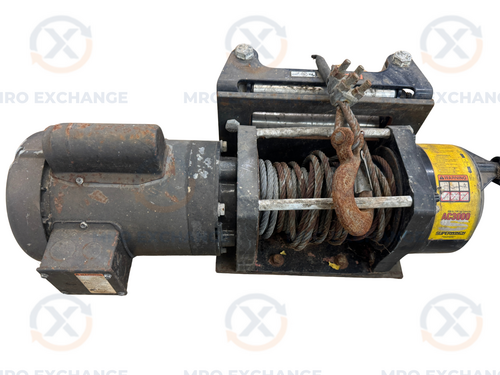

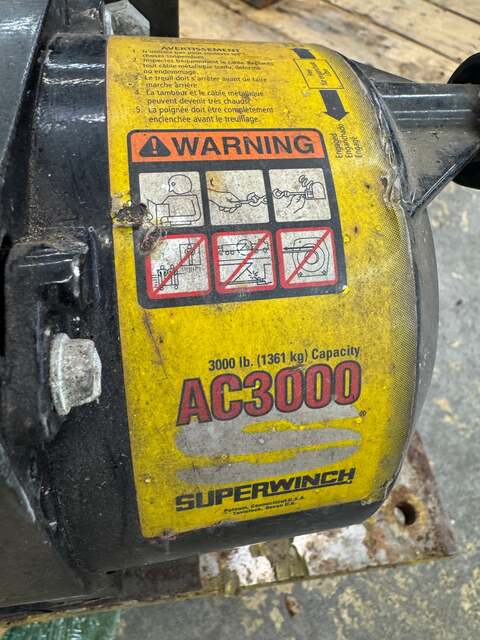

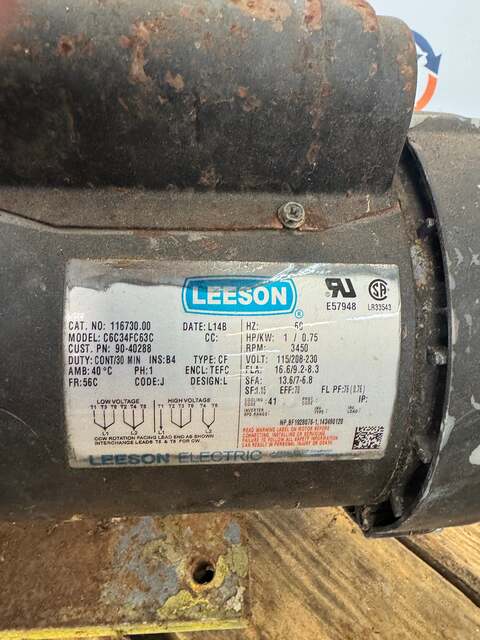

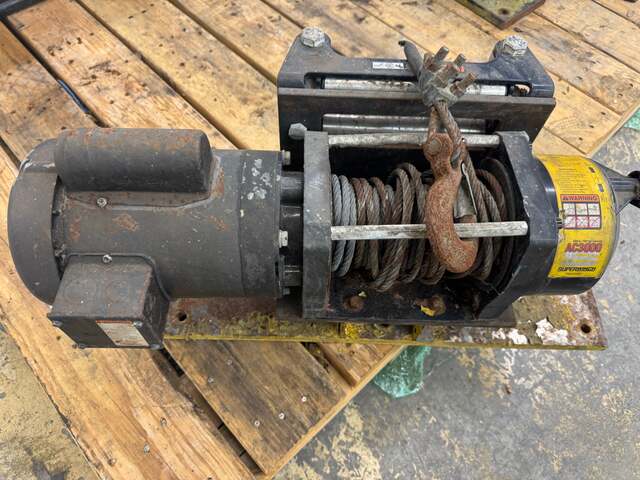

The Superwinch AC3000, part number 1730000, is a 3,000 pound capacity AC powered electric utility winch designed for stationary applications including workshops, trailers, loading docks, and light industrial pulling tasks. This unit operates on 115, 208, or 230 volt AC single phase 60 Hz power and is driven by an integrated Leeson Electric motor, catalog number 116730.00, model C6C34FC63C, rated at 1 HP / 0.75 kW at 3,450 RPM with TEFC enclosure and Class B insulation. The motor carries a Service Factor of 1.15 and a 40 degree C ambient rating, with full load amps of 16.6 / 9.2 to 8.3 across the listed voltage ranges. Differential planetary gearing provides a 253 to 1 reduction for smooth, controlled line movement under load. The winch includes 100 feet of 5/16 inch galvanized steel wire rope, a wall mounted or wired hand held remote control, mechanical and dynamic braking, and a free spooling drum for fast cable payout. Maximum current draw is approximately 17 amps from a direct wired source. Unit dimensions are approximately 25.25 by 8.6 by 9.2 inches. The AC3000 is configured for fixed mount installation and is not intended for vehicle mounted recovery use. UL and CSA recognized motor markings are present on the nameplate. Suitable for industrial, commercial, and heavy duty residential pulling applications where AC line power is available.

Stock # 0226-087
