Description

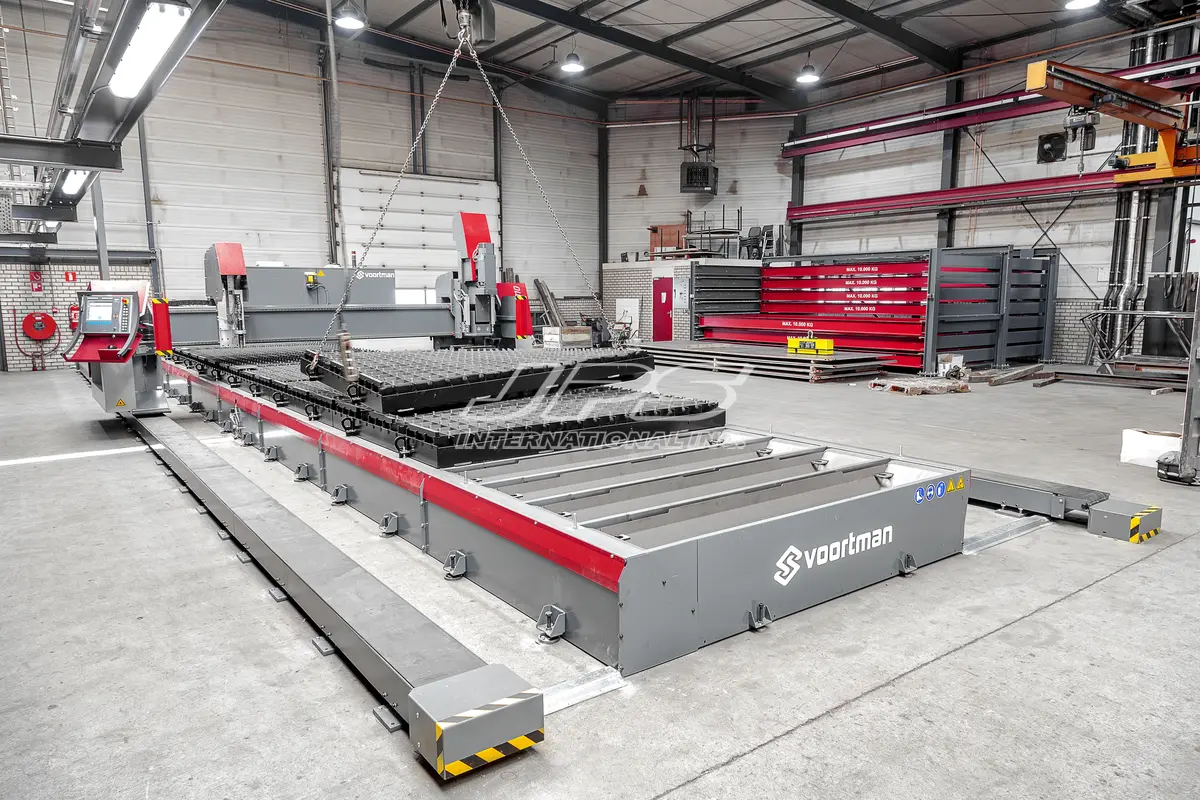

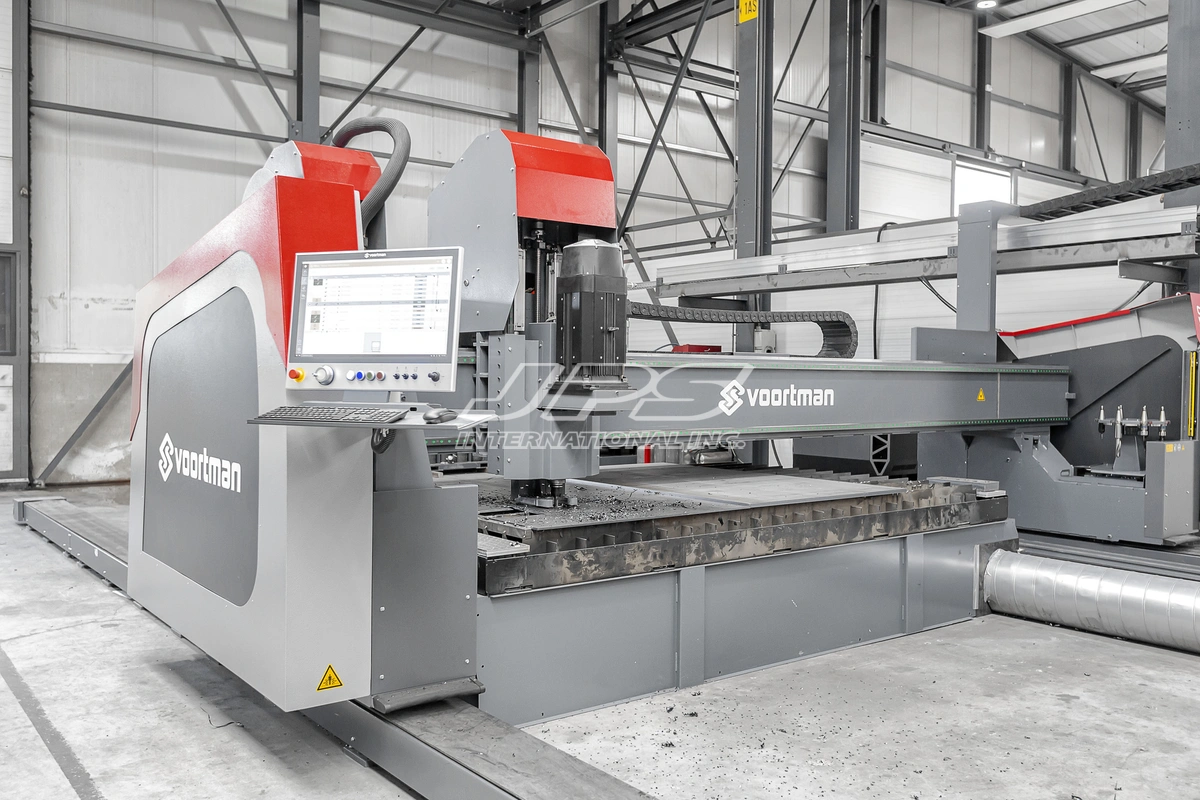

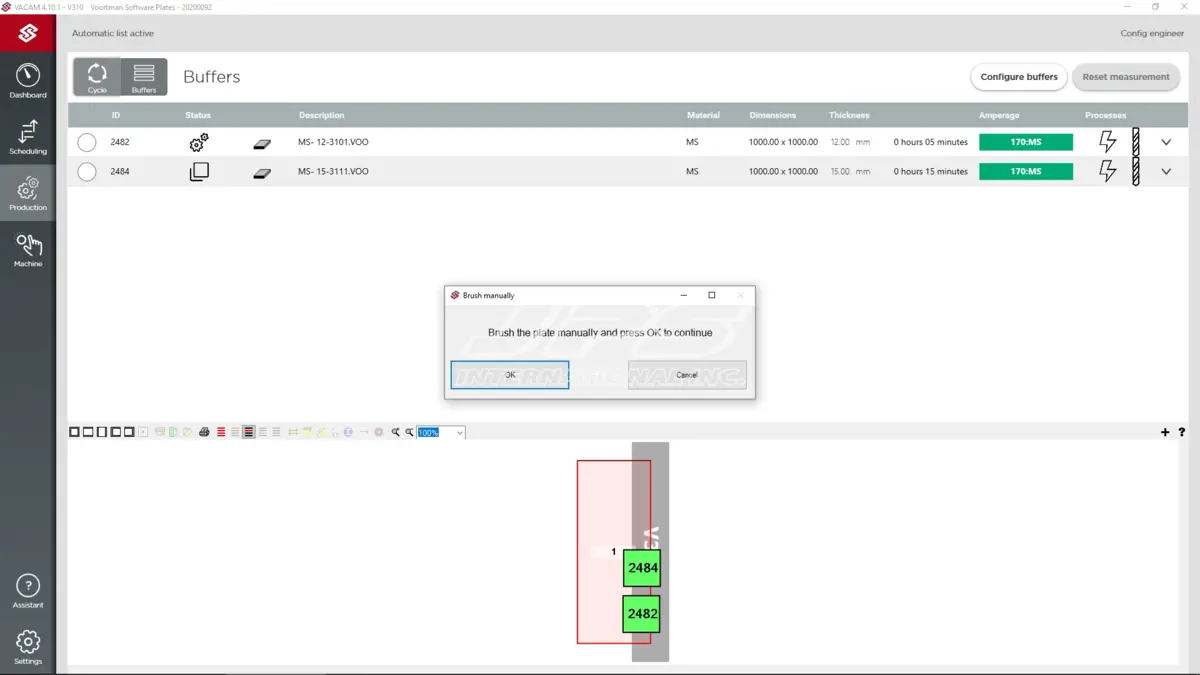

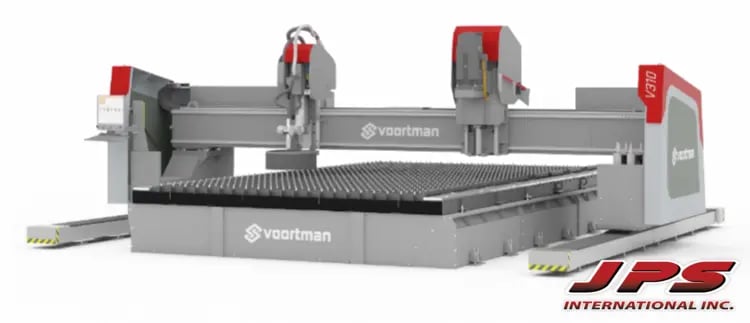

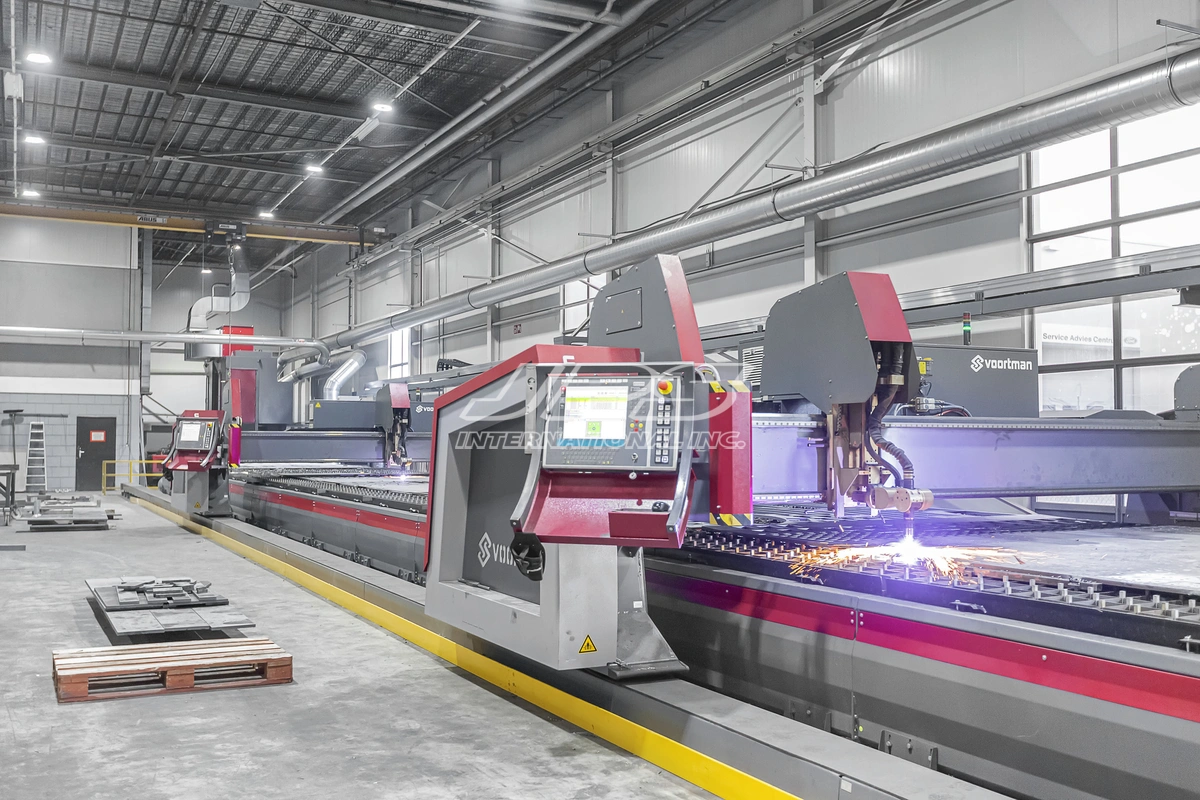

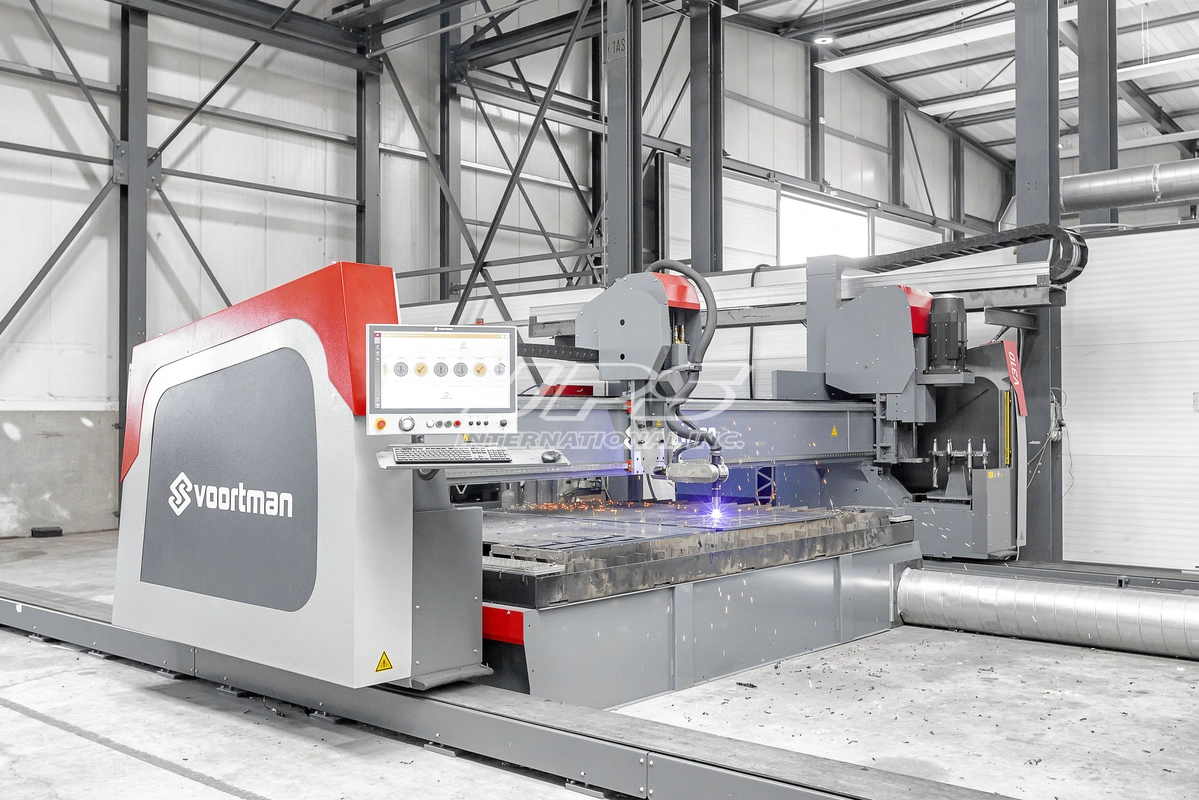

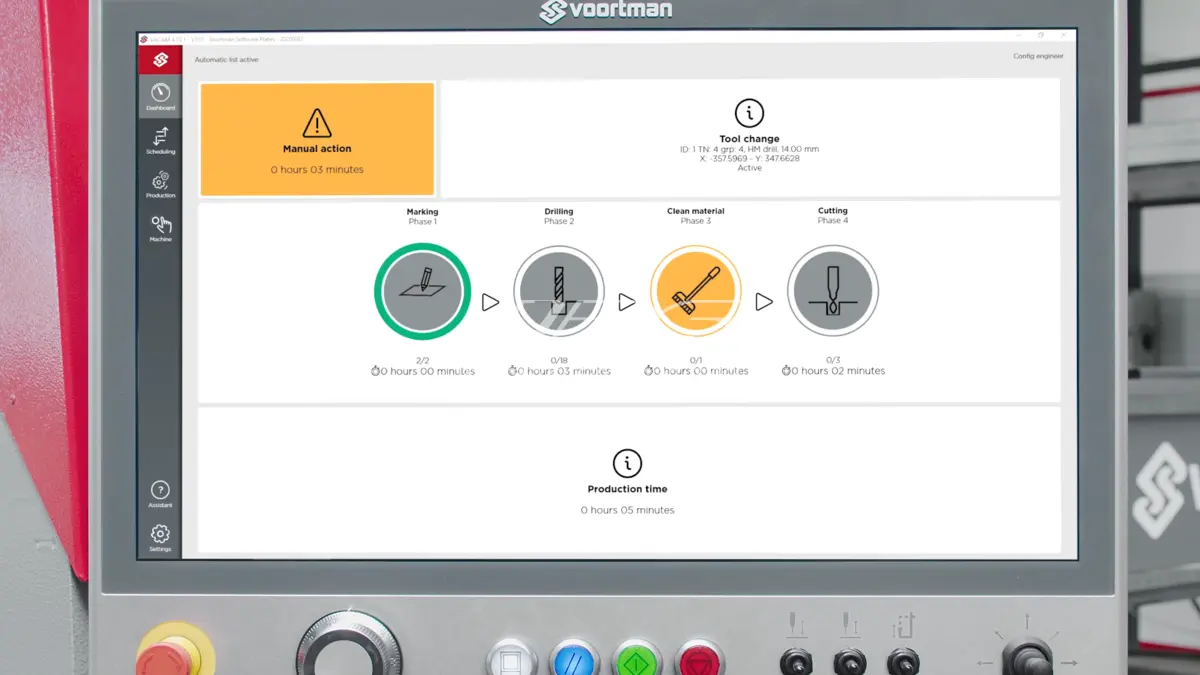

The Voortman V310 fully automates carbide drilling, 3D bevel cutting, and contour milling. It maximizes productivity and uptime, providing valuable progress information through a dashboard. With VACAM Scheduling and VACAM Buffering, unmanned operation is possible. Products from the V310 meet three main objectives: high quality, automation, and cost reduction.
| Effective Cutting Length | 13' - 100' | 13' - 100' |
| Effective Cutting Width | 6' - 10' | 6' - 10' |

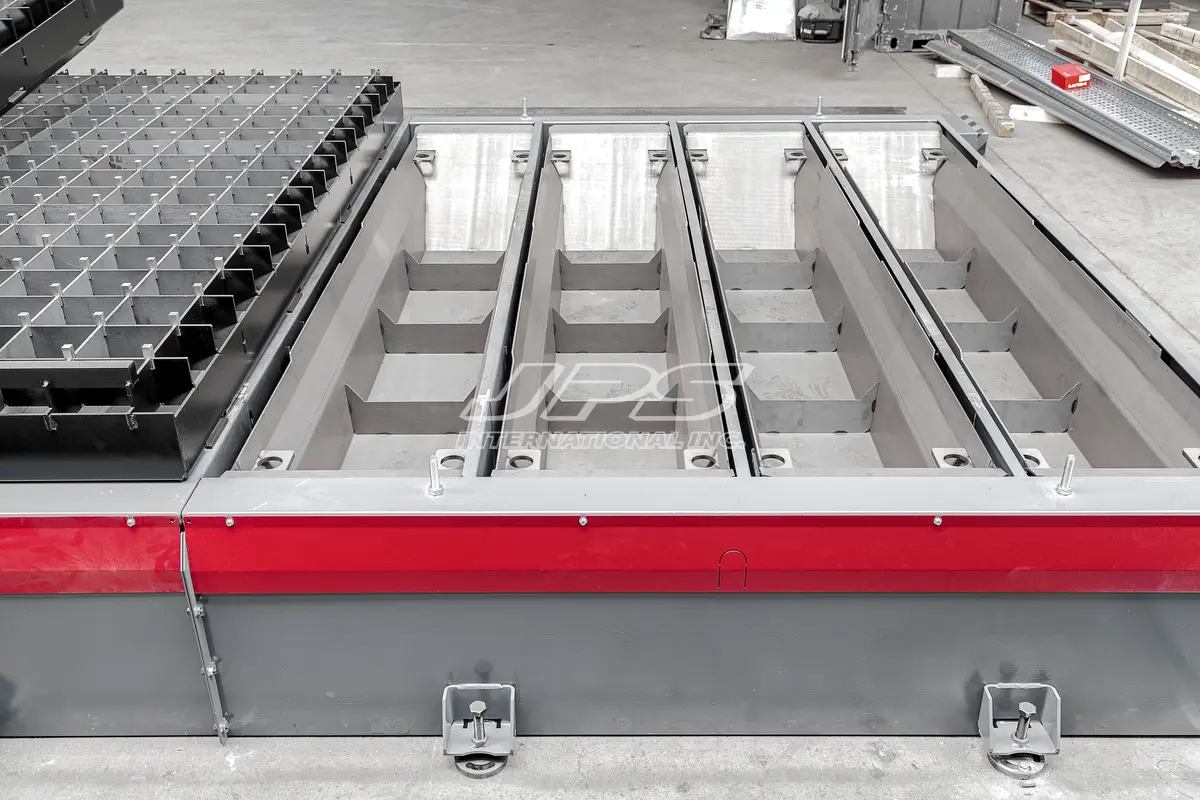

| Table Type | Down Draft | Down Draft |
| Nesting Software | Sigmanest Techno | Sigmanest Techno |
| Layout Marking | Yes | Yes |
| Power Source | Hypertherm XPR300 | Hypertherm XPR300 |
| Amps | 300 | 300 |
| Number of Oxy-Fuel Torches | 1 | 1 |
| Max Material Thickness | 4" | 101.6 mm |
| Bevel | Yes | Yes |
| Number of Spindles | 1 | 1 |
| Max Hole Diameter | 1.58" | 40.132 mm |
| Tool Changer | 8 | 8 |
| Control | CNC (VACAM Control) | CNC (VACAM Control) |
Working width: 1,5 - 3* meter, 6 - 10* feet
Working length: 3 - 30* meter, 13 - 100* feet
Cutting speed: 0 - 7.000 mm/min, 0 - 23 f/min
Rapid traverse speed: 20.000 mm/min, 65 f/min
Maximum cutting thickness: (if oxy-fuel is attached) 200 mm, 8 inch
Maximum drilling thickness: (depending on available tool lengths) 200 mm, 8 inch
Marking: YES
Maximum torque: 405 Nm
Drilling speed: 0 - 3,500 rpm (stepless)

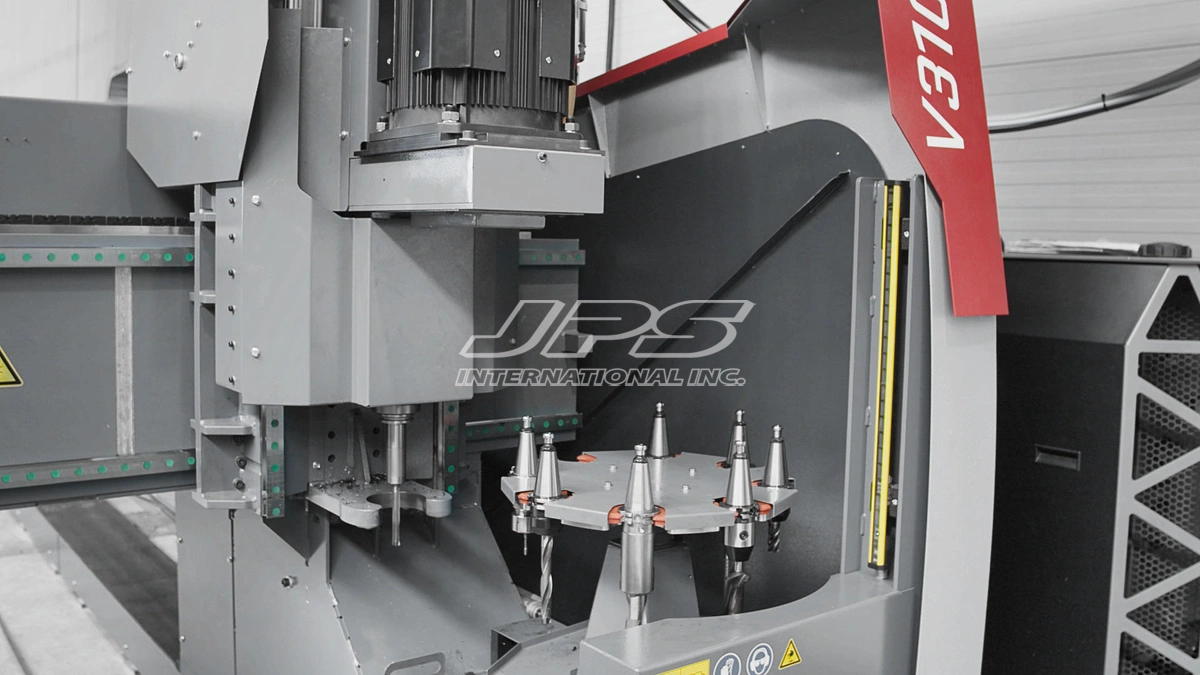

Main tool changer 8 tools

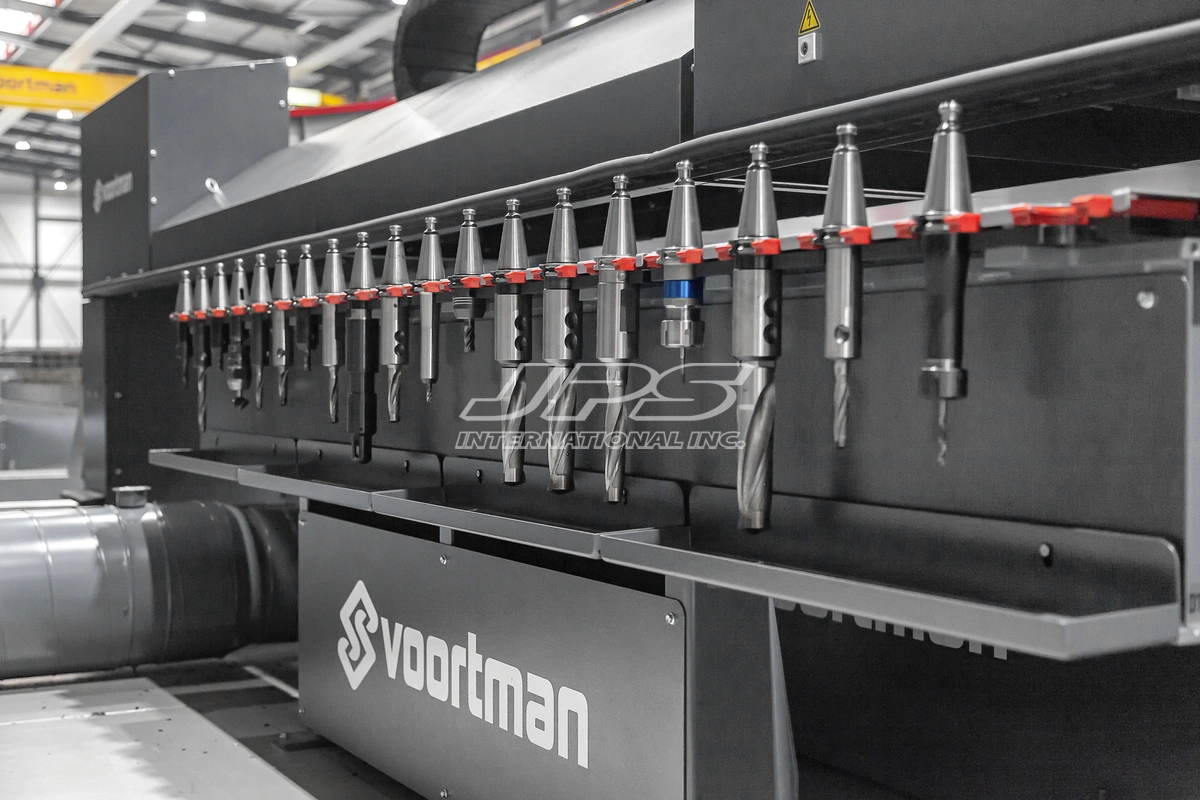

Additional tool changer: 20 tools
Drill holder: SK40
Drill diameter: 5 - 40 mm, 13/64 - 1-37/64 inch
Thread tapping: M6 - M30
Max. number of plasma (bevel) torches: 1
Other optional units: 1 oxy-fuel torch
*Wider width and longer lengths available on request
