Manufacturer: Vision Wide
Model: VF-4000
Year: 2006
Automatic Tool Changer: 40
Longitudinal: 165.4
Cross: 90.6
Vertical: 36.2
Stock # 43070
1 / 7
Click to zoom in
1 / 7
For Sale by Prestige Equipment Corp
Surplus Record Dealer Since 1991
Location: Melville, NY
Contact Paul Lashin
Phone Number: 631...> Show Phone Number 631-249-5566
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS:
X-Axis, Table Travel: 165.35"
Y-Axis, Spindle Head Travel: 90.55"
Z-Axis, Vertical Travel: 36.22"
Distance Between Columns: 94.48"
Minimum Distance Spindle to Table: 5.9"
Maximum Distance Spindle to Table: 42.12"

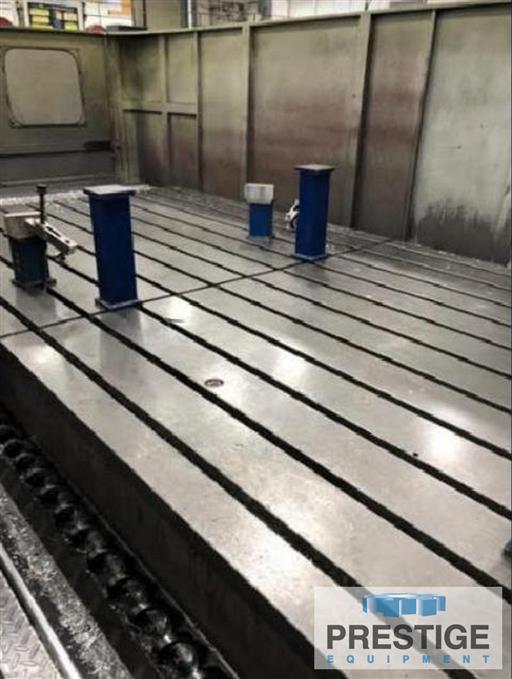

Table Size: 80.70" x 165.35"
Table Load Capacity: 28,600 lbs
Spindle Taper: #50
Spindle Speeds (2-Gear Ranges): 6000 RPM
Spindle Motor: 35 HP
Rapid Feed Rates X,Y,Z Axis: 590 IPM
Cutting Feed Rate: 275 IPM
Machine Weight: 86,680 Lbs
Equipped With:

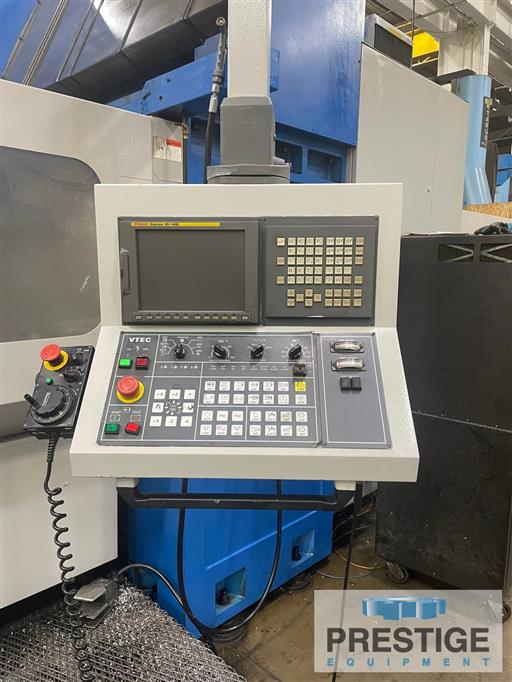

FANUC 18iMB CNC Control
40 Station Automatic Tool Changer
Box Way Construction

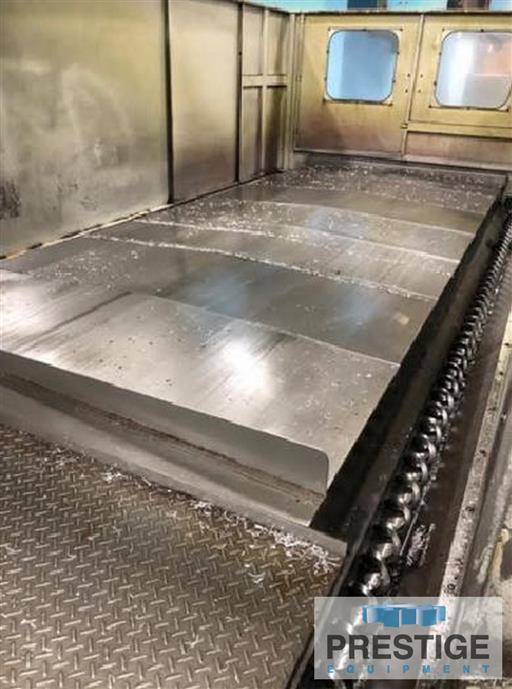

Telescopic Steel Way Covers on All Axes
Spindle Chiller
Full Splash Guards
Chip Conveyor
NOTE:
New Spindle in 2024!
Inspect in Plant Under Power
Features:
Fanuc 18iMB CNC Control
40 Station Automatic Tool Changer
Get Your Price from Prestige Equipment Corp!
