Manufacturer: Viper
Model: VT-40BMX2000
Year: 2013
Swing: 39.3
Chuck: 24
Bar Capacity: 7.2
Stock # 10130
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description
2013 VIPER VT-40BMX2000
SPECIFICATIONS:
Swing Over Bed....................... 39.37"
Machining Length..................... 76.8"
Turning Diameter, Shaft Diameter..... 33.85"
Chuck Size 1......................... 24"
Spindle Nose 1....................... A2-15
Spindle Bore Diameter 1.............. 10.2"
Spindle Bar Capacity 1............... 7.28"
Spindle Speeds 1..................... 1,500 RPM
Spindle Horsepower 1................. 50 hp
X1 - Axis Travel..................... 16.931"
Z1 - Axis Travel..................... 74.8"
C1 - Axis Travel..................... .001 DEGREES
Gear Ranges.......................... 2
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 3,200 RPM
Turret Rotary Tool Horse Power 1..... 15 hp
Tailstock Quill Diameter............. 5.9"
Tailstock Taper...................... MT-6
Tailstock Quill Travel............... 5.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 76.8"
# Axis............................... 3
Bar Capacity......................... 7.28"
Tailstock............................ 'Yes'
Live Tooling......................... 'Yes'
Sub Spindle.......................... 'No'
Dimensions........................... 111" x 269"
Weight............................... 36080 LBS.
EQUIPPED WITH:

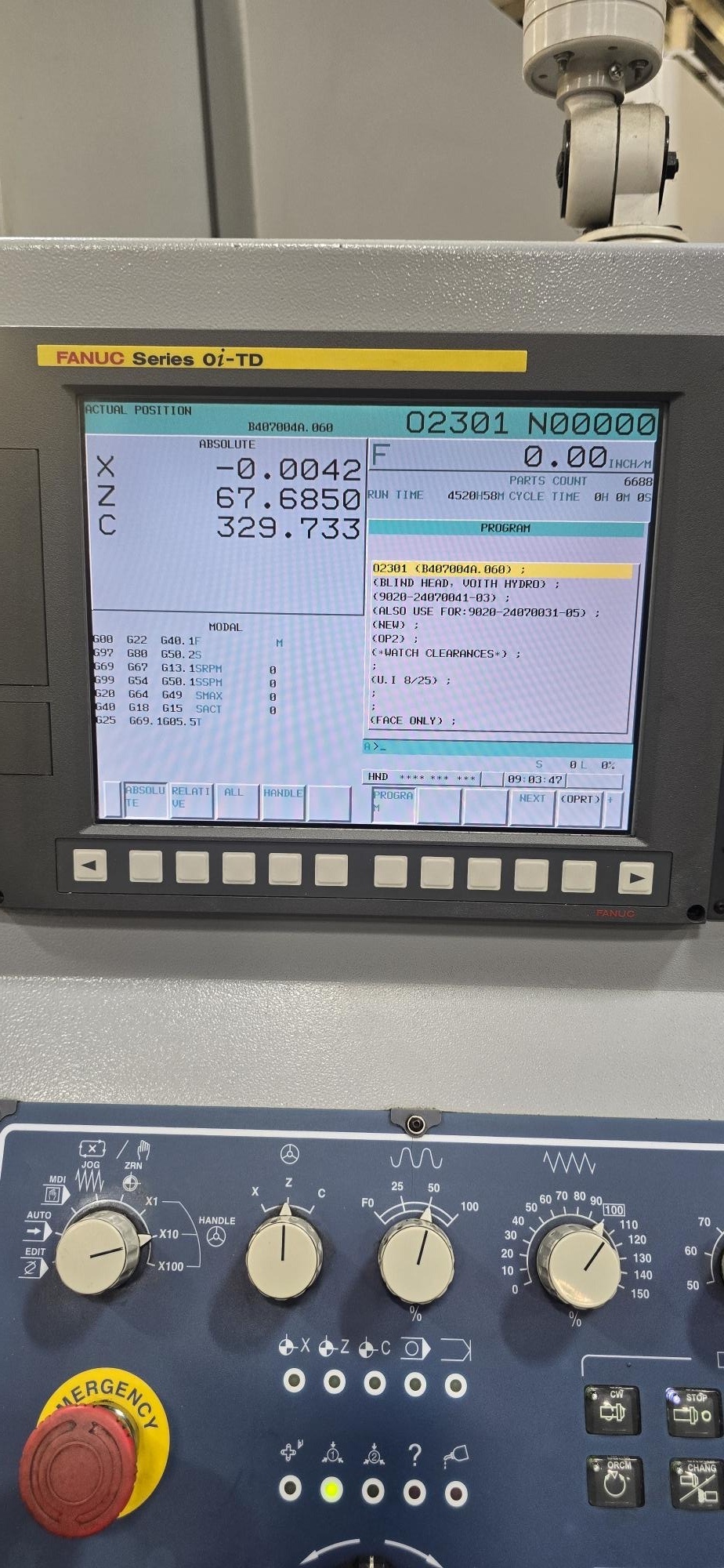

FANUC OI-TD CNC CONTROL
24" SAMCHULLY 3-JAW HYDRAULIC CHUCK
MANUAL 3-JAW CHUCK ON REAR
CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM
AUTO PRESETTER
CHIP CONVEYOR
4525 SPINDLE HOURS
SPECIFICATIONS:
Swing Over Bed....................... 39.37"
Machining Length..................... 76.8"
Turning Diameter, Shaft Diameter..... 33.85"
Chuck Size 1......................... 24"
Spindle Nose 1....................... A2-15
Spindle Bore Diameter 1.............. 10.2"
Spindle Bar Capacity 1............... 7.28"
Spindle Speeds 1..................... 1,500 RPM
Spindle Horsepower 1................. 50 hp
X1 - Axis Travel..................... 16.931"
Z1 - Axis Travel..................... 74.8"
C1 - Axis Travel..................... .001 DEGREES
Gear Ranges.......................... 2
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 3,200 RPM
Turret Rotary Tool Horse Power 1..... 15 hp
Tailstock Quill Diameter............. 5.9"
Tailstock Taper...................... MT-6
Tailstock Quill Travel............... 5.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 76.8"
# Axis............................... 3
Bar Capacity......................... 7.28"
Tailstock............................ 'Yes'
Live Tooling......................... 'Yes'
Sub Spindle.......................... 'No'
Dimensions........................... 111" x 269"
Weight............................... 36080 LBS.
EQUIPPED WITH:
FANUC OI-TD CNC CONTROL
24" SAMCHULLY 3-JAW HYDRAULIC CHUCK
MANUAL 3-JAW CHUCK ON REAR
CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM
AUTO PRESETTER
CHIP CONVEYOR
4525 SPINDLE HOURS
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

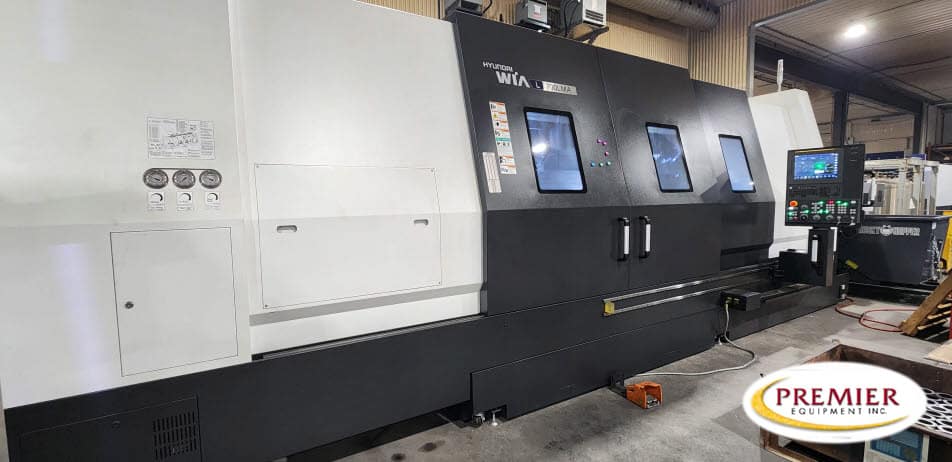

Hyundai Wia #L700LMA, heavy duty 3" Axis CNC turning center, Fanuc Series 32i-B Pus, 41.3" swing, 32.3" swing over cross slide, 6.5" bar, 24" chuck, 2024
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Hyundai Wia
Model: L-700LMA
Year: 2024
Hyundai-Wia L700LMA Heavy-Duty 3-Axis CNC Turning Center (subject to buyer verification):CAPACITYControlled Axis 2 Axis (X,Z)Maximum Swing (On bed) Φ 1050 mm (41.3”)Maximum Turning Diameter Φ 920 mm (36.2”)Swing Over Cross Slide Φ 820 mm (32.3”)Bar Capacity Φ 165 mm ...more
JUST ADDED!

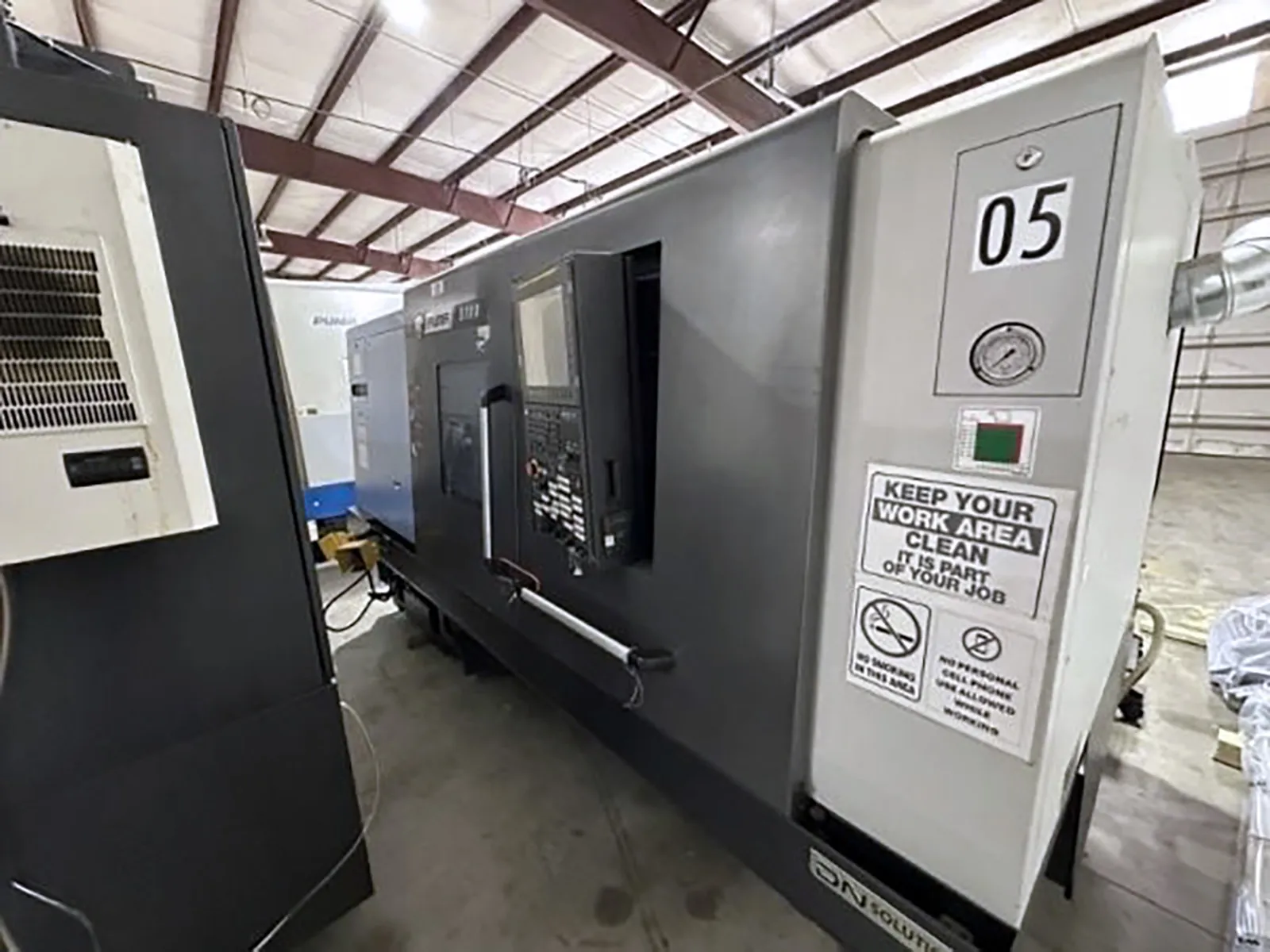

Daewoo Doosan #Puma-5100B, CNC lathe, 35.4" swing, 46.4" centers, 24" chuck, 7.12" bore, 6.6" bar, 1500 RPM, 60 HP, 12 turret, Fanuc I, 2023
