Victor #CM-2, Monaset Tool and Cutter Grinder With Tooling

Estimated monthly payment valid upon approved credit.

Request Formal Quote

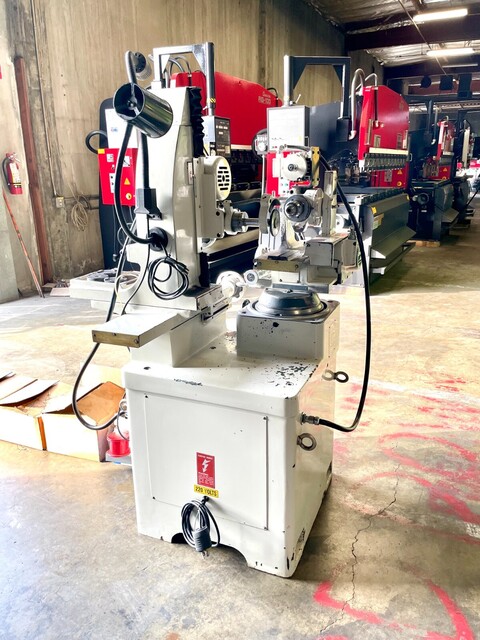

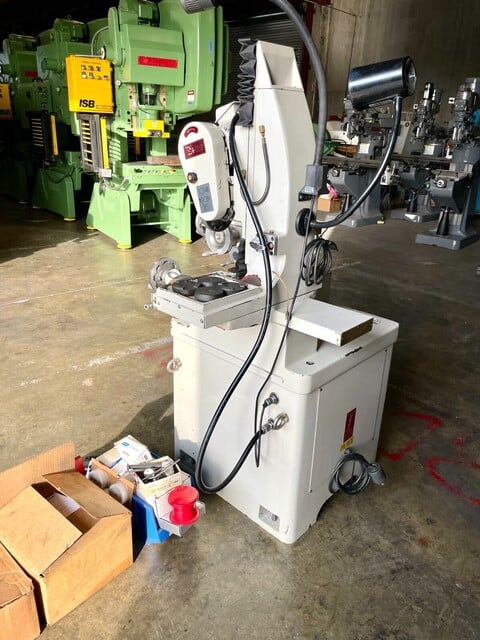

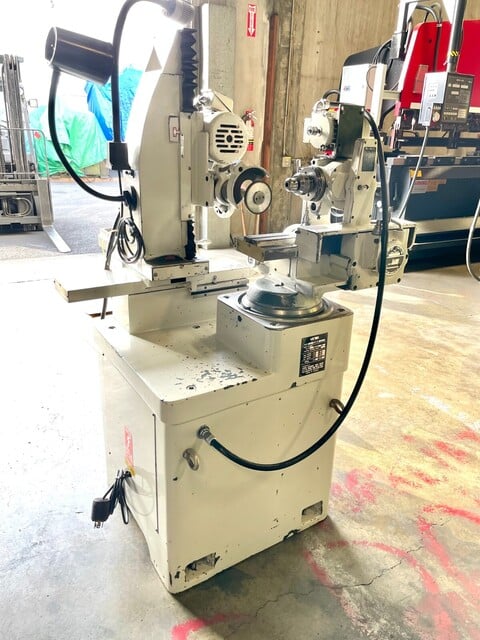

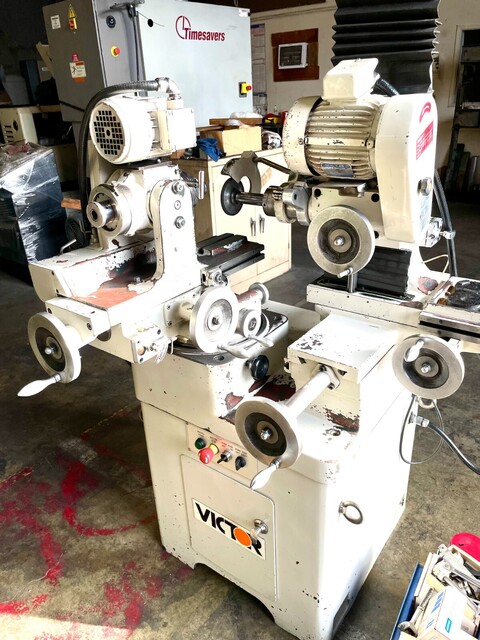

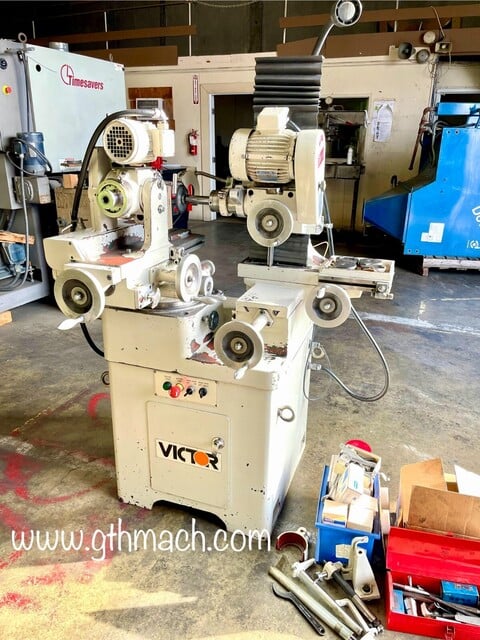

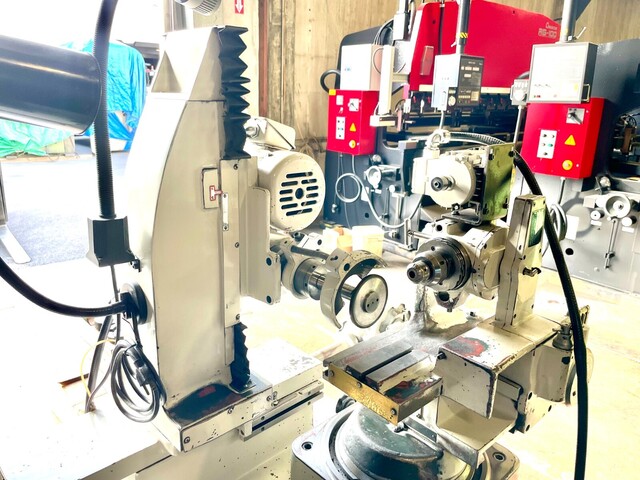

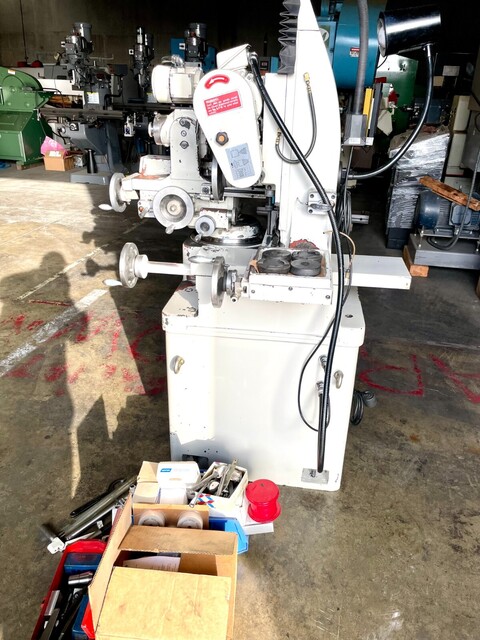

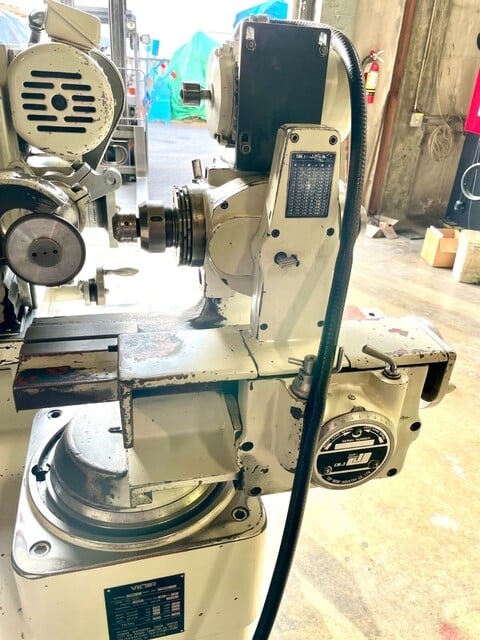

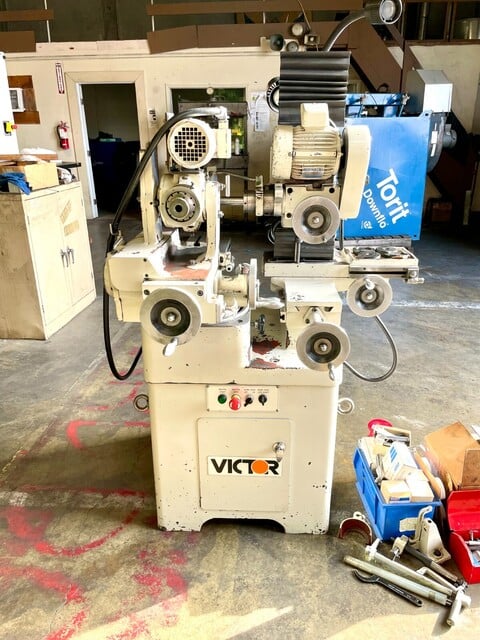

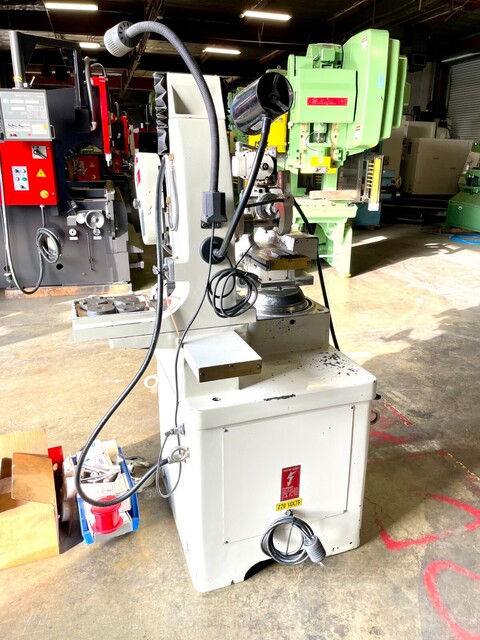

Victor 12 Monaset Tool and Cutter Grinder, CM-2
Inventory # 7702
Model: CM-2
Description:
The Victor CM-2 Monaset Tool and Cutter Grinder provides versatile capability for multiple grinding operations at a single chucking of the work piece
Specifications:
Max. Swing Over Main Slide: 12 Diameter
Max. Collet Work: 1 1/4 Diameter
Min. Collet Work: 0.12
Min. Lead Generated by Spiral Lead Mechanism: 1.81
Max. Length Between Spindle Nose and Tailstock Center: 6
Max. Grinding: 4 Diameter
Main Slide Travel: 5 3/4
Offset Slide Travel: 5 1/4
Front of Center: 3
Rear of Center: 2 1/4
Horizontal Plane (Turntable Base): 235
Vertical Plane (Above/Below Center): 40
Longitudinal Slide Travel: 6
Vertical Slide Travel: 9 1/2
Above Center: 4 1/2
Below Center: 5
Cross Slide Travel: 7 1/2
Front of Center: 3
Rear of Center: 4 1/2
Workhead Speed: 436 RPM
Grinding Wheel Speeds: 4,000 RPM, 5,729 RPM, 8,000 RPM
Internal Grinding Attachment Speeds (Optional): 16,410 RPM, 23,510 RPM, 32,820 RPM
Workhead Motor: 1/4 HP
Wheelhead Motor: 1/2 HP
Standard Features:
Sharpens and reconditions cutters and tools with complex shapes
Multiple grinding operations at a single chucking of the work piece. It saves setup time and assures excellent concentricity
Versatility for generating straight or tapered, right or left-hand, infinitely variable leads from a simple built-in lead mechanism
Turntable mounting of entire workhead slide assembly. adjustable through 235 in the horizontal plane
Workhead that is adjustable on seperate main slide with dual handwheel control
Offset slide for workhead spindle permits centerline of spindle to be offset from center of turntable
Micrometer stop dogs and graduated dials which greatly simplify accurate positioning of workhead main slide, wheelhead cross, and longitudinal slides
Mechanical Specifications:
Floor Space: 60 x 67 x 62.12 H
Shipping Weight: 1,780 lbs.
