Veolia, water treatent system with clarifiers, sand filters & disc filter

$663,432 USD

Request Formal Quote

SKU: 131107
Condition: Used
Dimensions: 80.00 (H) x 48.00 (W) x 97.00 (L) inches
Additional Description:
This Water Treatment System Includes:

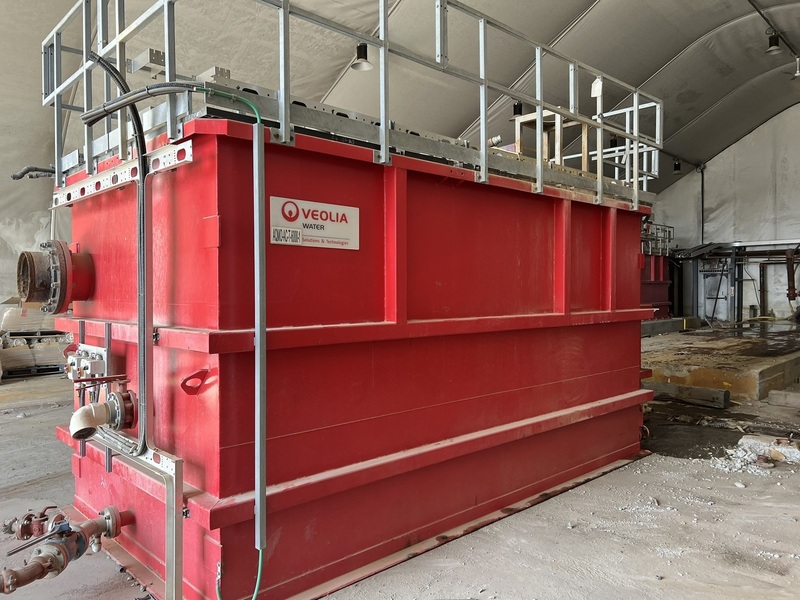

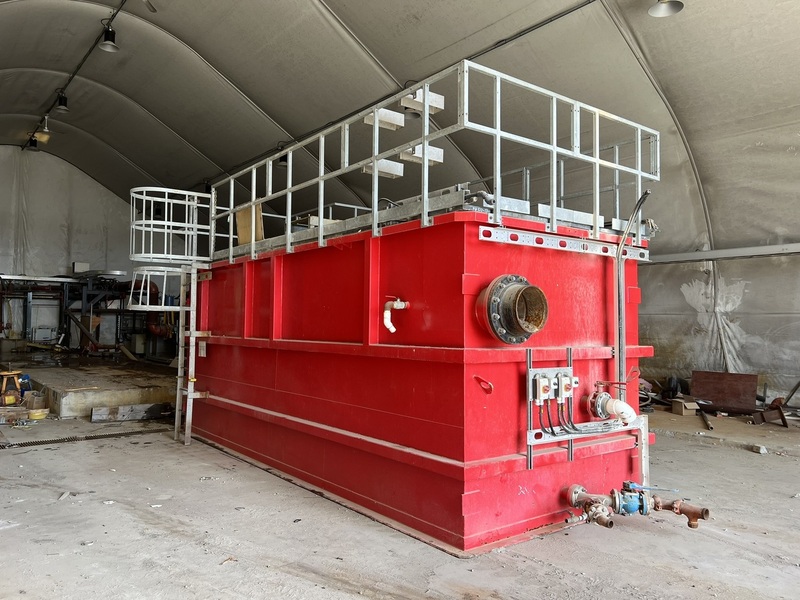

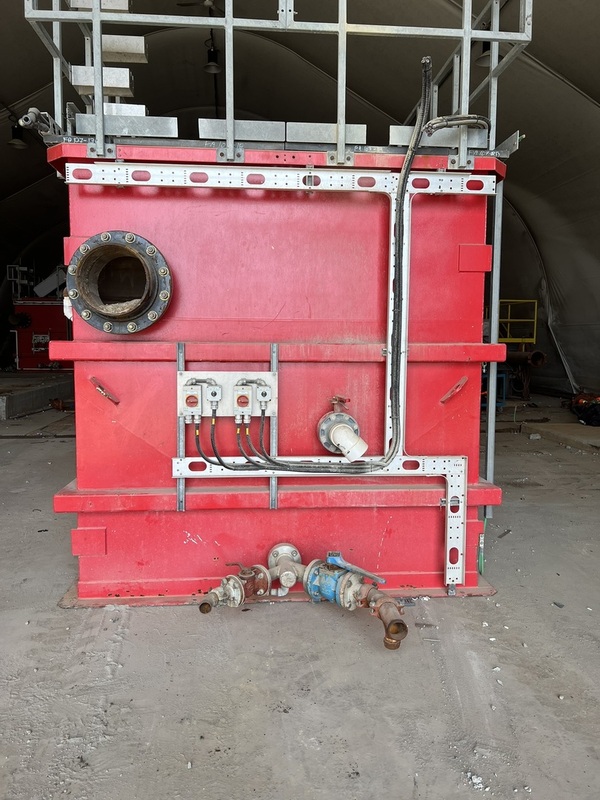

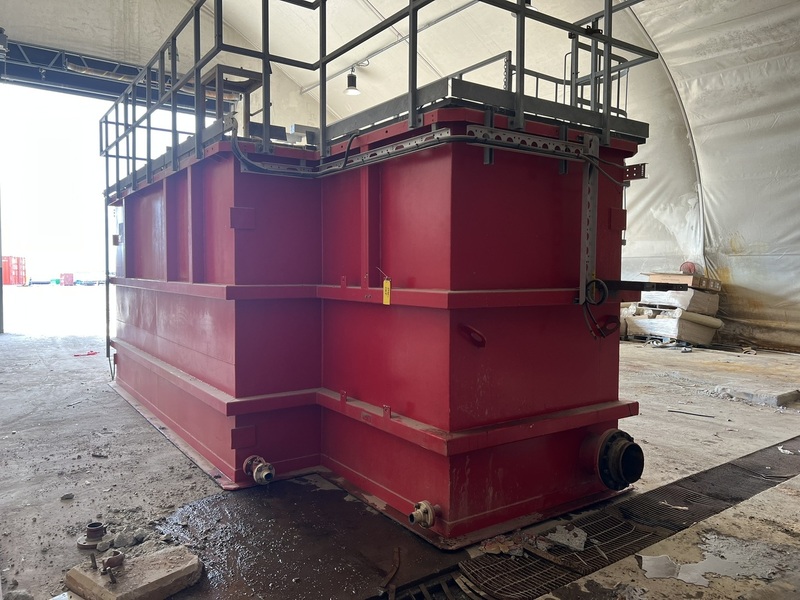

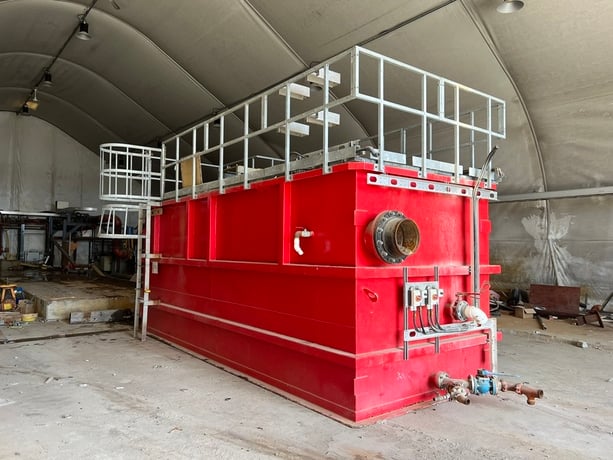

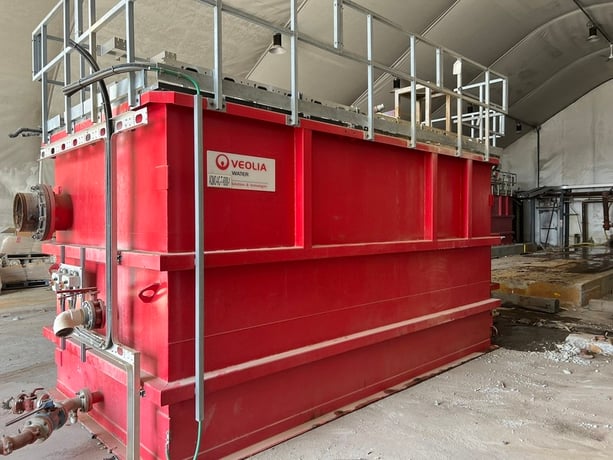

2 x VEOLIA-JOHN MEUNIER Actiflo High-Performance Clarifiers
Model: ACP2-40M
Nominal Capacity: 1100 USGPM
Required Capacity: 350 - 1500 USGPM
Rise Rate @ Nominal Flow: 32 USGPM/Sq. Ft.
Rise Rate @ Min. Required Flow: 10 USGPM/Sq. Ft.
Rise Rate @ Max. Required Flow: 44 USGPM/Sq. Ft.
Each Actiflo High-Perfomance Clarifier comes with the Actiflo Turbo Package, consisting of:
- Coagulation Tank
- Maturation Tank
- Lamellar Settling Tank
- Sludge Collection Troughs & Hopper
- Clarified Water Troughs
- Circular Scraper
- Microsand Recirculation System (Hydroclones)

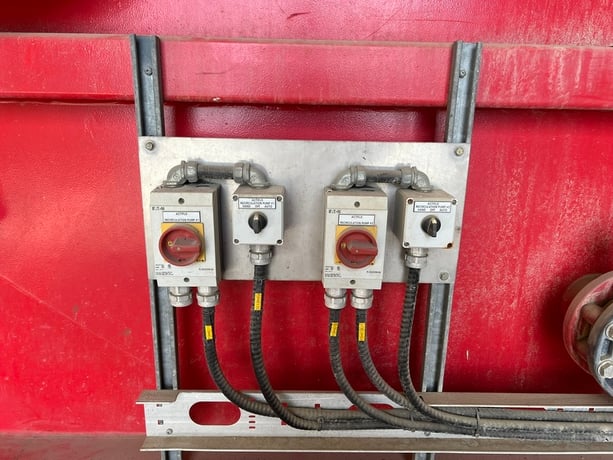

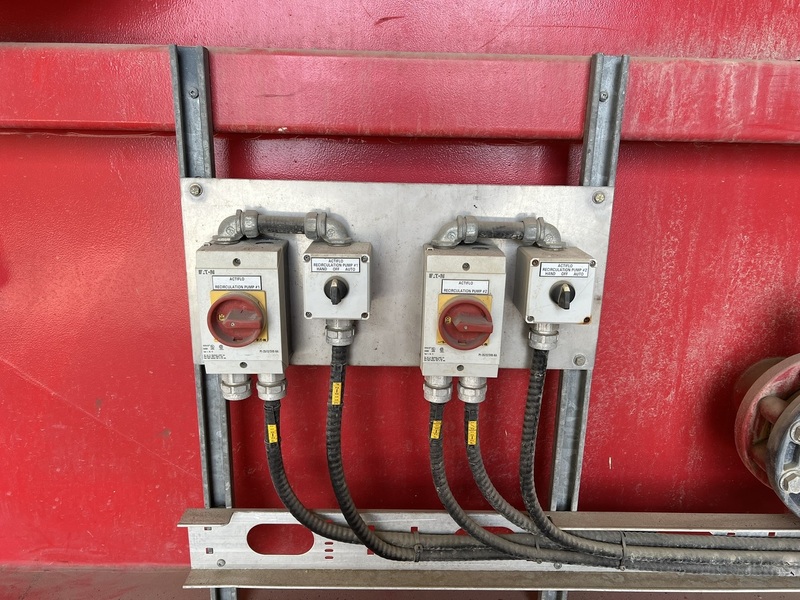

- Each recirculation line has one pump and one hydroclone
- Hydroclone Specifications:
- Make: EXSTO
- Model: MA-20 (760mm)
- Material: Polyurethane TM390 (ACS)
- Inlet (Vortex Finder): 42mm
- Outlet (Apex): 30mm
- Inlet Flow (Sludge): 66 - 132 USGPM
- Inlet Flow (Service Water): 10% to 20% of Sludge Inlet Flow
- Performance: Recovery of solids> 50 microns

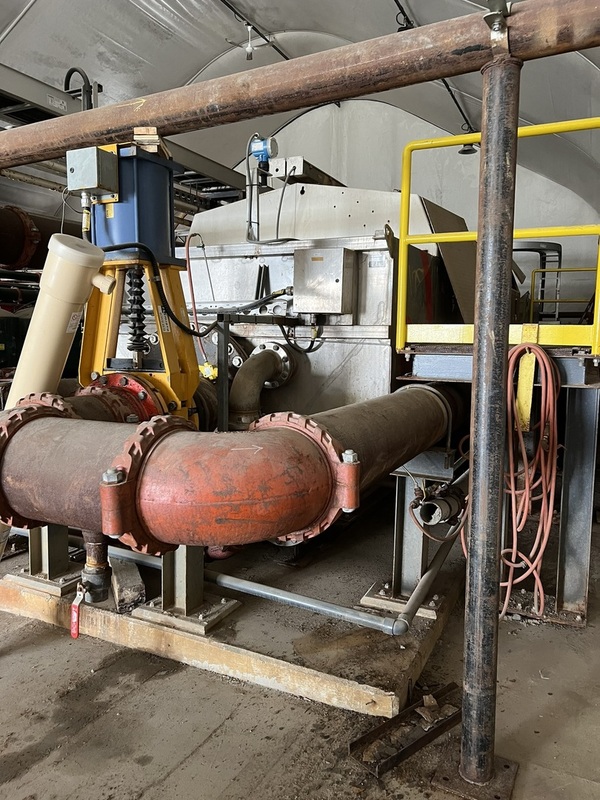

1 x KRUGER/HYDROTECH 2200 Series Disc Filter
Model: HSF2224D-1FN
Serial No.: 6757
Manufacture Year: 2010
Drum Diameter w/ Discs: 2200mm
Max. Number of Discs: 24
Includes: Enclosed tank and control enclosure
2 x Chemical & Electrical Control Containers
Each containing:
- Control and Electrical Panels
- Retention Tank
- Hot Water Tank
- Coagulant Dosing Station
- Polymer Preparation and Dosing Station (VEOLIA Hydra-Pol 250)
- NaOH Dosing Station
- Emergency Shower Station

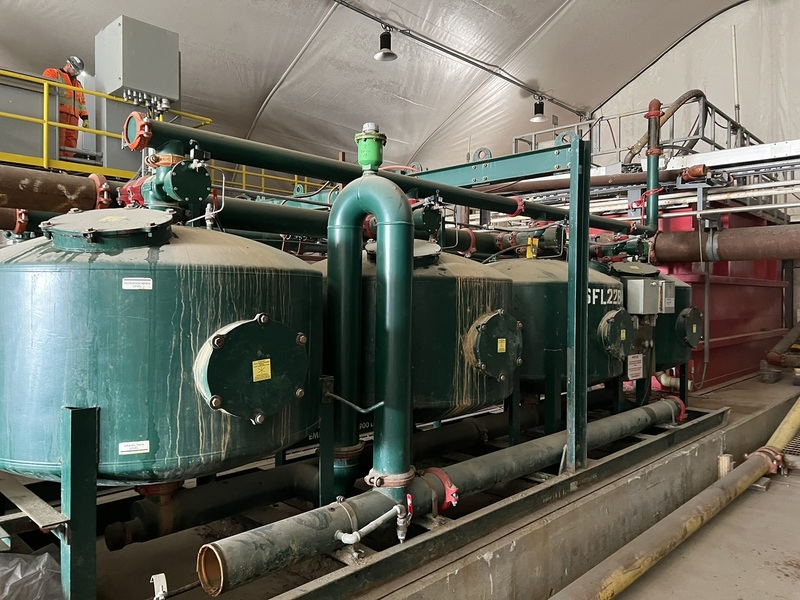

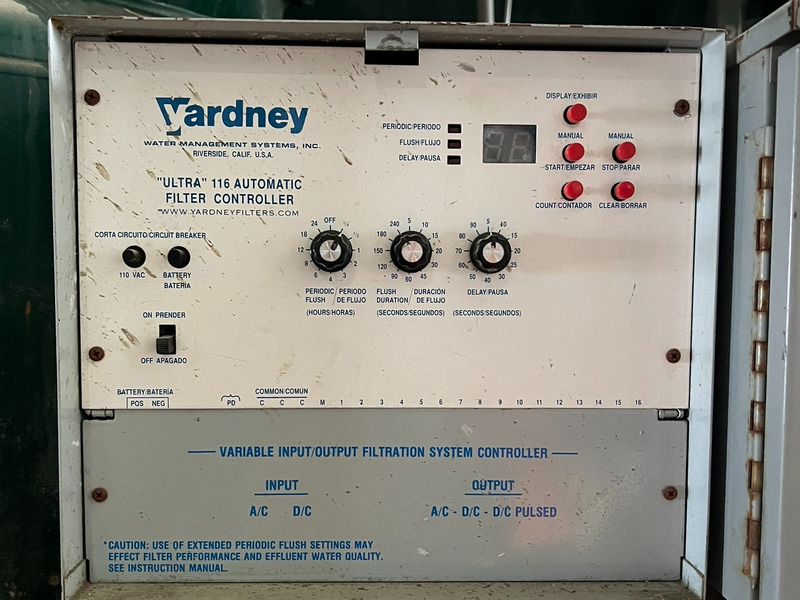

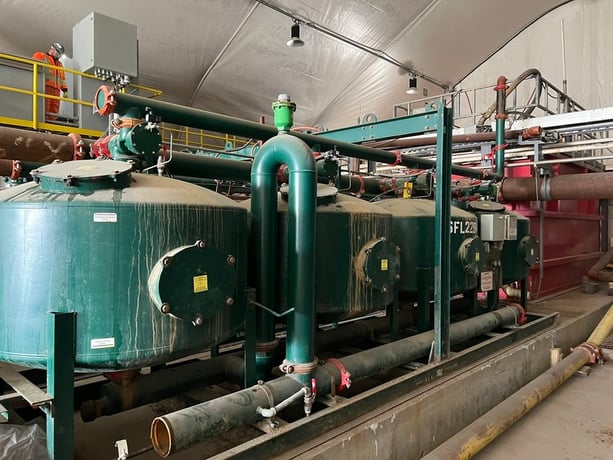

2 x BAKER 4-Pod Sand Filter
Description: Skid-mounted, high-rate, automatic backwashing sand media filter with 4 pods, designed for general purpose water filtration of organic and inorganic solids.
Model: IL 5424-4AS
Serial No.: SFL22333
Min./Max. Pressure: 35/80 PSI
Max. Flow: 1000 GPM
B/W Flow: 80 GPM
Supporting Documents

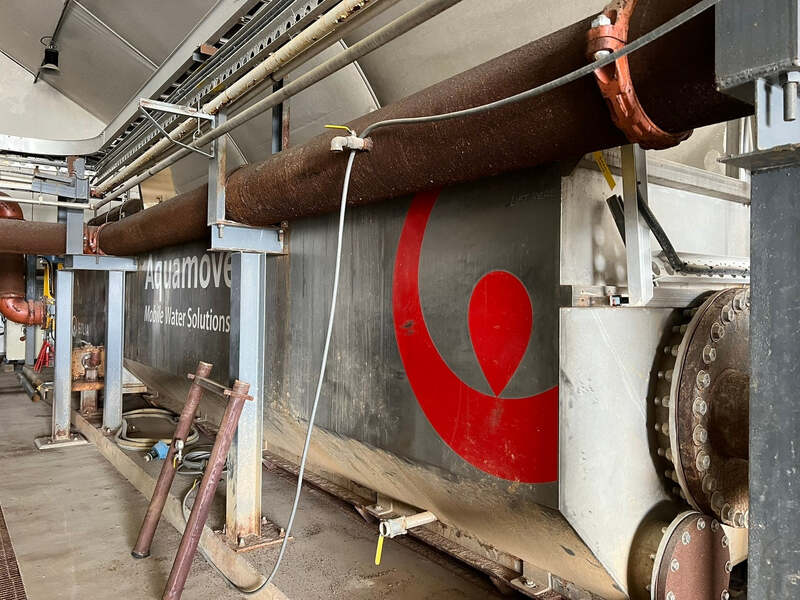

This system is designed by Veolia's AQUAMOVE service, with each component designed with the ability to be mobile and easily transported.
