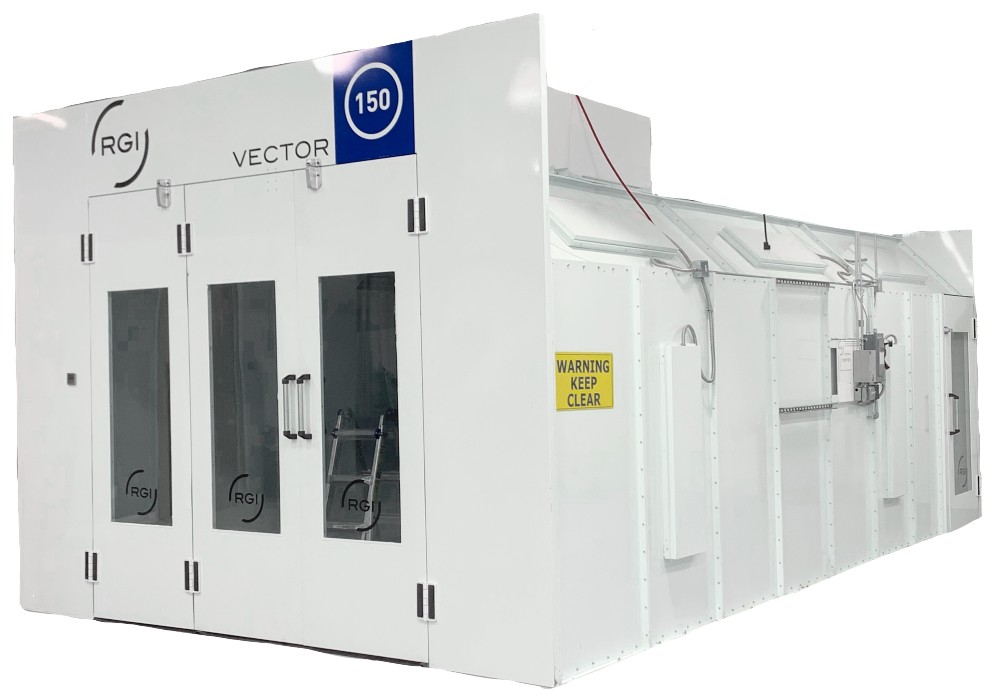

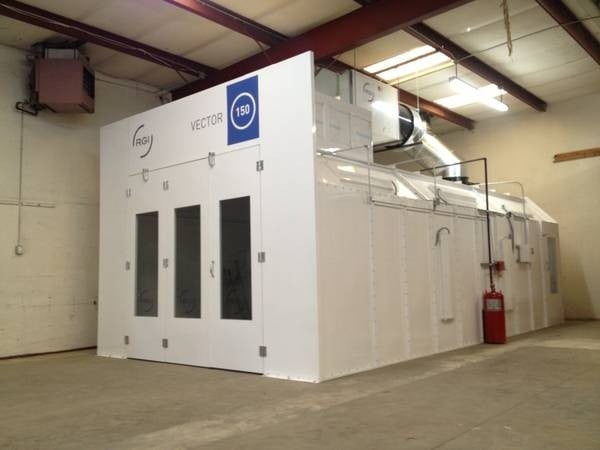

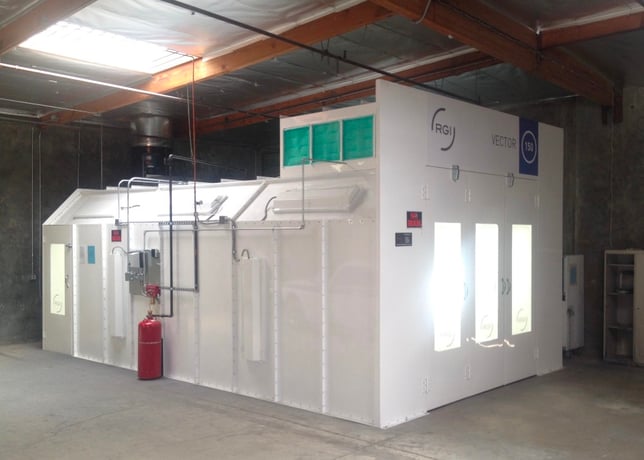

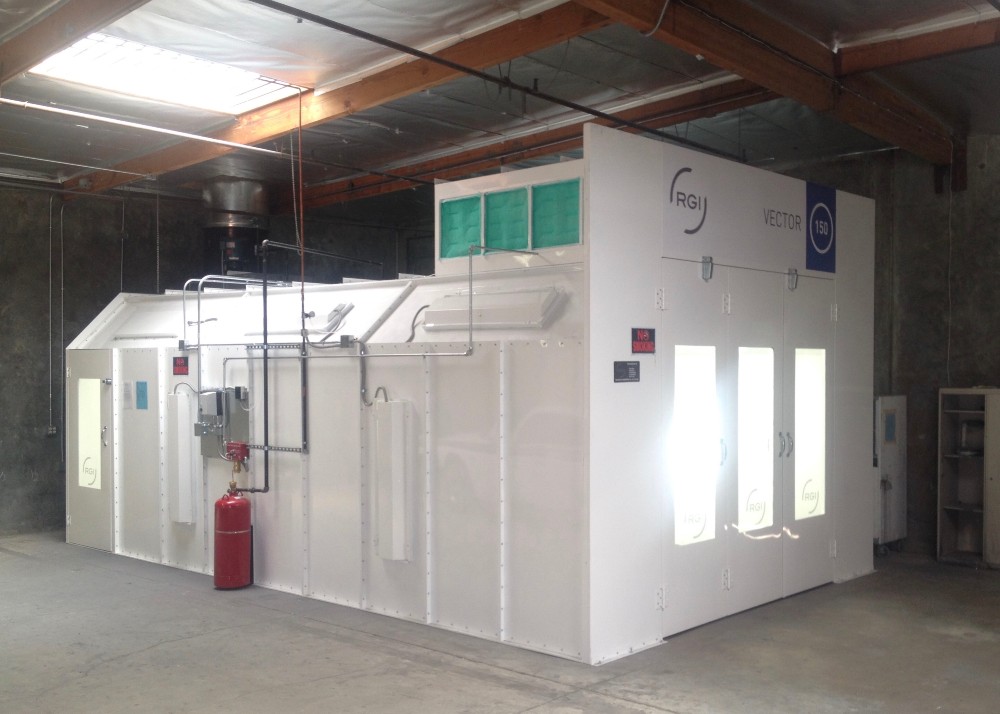

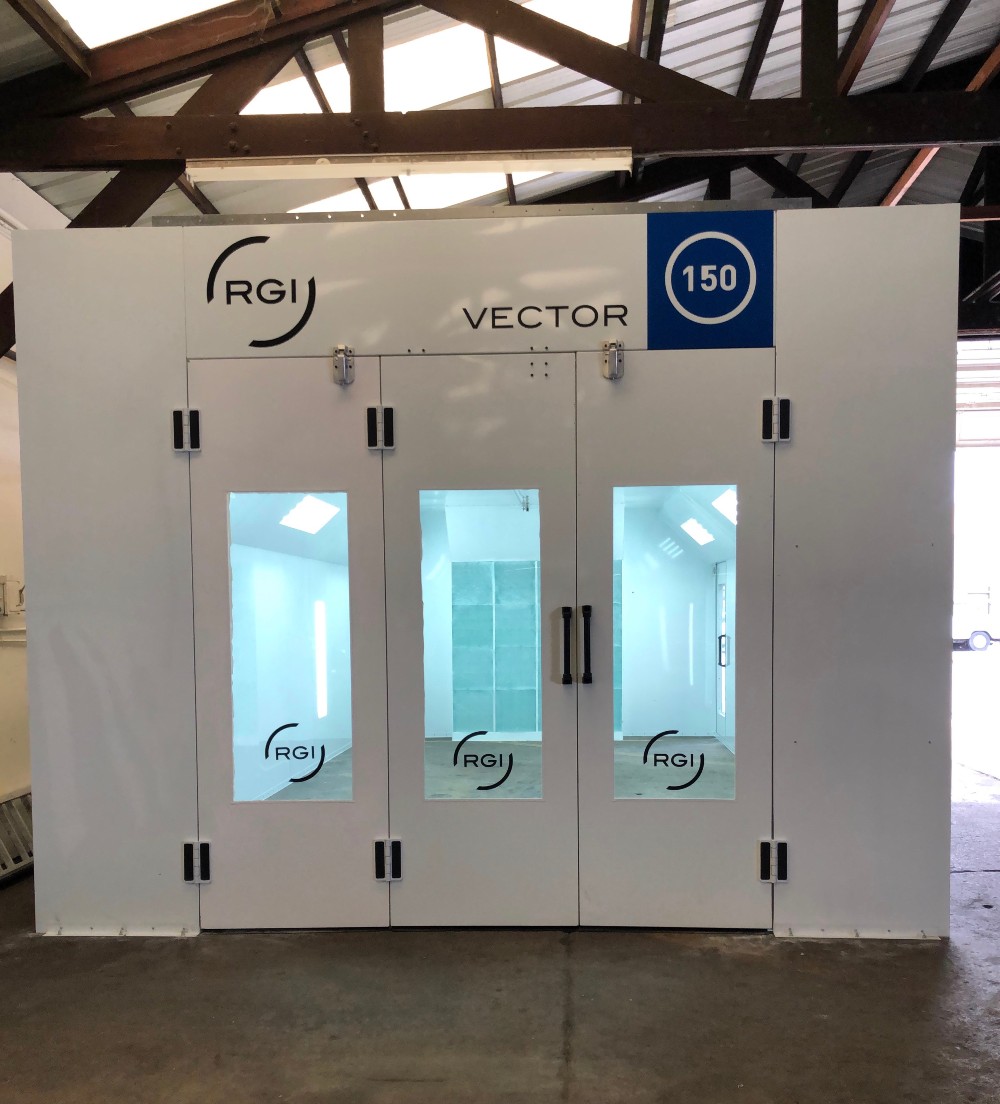

Vector automotive spray booth

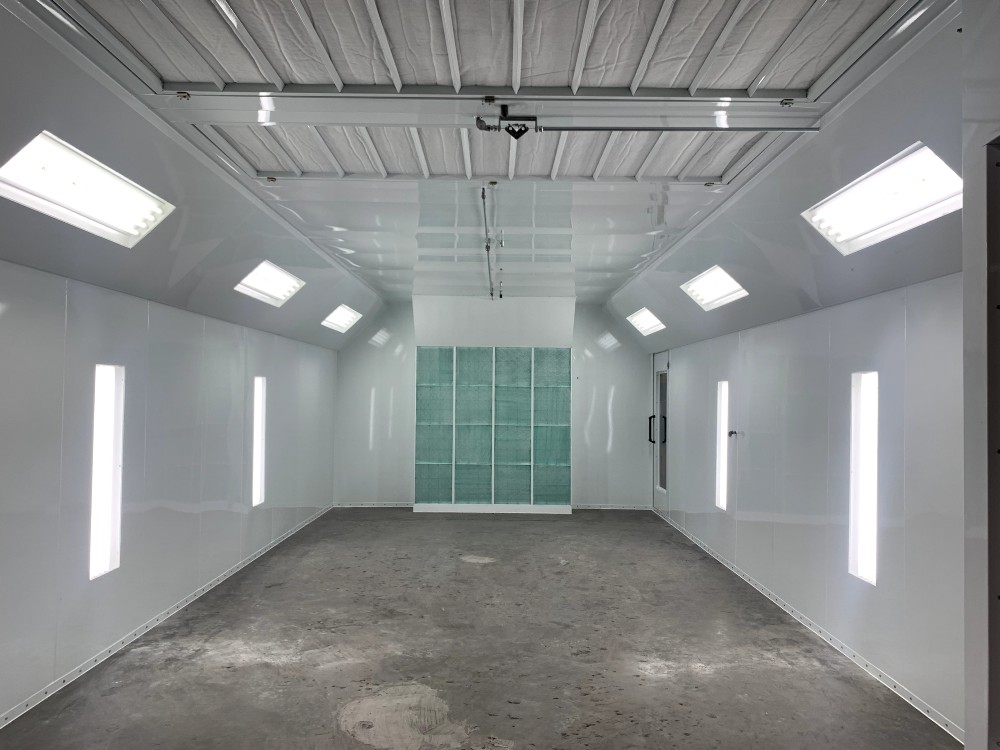

The Vector 150 is a quality and economical booth made for performance and durability. This booth was created for start-up and small shops looking for a great performing, yet economical booth. As seen on the left, air enters the booth through the top-front filtered plenum and is exhausted at the rear-center plenum. The Vector 150 pulls clean air from the upper ceiling through a filter bank located on rear-center exhaust plenum.

Heavy Duty Construction:

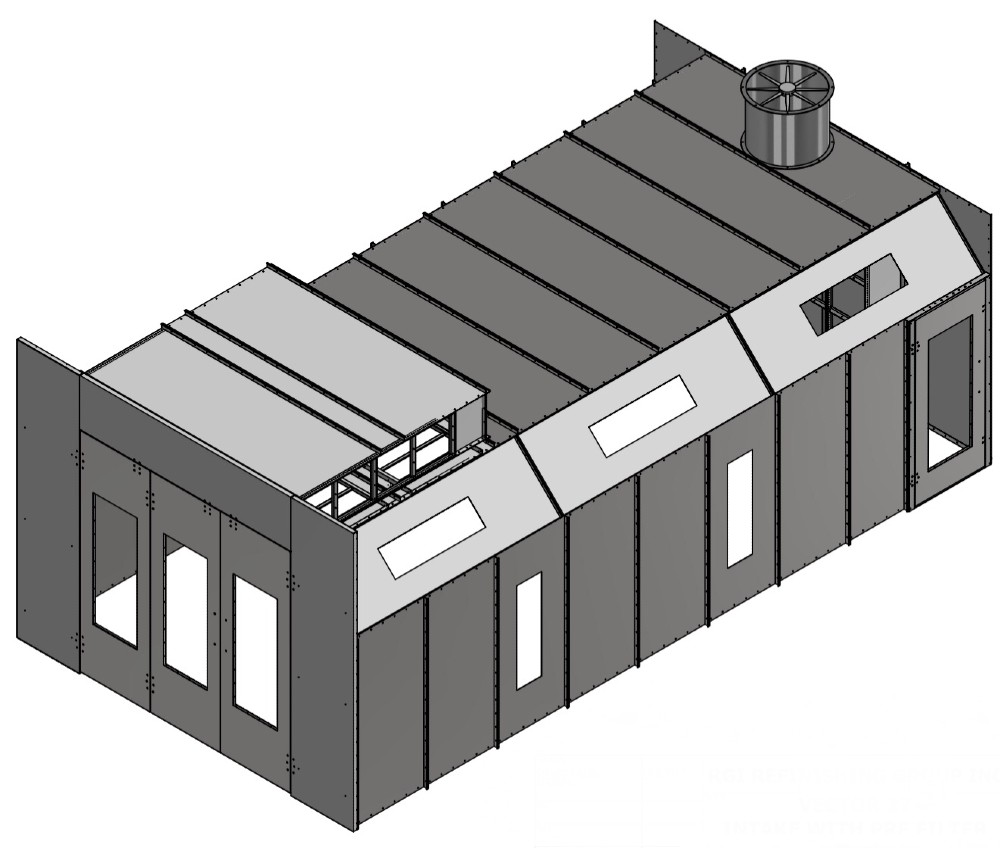

Our single wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall Booths provide a smooth fit and finish for a stronger, longer-lasting paint booth. Resulting in better airflow, lighting, and strength because of gabled roof design.

Fans & Motors:

(1) 30" Fans 12,600 CFM and (1) 3PH Motor

Filters:

(16) Exhaust filters w/ (16) exhaust filter grids (2) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed

Doors:

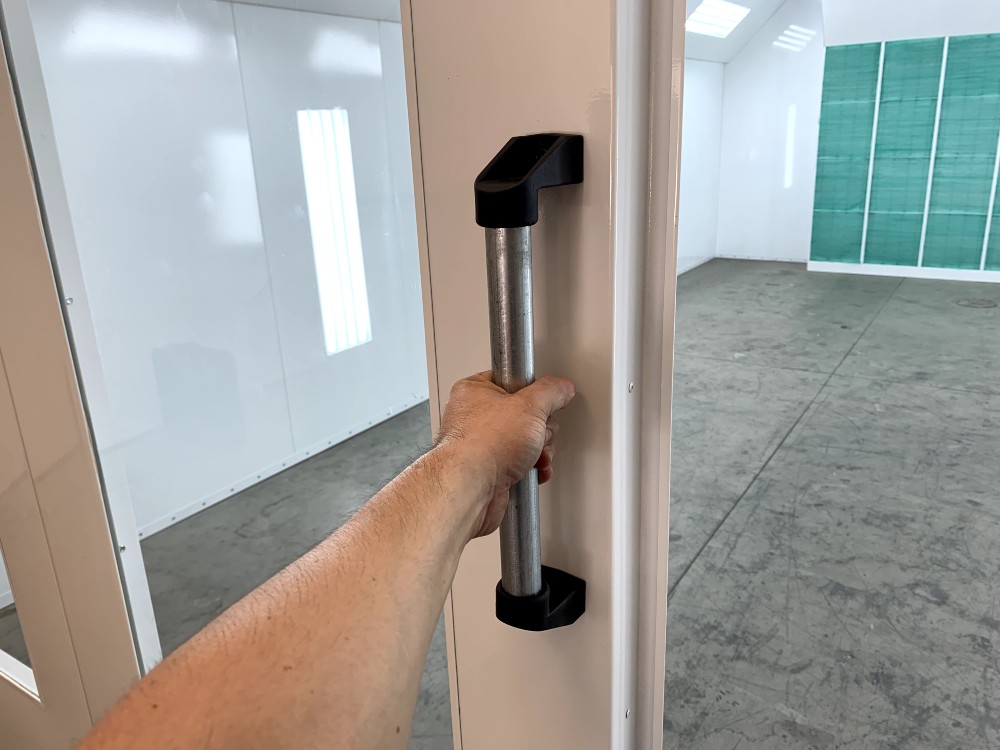

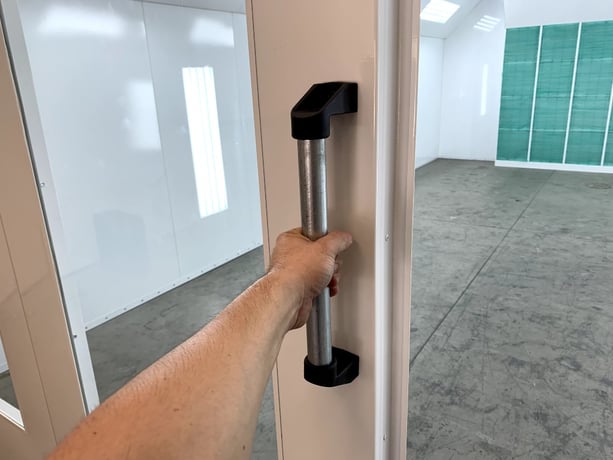

(1) Set of DOUBLE WALL TRI-FOLD drive-in doors with observation windows, opening Dimension 9'x9'
(1) Side access man door - Dim. 3'x7' with observation windows

Lighting:

Full booth illumination from four-tube, 4’ light fixtures with 4 fluorescent lamps, ETL listed

Booth Upgrades:

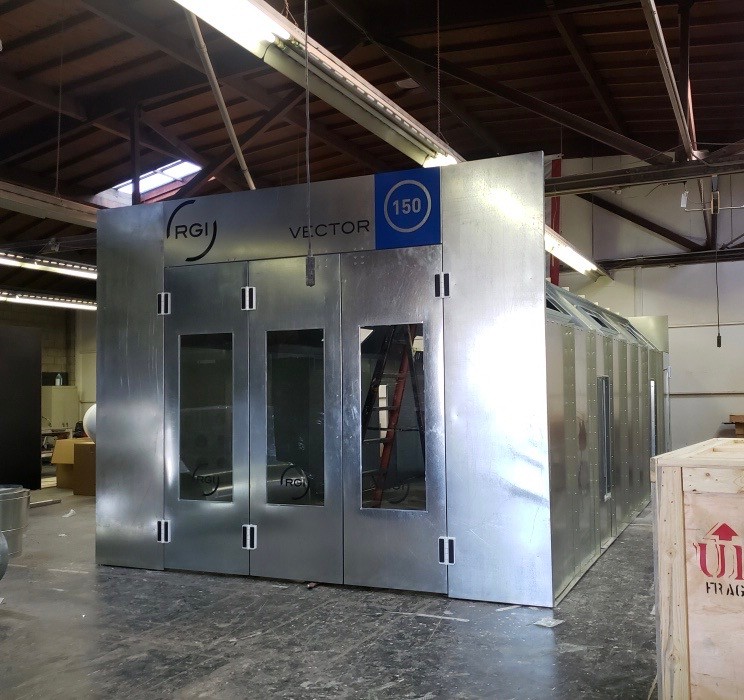

• Powder Coat or Galvanized Finish. Panels cover all walls, door frames, floor channels & ceiling panels.
• Booth Extension. Need more space to spray? Extend the length of your booth.
• Single-Phase Motor Upgrade
• AMU - Heating for your Spray Booth
• Control Center for spray booth
• Ducting Kit - Spray booth exhaust system includes:
  *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap
