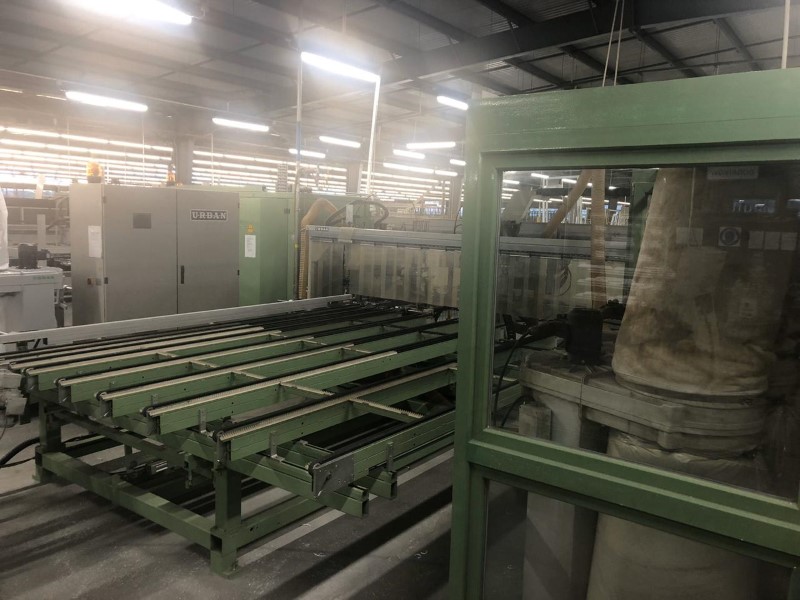

Urban AKS-6600, Window Line, 7.87" H x 5.9" width profile, 137.8" width x 98" L welding dims., 2 mm seam limit, 2008

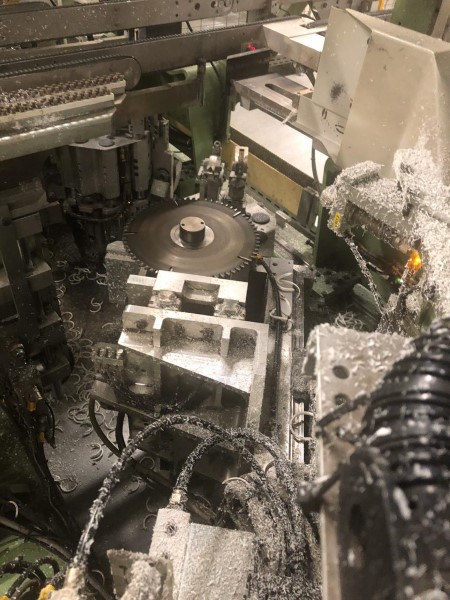

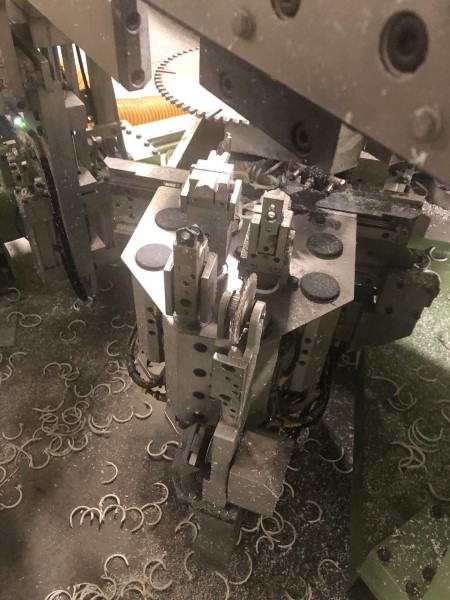

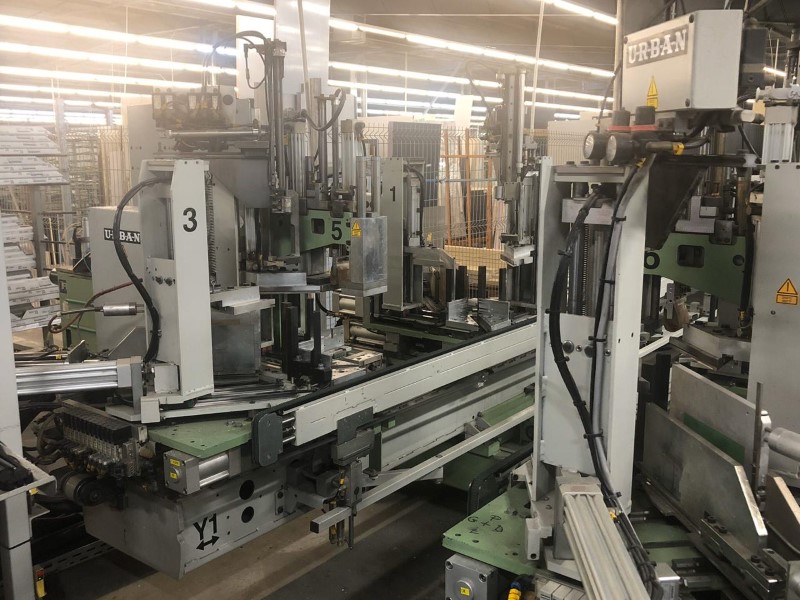

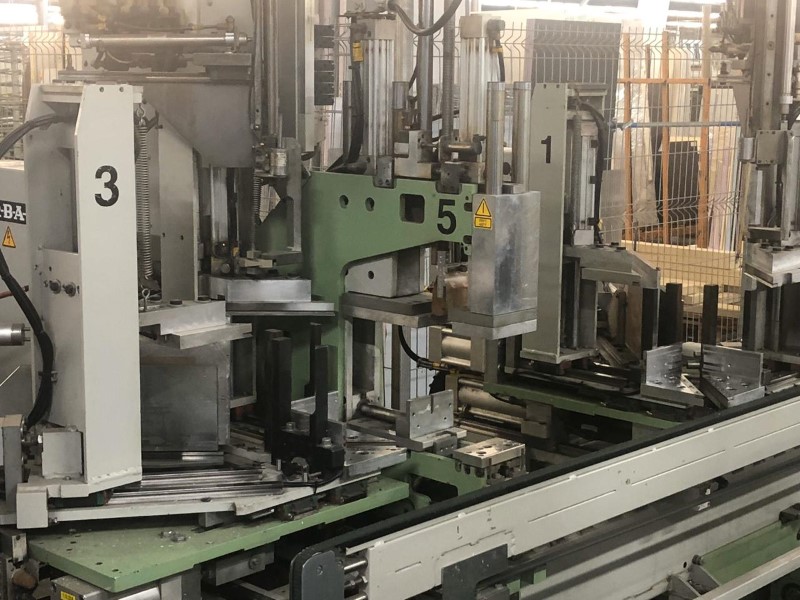

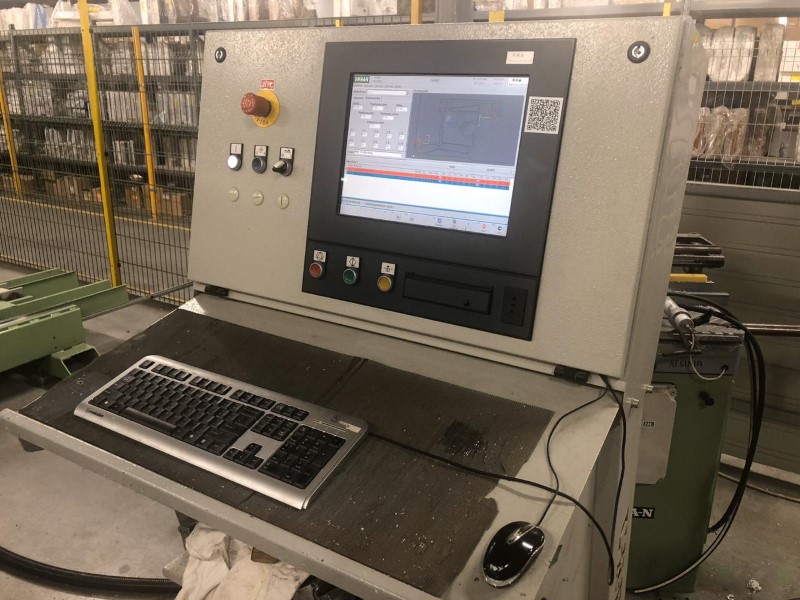

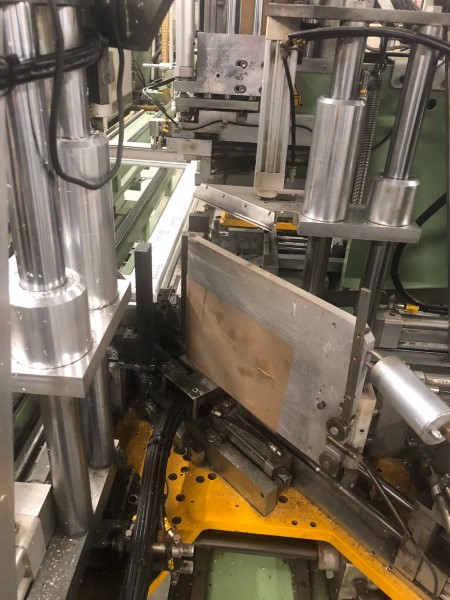

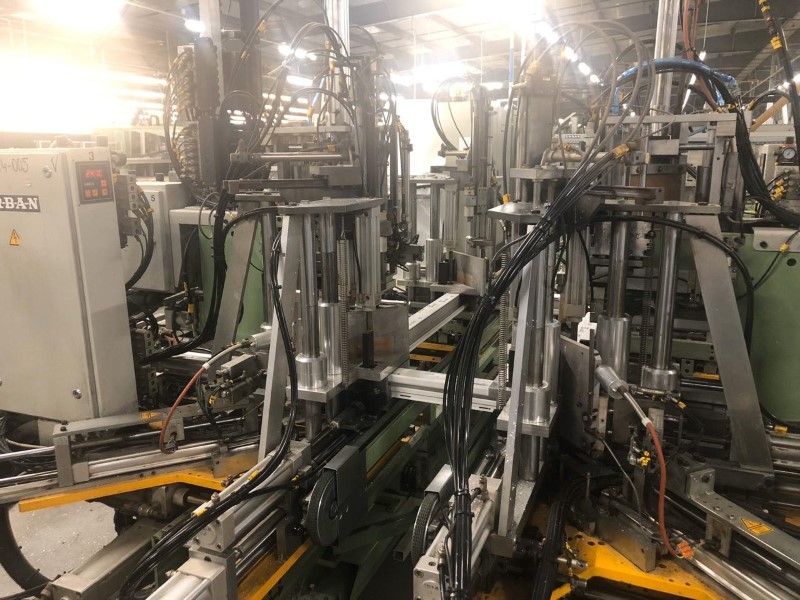

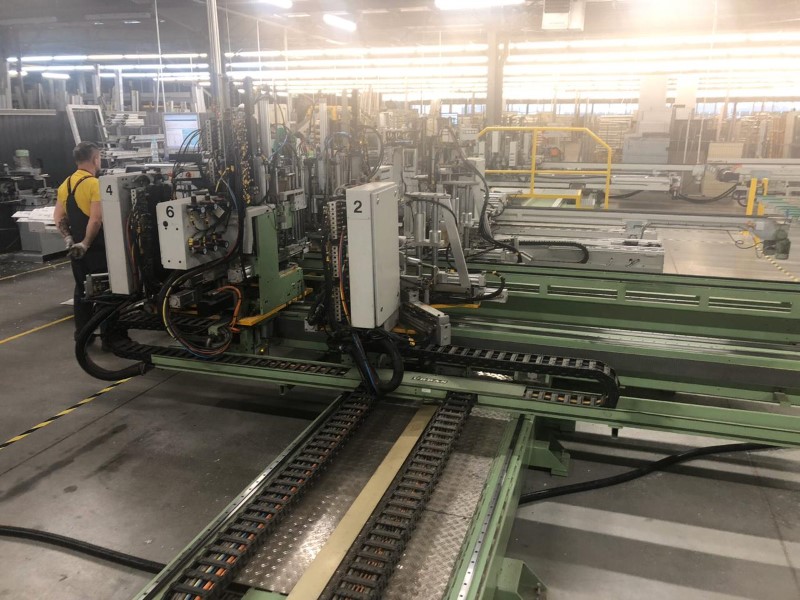

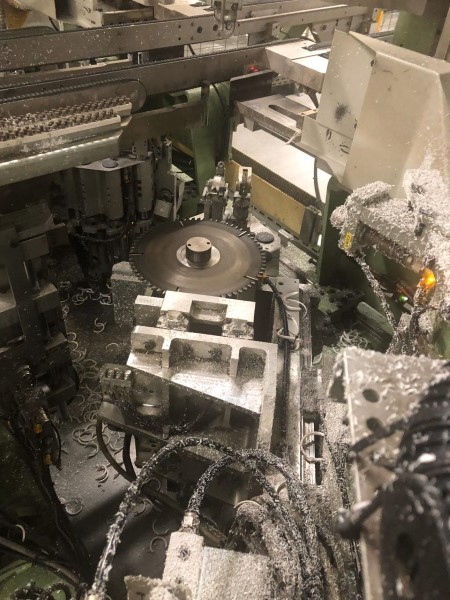

URBAN AKS 6605 Horizontal CNC 6-Head Welding Machine + SV 530 - 4/B CNC Corner Cleaner Fully automatic 6-Head welding machine with PLC controller for high production PVC window fabrication environments. This line is capable of 100 units per shift.All parameters (e.g welding temperature, heating time, fusing pressure, joining pressure, joining time) can be individually adjusted – this allows an optimal adaptation to different profiles. IPC control with high-quality color touch screen and internet interface ensures operator friendly handling of the machine and uncomplicated integration in production lines.A big plus regarding flexibility is the weld seam regulation of 0.2 mm to 2.0 mm. Due to this function an exact welding of white and coloured profiles is possible while there is no negative effect on the corner strength when welding white profiles with a weld seam of 2.0 mm. Specifications:Max. profile height: 200 mm (7.87")Min. profile height: 40 mm (1.57")Max. profile width: 150 mm (5.9")Welding dimensions in width X 380 - 3,500 mm (137.8")Welding dimensions along the length "Y" 320 - 2,500 mm (98")Weld seam limitation of 2.0 mmDimensions: 5700 x 5400 x 1600 mmWeight: 3,000 kG (6,600 Lbs)Standard Equipment: Barcode scannerCarbide knivesCentral system for fixing tsulagThe possibility of angular welding with parallel mixing to ensure maximum strength of the seamWelding of (4) angles of 90 in one processLoading & Unloading the machine in a horizontal position (manually or automatically)Control over the size of weldingAutomatic adjustment to the height of the profileWelding of the frame profile without tsulagIndustrial grade computer based on WindowsURBAN SV 530 CNC Corner Cleaning Machine Fully automatic corner cleaning machine for vinyl window profiles with inner corner cleaning and freely programmable CNC axis controller with transom/bar machining.The PC control is standard with an industrial PC based in Windows which guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines.All in all, (17) tooling positions are available so that up to (26) individual machining units are possible with multiple tooling. The standard tooling includes: two grooving or cutting knife units, two inside cleaning units, two drilling/ milling units and a disc cutting unit. Specifications: Profile height Max.: 130/200 mm Profile height Min.: 30 mm (1-5/16")Profile width Max. 150 mm (5.9")Range RPM: 0 - 5,000 RPMDimension: 3200 x 3270 x 2280 mmWeight: Approx. 2200 kG (4840 Lbs) Standard Equipment: Cross machining (multiple also possible)130 mm clamping height (5.1")PC control (serial standard with industrial PC) perfect integration to other machines and manufacturing units.Profile identification with transfer option to other connected machines or PCs.Different tools can be turned on or off as desired.(17) Freely selectable tool places
