Description
10K (50kN) United SFM-50kN Tension and Compression Testing Machine
United Model SFM-50kN
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 55"
Compression Testing Opening (Less Tooling): 55"
Distance Between Columns/Screws: 21"
Testing Stroke: 55"
Testing Speed (IPM): 0 - 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 42"
Load Frame (W x D x H): 37" x 30" x 95"
Weight (lbs.): 1600
Electrical Requirements (V,Hz,PH): 230, 60, 1
EQUIPPED WITH:
- Computer with Keyboard and Mouse.
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller
- Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 10,000 lbf (50 kN) Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
(Ready for Immediate Shipment)

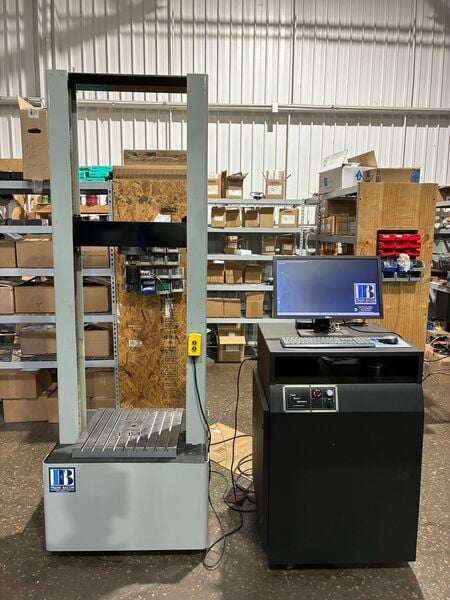

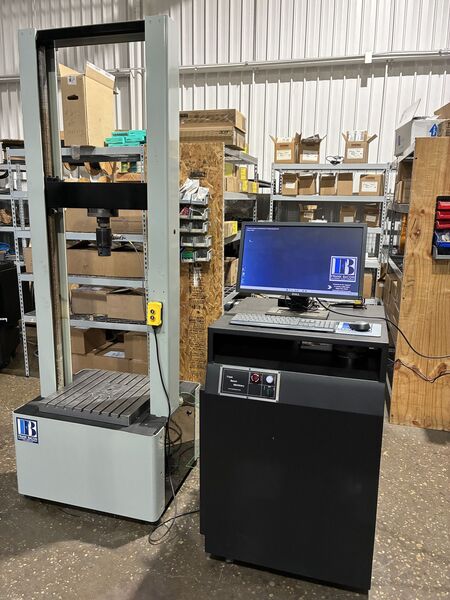

*Actual Image (Shown with Optional T-Slotted Table)
| #13118-01
DOWNLOAD SPEC SHEET
