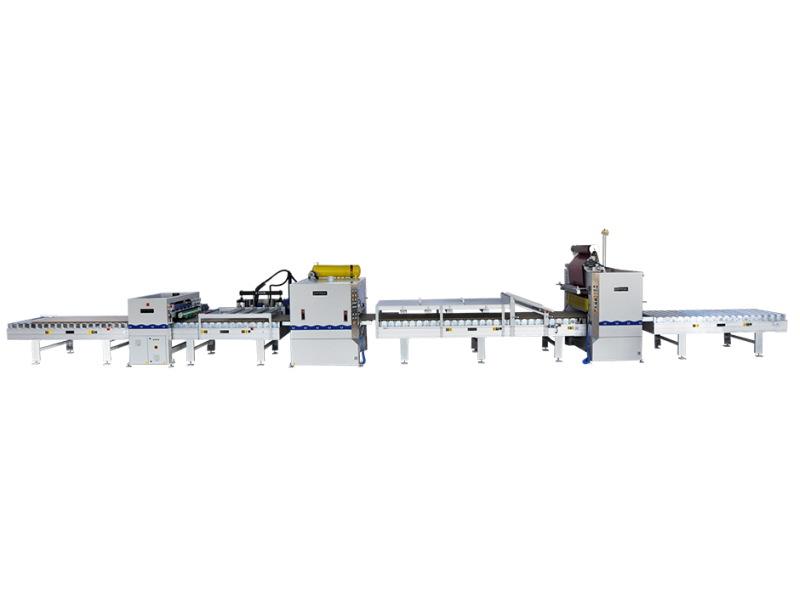

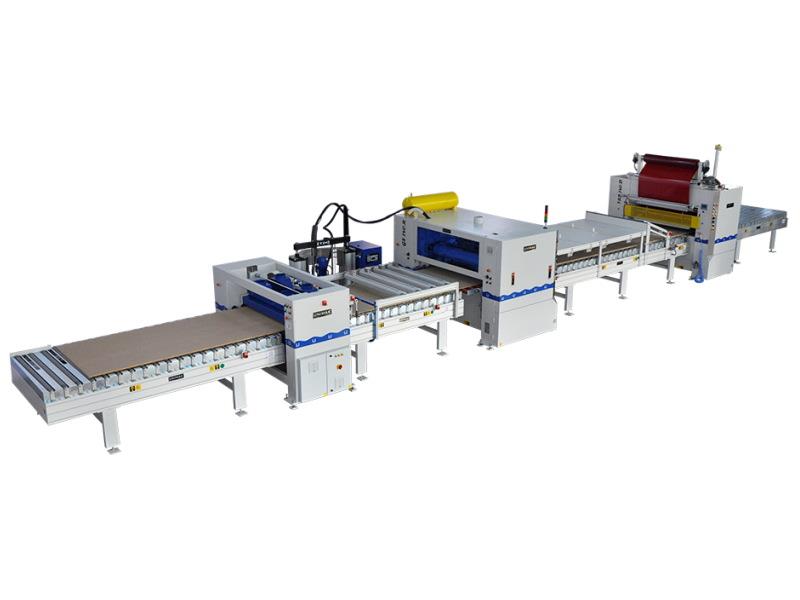

Unimak #FLL-1400-PUR, laminating line, 15 82 FPM, 10" -48" width, 1/8- 2-3/8" thinkness, 2026, new

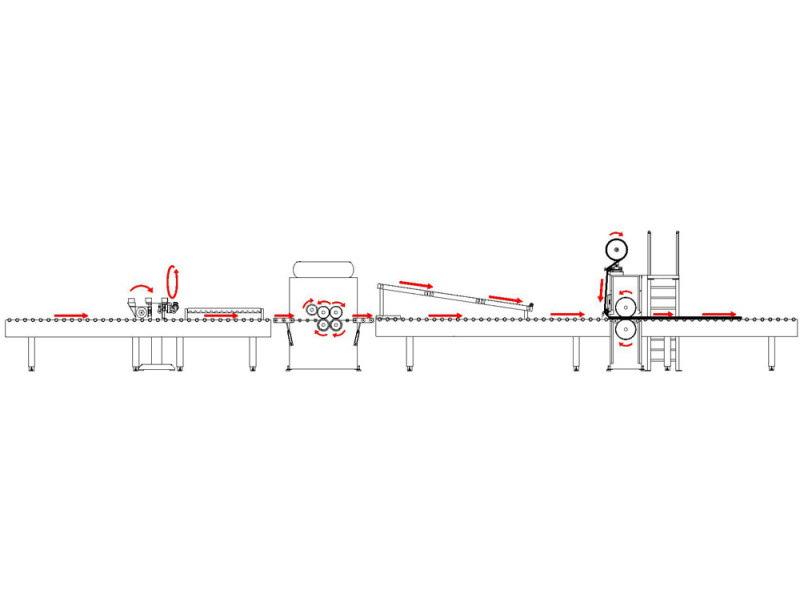

UNIMAK FLL 1400 PUR Flat Lamination Line with Flying Knife System4' Laminating Line for laminating flat panels with PUR glue. Laminating Station is a sheet and roll feed system with calender style Double Roll Press.Technical Characteristics: -- Line Speed from 5 - 25 MPM (15 - 82 FPM). -- Panel Width from 250 mm - 1,550 mm (10" - 48"). -- Panel Thickness from 3 - 60 mm (1/8 - 2-3/8"). -- Overall Line footprint 5,000 x 22,386 x 2,700 mm (16.4' x 74' x 8.8').Panel Types: -- MDF (finish sanded), HDF, chipboard, Plywood. Sanding is recommended. Minimum infeed temperature 18 C (64 F).Foil Types: -- Rolled Form PVC, high gloss, PET, P.P. (preconditioned with primer/corona); -- Rolled form CPL Laminate, max. 0.3 mm (1/64") thickness; -- Rolled form Decor Paper from 30 g/sq. m (3 g/sq. ft.); -- Sheet form Acrylic foil or HPL laminate.System Includes the following: -- 3 Meter (118") Long Conveyor & Adjustable Guide System (20) PVC coated rollers; retractable panel guide/fence for easy width adjustment; Mod. #s: "C3 130 HBD" -- Top & Bottom Brush Unit & Sword Brush Panel Cleaner Height adjustable brush system for cleaning panel surfaces; first rough cleaning with hair bristle brush, then micron grade cleaning with blower, vacuum system and Sword Brush which works in crosswise direction of material flow (caterpillar type); includes (2) 5" dust suction outlets; Mod. #s: "BS 130-PB" & FDB 130 -- 2.4 Meter (94") Panel Heater Conveyor and Adjustable Guide System Mounted on infeed conveyor, the heater preheats top of panels to between 35 - 40 C (95 - 104 F); width can be easily adjusted by retractable panel guide/fence; Mod. #s: "C2.4-130 PH" & "C2.4-130 AGS-2". -- Single Surface Glue Spreader for PUR with smoothing rollApplies PUR Hotmelt on flat panels. Application roller is motor driven and features independent frequency inverter redactor, smoothing roller follows application for High Gloss applications, built-in resistors allow independent electronic temperature control and oil-heating; Mod. #: "GS 140-R". -- MELTON E-DRUM -G-25-NPUR Hotmelt System includes: air-tight 200 L Drum Melter with NI120 temperature control - max. pumping capacity 130 kG/Hr @ 100 RPM, max. working viscosity 100,000 cps (100,000 mPa-s), max. working pressure 80 bar (1,160 PSI), max. working temp. 230 C (446 F); (2) heated hoses, 13 mm dia. (1/2") ; and (2) MS Series extrusion guns; Mod. #: B-DRUM PUR Melter. -- 4.5 Meter Conveyor, Adjustable Guide System & Laminate Sheet FeederTransports glued boards from Glue Spreader to Pressure Roller Station, driven by frequency controlled gear motor. Sheet Feeder mounted across top; Sheet Feeder feeds laminate sheets to top of boards; width can be easily adjusted by retractable panel guide/fence on conveyor; Mod. #s: "C4.5 ADG -130 HBD", & "SF 130".Double Roll Press (calender style)Laminating Station to laminate foils in sheets or rolls onto glue coated panel surfaces. Calender style Double Roll Press, Working width 250 - 1,300 mm
