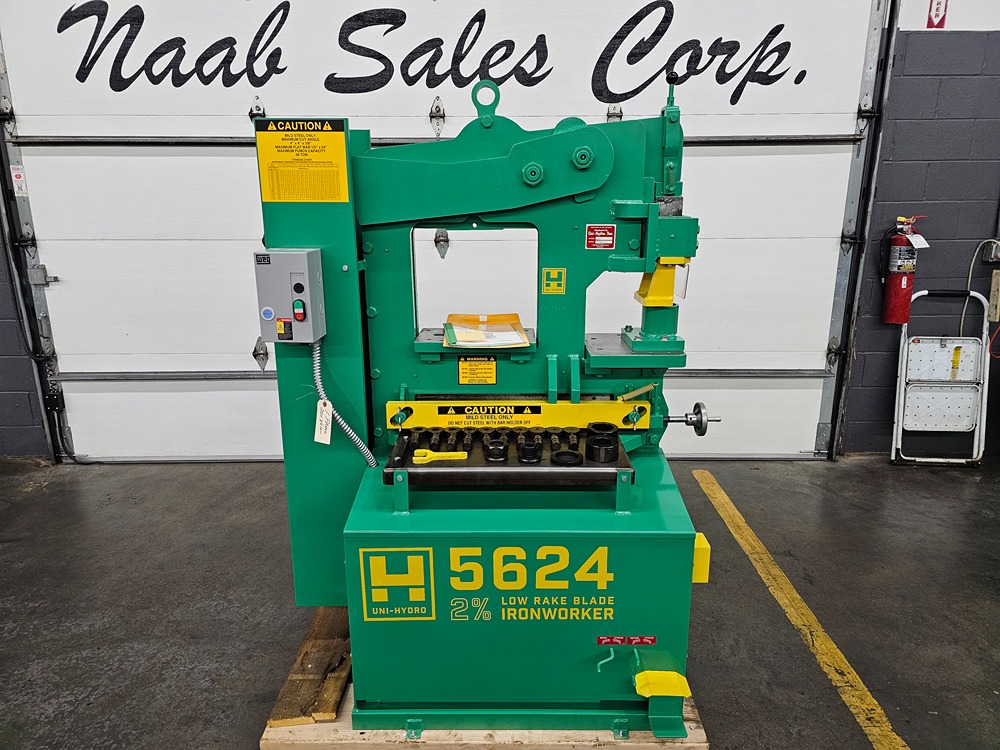

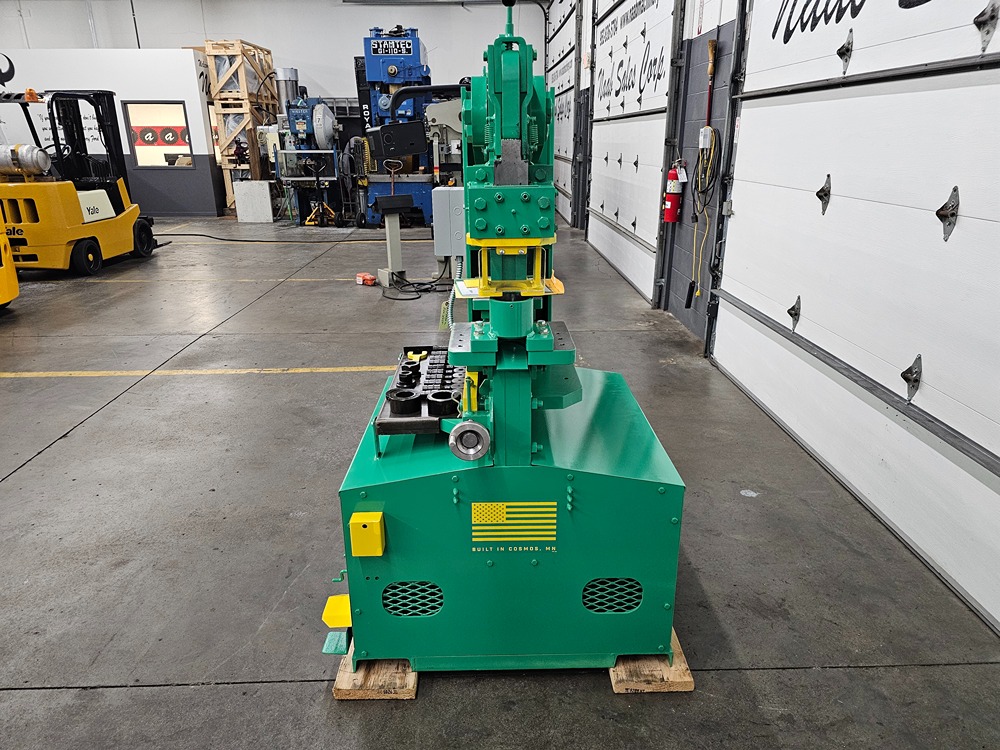

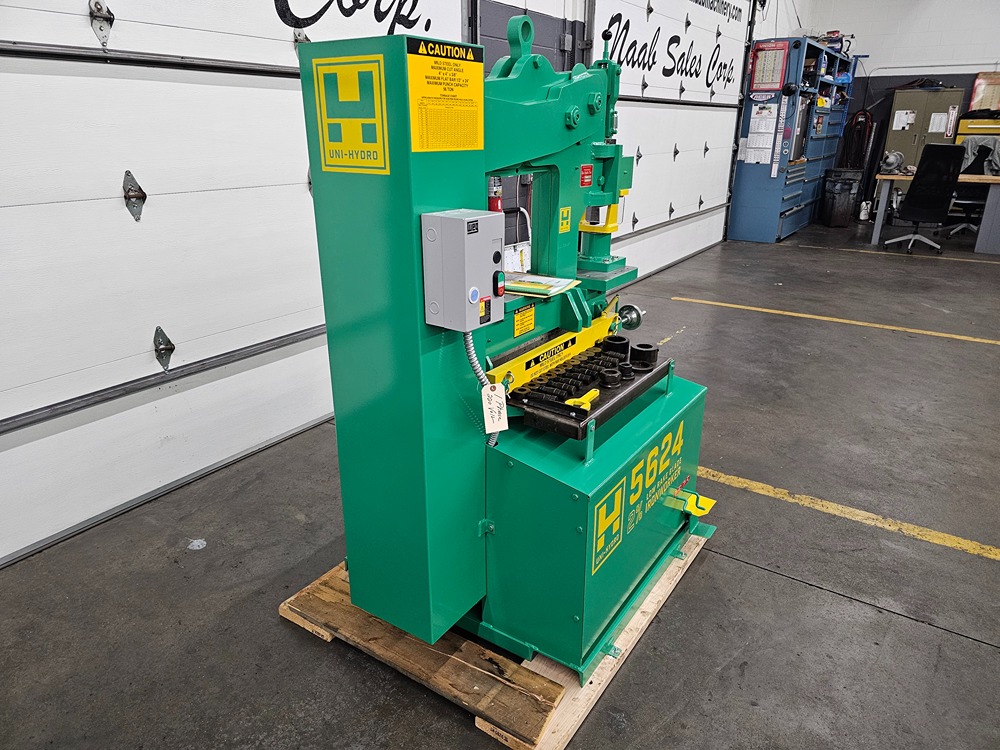

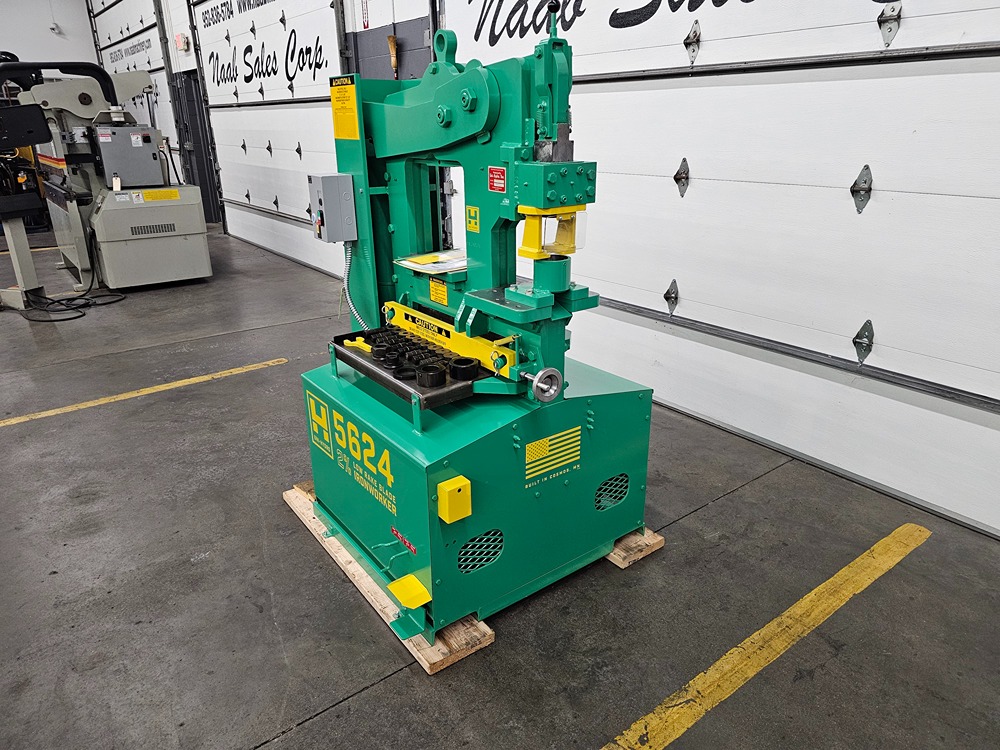

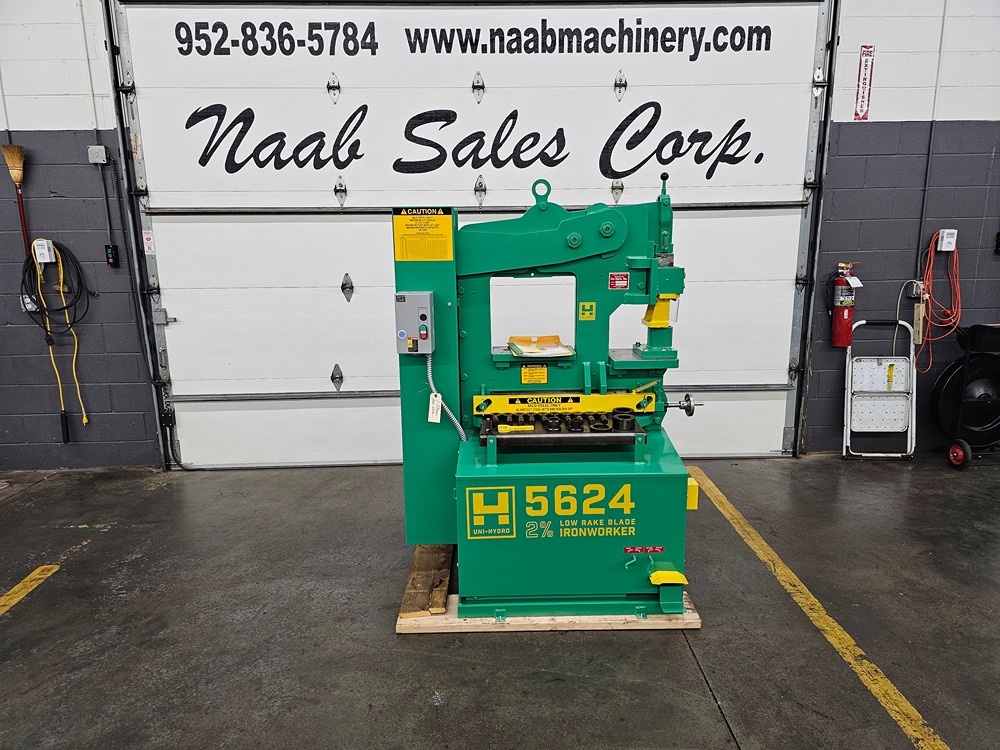

Uni-Hydro #5624, ironworker, 56 ton, 9" throat, manual punch aligner, built for forklift handling

Here We Have:
New Uni-Hydro 56 Ton (5624) Ironworker, 1 Phase 220v, Optioned as Shown,
Grease Bank Kit Standard
Bar Shear Table Standard

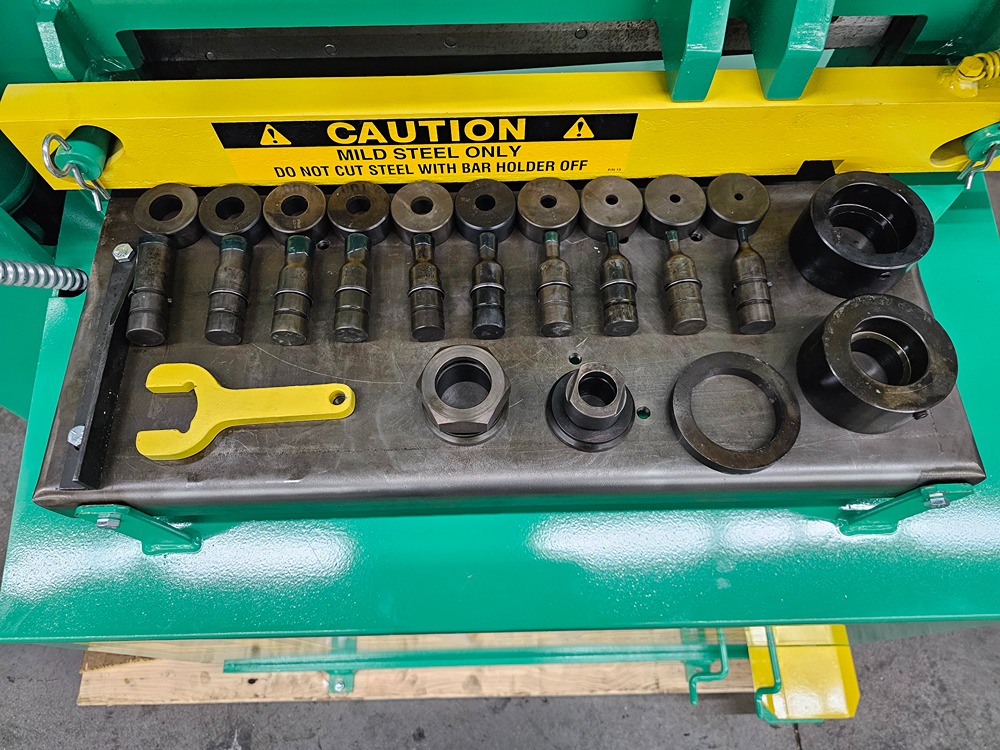

Over Sized Punch and Die Kit $290.00 Option
10 Pack Punch and Die Starter Set $480.00 Option
Punch Nut Wrench $25.00 Option
OPTIONS: $795.00

DESCRIPTION:
In building the 5624 Chuck Dvorak took up his own challenge to design a 1/2” x 24” flat bar shear that could achieve virtually perfect shearing,
with a blade rake as close to zero degree as possible. The result was the Uni-Hydro Model 5624,
featuring a 2° low rake blade and the highest quality shear for any hydraulic ironworker that has ever been produced.
No other hydraulic ironworker can match the 5624’s capability of shearing 1/2” x 24” on 2 degrees of rake,
with such minimal distortion over 24”. This machine will do great in small fab, farm and sheet metal shops

56 ton (Model 5624) ironworker

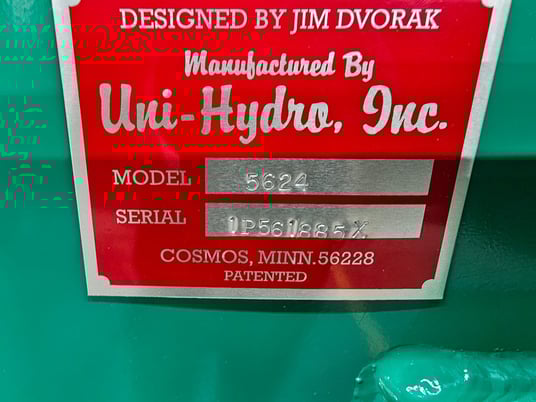

Model 5624
Tonnage 56
Throat Depth 9″

Punch
1-3/8″ hole in 1/2″ mild steel
2-1/4″ hole in 5/16″ mild steel

Bar Shear
1/2″ x 24″

FEATURES:

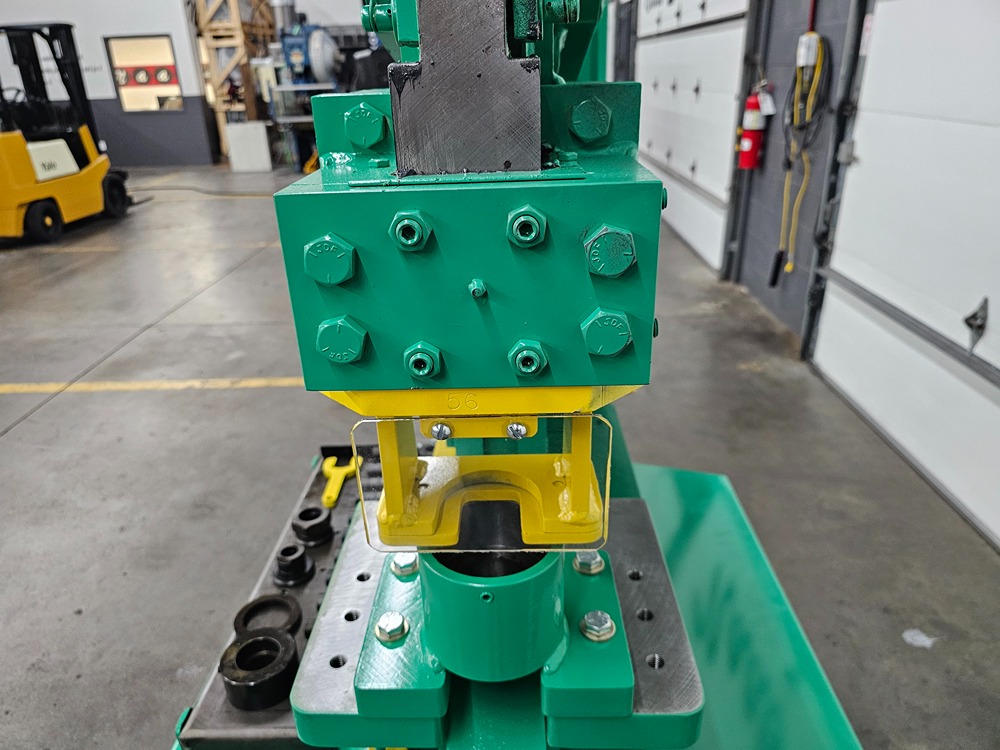

Manual Punch Aligner

9″ Open Throat Punch with 56-ton capability

24″ Bar Shear with Four Sided Blades, with 2 degrees of rake

Bar Shear Hold-Down can be Fixed or Adjustable

Full Up & Down Stroke Control

Built for Forklift Handling

Magnetic Starter for Safety & Reliability

1 Phase Motor 220 V

Strokes Per Min
Light Material – 50
Max Capacity – 9

Hydraulics 2,000 psi
Oil Capacity 16 gallons

Motor
Optional – 5 HP / 1ph

Dimensions
(L x W x H) 46″ x 37″ x 70″

Bar Shear Work Height – 29″
Punch Table Top Height – 39-1/4″
Cavity Table Top Height – 41″

Weight – 2,700 lbs

OPTIONAL EQUIPMENT:

Angle Shear 90°
Slug Type – 6″ x 6″ x 3/8″
Sever Cut – 4″ x 4″ x 3/8″

Miter Angle 45°
Bar Shear – 4″ x 4″ x 3/8″
Slug Type – 4″ x 4″ x 3/8″

Rod Shear
Round (Max) – 1-1/4″
Square (Max) – 1-1/4”

V Coper Notcher 90°
For 4″ x 4″ x 3/8″ Angle Iron

Square Notcher
3″ x 3″ x 3/8″ – Punch/Power Cavity

Pipe Notcher (Sch 40 or 80)
1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 1-3/4”, 2″

Brake
6″, 9”, 14”, 18”, 24” capacity

Channel Shear
2″ & 3″ combined or 4″ standard
