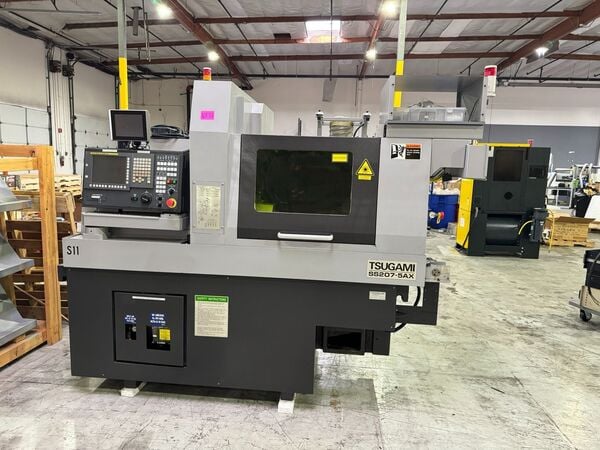

Tsugami #SS207-II-5AX, swiss type automatic screw machine, .787" diameter, 8.26" length, IMG 250LS laser, 12' FMB Micromag bar feeder, 246 psi thru spindle coolant, 2017

For sale: 2017 Tsugami SS207-II with IMG 250LS Laser, a used Swiss Type Automatic Screw Machine. Features spindle hole dia. 20 mm, 2.2 kW power, 5 axes, and laser capabilities. Professional-grade with robust specifications.
Standard Specification SS207-5AX
Maximum Machining Dia. .787 (20mm)
Maximum Machining Length 8.26" (210 mm) / Chucking
Main Spindle Speed 200~10,000
Rotary Tool Spindle Speed 200~8,000
Back Spindle Max. Dia. .787 (20 mm)
Back Spindle Front Ejection maximum length 3.2" (80mm)
Back Spindle Speed 200~10,000
Rapid Traverse Rate 32 M/min
Input Power 6KVA
Center Height 39.37 (1,000 mm)
Weight 7,260 lbs
B1 Axis Tool Spindle Position
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110 degree
Positioning method Servo controlled
TSUGAMI LASERSWISS SPECIFICATIONS
Laser Specifications
Laser 250W Fiber
Cooling System Water Cooled
Laser Enclosure Classification Class 1
Max Cutting Speed 500mm/sec
Wavelength 1070 +/- 10nm
Frequency 2-20kHz
Pulse Width 0-CW
Power 25-250w
Nozzle Standoff Adjustment NC controlled
Variable Gas Pressure 5 to 350 psi
# of Gas Connections 2
Through Work Piece Coolant to 246 psi
Coolant as Fed From Front of Part to 1,000 psi
Tube Size Constraints
250W Fiber
Maximum Wall Thickness 0.039" (1.0mm)
Minimum OD 0.080" (2mm)
Maximum OD 0.787" (20mm)
Minimum OD: ID Ratio 3:1
