Description

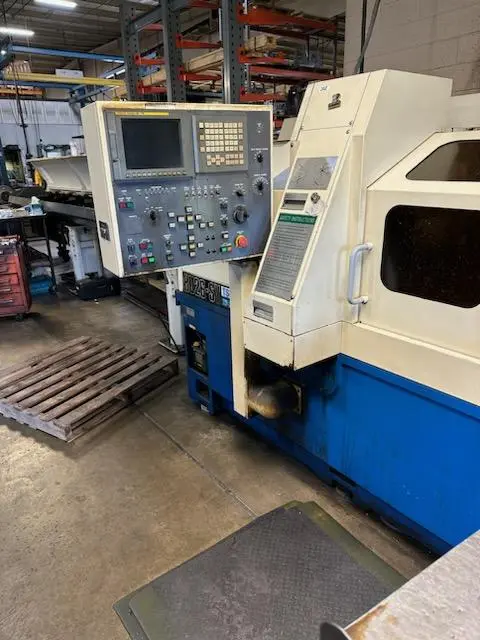

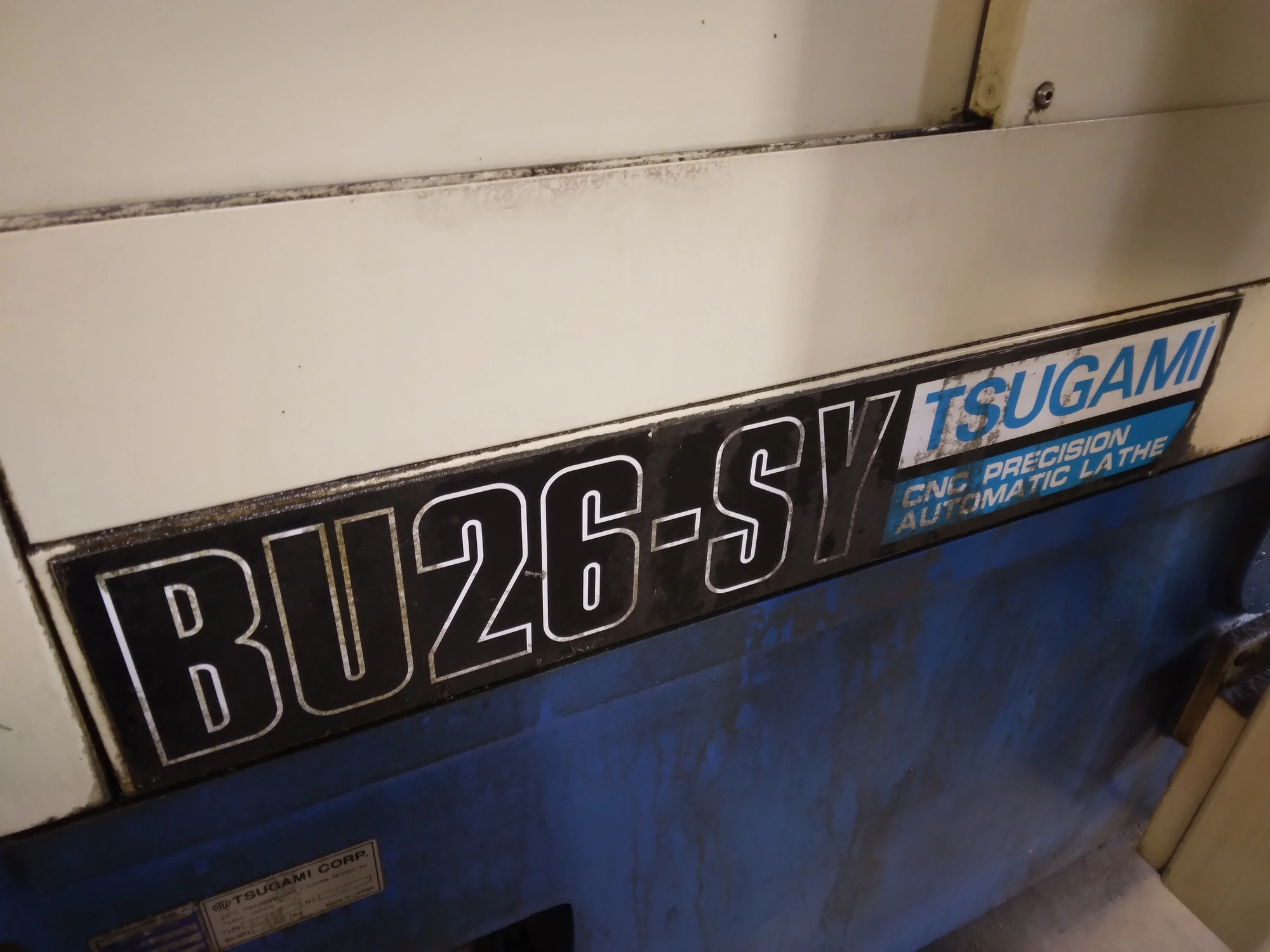

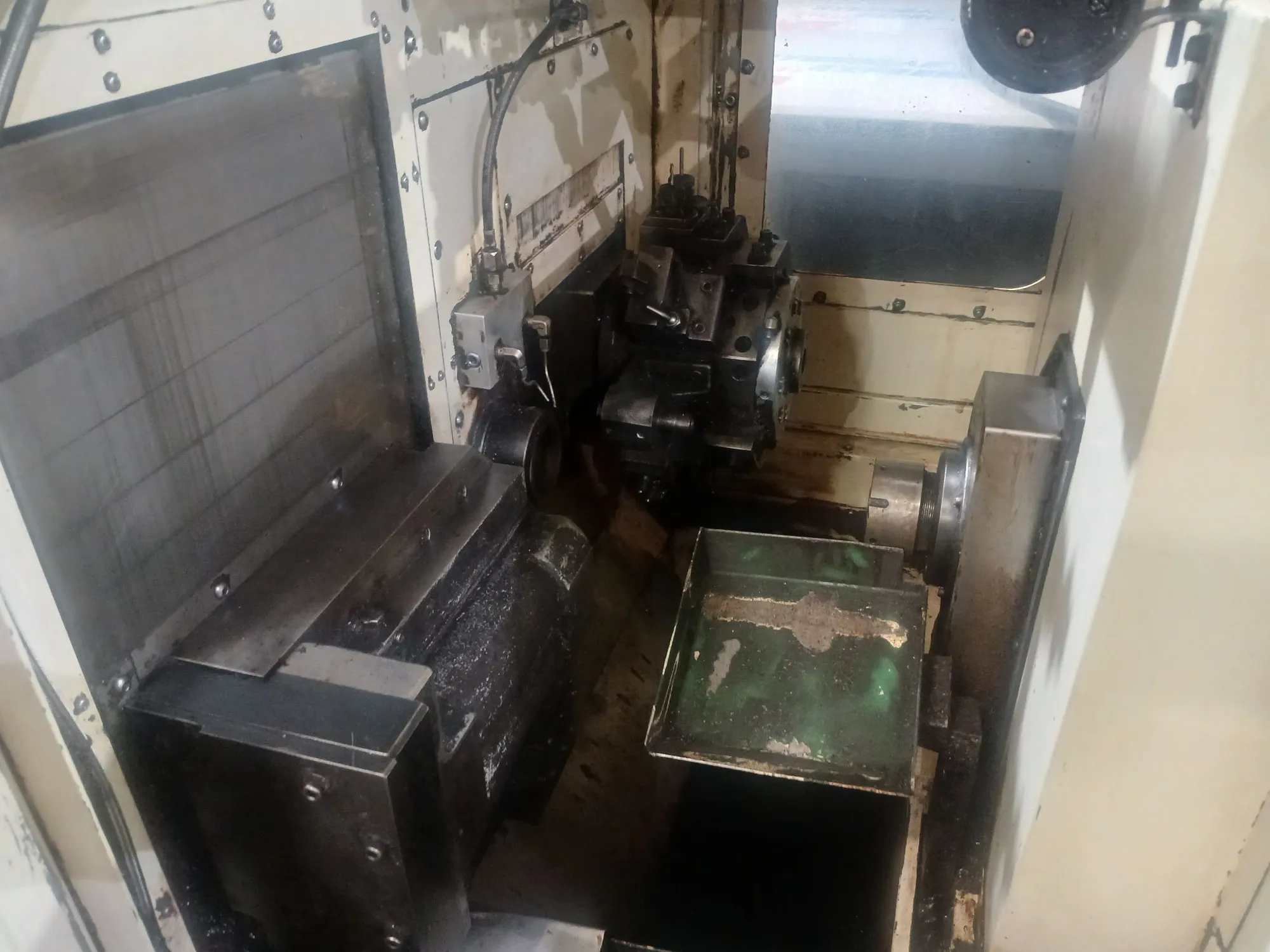

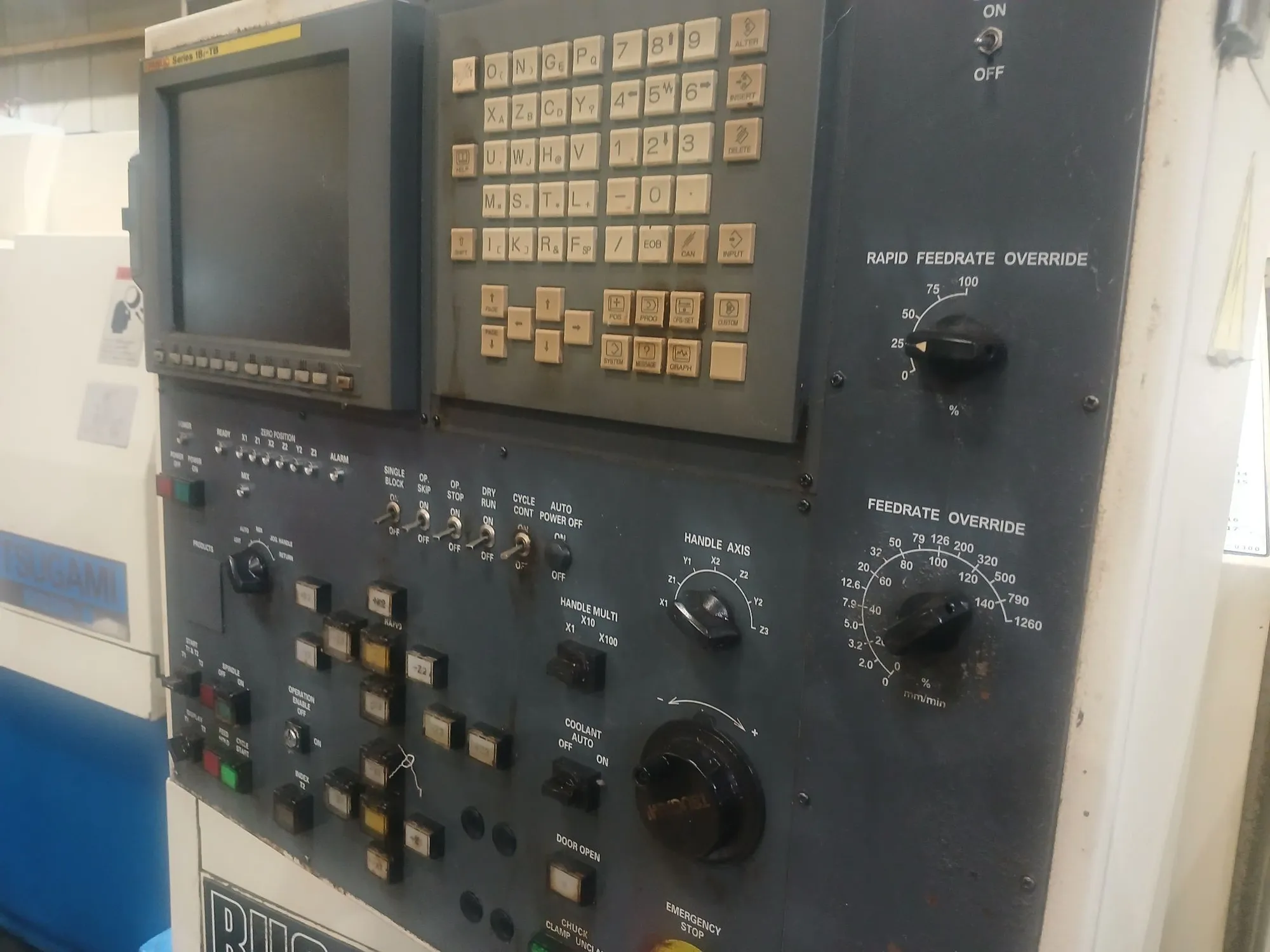

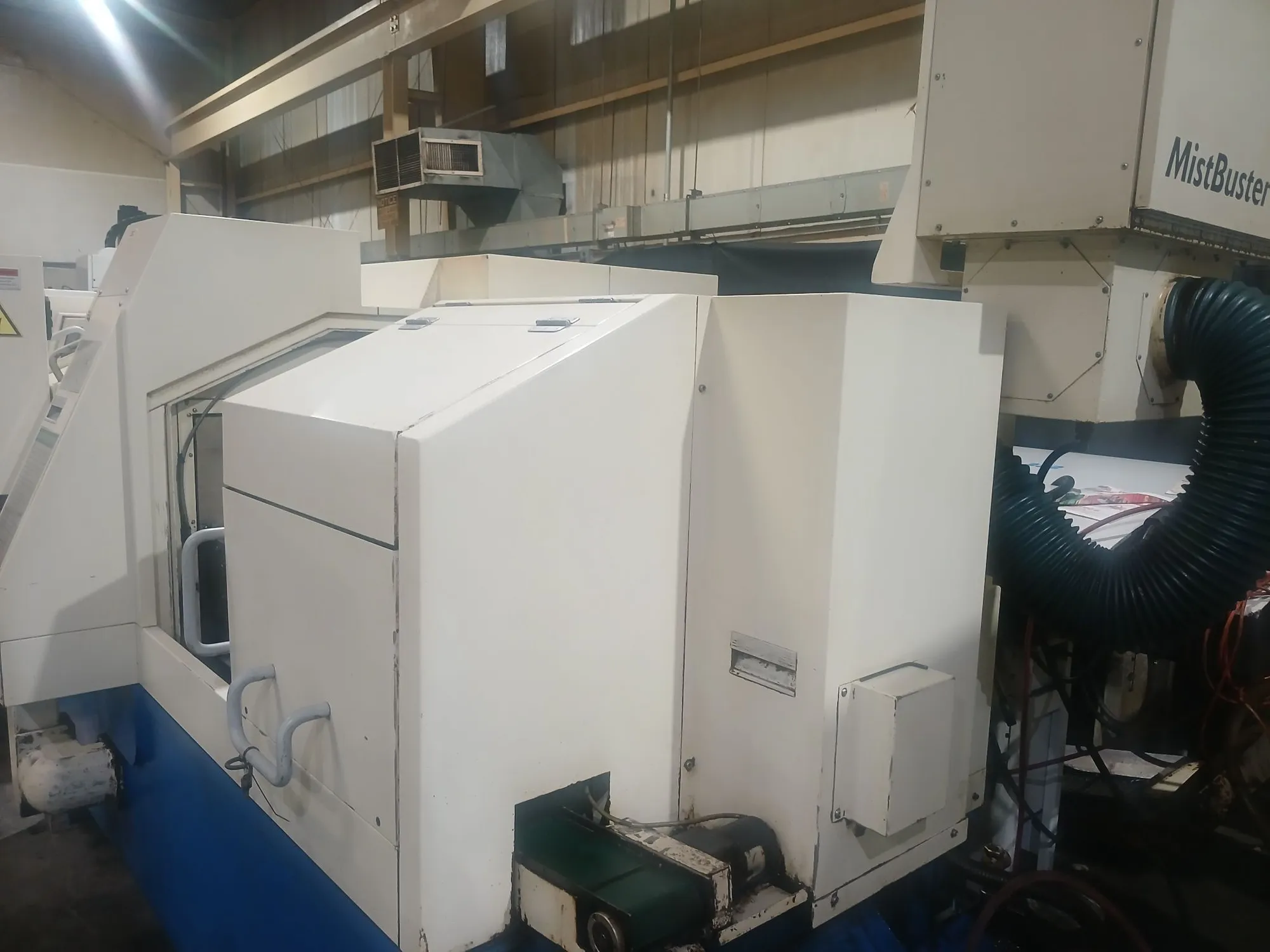

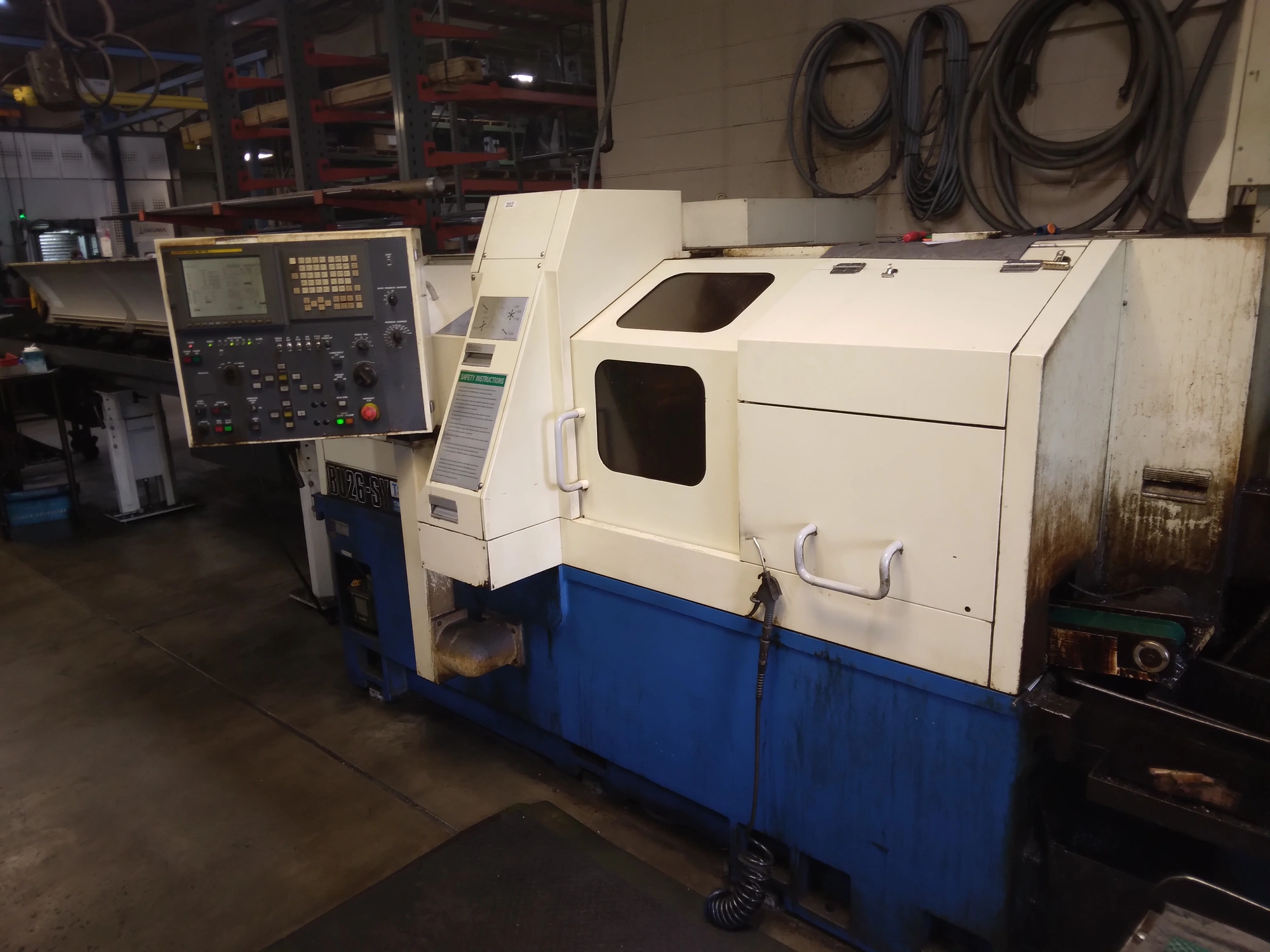

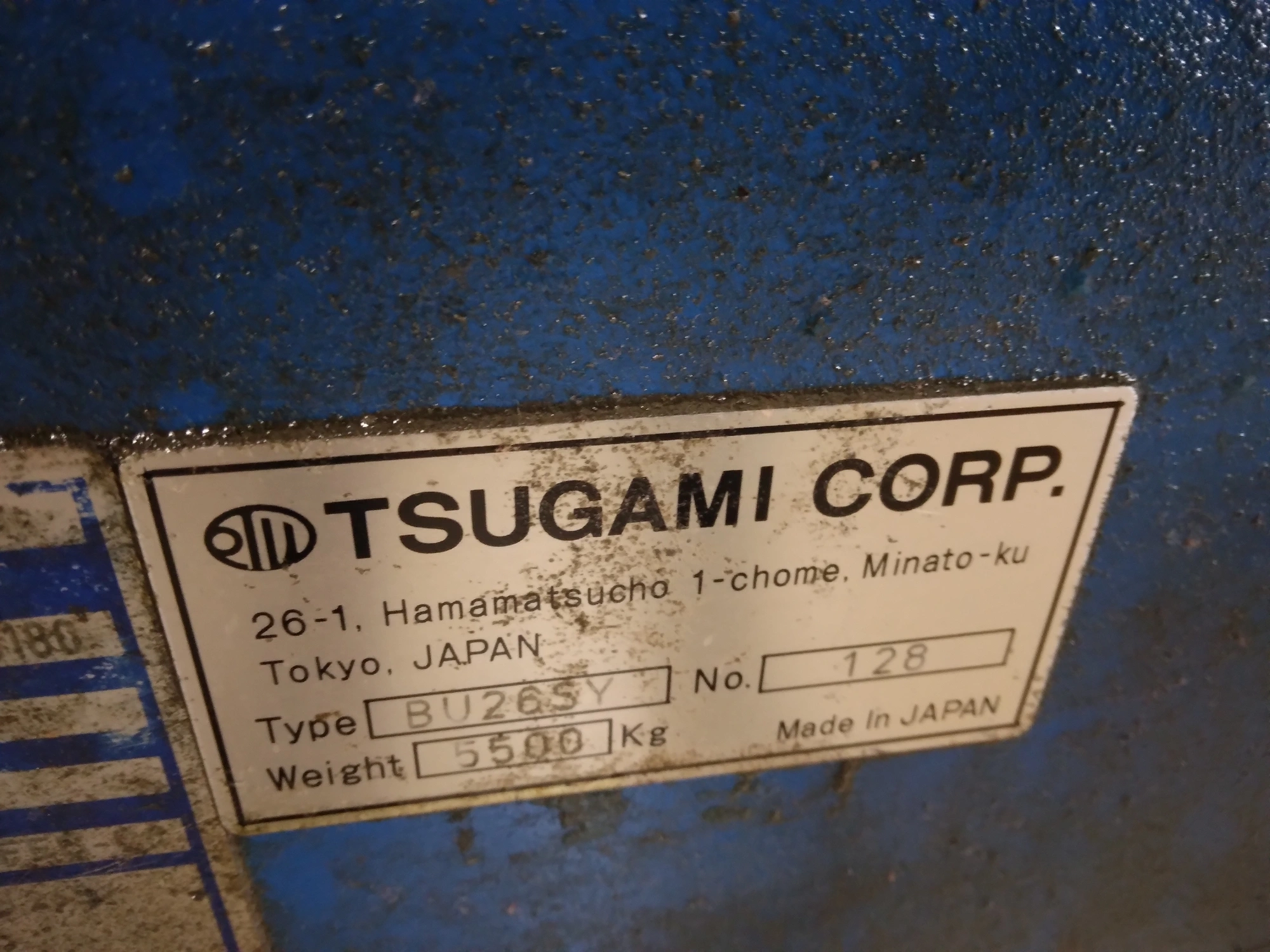

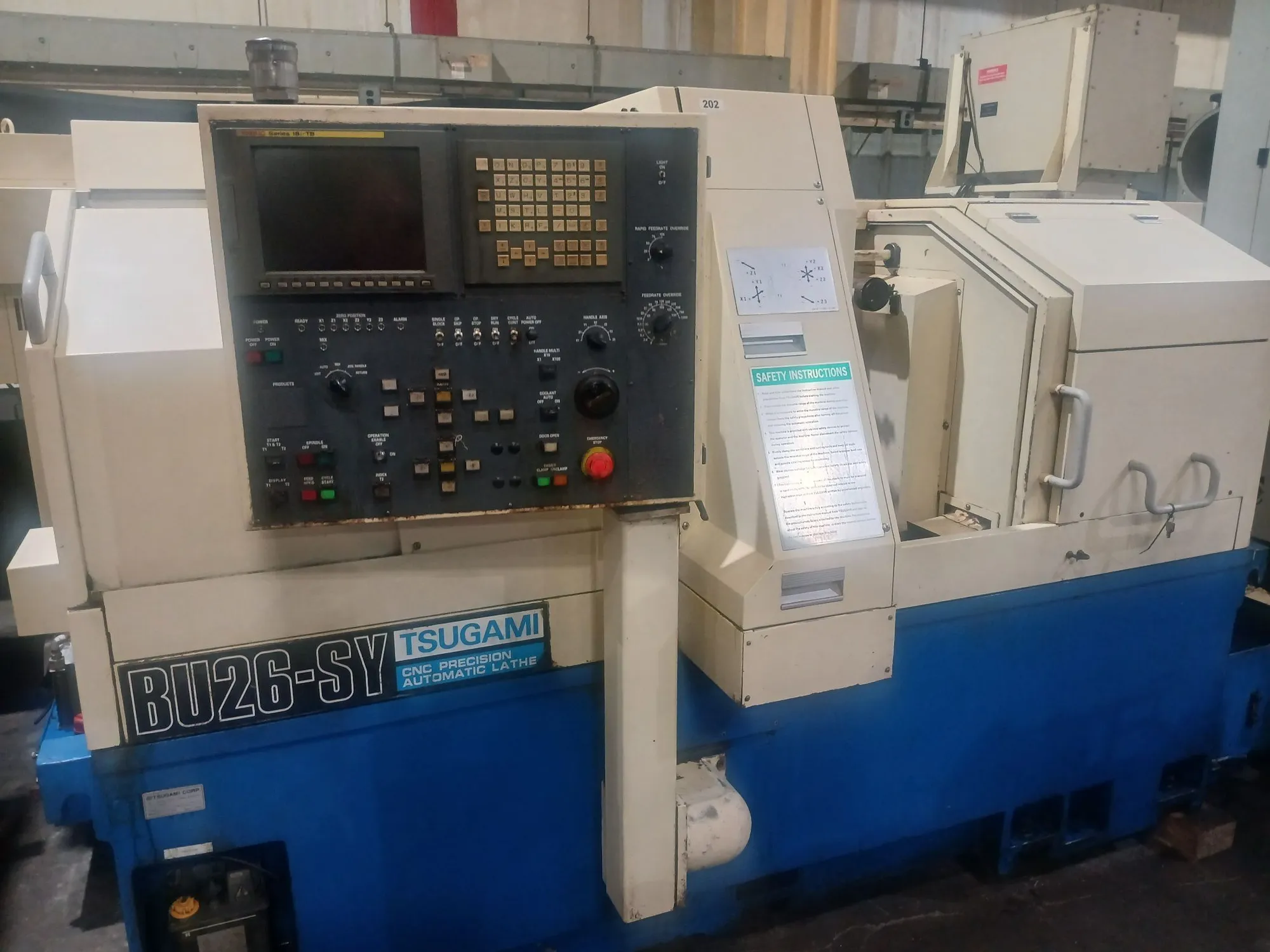

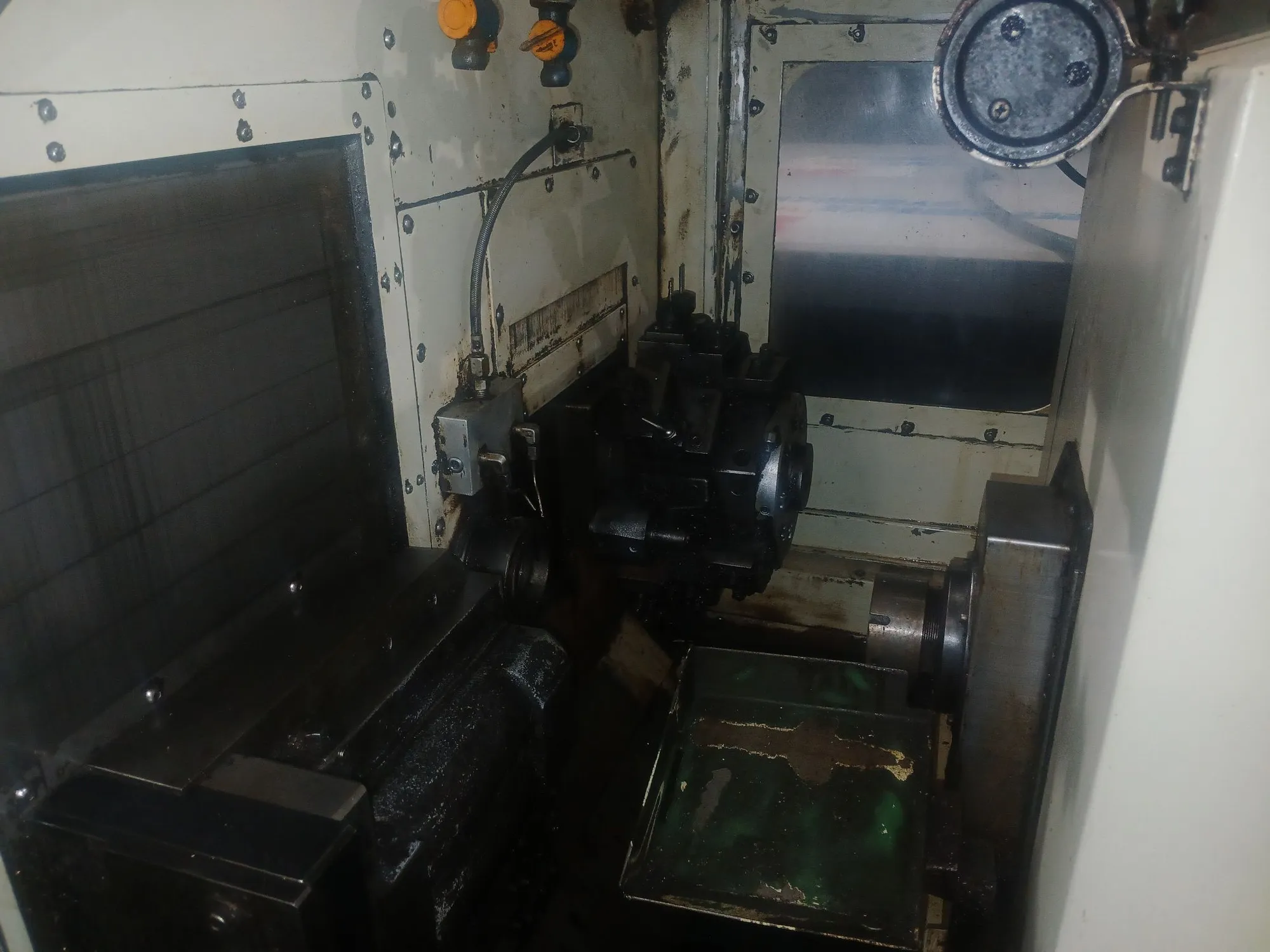

The Tsugami BU-26SY CNC Swiss gang slide/turret lathe is engineered for complex machining operations, featuring a 1" bar capacity and driven by a FANUC 18ITB2 CNC control. This 8-axis machine includes a main spindle with 7.3 HP and a top speed of 6000 RPM, offering full C-axis indexing capability. The sub-spindle matches the 1" bar capacity, with a speed range of 200–5000 RPM and 5-degree indexing resolution. The machine is equipped with an 8-station turret (3-axis) and an independent gang tool slide, permitting simultaneous front and back working. Standard axes include X1, Z1, C1, Y1, X2, Z2, Y2, and an optional Z3 axis, facilitating versatility in machining. The live tool motor offers 15.0 HP with a speed of 5000 RPM. Dimensions are 133" x 83" x 101", with a total weight of 12,100 lbs. This model is a Swiss-type machine designed for precision and flexibility.
, 2006 Tsugami BU-26SY CNC Swiss Lathe with LNS Express Bar Feed. s Fanuc 18iTB2 Control, full C Axis, Chip Blaster, 8-axis capability, and a range of collets/tool holders. Perfect for complex machining. Excellent capacity and power at 1" and 7.3 hp., Spec Sheet:, 2006 Tsugami BU-26SY CNC Swiss Gang Slide/Turret Lathe ...more
Bar Capacity 0.79", Max Machining Length 8.27", Max Main Spindle Drilling Diameter 0.39", Max Main Spindle Tapping Diameter 0.31", Max Back Spindle Gripping Diameter 0.79", Max Back Spindle Drilling Diameter 0.39", Max Back Spindle Tapping Diameter 0.31", Max Tool Spindle Drilling Diameter 0.31", Max Tool Spindle ...more
2006 TSUGAMI BU26SY in used condition, offers 26mm spindle hole, 7.3 hp power, 8 axes, and speeds up to 6000 RPM. Includes Fanuc CNC, Coolant System, Bar Loader, and various tool holders. Full C-axis control on main spindle., Main Spindle, Bar Capacity: 1.000", Turning Lengths: 9.842 " per Stroke, Indexing Increments: ...more
Machine Stock Size: 1.02", Maximum Machining Length: 8.21", Maximum Spindle Drilling Diameter:.468", Maximum Main Spindle Tapping: M10, Maximum Sub-Spindle Chucking Diameter. 1.02":, Maximum Sub-Spindle Drilling: 0.375", Maximum Sub-Spindle Tapping: 0.3125", Maximum Tool Spindle Tapping Diameter. 0.25":, Z1-Axis ...more
TSUGAMI BW129ZI CNC Swiss Lathe, CAPACITY 0.4724″, SPINDLE HOLE DIAMETER 0.6299″, POWER 3 hp, RPM 12,000 RPM, # AXIS 9, SWISS, CHUCKER OR CONVERTIBLE? Convertible, MAIN SPINDLE INDEXING Full C, SUB-SPINDLE INDEXING Full C, LIVE BACK WORKING TOOLS Yes, B-AXIS? No, CONTROL CNC (Fanuc 31i B), DIMENSIONS ...more
