Description

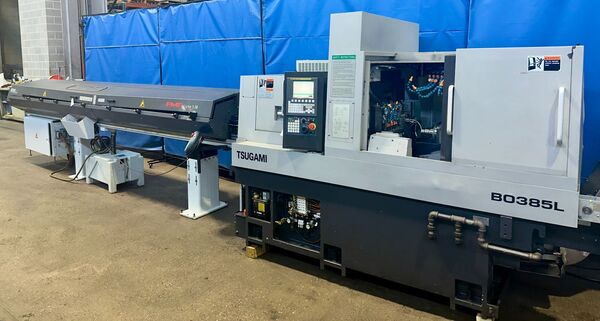

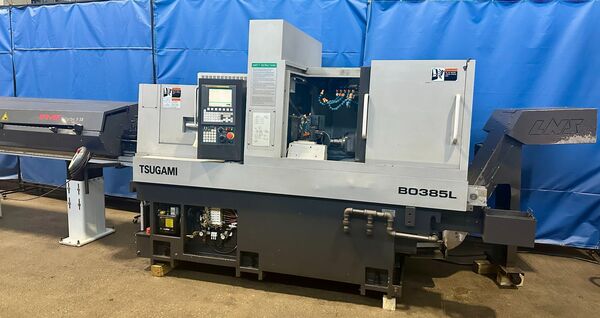

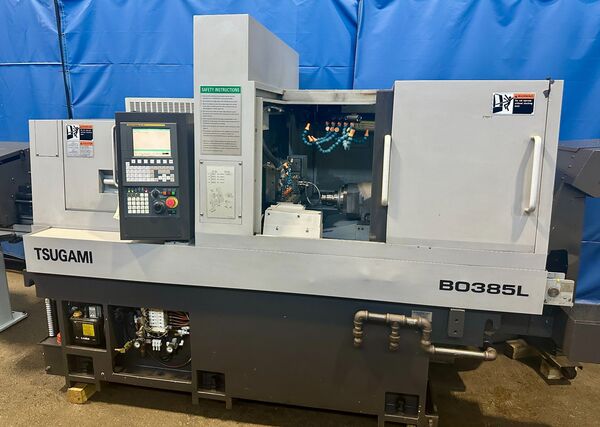

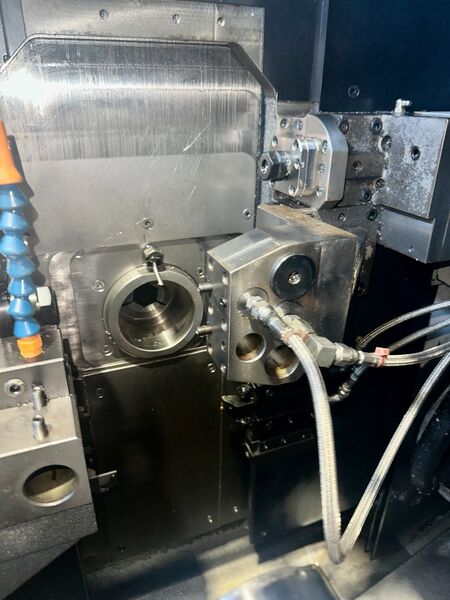

TSUGAMI B0385L 5-AXIS CNC SWISS TURNING CENTER
Model B0385L, S/N 105, New 2011
Stock # Q12108
Model B0385L, S/N 105, New 2011
Stock # Q12108
EQUIPPED WITH:

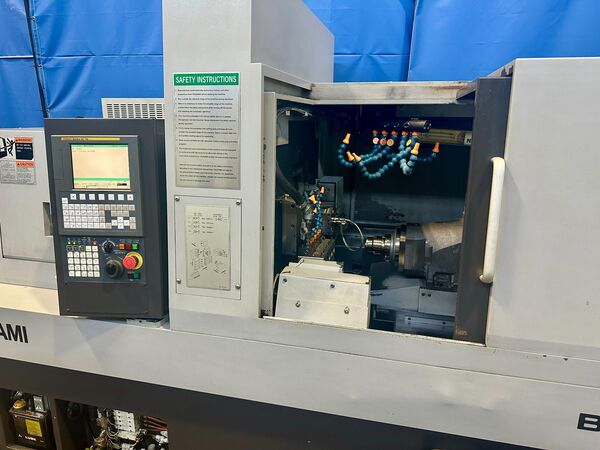

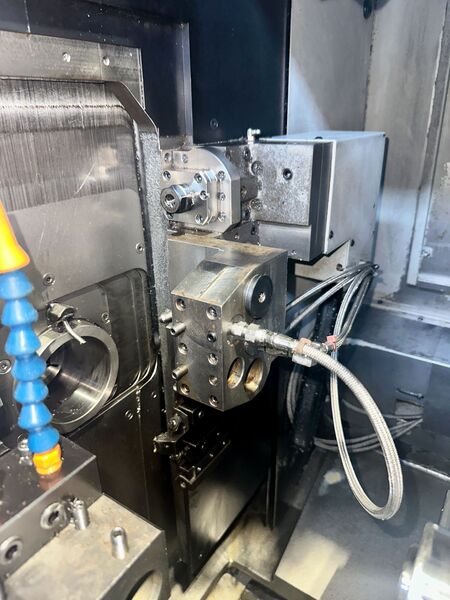

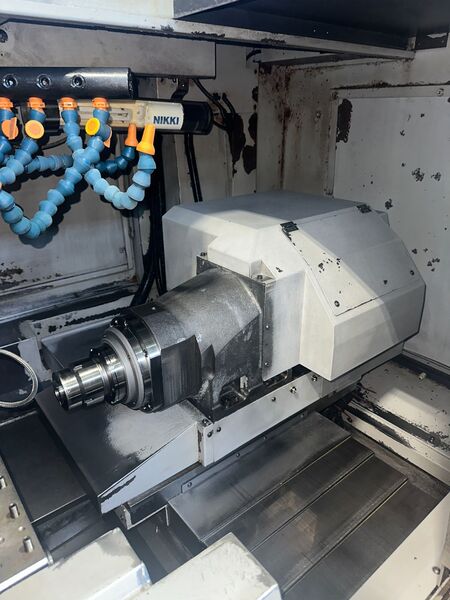

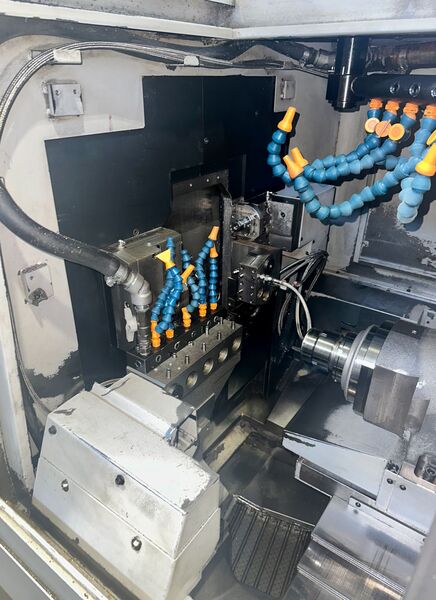

Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Coolant Tank & LNS Chip Conveyor, 48 Collets & 10 Toolholders (4 Live) Included, New 2011.

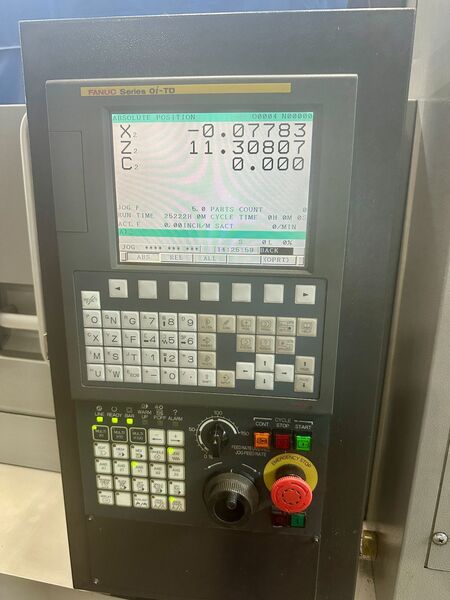

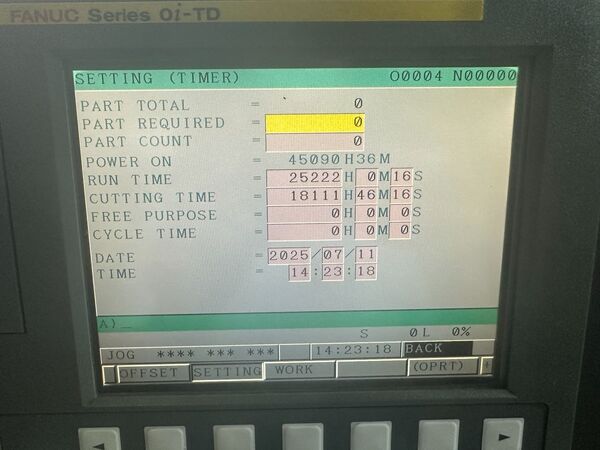

Hours as of 7/31/2025 (as in photo):
* Power On: 45,090 Hours
* Cutting Time: 18,111 Hours
*** Replacement Cost for This Equipped System If Purchased New Today: $300,000
CATALOG SPECIFICATIONS:
| # Axis | 5 |
| Max Working Barstock Diameter | 1.4961" |
| Max Workpiece Length | 3.937" |
| Max Drilling Diameter Main Spindle | 0.5118" |
| Max Tapping Diameter Main Spindle | M12 |
| Max Barstock Diameter Back Spindle | 1.4961" |
| Max Drilling Diameter Back Spindle | 0.4724" |
| Max Tapping Diameter Back Spindle | M12 |
| Max Drilling Diameter Tool Spindle | 0.3937" |
| Max Tapping Diameter Tool Spindle | M8 |
| Max Slotting Cutter Diameter Tool Spindle | 1.7717" |
| Main Spindle Speed Range | 200 - 6,000 RPM |
| Back Spindle Speed Range | 200 - 7,000 RPM |
| Tool Spindle Speed Range | 200 - 5,000 RPM |
| Total Tool Storage Capacity | 23 |
| Tool Size | .787" x .787" x 4.92" |
| X1-Axis Rapid Traverse Rate | 944.9 in/min. |
| Y1-Axis Rapid Traverse Rate | 944.9 in/min. |
| Z1-Axis Rapid Traverse Rate | 944.9 in/min. |
| X2-Axis Rapid Traverse Rate | 1,259.8 in/min. |
| Spindle Index | C1 Axis and C2 Axis |
| Main Spindle Power | 14.8 hp |
| Back Spindle Power | 7.4 hp |
| Cross Drill of Front Tool Post Power | 1.3 hp |
| Cross Drill of Rear Tool Post Drive | 1.3 hp |
| Z1 Axis Power | 1.6 hp |
| X1 Axis Power | 1 hp |
| Y1 Axis Power | 1 hp |
| X2 Axis Power | 3.4 hp |
| Z2 Axis Power | 3.4 hp |
| Coolant Pump Power | 0.8 hp |
| Lubricating Oil Pump Power | 0.004 hp |
| Power Source Requirement | 30 kV·A |
| Compressed Air Requirement | 58 PSI |
| Air Discharge Rate | 3.5 SCFM |
| Coolant Tank Capacity | 51.5 gal |
| Dimensions | 99.2" x 52.95" x 77.56" |
| Weight | 10,150 lbs |
CONDITION: This Machine Appears to be in Excellent Condition !
