For Sale by Premier Equipment Inc
Description

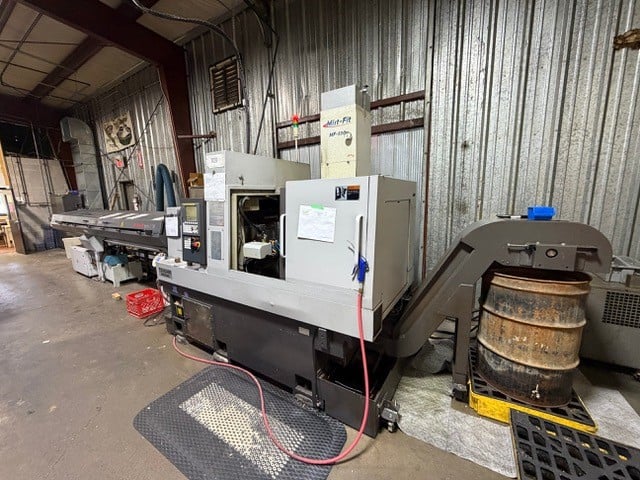

Tsugami B0-385 5 Axis CNC Swiss Type Lathe
Spindle Hole Dia 38 mm
Power 7.5 hp
RPM 7,000 RPM
# Axis 5
size .38MM
Control CNC (Fanuc)
Guide Bushing Configuration
38mm Capacity, 5 Axes
Working Bar Stock Dia: 8-32mm
Main Spindle Drilling: 13
Main Spindle Tapping: M12
Back Spindle Drilling: 12
Cross Drilling: 10
Cross Tapping: M8
Tool Spindle Slotting Cutter: 45
Max. Headstock Stroke 250mm/9.84″
5-10 Live tool positions
Rotary Floating Guide Bushing Speed/Main Spindle Speed: 200 – 6,000 rpm
Sub Spindle Speed: 200 – 7,000 rpm
Live Tool Speed: 5,000 rpm
Main Spindle Motor: 7.5 / 11kW
Weight 4,600 kg/10,14 lbs
Footprint W x D x H: 99.2″ x 52.9″ x 77.5″
Equipped With
Fanuc 0i-TD control
Front and Back Simultaneous Machining
MP H08 2000 PSI Coolant System
#V-2 H08-P13803C = 1000PSI
Tri-Mist 850 Mist Collection
Edge 3-36 Turbo Chip Conveyor
Variety of Main Collets & Guide Bushings.
FMB Turbo 3-38 Bar Feeder (made in Germany)
