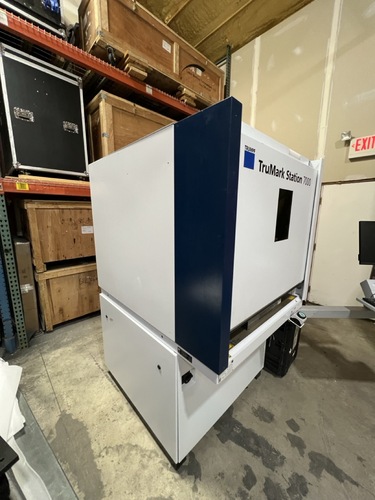

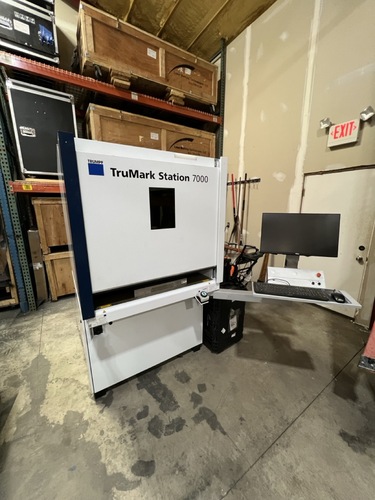

Trumpf #Trumark-7000, Laser Marking System, unused, 2023

Key Specifications (TruMark Station 7000):
Workstation Dimensions: 1150 x 2000 x 1410 mm (approx. 45.3″ x 78.7″ x 55.5″).
Max Workpiece Size (W x H x D): Up to 1000 x 450 x 650 mm (without Y-axis).
Max Workpiece Weight: 220 lbs (100 kg) without rotary axis; 110 lbs (50 kg) with rotary axis.
Linear Travel (X/Y/Z Axes): 650 mm / 350 mm / 500 mm.
Rotary Table (Option): Available for high-volume, synchronous loading/marking.

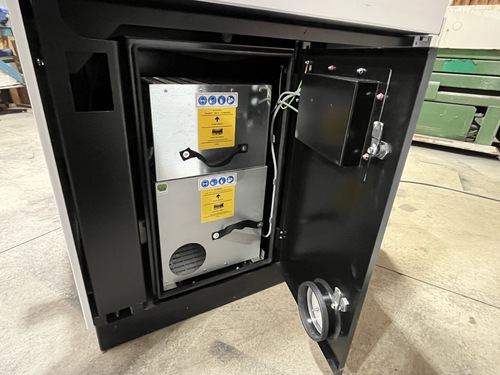

Safety: Certified Laser Class 1, with integrated, precise fume extraction options.
Compatibility: Supports TruMark Series 3000, 5000, 6030, and TruMicro Mark Series.
Performance & Options:
Speed: Linear axis speed up to 15 m/min.
Laser Integration: Capable of integrating with high-power lasers, including the TruMark 7050 (200W, >10kW peak power) for deep engraving and cleaning.
Image Processing: Available options for automatic camera-based positioning (e.g., VisionLine).
User Interface: Unified software interface for laser and axis control.

Brand New Price Today $150,000

Under 50 Hours!
