TRUMPF TruLaser-5020, Robotic Laser Welding Cell, 1143 laser hours, 340 robot hours, 2014

TRUMPF TruLaser Robot 5020 Robotic Laser Welding Cell

Videos Available Upon Request

Low-hour robotic laser welding cell equipped with a KUKA KR 30 HA six-axis robot, TRUMPF TruDisk solid-state disc laser, turn-tilt rotary positioner, dual-station worktable, programmable-focus welding optics and TeachLine optical seam-sensing system.

Specifications

Manufacturer: TRUMPF
Model: TruLaser Robot 5020
Year: 2014
Machine Type: Robotic Laser Welding Cell
Laser Type: TRUMPF TruDisk solid-state disc laser
Laser Source: Reported as TruDisk 4001, 4,000 watts—subject to nameplate verification
Robot: KUKA KR 30 HA High Accuracy
Robot Axes: Six
Laser-On Hours: 1,143
Robot Hours: 339.82
Maximum Workpiece Dimensions: 47.25" × 31.5" × 23.5"
Rotating Table Capacity: 750 kg / 1,653 lbs.
Side Station Capacity: 250 kg / 551 lbs.
Extended Side Panels: 189" × 234"
Welding Materials: Mild steel, stainless steel and aluminum

Equipped With

KUKA KR 30 HA High Accuracy six-axis robot
TRUMPF TruDisk solid-state disc laser
Laser power supply and chiller
30-meter fiber-optic laser delivery cable
Turn-tilt rotary positioner
KUKA DKP 400.1 turn-tilt positioner table
750 kg rotating-table capacity
250 kg side-station capacity
Dual-station worktable
Three-dimensional adapter plate
Two-dimensional adapter plate
BEO D70 welding optics
200 mm focal length
Motorized programmable focus adjustment
TeachLine optical sensor and camera
Magnetic coupling between robot and optics head
KTL axis-alignment set
WeldLine Modular
Argon gas valve
Linear nozzle set
Aerator nozzle set
Media supply for DKP positioner
Process-gas supply port
Process-gas control interface
DKP control interface
Dual-station table control interface
Compact suction, filtration and exhaust unit
Tropical cooling package

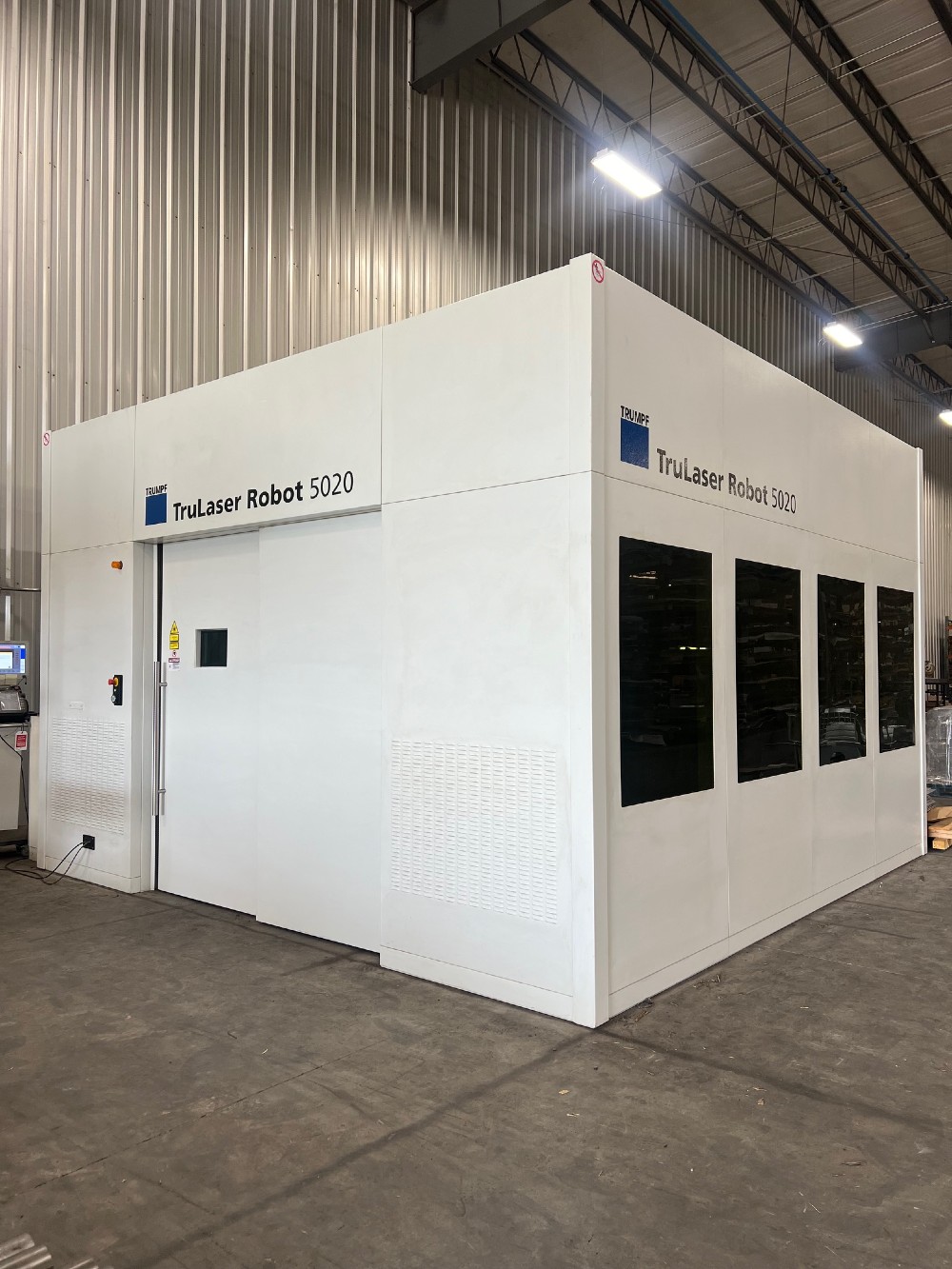

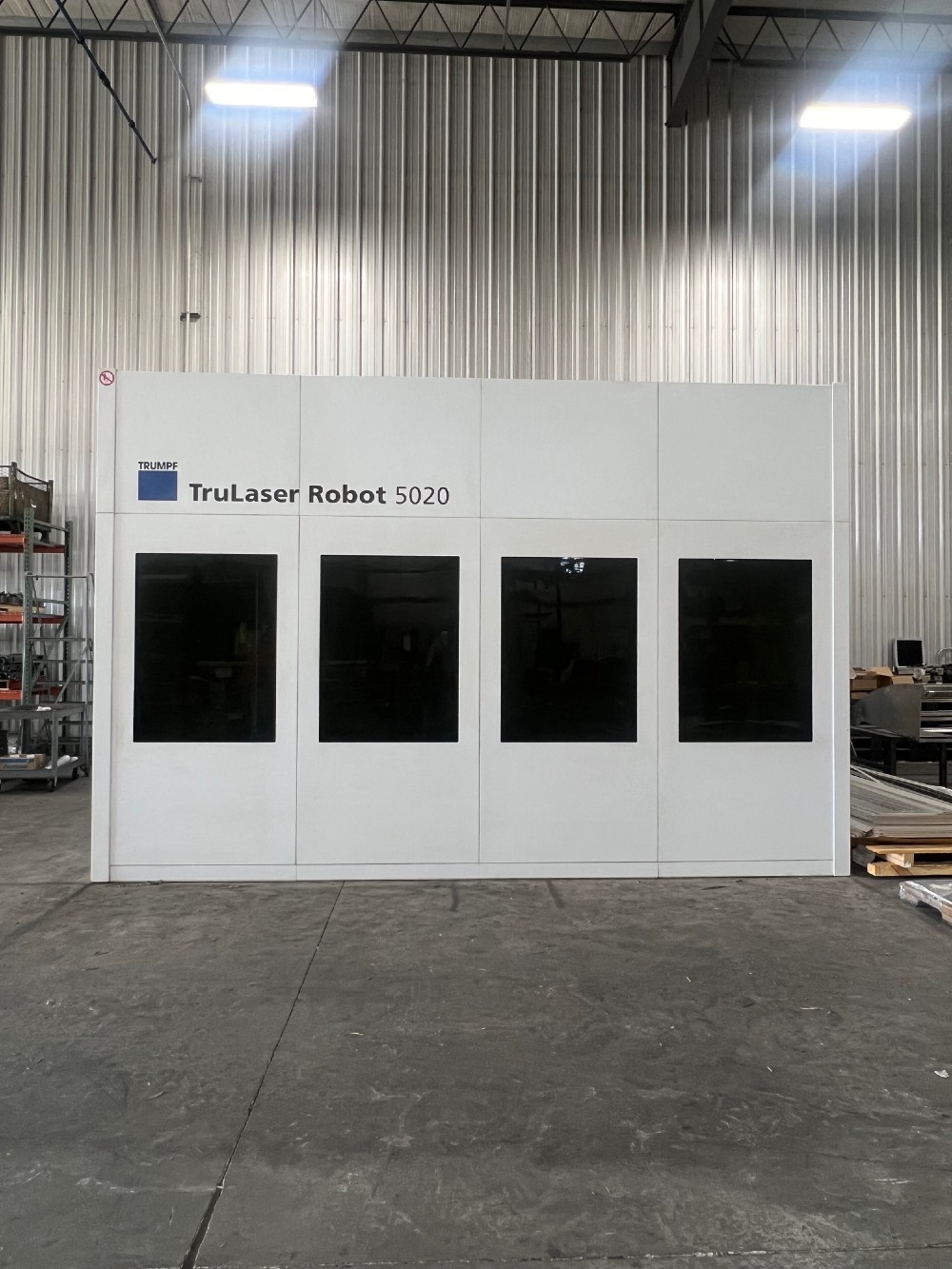

Class 1 safety enclosure
Sliding access door

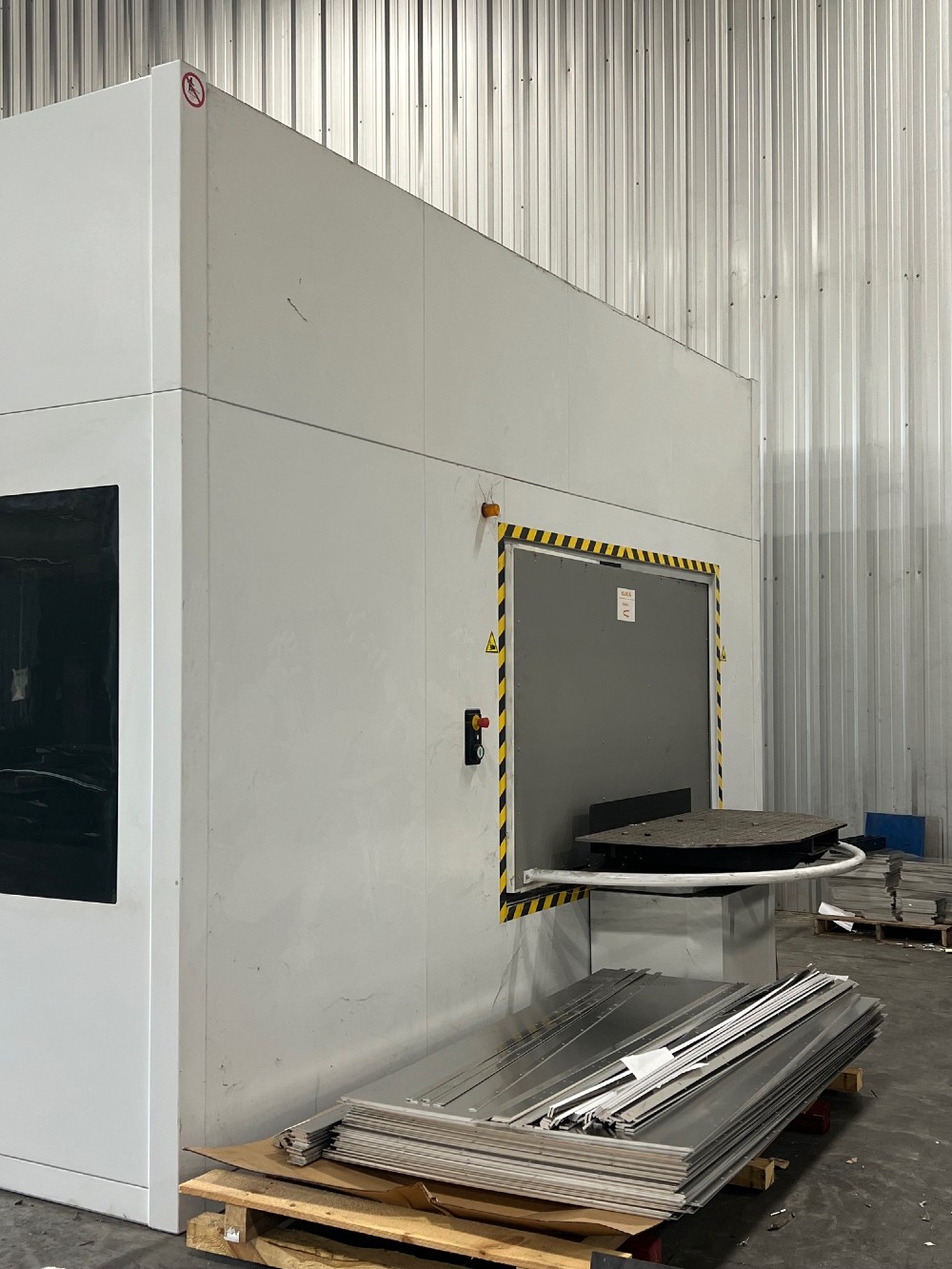

Extended safety-enclosure side panels

Machine Description

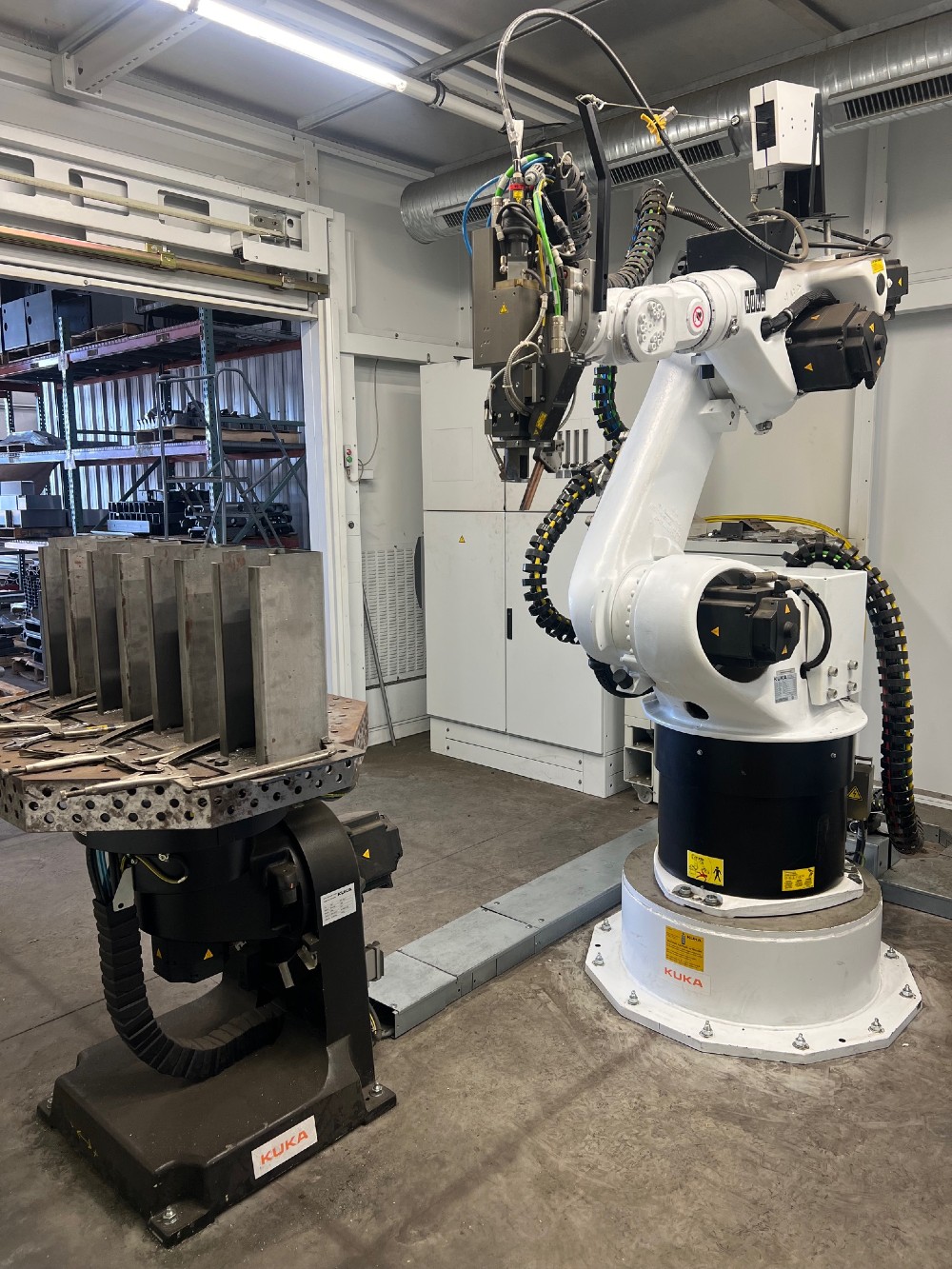

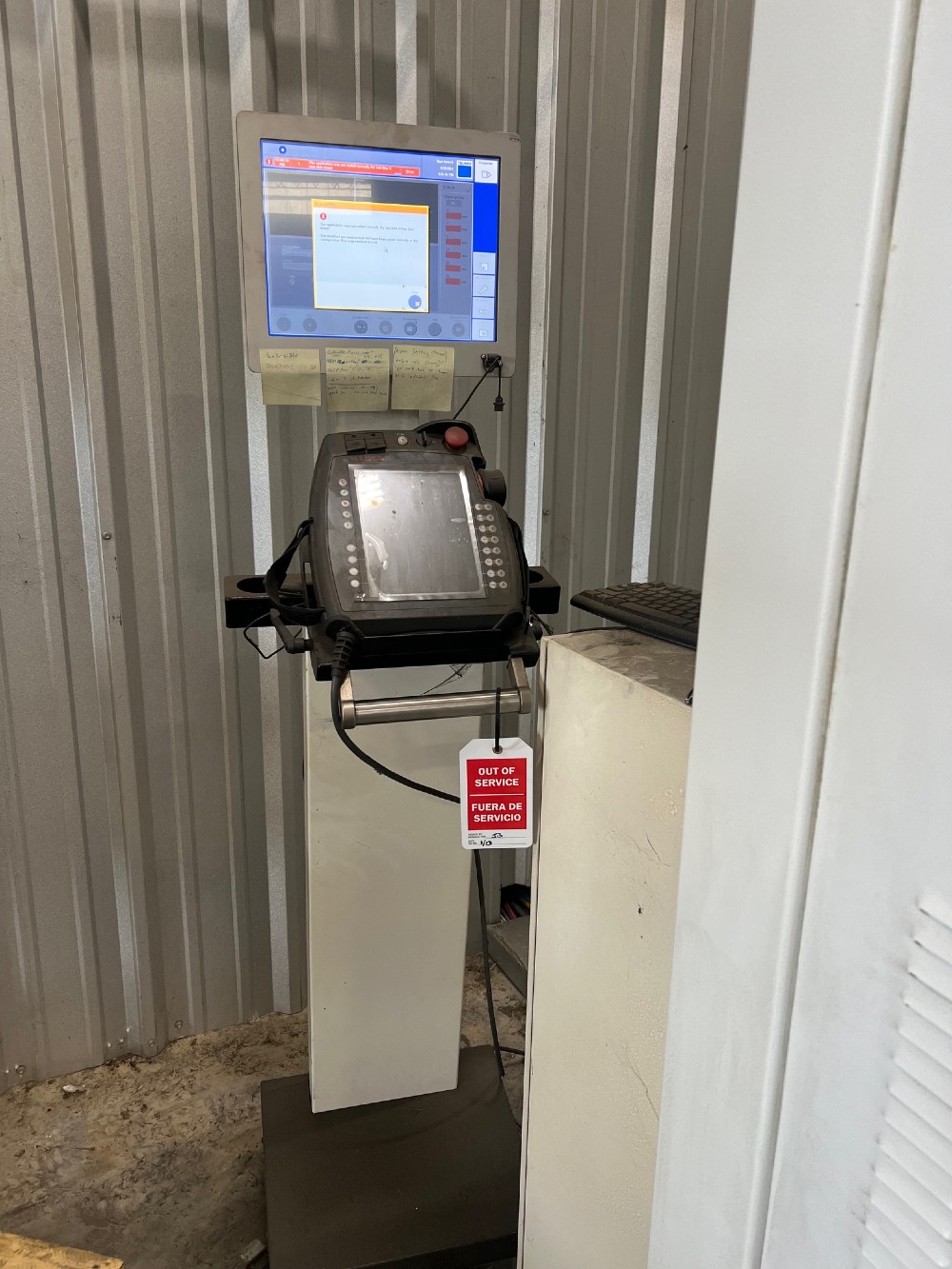

The 2014 TRUMPF TruLaser Robot 5020 is a fully enclosed robotic laser welding cell designed for precision welding of complex three-dimensional components. The system combines a KUKA KR 30 HA High Accuracy six-axis robot with fiber-delivered TRUMPF TruDisk solid-state laser technology.

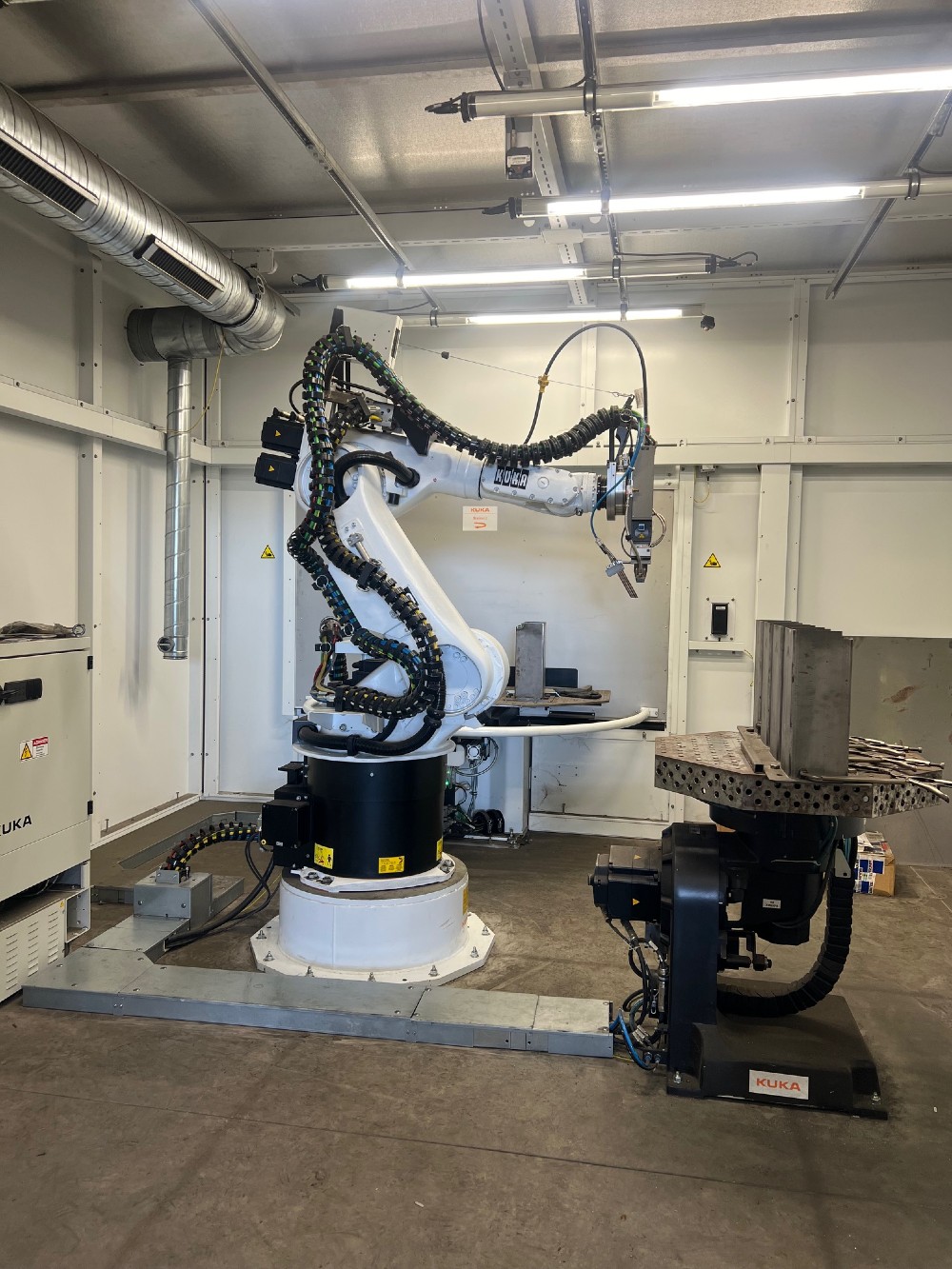

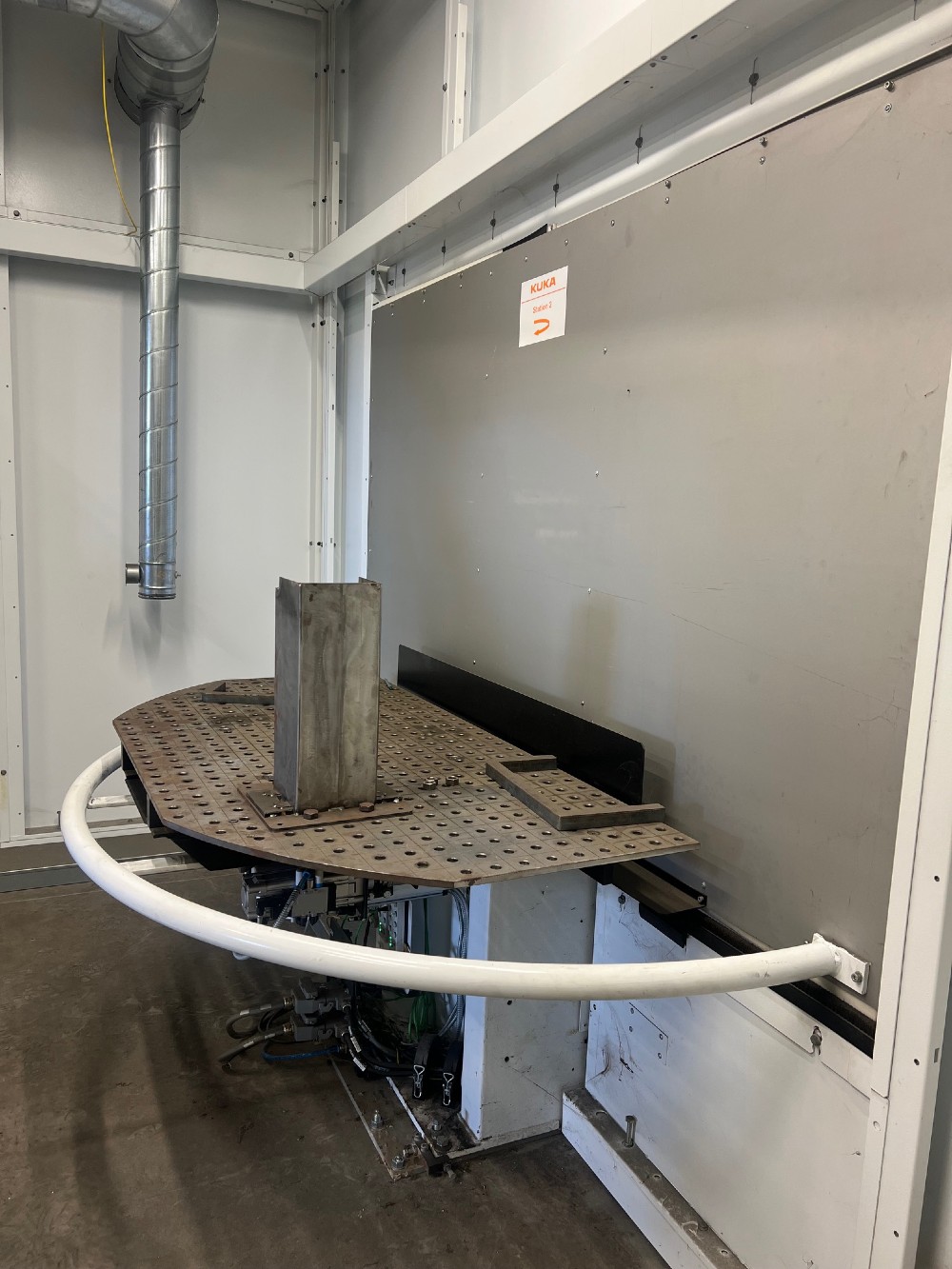

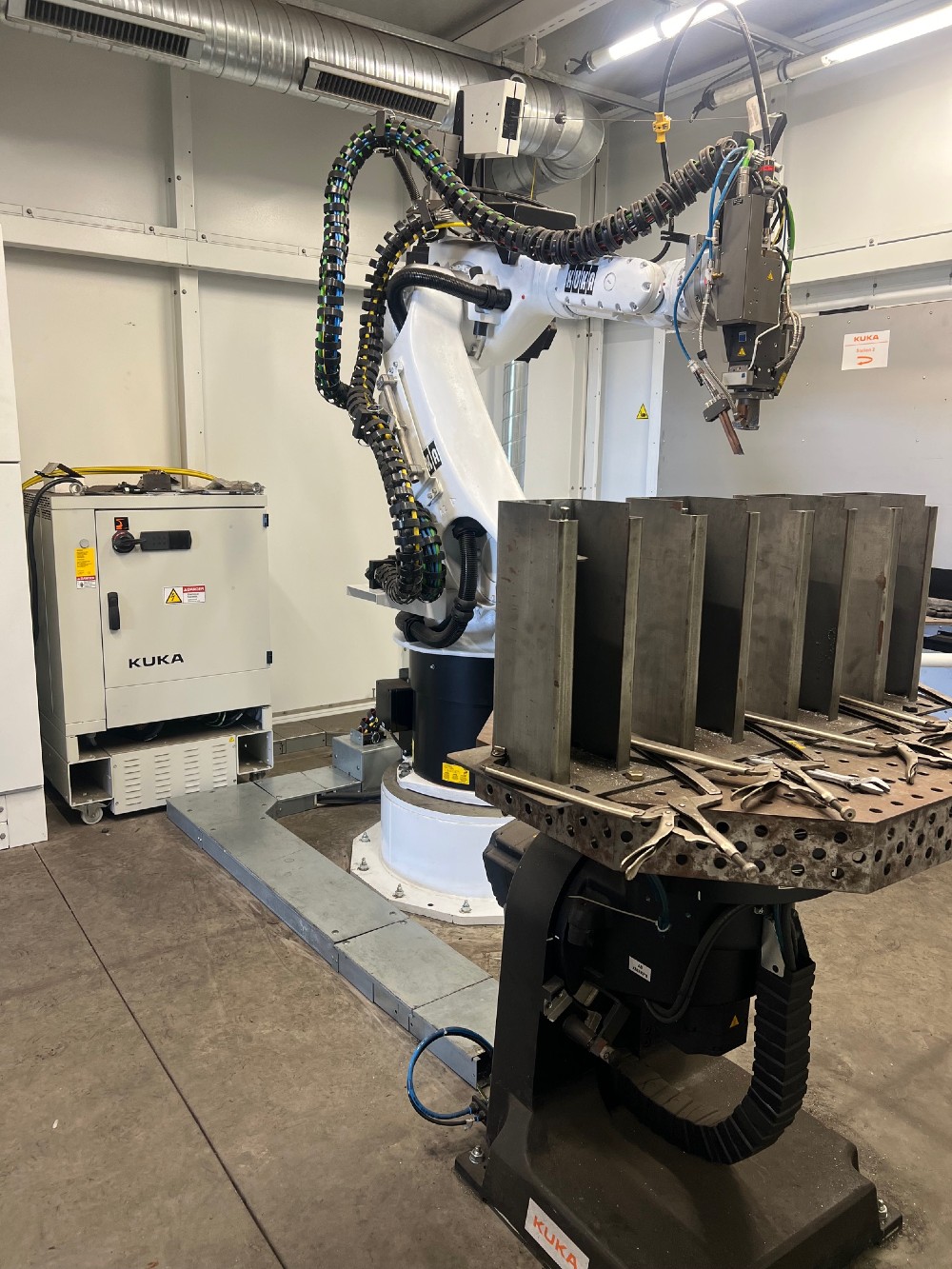

The system includes a KUKA DKP 400.1 turn-tilt positioner and a separate dual-station table, allowing components to be positioned for multi-axis welding. The rotating table is rated for 750 kg, while the side station is rated for 250 kg.

The BEO D70 welding optics feature motorized programmable focus adjustment. The TeachLine optical sensor and camera assist with seam location and compensate for workpiece or fixture variation. The cell also includes process-gas controls, filtration and exhaust, cooling equipment and a fully enclosed Class 1 safety system.

The machine has exceptionally low reported usage, with 1,143 laser-on hours and 339.82 robot hours.
