Description

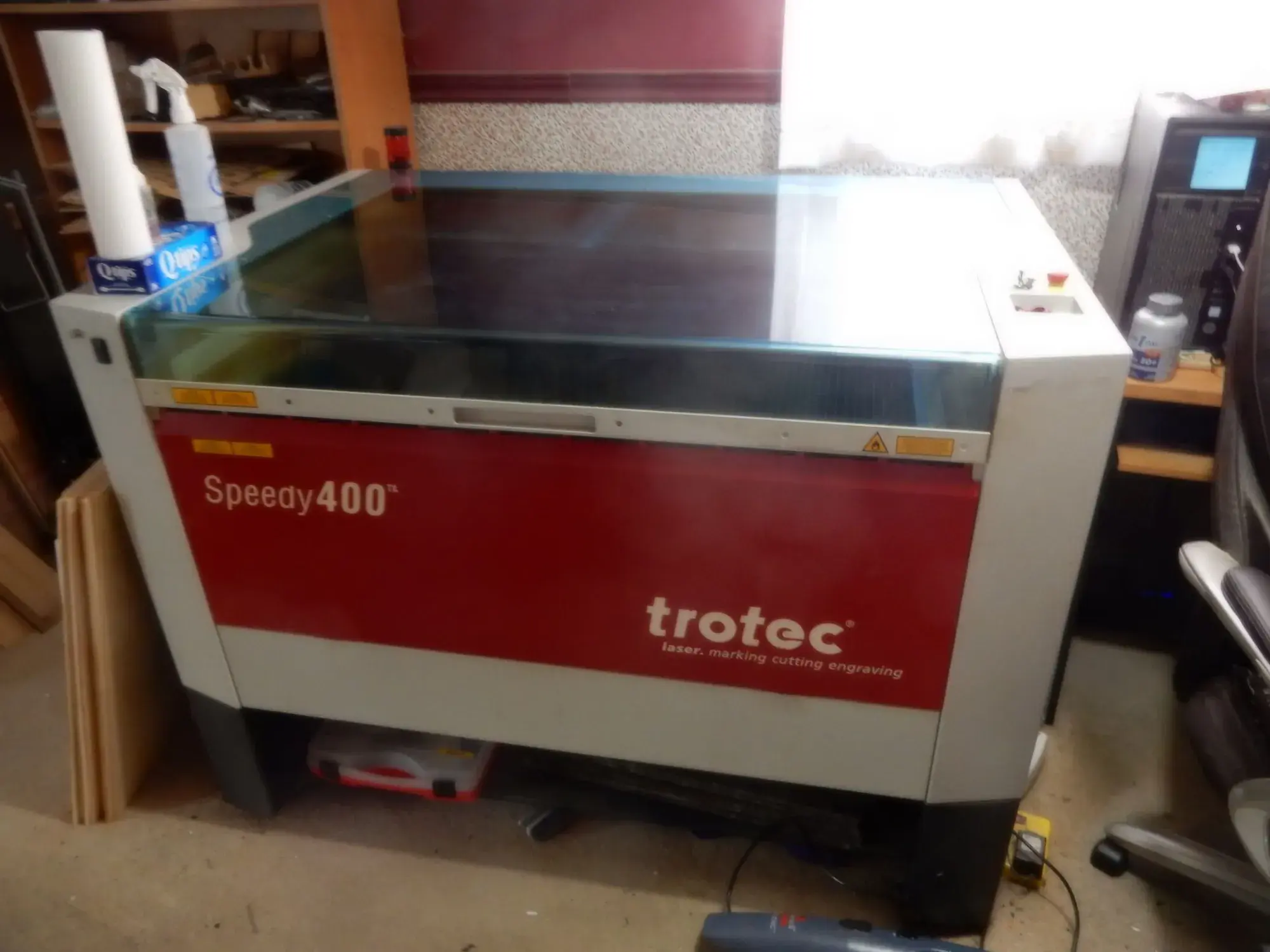

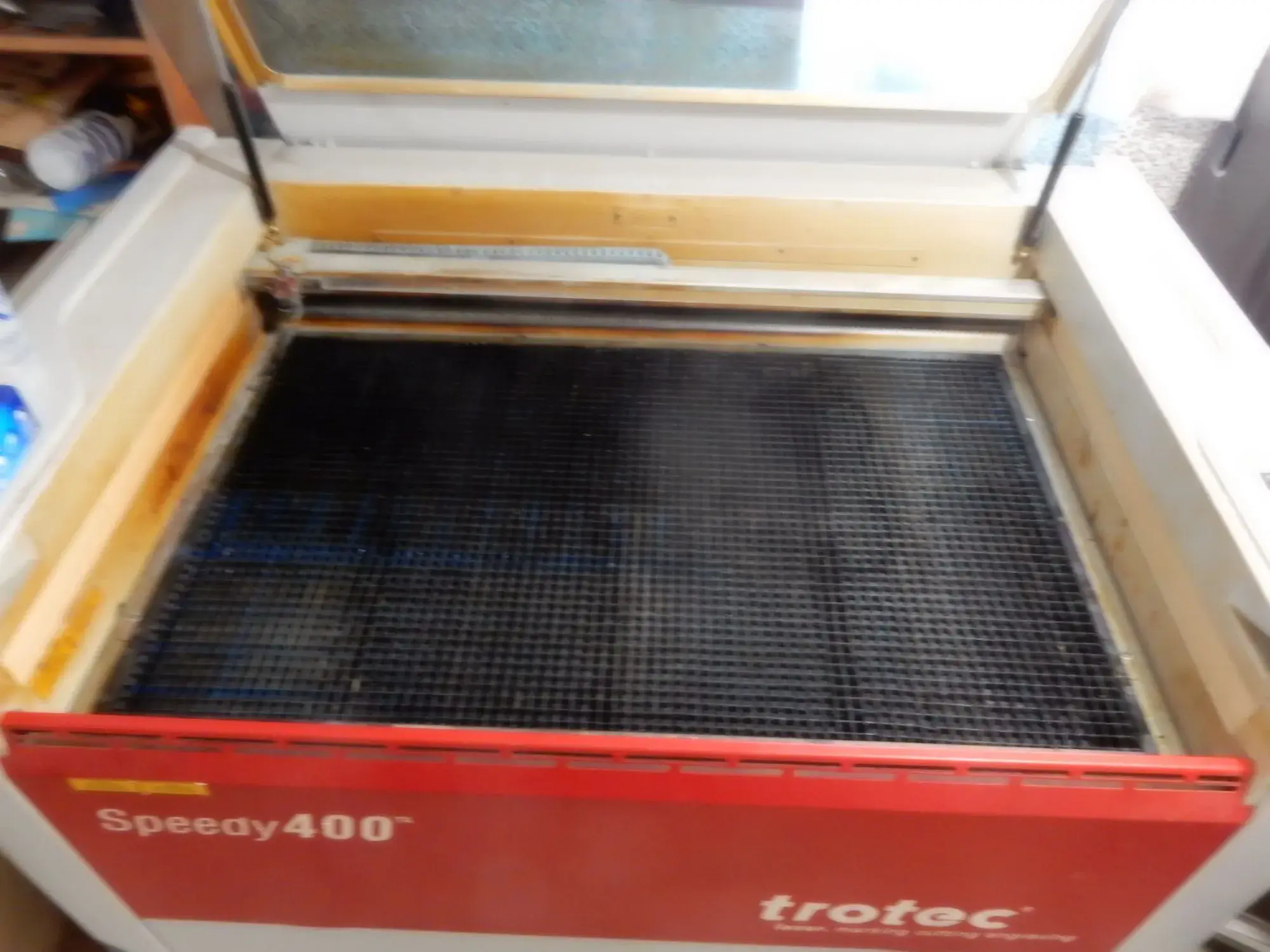

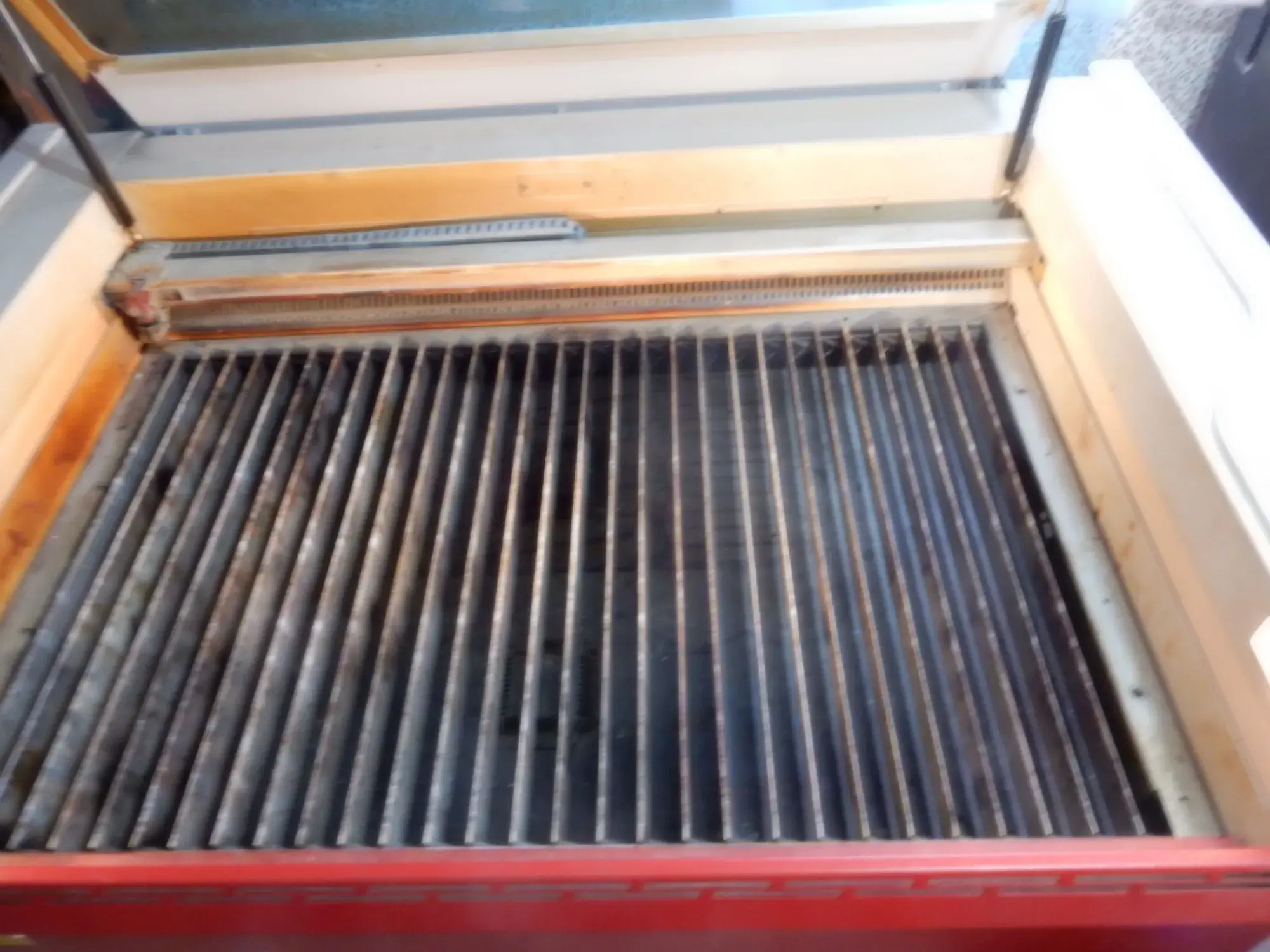

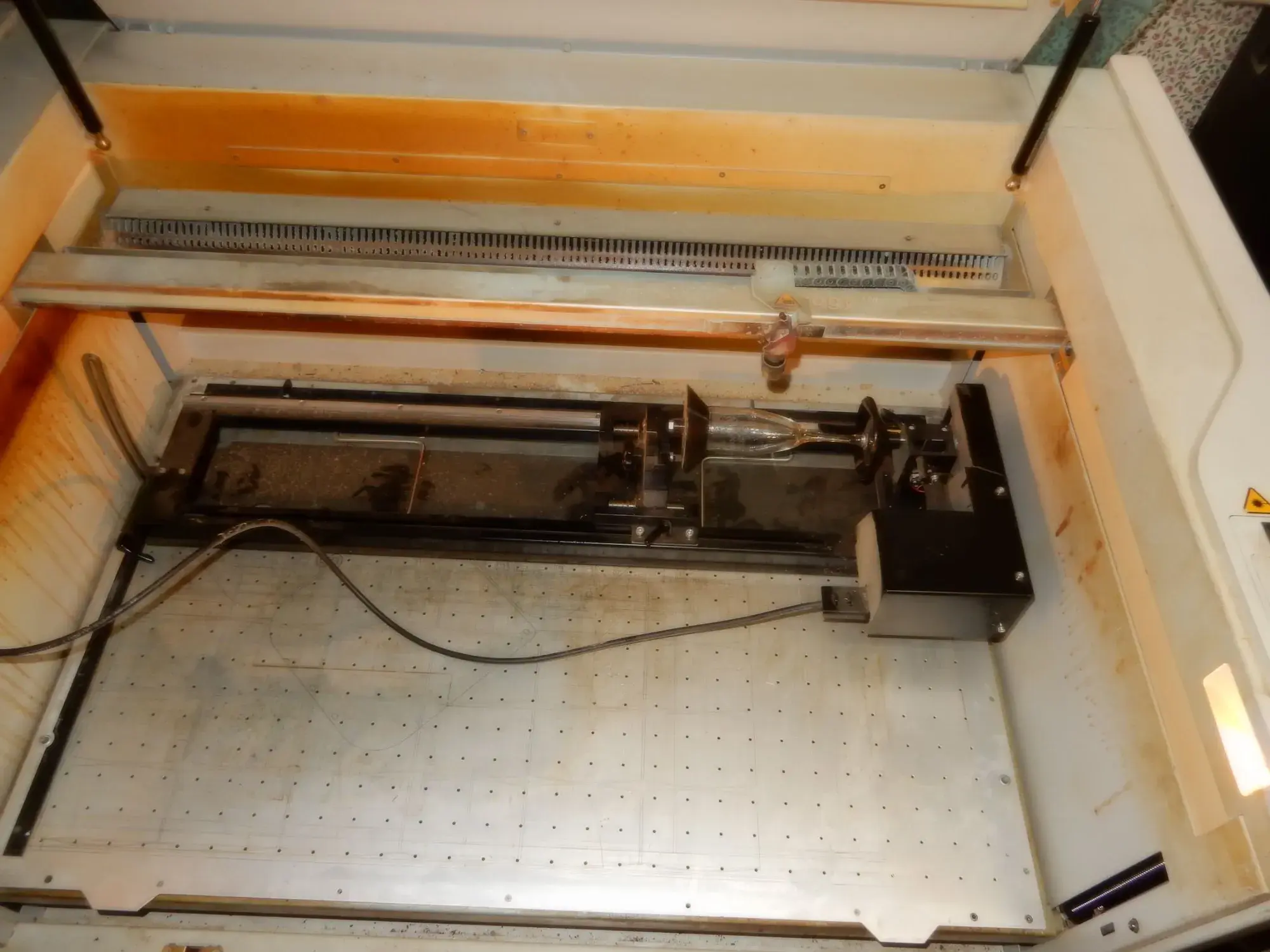

The Trotec Speedy 400 CO laser engraver/cutter is a high-performance system, with this specific unit manufactured in March 2013. It features an 80-watt sealed-off CO laser source operating at a 10.6 m wavelength and is powered by 115V, 50/60Hz electricity. The standard working area measures 1016 x 610 mm (40 x 24 inches), with a maximum workpiece height of 305 mm (12 inches). It utilizes brushless DC servo motors to achieve a maximum processing speed of 4.32 m/s (170 IPS) and acceleration of 50 m/s (1969 IPS). The machine incorporates a multifunctional table concept, including a cutting grid bed, flat bed, and lamella bar bed, to optimize processing for diverse materials such as solid woods, thin films, and acrylics. Optics supplied include 2-inch and 4-inch lenses, and the system is equipped with a rotary engraving attachment for processing cylindrical objects. The machine's overall dimensions are approximately 67 inches wide by 45 inches deep by 42 inches high, with a total weight of approximately 900 lbs.
Used Trotec Speedy 400 (2018) CNC Laser for Sale. This pre-owned Trotec CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Trotec Laser, please feel free to contact us., Max Wattage120 Work Area24" x 39" Max Material ...more
Used Trotec Speedy 400 (2015) Laser for Sale. This air-cooled CO2 system offers a 2′ x 3.33′ table, 80 watts max wattage, and engraving speeds up to 140″/second (3.55 m/s), with maximum workpiece height around 12″ using the 2.0″ lens. Pass-through capability allows oversized material ...more
Working Area & Loading, Working area: 40" × 24", Loading area (standard): 43" × 27.4", Max. height of workpiece:, 12" with 1.5" or 2.0" lens, 11.5" with 2.0" clearance lens, 10" with 4.0" lens, 9.5" with 4.0" clearance lens, 9" with 5.0" fiber lens, Performance, Max. processing speed: 170 ips ...more
