For Sale by Lincotek
Surplus Record Dealer Since 2025
Location: Hickory, NC
Contact Christine Dickerson
Phone Number: 828...> Show Phone Number 828-455-4675
Let the seller know you found their listing on Surplus Record!
$4,000 USD
Description

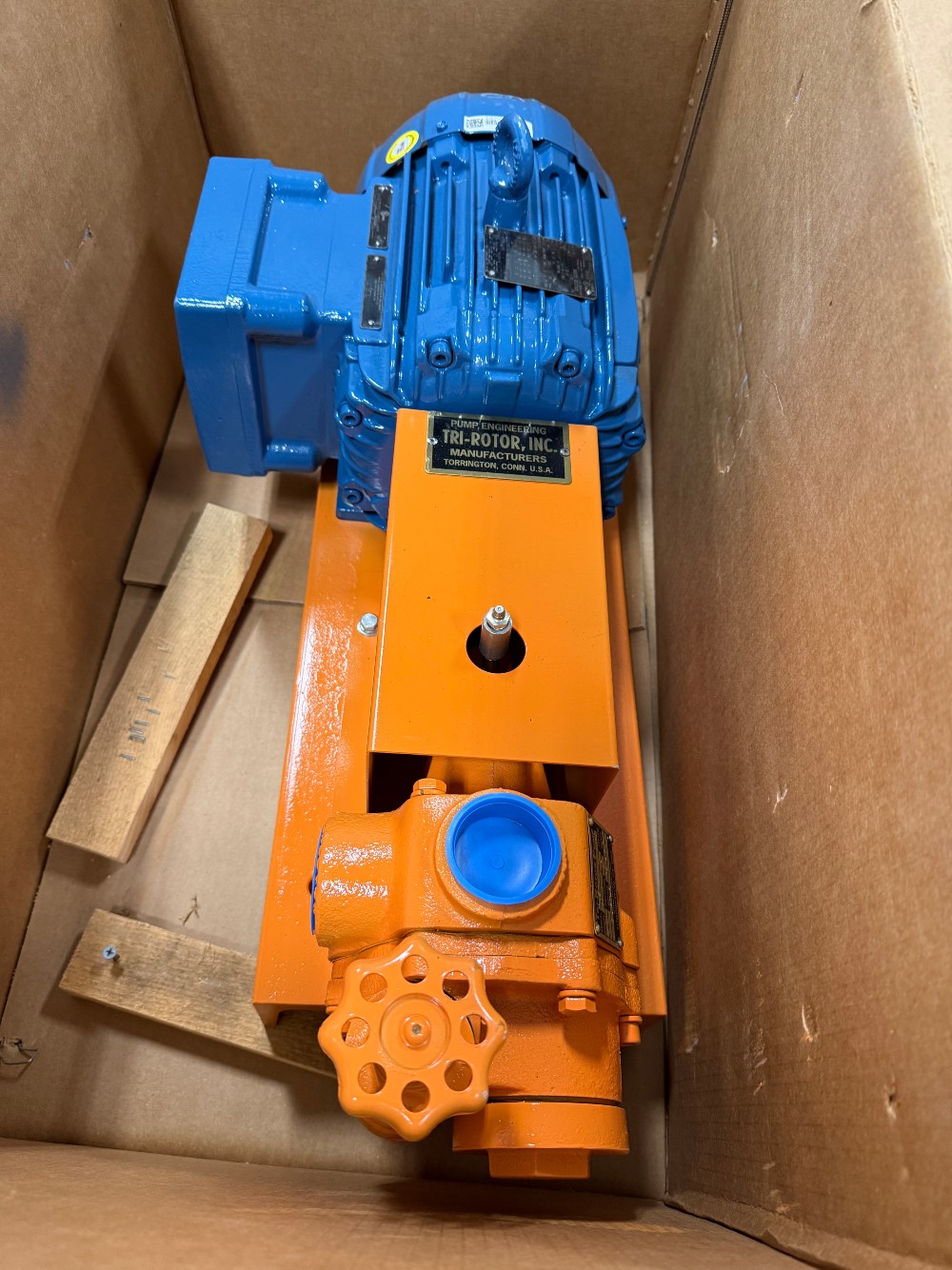

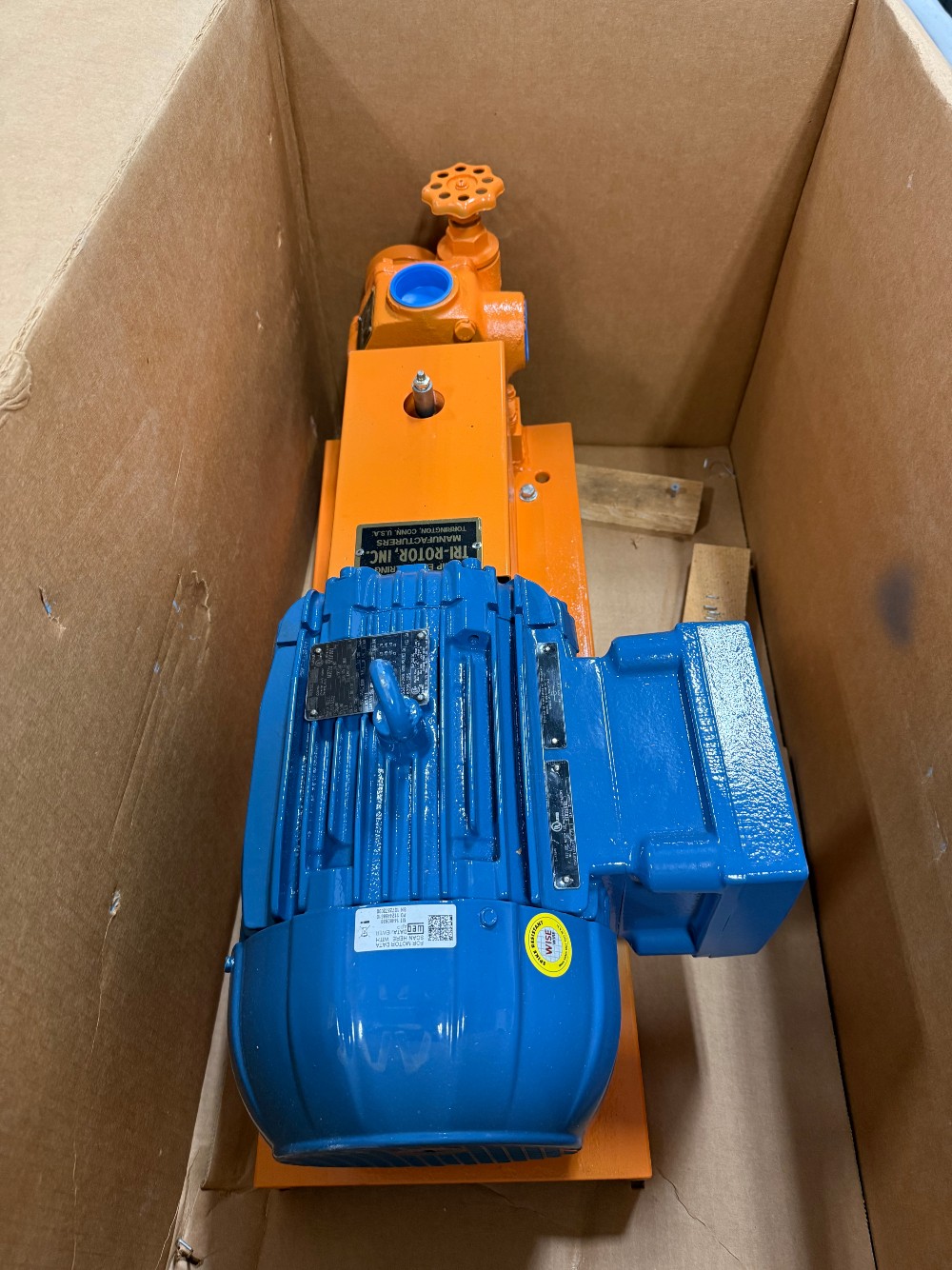

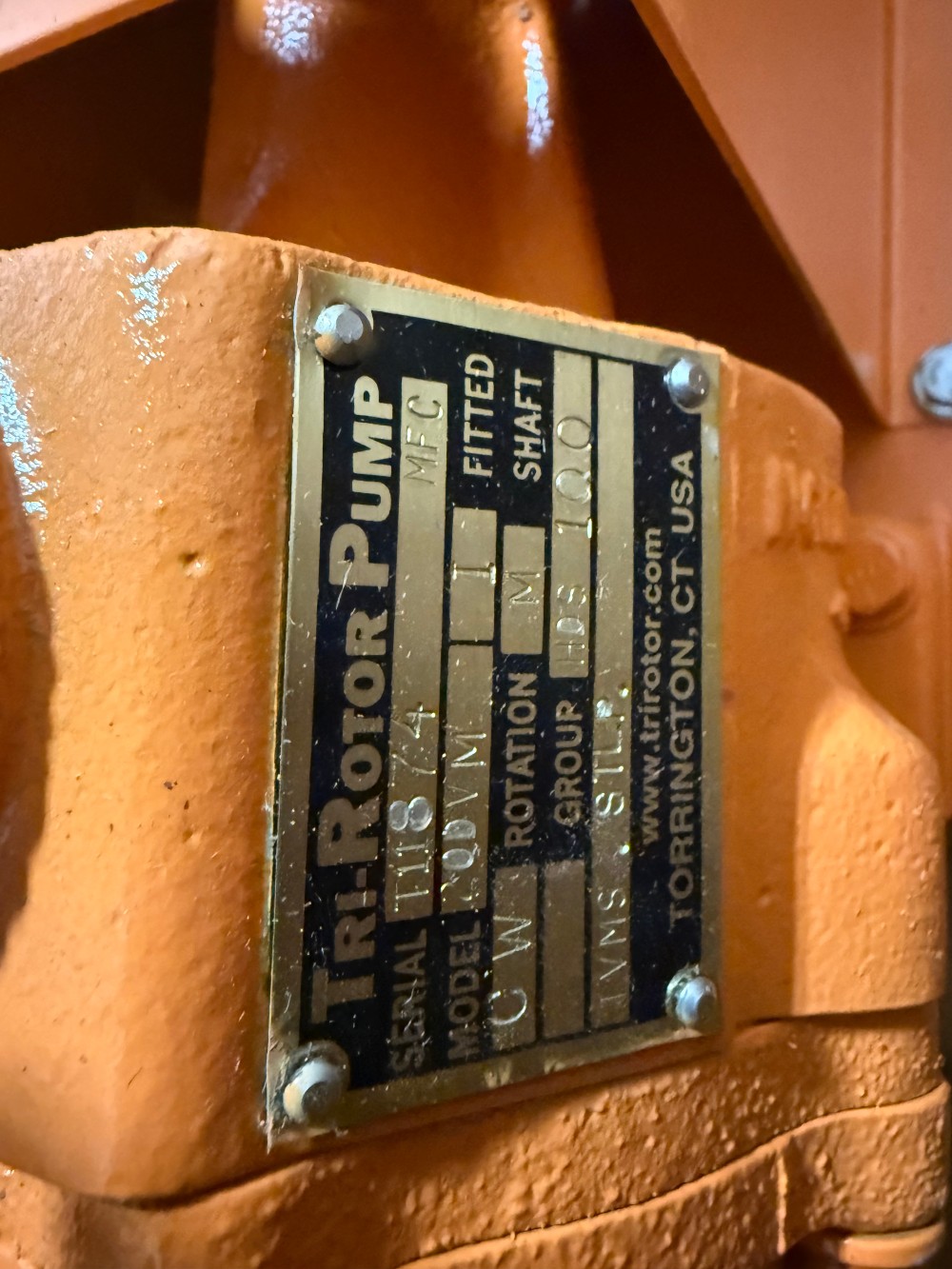

TRI-ROTOR MODEL 20DV VARIABLE VOLUME CONTROL HEAD PUMP, IN IRON FITTED CONSTRUCTION, 1-1/2 INCH NPT
PORTS, AUTOMATIC & MANUAL VARIABLE VOLUME CONTROL WITH MANUAL FLOW CONTROL (MFC), HEAVY DUTY SPRING
SET AT 100 PSI, STEEL PISTON AND TYPE I MECHANICAL SEAL # VITON-A/CARBON/304SS
SPECIFY ROTATION CW [CLOCKWISE]
WHEN ORDERING [AS VIEWED FROM SHAFT END OF PUMP]
WITH "M" 8-3/8 INCH SHAFT LENGTH (MEASURED FROM CENTERLINE OF PUMP PORT) AND PUMP SHAFT TURNING AT
APPROXIMATELY 1800 RPM.
ITEM II.
MOUNTED IN STYLE "M" CONFIGURATION ON A CHANNEL STEEL BASE, COMPLETE, READY TO RECEIVE MOTOR, WITH
FLEXIBLE CHAIN COUPLING SET, RISER(S), AND GUARD
ITEM III.
ELECTRIC EXPLOSION PROOF MOTOR: 3 HP, 1800 INPUT RPM, 208-230/460 VOLT, 3 PH, 60 HZ, PREMIUM EFFICIENCY,
CLASS I GROUP D, CLASS II GROUP F & G, EXPLOSION PROOF FAN COOLED [XPFC], NEMA FRAME 182T
New condition- Purchased in 2023. We have 3 to sell at $4,000 each.
PORTS, AUTOMATIC & MANUAL VARIABLE VOLUME CONTROL WITH MANUAL FLOW CONTROL (MFC), HEAVY DUTY SPRING
SET AT 100 PSI, STEEL PISTON AND TYPE I MECHANICAL SEAL # VITON-A/CARBON/304SS
SPECIFY ROTATION CW [CLOCKWISE]
WHEN ORDERING [AS VIEWED FROM SHAFT END OF PUMP]
WITH "M" 8-3/8 INCH SHAFT LENGTH (MEASURED FROM CENTERLINE OF PUMP PORT) AND PUMP SHAFT TURNING AT
APPROXIMATELY 1800 RPM.
ITEM II.
MOUNTED IN STYLE "M" CONFIGURATION ON A CHANNEL STEEL BASE, COMPLETE, READY TO RECEIVE MOTOR, WITH
FLEXIBLE CHAIN COUPLING SET, RISER(S), AND GUARD
ITEM III.
ELECTRIC EXPLOSION PROOF MOTOR: 3 HP, 1800 INPUT RPM, 208-230/460 VOLT, 3 PH, 60 HZ, PREMIUM EFFICIENCY,
CLASS I GROUP D, CLASS II GROUP F & G, EXPLOSION PROOF FAN COOLED [XPFC], NEMA FRAME 182T
New condition- Purchased in 2023. We have 3 to sell at $4,000 each.
Inquire Further with Lincotek!
