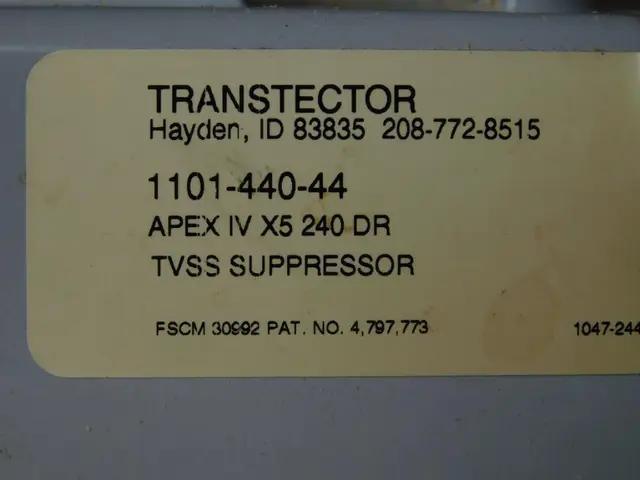

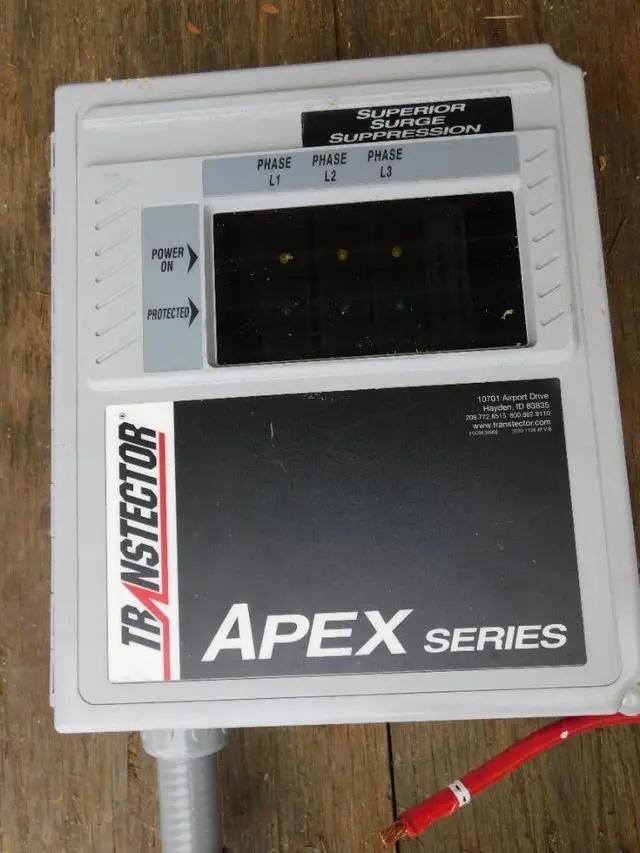

Manufacturer: Transtector
Stock # 85847
1 / 4
Click to zoom in
1 / 4
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Dimensions (L x W x H) | 6.5" x 10.5" x 12.5" |
| Weight | 7.2 pounds |
| Housing Material & Plating | Fiberglass |
Equipped With
Equipped With
SPECIFICATIONS:
Electrical:
* Service Voltages: 240 Vac
* Service Type: 3-Phase Delta
Max. Continuous Operating Voltage (MCOV): 275 Vac
Surge Protection:
Surge Protection Technology: SASD
Protection Modes: L-L
8/20μs Surge Current: 10 kA
Nominal Discharge Current Rating (in): 10kA
Vpl 8/20μs L-N: 660@500A
Response Time: 5ns
SCCR (Short Circuit Current Rating): 65kAIC
Environmental:
Temperature Range (Operational): -30° - 65° C
Humidity: 90% non-condensing

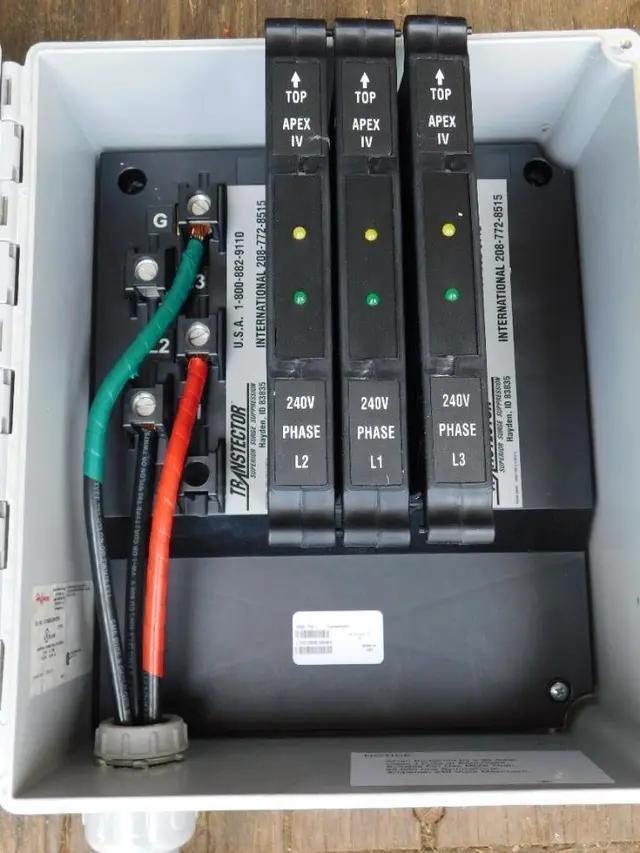

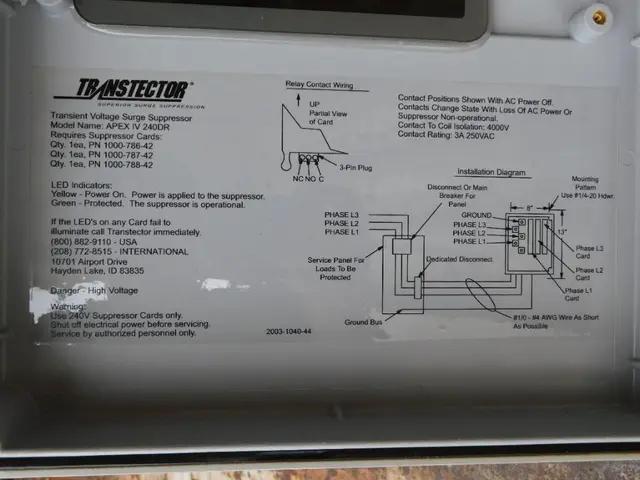

Installation:
Mount Type: Panel
Service Wiring Terminal: #4 - #10 AWG Terminal
Status Indication Terminal: #14-#22 AWG 3-Pin Connector
Electrical:
* Service Voltages: 240 Vac
* Service Type: 3-Phase Delta
Max. Continuous Operating Voltage (MCOV): 275 Vac
Surge Protection:
Surge Protection Technology: SASD
Protection Modes: L-L
8/20μs Surge Current: 10 kA
Nominal Discharge Current Rating (in): 10kA
Vpl 8/20μs L-N: 660@500A
Response Time: 5ns
SCCR (Short Circuit Current Rating): 65kAIC
Environmental:
Temperature Range (Operational): -30° - 65° C
Humidity: 90% non-condensing
Installation:
Mount Type: Panel
Service Wiring Terminal: #4 - #10 AWG Terminal
Status Indication Terminal: #14-#22 AWG 3-Pin Connector
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
Toshiba Electrical Interlock Microswitch For Vac Contactor
Seller: National Switchgear - Parts
Location: Lewisville, TX
Mfr: Toshiba
Manufacturer Toshiba Product Family HCV For Equipment Type HCV MCP Type SWITCH Shipping Width 8 in Shipping Height 8 in Shipping Depth 8 in Shipping Weight 5 lb.
TSI #XUPS-1000A-9080, surge protector, type 3R, 15 amps, #76920
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Tsi
MODEL. XUPS-1000A-9080, TYPE. 3R, INPUT VOLTAGE. 93-136 V, OUTPUT VOLTAGE. 115 PLUS MINUS 8 PERCENT, OUTPUT POWER. 840 W, APPARENT PUTPUT POWER. 840 VA, BATTERY BUS. 24 VDC, 60 A MAX, HERTZ. 60, AMPS. 15.
JUST ADDED!

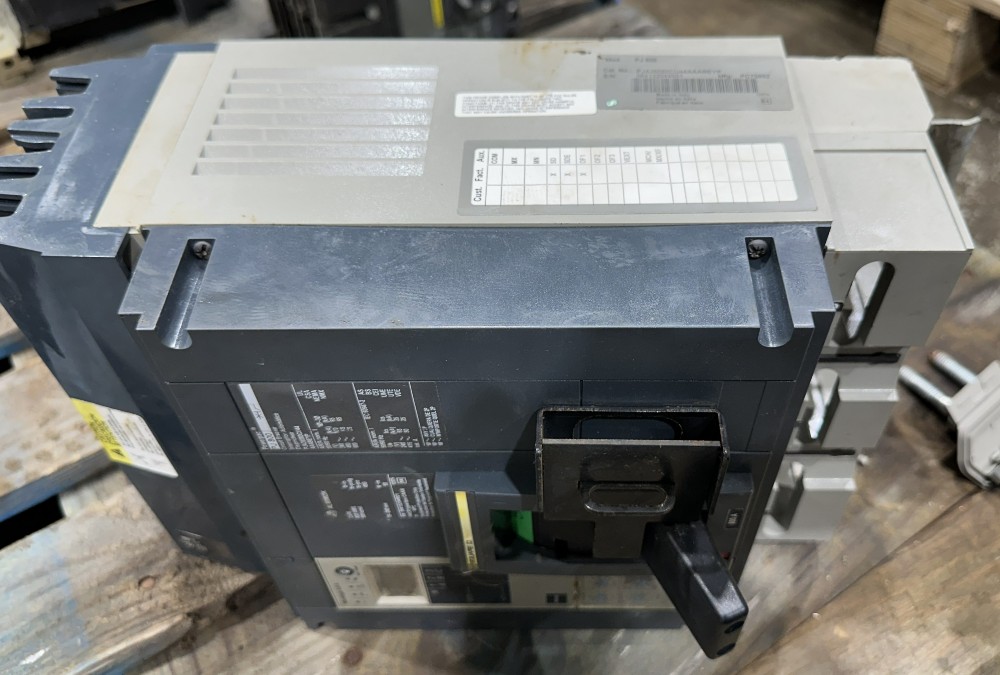

Square D, Powerpact PJ800, 800A Sensor, 3-Pole, 600V MAX., Molded Case Power Breaker
